# hascycles

## Syntax

## Description

## Examples

### Determine Whether Undirected Graph Has Cycles

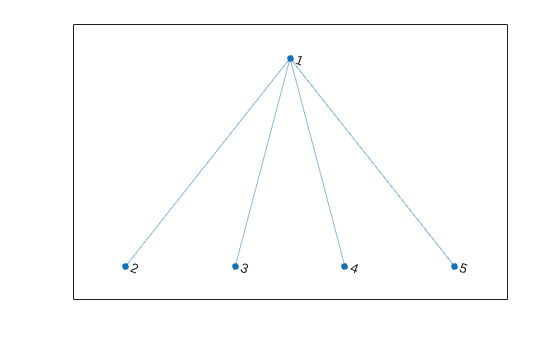

Create and plot an undirected graph.

G = graph([1 1 1 1],[2 3 4 5]); plot(G)

Determine whether the graph has cycles.

tf = hascycles(G)

`tf = `*logical*
0

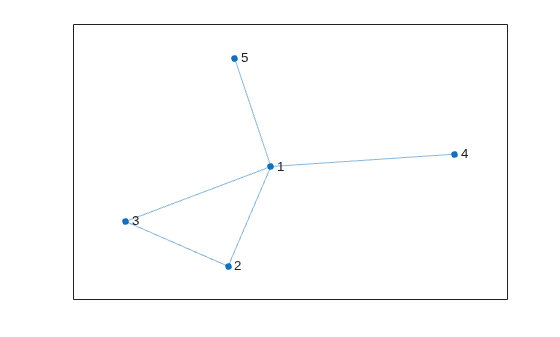

Now add an edge to the graph between node 2 and node 3. Replot the graph.

G = addedge(G,2,3); plot(G)

Determine whether the new graph has cycles.

tf2 = hascycles(G)

`tf2 = `*logical*
1

### Determine Whether Directed Graph Has Cycles

Examine the difference between the `hascycles`

and `isdag`

functions operating on a directed graph.

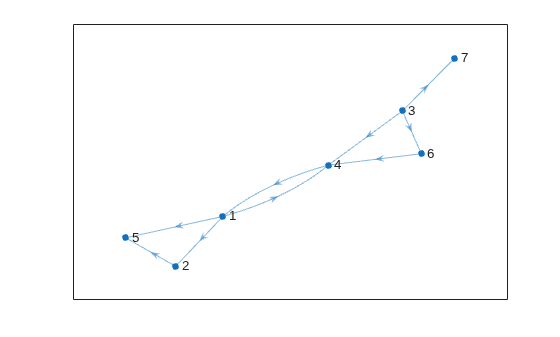

Create and plot a directed graph.

s = [1 1 1 2 3 3 3 4 6]; t = [2 4 5 5 6 7 4 1 4]; G = digraph(s,t); plot(G)

Determine whether the graph contains any cycles.

tf = hascycles(G)

`tf = `*logical*
1

`hascycles`

returns `true`

when a directed graph contains a cycle.

Now, use `isdag`

to determine whether the graph is directed and acyclic.

tf2 = isdag(G)

`tf2 = `*logical*
0

`isdag`

returns `false`

because the graph contains a cycle. In general, the `hascycles`

and `isdag`

functions return opposite results for directed graphs.

## Input Arguments

## More About

### Graph Cycles

A cycle exists in a graph when there is a nonempty path in which only the first and last nodes are repeated. An example of a cycle is: (Node1 - Node2 - Node3 - Node1).

A cycle cannot traverse the same edge twice. For example, the cycle (Node1 - Node2 - Node1) in an undirected graph only exists if there is more than one edge connecting Node1 and Node2. By this definition, self-loops count as cycles, though they cannot be part of any larger cycles.

## Version History

**Introduced in R2021a**

## See Also

`allcycles`

| `cyclebasis`

| `isdag`
