barh
Horizontal bar graph
Syntax
Description
barh(___,
specifies the
fraction of available space occupied by each bar. For example, width
)barh(y,1)
makes the bars in each group touch each other. Specify width
as the last
argument in any of the previous syntaxes.
barh(___,
specifies the
style of the bar groups. For example, style
)barh(y,'stacked')
stacks the bars
within each group into a multicolored bar.
barh(___,
specifies a single
color for all the bars. For example, color
)barh(y,'red')
displays red
bars.
barh(___,
specifies
properties of the bar graph using one or more name-value pair arguments. Only bar graphs
that use the default Name,Value
)'grouped'
or 'stacked'
style
support setting bar properties. Specify the name-value pair arguments after all other input
arguments. For a list of properties, see Bar Properties.
barh(
displays the bar
graph in the target axes. Specify the axes as the first argument in any of the previous
syntaxes.ax
,___)
Examples
Display One Series of Bars
Create a vector of four values. Display the values in a bar graph with one horizontal bar for each value.

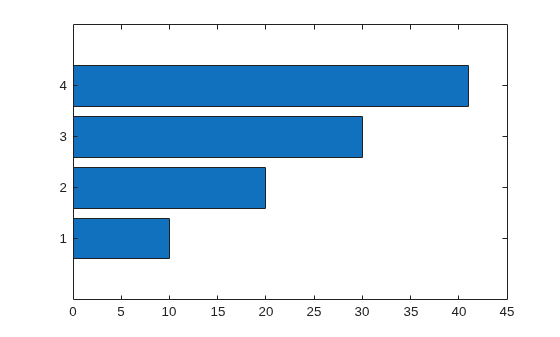

y = [10 20 30 41]; barh(y)
Display Four Series of Bars with Axis Labels and Legend
Define x
as a matrix of three year values. Define y
as a matrix containing snowfall data for four cities. Display the four series of bars in groups for each year. Then add the axis labels and a legend.
x = [1980 1990 2000]; y = [40 50 63 52; 42 55 50 48; 30 20 44 40]; barh(x,y) xlabel('Snowfall') ylabel('Year') legend({'Springfield','Fairview','Bristol','Jamesville'})
Specify Bar Locations as String Vector
Since R2023b
Create a string vector x
containing the names of four bars. Create a numeric vector y
containing the lengths of the bars. Then create a bar chart of x
and y
.
x = ["Spring" "Summer" "Autumn" "Winter"]; y = [1 2 3 4]; barh(x,y)
Change Baseline Value
Create matrix y
. Then display the values of y
in a bar graph with a baseline value of 25
. Values that are less than 25
display on the left side of the baseline.
y = [8 15 33; 30 35 40; 50 55 62];

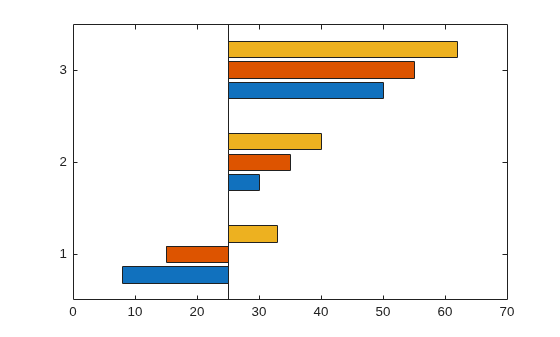

barh(y,'BaseValue',25)
Display Stacked Bars with Negative Data
Define x
as a vector of three year values. Define y
as a matrix that contains a combination of negative and positive values. Display the values in a stacked horizontal bar graph.
x = [1980 1990 2000];
y = [15 20 -5; 10 -17 21; -10 5 15];

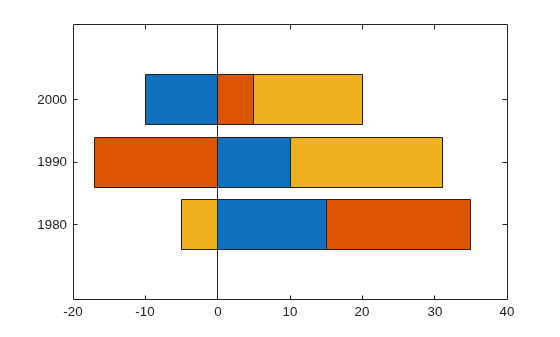

barh(x,y,'stacked')
Customize Vertical Axis Tick Labels
Define y
as a vector of four values, and display the values in a horizontal bar graph. Then call the yticklabels
function to change the tick labels on the vertical axis.
y = [10 20 30 41]; barh(y) yticklabels({'April','May','June','July'})
Specify Categorical Data
One way to indicate categories for your bars is to specify X
as a categorical array. The barh
function uses a sorted list of the categories, so the bars might display in a different order than you expect. To preserve the order, call the reordercats
function.
Define X
as categorical array, and call the reordercats
function to specify the order for the bars. Then define Y
as a vector of bar lengths and display the bar graph.

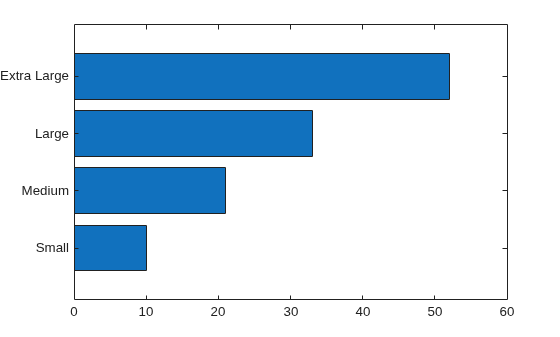

X = categorical({'Small','Medium','Large','Extra Large'}); X = reordercats(X,{'Small','Medium','Large','Extra Large'}); Y = [10 21 33 52]; barh(X,Y)
Create Bar Labels
Since R2024b
Create a matrix vals
that contains two series of data. Display the data in a horizontal bar graph and specify an output argument. Because there are two series, barh
returns a vector of two Bar
objects.

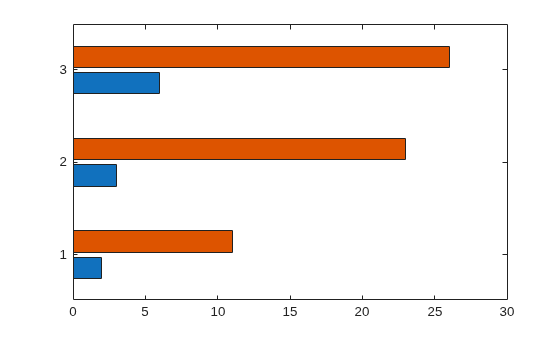

x = [1 2 3]; vals = [2 3 6; 11 23 26]; b = barh(x,vals);
Display the bar values, stored in the YData
property, at the tips of the first series of bars.
b(1).Labels = b(1).YData;
Then label the second series of bars in the same way.
b(2).Labels = b(2).YData;
Create Bar Labels Using text
Function
As an alternative to using the Labels
property to specify bar labels, you can use the text
function to create the labels and position them using the XEndPoints
and YEndPoints
properties.
Create a matrix vals
that contains two series of data. Display the data in a horizontal bar graph and specify an output argument. Because there are two series, barh
returns a vector of two Bar
objects.
x = [1 2 3]; vals = [2 3 6; 11 23 26]; b = barh(x,vals);
Display the bar values at the tips of the first series of bars. Get the coordinates of the tips of the bars by getting the XEndPoints
and YEndPoints
properties of the first Bar
object. Because horizontal bar graphs have rotated axes, switch the values of XEndPoints
and YEndPoints
before passing them to the text
function. Add a padding value of 0.3
to YEndpoints
so that the text does not touch the edges of the bars. Then call the text
function to display the labels.
xtips1 = b(1).YEndPoints + 0.3; ytips1 = b(1).XEndPoints; labels1 = string(b(1).YData); text(xtips1,ytips1,labels1,'VerticalAlignment','middle')
Next, follow the same steps to display the values at the tips of the second series of bars.
xtips2 = b(2).YEndPoints + 0.3; ytips2 = b(2).XEndPoints; labels2 = string(b(2).YData); text(xtips2,ytips2,labels2,'VerticalAlignment','middle')
Specify Bar Thickness and Color
Create and display data in a horizontal bar graph that has red bars with a thickness of 0.4
.
y = [10 22 30 42];
width = 0.4;
barh(y,width,'red');
Customize One Series of Bars
Create matrix y
in which each column is a series of data. Then display the data in a bar graph, specifying an output argument when calling the barh
function. In this case, barh
returns a vector of three Bar
objects. Each object corresponds to a different series.
y = [10 15 20; 30 35 40; 50 55 62]; b = barh(y);
Modify the second series of bars to be green with thick red edges.
b(2).FaceColor = [.2 .6 .5]; b(2).EdgeColor = [.63 .08 .18]; b(2).LineWidth = 2;
Compare Different Bar Styles
Create and display data in two different bar graphs using the default 'grouped'
style and the 'stacked'
style.
x = [1980 1990 2000]; y = [8 15 25; 30 35 40; 50 55 62]; % Grouped tiledlayout(2,1); ax1 = nexttile; barh(ax1,x,y) title('Grouped Style') % Stacked ax2 = nexttile; barh(ax2,x,y,'stacked') title('Stacked Style')
Input Arguments
x
— Vertical axis coordinates
scalar | vector | matrix | string array | cell array of character vectors
Vertical axis coordinates, specified as a scalar, vector, matrix, string array, or
cell array of character vectors. The values of x
do not need to be in
order, but the size of x
depends on the size of y
and how you want to display your data. This table describes the most common
situations.
Presentation | How to Specify X and Y | Example |
---|---|---|
Display one series of bars. | Specify |
x = [1980 1990 2000]; y = [10 20 30]; barh(x,y)
|
Display multiple series of bars in groups. | Specify either of these combinations:
| x = [1980 1980 1980 1990 1990 1990]; y = [2 6 9 11 22 32]; barh(x,y) x = [1980 1990]; y = [2 6 9 11 22 32]; barh(x,y)
|
Display one group of bars centered at one x
value. | Specify |
x = 1990; y = [10 20 30]; barh(x,y)
|
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| categorical
| datetime
| duration
| string
(since R2023b) | cell
(since R2023b)
y
— Bar lengths
scalar | vector | matrix
Bar lengths, specified as a scalar, vector, or matrix. The size of
y
depends on the size of x
and how you want to
display your data. This table describes the most common situations.
Presentation | How to Specify X and Y | Example |
---|---|---|
Display one series of bars. | Specify |
x = [1980 1990 2000]; y = [10 20 30]; barh(x,y)
|
Display multiple series of bars in groups. | Specify either of these combinations:
| x = [1980 1980 1980 1990 1990 1990]; y = [2 6 9 11 22 32]; barh(x,y) x = [1980 1990]; y = [2 6 9 11 22 32]; barh(x,y)
|
Display one group of bars centered at one x
value. | Specify |
x = 1990; y = [10 20 30]; barh(x,y)
|
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| duration
width
— Bar thickness
0.8
(default) | scalar
Bar thickness, specified as a fraction of the total space available for each bar.
The default of 0.8
means each bar uses 80% of the space from the
previous bar to the next bar, with 10% of empty space on either side.
If the thickness is 1
, then the bars within a group touch one
another.
Example: barh([1 2 3],0.5)
creates bars that use 50% of the
available space.
style
— Group style
'grouped'
(default) | 'stacked'
| 'hist'
| 'histc'
Group style, specified by one of these values.
Style | Result | Example |
---|---|---|
| Display each group as adjacent bars that are centered around the
corresponding |
|
| Display each group as one multicolored bar. The length of a bar is the sum of the elements in the group. If |
|
| Display the bars in histogram format, in which the bars in a group
touch one another. The trailing edge of each group is aligned with the
corresponding Note A better way to display a horizontal histogram is to call the |
|
| Display the bars in histogram format. Each group is centered at the
corresponding Note A better way to display a horizontal histogram is to call the |
|
color
— Bar color
color name | short name
Bar color, specified as one of the options in this table.
Color Name | Short Name | Appearance |
---|---|---|
'red' | 'r' |
|
'green' | 'g' |
|
'blue' | 'b' |
|
'cyan'
| 'c' |
|
'magenta' | 'm' |
|
'yellow' | 'y' |
|
'black' | 'k' |
|
'white' | 'w' |
|
ax
— Target axes
Axes
object
Target axes, specified as an Axes
object. If you do not specify
the axes, then the bar graph displays in the current axes.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: barh([10 20 30],'EdgeColor','g')
specifies a green outline
around the bars.
Note
The properties listed here are only a subset. For a complete list, see Bar Properties.
You can set these properties only on bar graphs that use the default
'grouped'
or'stacked'
style.
EdgeColor
— Outline color
'flat'
| RGB triplet | hexadecimal color code | 'r'
| 'g'
| 'b'
| ...
Outline color, specified as 'flat'
, an RGB triplet, a hexadecimal
color code, a color name, or a short name. If there are 150 bars or fewer, the default
value is [0 0 0]
, which corresponds to black. If there are more than
150 adjacent bars, the default value is 'none'
.
Starting in R2017b, the 'flat'
option uses the
CData
values to color the edges. In previous releases, the
'flat'
option colored the edges using colors from the
colormap.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Example: b = bar(1:10,'EdgeColor','red')
Example: b.EdgeColor = [0 0.5 0.5];
Example: b.EdgeColor = 'flat';
Example: b.EdgeColor = '#D2F9A7';
FaceColor
— Fill color
'flat'
| RGB triplet | hexadecimal color code | 'r'
| 'g'
| 'b'
| ...
Fill color, specified as 'flat'
, an RGB triplet, a hexadecimal
color code, a color name, or a short name. The 'flat'
option uses the
CData
property value of the Bar
object to
color the faces.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Starting in R2017b, the default value is an RGB triplet from the
ColorOrder
property of the axes. In previous releases, the
default value was 'flat'
and the colors were based on the
colormap.
Example: b = bar(1:10,'FaceColor','red')
Example: b.FaceColor = [0 0.5 0.5];
Example: b.FaceColor = 'flat';
Example: b.FaceColor = '#D2F9A7';
LineWidth
— Width of bar outlines
0.5
(default) | positive value
Width of bar outlines, specified as a positive value in point units. One point equals 1/72 inch.
Example: 1.5
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
BaseValue
— Baseline value
0
(default) | numeric scalar value
Baseline value, specified as a numeric scalar value.
The baseline value that you specify applies to either the x-axis
or the y-axis depending on the bar chart orientation.
If you change the orientation of the bar chart from vertical to horizontal,
or vice versa, the baseline value might change. Set the BaseValue
property
after setting the Horizontal
property.
Output Arguments
b
— Bar
objects
Bar
objects
Bar
objects. Use the elements in
b
to access and modify properties of a specific Bar
object after it has been created. The number of
Bar
objects depends on the size of y
. If
y
is a vector, then b
is one Bar
object. If y
is a matrix, then
b
is a vector containing a Bar
object for each series in y
.
More About
Series of Bars
A series consists of the bars at all locations in X
for a particular set of data. By default, each series of bars is indicated by a different
color.
Group of Bars
A group consists of all the bars at a particular location in
X
.
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The barh
function
supports GPU array input with these usage notes and limitations:
This function accepts GPU arrays, but does not run on a GPU.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
Usage notes and limitations:
This function operates on distributed arrays, but executes in the client MATLAB.
For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2023b: Specify bar labels as string vectors or cell arrays of character vectors
When you create a horizontal bar chart, you can specify the bar labels as a string vector or cell array of character vectors. The bar tick labels appear in the order you specify them.
See Also
Functions
Properties
Topics
External Websites
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
