bar3

3-D bar graph

•

Syntax

bar3(z)

bar3(y,z)

bar3(___,width)

bar3(___,style)

bar3(___,color)

bar3(ax,___)

b = bar3(___)

Description

bar3(z) creates a 3-D bar graph for the elements of z. Each bar corresponds to an element in z.

• To plot a single series of bars, specify z as a vector. For a vector of length m, the function plots the bars on a y-axis ranging from 1 to m.

• To plot multiple series of bars, specify z as a matrix with one column for each series. For an m-by-n matrix, the function plots the bars on an x-axis ranging from 1 to n and a y-axis ranging from 1 to m.

bar3(y,z) creates a bar graph of the elements in z at the y-values specified in y. If z is a matrix, elements from the same row in z appear at the same location along the y-axis.

bar3(___,width) sets the width of the bars along the x- and y-axes and controls the separation of bars within a group. By default, width is 0.8 and the bars have a slight separation. If width is 1, the bars within a group touch one another.

bar3(___,style) specifies the style of the bars, where style can be 'detached', 'grouped', or 'stacked'. The default mode of display is 'detached'.

bar3(___,color) displays all bars using the color specified by color. For example, use 'r' to specify all red bars.

bar3(ax,___) plots into the axes specified by ax instead of into the current axes (gca). The option ax can precede any of the input argument combinations in the previous syntaxes.

b = bar3(___) returns one or more Surface objects. If z is a vector, then bar3 creates one Surface object. If z is a matrix, then bar3 returns a Surface object for each series. Use b to set properties of the bars after displaying the bar graph. For a list of properties, see Surface Properties.

Examples

Create 3-D Bar Graph from Vector Data

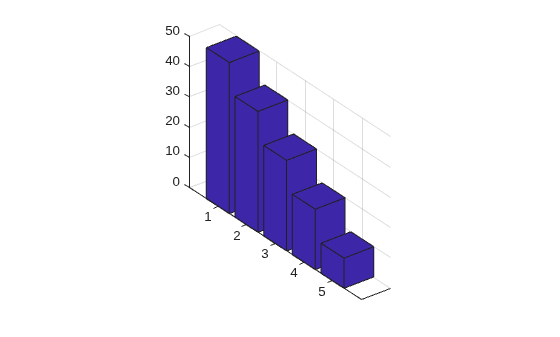

Specify z as a vector of five values. Plot these values as a series of 3-D bars, with the height of each bar corresponding to a value in z and its y-axis location corresponding to the index of that value.

z = [50 40 30 20 10];
bar3(z);

Create 3-D Bar Graph from Matrix Data

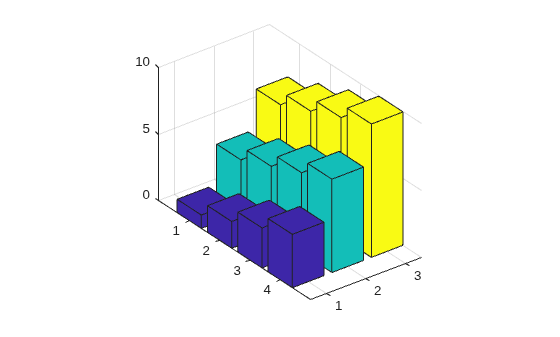

Specify z as a matrix. Create a 3-D bar graph of z with each series corresponding to a column in z.

z = [1 4 7; 2 5 8; 3 6 9; 4 7 10];
bar3(z)

Specify Bar Locations

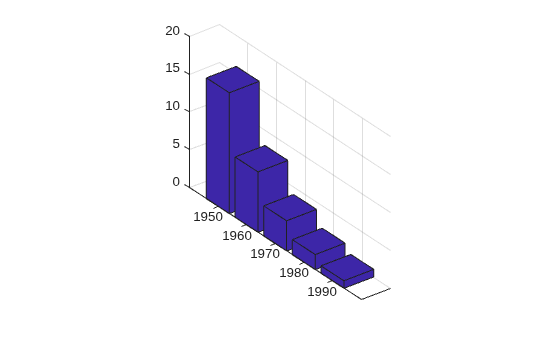

Specify y as a vector of y-axis locations for the bars in z. Plot the bars at the specified y-axis locations.

y = [1950 1960 1970 1980 1990];
z = [16 8 4 2 1];
bar3(y,z)

Specify Bar Width and Style

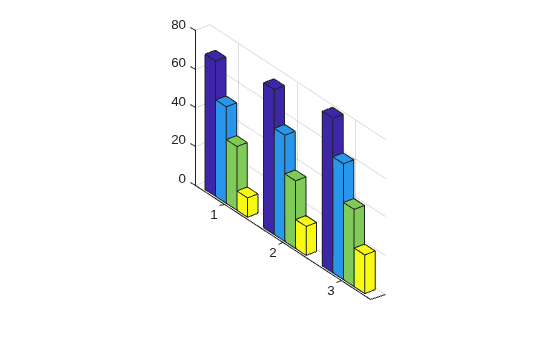

Specify z as a matrix with three series. Plot z with the data for each row grouped together by using the 'grouped' style. To eliminate space between bars of the same group, set width to 1.

z = [70 50 33 10; 75 55 35 15; 80 60 40 20];
bar3(z,1,'grouped')

Specify Bar Color

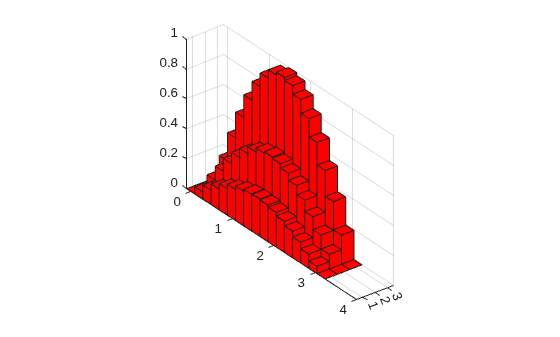

Create a set of y-coordinates ranging from 0 to $\pi$. Plot sine functions of the y-values as a 3-D bar graph. Use the color specification 'r' to make the bars red.

y = 0:pi/16:pi;
z = [sin(y')/4 sin(y')/2 sin(y')];
bar3(y,z,1,'r')

Customize Series Colors

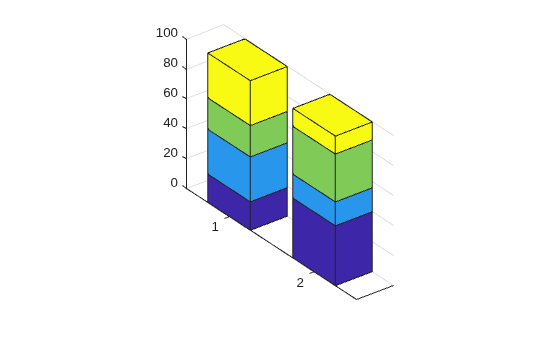

Plot data matrix z with the bar style 'stacked' and bar width 0.5. Store the returned Surface objects as b. In this case, b has 4 elements, with one for each column in z.

Note that bar3 colors each series based on the default colormap.

z = [19 30 21 30; 40 16 32 12];
b = bar3(z,0.5,'stacked');

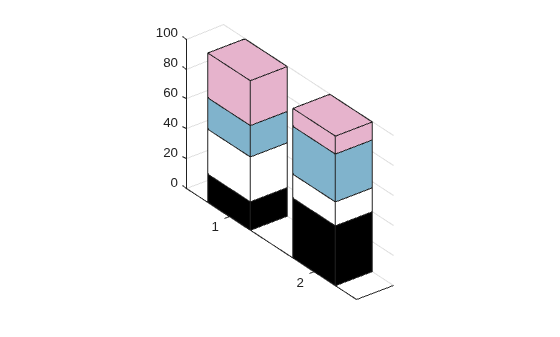

Customize the color of each series by setting the FaceColor of the corresponding object in b.

b(1).FaceColor = 'k';
b(2).FaceColor = 'white';
b(3).FaceColor = [.5 .7 .8];
b(4).FaceColor = [.9 .7 .8];

Specify Target Axes

You can display a tiling of plots using the tiledlayout and nexttile functions. Call the tiledlayout function to create a 1-by-2 tiled chart layout. Call the nexttile function to create the axes objects ax1 and ax2. Create separate line plots in the axes by specifying the axes object as the first argument to bar3.

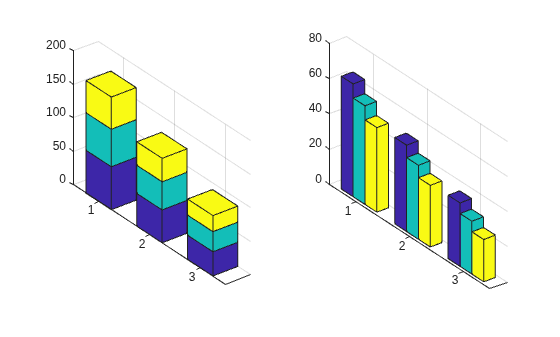

Display a stacked 3-D bar graph in the left axes. In the right axes, display a grouped bar graph of the same data.

tiledlayout(1,2)
z = [64 56 48; 49 42 35; 36 30 24];

% Left bar graph
ax1 = nexttile;
bar3(ax1,z,0.5,'stacked')

% Right bar graph
ax2 = nexttile;
bar3(ax2,z,1,'grouped')

Input Arguments

z — z-coordinates

vector | matrix

z-coordinates, specified as a vector or matrix. The dimensions of z determine how the function displays your data. This table describes the most common situations.

Presentation	How to Specify Y and Z	Example	Result
Display one series of bars.	Specify y and z as vectors that are the same length. The values in y must be unique, but the values in z do not need to be unique. Alternatively, specify just the z values.	Define vectors y and z, then create a 3-D bar chart. y = [1 2 3 4]; z = [10 20 30 40]; bar3(y,z) Alternatively, specify just the z values. bar3(z)
Display multiple series of bars stacked along the x-axis.	Specify y as a vector and z as a matrix. The number of elements in y must match the number of rows in z. Alternatively, specify just the z matrix.	Define vector y and matrix z, then create a 3-D bar chart with three series of bars. y = [1 2 3 4]; z = [1 5 9; 2 6 10; 3 7 11; 4 8 12]; bar3(y,z) Alternatively, specify just the z values. bar3(z)

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | duration

y — y-coordinates

vector

y-coordinates, specified as a vector. The values of y do not need to be in order, but the size of y depends on the size of z and how you want to display your data. This table describes the most common situations.

Presentation	How to Specify Y and Z	Example	Result
Display one series of bars.	Specify y and z as vectors that are the same length. The values in y must be unique, but the values in z do not need to be unique. Alternatively, specify just the z values.	Define vectors y and z, then create a 3-D bar chart. y = [1 2 3 4]; z = [10 20 30 40]; bar3(y,z) Alternatively, specify just the z values. bar3(z)
Display multiple series of bars stacked along the x-axis.	Specify y as a vector and z as a matrix. The number of elements in y must match the number of rows in z. Alternatively, specify just the z matrix.	Define vector y and matrix z, then create a 3-D bar chart with three series of bars. y = [1 2 3 4]; z = [1 5 9; 2 6 10; 3 7 11; 4 8 12]; bar3(y,z) Alternatively, specify just the z values. bar3(z)

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | categorical | datetime | duration

width — Bar width

0.8 (default) | scalar

Bar width, specified as a scalar representing a fraction of the total space available for each bar. The default of 0.8 means the bar width is 80% of the space from the previous bar to the next bar, with 10% of that space on each side. If the width is 1, then the bars within a group touch one another.

Example: bar3([1 2 3],0.5) creates bars that use 50% of the available space.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

style — Group style

'detached' (default) | 'grouped' | 'stacked'

Group style, specified as 'detached', 'grouped', or 'stacked'. The group style determines how multiple series of bars display with respect to one another. If z is a vector, style does not affect graph appearance.

This table shows the result of each group style option.

Group Style	Result	Example
'detached'	Display each bar at its corresponding x and y value location.
'grouped'	Display each group as adjacent bars that are centered around their corresponding y value.
'stacked'	Display each group as one multicolored bar. The length of a bar is the sum of the elements in the group.

color — Bar color

color name | short name

Bar color, specified as one of the options in this table.

Color Name	Short Name	Appearance
'red'	'r'
'green'	'g'
'blue'	'b'
'cyan'	'c'
'magenta'	'm'
'yellow'	'y'
'black'	'k'
'white'	'w'

ax — Axes object

axes object

Axes object. If you do not specify an axes, then bar3 uses the current axes for the bar graph.

Output Arguments

b — Displayed bars

vector of Surface objects

Displayed bars, returned as a vector of Surface objects. Use the elements in b to access and modify properties of a specific series of bars after it has been created. The number of Surface objects returned depends on the size of z. If z is a vector, then b is one Surface object. If z is a matrix, then b is a vector containing a Surface object for each column in z.

More About

Series of Bars

A series of bars consists of all the bars that correspond to a specific column in z. The bar3 function displays each series at a different location along the x-axis. By default, each series is a different color.

In the following image, the first series is highlighted.

Group of Bars

A group consists of all the bars at a particular y location.

In the following image, the third group is highlighted.

Tips

• The plotted bars can be modified by altering the properties of the returned Surface objects. For a list of Surface properties, see Surface Properties.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The bar3 function supports GPU array input with these usage notes and limitations:

• This function accepts GPU arrays, but does not run on a GPU.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function operates on distributed arrays, but executes in the client MATLAB^®.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a

R2022b: Expanded data type support

The y argument now accepts numeric, datetime, duration, and categorical values. The z argument accepts numeric and duration values. In previous releases, only numeric values were supported.
