translatecov

Translate parameter covariance across model transformation operations

Syntax

sys_new = translatecov(fcn,sys)
sys_new = translatecov(fcn,Input1,...,InputN)


Description

sys_new = translatecov(fcn,sys) transforms sys into sys_new = fcn(sys), and translates the parameter covariance of sys to the parameter covariance of the transformed model. fcn is a transformation function that you specify. The command computes the parameter covariance of sys_new by applying the Gauss Approximation formula. To view the translated parameter covariance, use getcov.

Applying model transformations directly does not always translate the parameter covariance of the original model to that of the transformed model. For example, d2c(sys) does not translate the parameter covariance of sys. In contrast, translatecov(@(x)d2c(x),sys) produces a transformed model that has the same coefficients as d2c(sys) and has the translated parameter covariance of sys.

sys_new = translatecov(fcn,Input1,...,InputN) returns the model sys_new = fcn(Input1,...,InputN) and its parameter covariance. At least one of the N inputs must be a linear model with parameter covariance information.

Input Arguments

fcn	Model transformation function, specified as a function handle. For single-input functions, sys_new = fcn(sys). The input to fcn must be an identified model with parameter covariance information. Typical single-input transformation operations include: Model-type conversion, such as idpoly and idss. For example, fcn = @(x)idpoly(x) converts the model x to a polynomial model. Sample time conversion, such as c2d and d2c. For example, fcn = @(x)c2d(x,Ts) converts the continuous-time model x to discrete-time using the specified sample time Ts. For multi-input functions, sys_new = fcn(Input1,..InputN). At least one of the input arguments Input1,...,InputN must be an identified model with parameter covariance information. Typical multi-input operations include merging and concatenation of multiple models. For example, fcn = @(x,y)[x,y] performs horizontal concatenation of the models x and y.
sys	Linear model with parameter covariance information, specified as one of the following model types: idtf idproc idss idpoly idgrey The model must contain parameter covariance information, that is getcov(sys) must be nonempty.
Input1,...,InputN	Multiple input arguments to the translation function fcn. At least one of the N inputs must be a linear identified model with parameter covariance information. The other inputs can be any MATLAB® data type. For an example, see Translate Parameter Covariance to Closed-Loop Model.

Output Arguments

sys_new

Model resulting from transformation operation. The model includes parameter covariance information.

Examples

Translate Parameter Covariance During Model Conversion

Convert an estimated transfer function model into state-space model while also translating the estimated parameter covariance.

Estimate a transfer function model.

load iddata1
sys1 = tfest(z1,2);

Convert the estimated model to state-space form while also translating the estimated parameter covariance.

sys2 = translatecov(@(x)idss(x),sys1);

If you convert the transfer function model to state-space form directly, the estimated parameter covariance is lost (the output of getcov is empty).

sys3 = idss(sys1);
getcov(sys3)

ans =

     []

View the parameter covariance in the estimated and converted models.

covsys1 = getcov(sys1);
covsys2 = getcov(sys2);

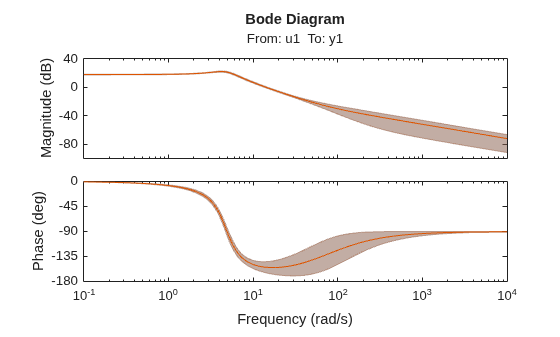

Compare the confidence regions.

h = bodeplot(sys1,sys2);
showConfidence(h,2);

The confidence bounds for sys1 overlaps with sys2.

Translate Parameter Covariance During Model Concatenation

Concatenate 3 single-output models such that the covariance data from the 3 models combine to produce the covariance data for the resulting model.

Construct a state-space model.

a = [-1.1008 0.3733;0.3733 -0.9561];
b = [0.7254 0.7147;-0.0631 -0.2050];
c = [-0.1241 0; 1.4897 0.6715; 1.4090 -1.2075];
d = [0 1.0347; 1.6302 0; 0.4889 0];
sys = idss(a,b,c,d,'Ts',0);

Generate multi-output estimation data.

t = (0:0.01:0.99)';
u = randn(100,2);
y = lsim(sys,u,t,'zoh');
y = y +  rand(size(y))/10;
data = iddata(y,u,0.01);

Estimate a separate model for each output signal.

m1 = ssest(data(:,1,:),2,'feedthrough',true(1,2), 'DisturbanceModel', 'none');
m2 = ssest(data(:,2,:),2,'feedthrough',true(1,2), 'DisturbanceModel', 'none');
m3 = ssest(data(:,3,:),2,'feedthrough',true(1,2), 'DisturbanceModel', 'none');

Combine the estimated models while also translating the covariance information.

f = @(x,y,z)[x;y;z];
M2 = translatecov(f, m1, m2, m3);

The parameter covariance is not empty.

getcov(M2, 'factors')

ans = struct with fields:
       R: [36x36 double]
       T: [24x36 double]
    Free: [90x1 logical]

If you combine the estimated models into one 3-output model directly, the covariance information is lost (the output of getcov is empty).

M1 = [m1;m2;m3];
getcov(M1)

ans =

     []

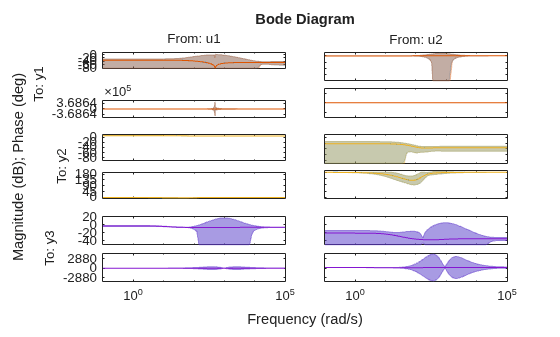

Compare the confidence bounds.

h = bodeplot(M2, m1, m2, m3);
showConfidence(h);

The confidence bounds for M2 overlap with those of m1, m2 and m3 models on their respective plot axes.

Translate Parameter Covariance to Closed-Loop Model

Consider a closed-loop feedback model consisting of a plant and controller. Translate the parameter covariance of the plant to the closed-loop feedback model.

Estimate a plant as a fourth-order state-space model using estimation data z1.

load iddata1 z1
Plant = ssest(z1,4);

Plant contains parameter covariance information.

Create a controller as a continuous-time zero-pole-gain model with zeros, poles, and gain equal to -2, -10, 5, respectively.

Controller = zpk(-2,-10,5);

Define a transformation function to generate the closed-loop feedback state-space model.

fcn = @(x,y)idss(feedback(x,y));

Translate the parameter covariance of the plant to the closed-loop feedback model.

sys_new = translatecov(fcn,Plant,Controller);

sys_new contains the translated parameter covariance information.

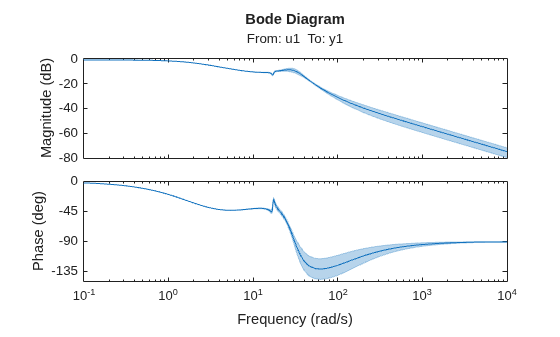

Plot the frequency-response of the transformed model sys_new, and view the confidence region of the response.

h = bodeplot(sys_new);
showConfidence(h);

The plot shows the effect of the uncertainty in Plant on the closed-loop response.

Tips

• If you obtained sys through estimation and have access to the estimation data, you can use zero-iteration update to recompute the parameter covariance. For example:

  load iddata1
  m = ssest(z1,4);
  opt = ssestOptions
  opt.SearchOptions.MaxIterations = 0;
  m_new = ssest(z1,m2,opt)


  You cannot run a zero-iteration update in the following cases:

  • If MaxIterations option, which depends on the SearchMethod option, is not available.

  • For some model and data types. For example, a continuous-time idpoly model using time-domain data.

Algorithms

translatecov uses numerical perturbations of individual parameters of sys to compute the Jacobian of fcn(sys) parameters with respect to parameters of sys. translatecov then applies Gauss Approximation formula $$cov\_new=J\times \mathrm{cov}\text{× }{J}^T$$ to translate the covariance, where J is the Jacobian matrix. This operation can be slow for models containing a large number of free parameters.

Version History

Introduced in R2012b
