# simsmooth

Bayesian nonlinear non-Gaussian state-space model simulation smoother

*Since R2024a*

## Syntax

## Description

`simsmooth`

provides random paths of states drawn from the
posterior smoothed state distribution, which is the distribution of the states conditioned on
model parameters Θ and the full-sample response data, of a Bayesian nonlinear non-Gaussian
state-space model (`bnlssm`

).

To draw state paths from the posterior smoothed state distribution,
`simsmooth`

uses the nonlinear *forward-filtering,
backward-sampling method* (FFBS), in which it implements sequential Monte Carlo
(SMC) to perform forward filtering, and then it resamples and reweights
*particles* (weighted random samples) generated by SMC to perform
backward sampling.

returns a randomly drawn path of states, simulated from the posterior smoothed state
distribution, by applying the simulation smoother to the input Bayesian nonlinear
non-Gaussian state-space model and responses data. `X`

= simsmooth(`Mdl`

,`Y`

,`params`

)`simsmooth`

uses
FFBS to obtain the random path from the posterior smoothed state distribution.
`simsmooth`

evaluates the parameter map
`Mdl.ParamMap`

by using the input vector of parameter values.

specifies additional options using one or more name-value arguments. For example,
`X`

= simsmooth(`Mdl`

,`Y`

,`params`

,`Name=Value`

)`simsmooth(Mdl,Y,params,NumPaths=1e4,Resample="residual")`

specifies
generating `1e4`

random paths and to resample residuals.

`[`

additionally returns the following quantities using any of the input-argument combinations
in the previous syntaxes:`X`

,`OutputFilter`

,`x0`

] = simsmooth(___)

`OutputFilter`

— SMC forward filtering results by sampling time containing the following quantities:Approximate loglikelihood values associated with the input data, input parameters, particles, and posterior state filtering distribution

Filter estimate of state-distribution means

Filter estimate of state-distribution covariance

State particles and corresponding weights that approximate the filtering distribution

Effective sample size

Flags indicating which data the software used to filter

Flags indicating resampling

`x0`

— Simulation-smoothed initial state, computed only when you request the this output

## Examples

### Draw Path from Posterior Smoothed State Distribution

This example draws a random path from the approximate posterior smoothed state distribution of the Bayesian nonlinear state-space model in equation. The state-space model contains two independent, stationary, autoregressive states each with a model constant. The observations are a nonlinear function of the states with Gaussian noise. The prior distribution of the parameters is flat. Symbolically, the system of equations is

$$\left[\begin{array}{c}{x}_{t,1}\\ {x}_{t,2}\\ {x}_{t,3}\\ {x}_{t,4}\end{array}\right]=\left[\begin{array}{cccc}{\theta}_{1}& {\theta}_{2}& 0& 0\\ 0& 1& 0& 0\\ 0& 0& {\theta}_{3}& {\theta}_{4}\\ 0& 0& 0& 1\end{array}\right]\left[\begin{array}{c}{x}_{t-1,1}\\ {x}_{t-1,2}\\ {x}_{t-1,3}\\ {x}_{t-1,4}\end{array}\right]+\left[\begin{array}{cc}{\theta}_{5}& 0\\ 0& 0\\ 0& {\theta}_{6}\\ 0& 0\end{array}\right]\left[\begin{array}{c}{u}_{t,1}\\ {u}_{t,3}\end{array}\right]$$

$${y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\mu}_{1})+\mathrm{exp}({x}_{t,3}-{\mu}_{3}))+{\theta}_{7}{\epsilon}_{t}.$$

${\mu}_{1}$ and ${\mu}_{3}$ are the unconditional means of the corresponding states. The initial distribution moments of each state are their unconditional mean and covariance.

Create a Bayesian nonlinear state-space model characterized by the system. The observation equation is in equation form, that is, the function composing the states is nonlinear and the innovation series ${\epsilon}_{\mathit{t}}$ is additive, linear, and Gaussian. The Local Functions section contains two functions required to specify the Bayesian nonlinear state-space model: the state-space model parameter mapping function and the prior distribution of the parameters. You can use the functions only within this script.

Mdl = bnlssm(@paramMap,@priorDistribution)

Mdl = bnlssm with properties: ParamMap: @paramMap ParamDistribution: @priorDistribution ObservationForm: "equation" Multipoint: [1x0 string]

`Mdl`

is a `bnlssm`

model specifying the state-space model structure and prior distribution of the state-space model parameters. Because `Mdl`

contains unknown values, it serves as a template for posterior analysis with observations.

Simulate a series of 100 observations from the following stationary 2-D VAR process.

$$\begin{array}{l}{x}_{t,1}=1+0.9{x}_{t-1,1}+0.3{u}_{t,1}\\ {x}_{t,3}=-1-0.75{x}_{t-1,3}+0.2{u}_{t,3},\end{array}$$

where the disturbance series ${\mathit{u}}_{\mathit{t},\mathit{j}}$ are standard Gaussian random variables.

rng(1,"twister") % For reproducibility T = 100; thetatrue = [0.9; 1; -0.75; -1; 0.3; 0.2; 0.1]; MdlSim = varm(AR={diag(thetatrue([1 3]))},Covariance=diag(thetatrue(5:6).^2), ... Constant=thetatrue([2 4])); XSim = simulate(MdlSim,T);

Compose simulated observations using the following equation.

$${y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\underset{}{\overset{\u203e}{x}}}_{1})+\mathrm{exp}({x}_{t,3}-{\underset{}{\overset{\u203e}{x}}}_{3}))+0.1{\epsilon}_{t},$$

where the innovation series ${\epsilon}_{\mathit{t}}$ is a standard Gaussian random variable.

ysim = log(sum(exp(XSim - mean(XSim)),2)) + thetatrue(7)*randn(T,1);

To draw from the approximate posterior smoothed state distribution, the `simsmooth`

function requires response data and a model with known state-space model parameters. Choose a random set with the following constraints:

${\theta}_{1}$ and ${\theta}_{3}$ are within the unit circle. Use $\mathit{U}\left(-1,1\right)$ to generate values.

${\theta}_{2}$ and ${\theta}_{4}$ are real numbers. Use the $\mathit{N}\left(0,{3}^{2}\right)$ distribution to generate values.

${\theta}_{5}$, ${\theta}_{6}$, and ${\theta}_{7}$ are positive real numbers. Use the ${\chi}_{1}^{2}$ distribution to generate values.

theta13 = (-1+(1-(-1)).*rand(2,1)); theta24 = 3*randn(2,1); theta567 = chi2rnd(1,3,1); theta = [theta13(1); theta24(1); theta13(2); theta24(2); theta567];

Draw a random path from the approximate smoothed state posterior distribution by passing the Bayesian nonlinear model, simulated data, and parameter values to `simsmooth`

.

SmoothX = simsmooth(Mdl,ysim,theta); size(SmoothX)

`ans = `*1×2*
100 4

`SmoothX`

is a 100-by-4 matrix containing one path drawn from the approximate posterior smoothed state distribution, with rows corresponding to periods in the sample and columns corresponding to the state variables. The `simsmooth`

function uses the FFBS method (SMC and a bootstrap to resample particles and weights) to obtain draws from the posterior smoothed state distribution.

Draw another path, but specify $\Theta $ used to simulate the data.

SmoothXSim = simsmooth(Mdl,ysim,thetatrue);

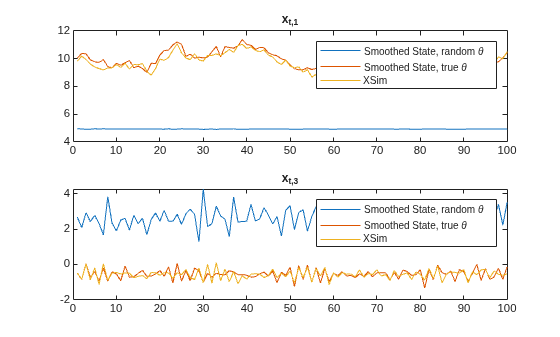

Plot the two paths with the true state values.

figure tiledlayout(2,1) nexttile plot([SmoothX(:,1) SmoothXSim(:,1) XSim(:,1)]) title("x_{t,1}") legend("Smoothed State, random \theta","Smoothed State, true \theta","XSim") nexttile plot([SmoothX(:,3) SmoothXSim(:,3) XSim(:,2)]) title("x_{t,3}") legend("Smoothed State, random \theta","Smoothed State, true \theta","XSim")

The paths using the true value of $\Theta $ and the simulated state paths are close. The paths generated from the random value of $\Theta $ is far from the simulated state paths.

**Local Functions**

These functions specify the state-space model parameter mappings, in equation form, and log prior distribution of the parameters.

function [A,B,C,D,Mean0,Cov0,StateType] = paramMap(theta) A = @(x)blkdiag([theta(1) theta(2); 0 1],[theta(3) theta(4); 0 1])*x; B = [theta(5) 0; 0 0; 0 theta(6); 0 0]; C = @(x)log(exp(x(1)-theta(2)/(1-theta(1))) + ... exp(x(3)-theta(4)/(1-theta(3)))); D = theta(7); Mean0 = [theta(2)/(1-theta(1)); 1; theta(4)/(1-theta(3)); 1]; Cov0 = diag([theta(5)^2/(1-theta(1)^2) 0 theta(6)^2/(1-theta(3)^2) 0]); StateType = [0; 1; 0; 1]; % Stationary state and constant 1 processes end function logprior = priorDistribution(theta) paramconstraints = [(abs(theta([1 3])) >= 1) (theta(5:7) <= 0)]; if(sum(paramconstraints)) logprior = -Inf; else logprior = 0; % Prior density is proportional to 1 for all values % in the parameter space. end end

### Estimate Model Parameters Using Gibbs Sampler

This example shows how to draw from the posterior distribution of smoothed states and model parameters by using a Gibbs sampler. Consider this nonlinear state-space model

$$\begin{array}{l}{x}_{t}=\varphi {x}_{t-1}+\sigma {u}_{t}\\ {y}_{t}\sim Poisson(\lambda {e}^{{x}_{t}}),\end{array}$$

where the parameters in $\Theta =\left\{\varphi ,\sigma ,\lambda \right\}$ have the following priors:

$\varphi \sim {\mathit{N}}_{\left(-1,1\right)}\left({\mathit{m}}_{0},{\mathit{v}}_{0}^{2}\right)$, that is, a truncated normal distribution with $\varphi \in \left[-1,1\right]$.

${\sigma}^{2}\sim \mathrm{IG}\left({\mathit{a}}_{0},{\mathit{b}}_{0}\right)$, that is, an inverse gamma distribution with shape ${\mathit{a}}_{0}$ and scale ${\mathit{b}}_{0}$.

$\lambda \sim \mathrm{Gamma}\left({\alpha}_{0},{\beta}_{0}\right)$, that is, a gamma distribution with shape ${\alpha}_{0}$ and scale ${\beta}_{0}$.

**Simulate Series**

Consider this data-generating process (DGP).

$$\begin{array}{l}{x}_{t}=0.7{x}_{t-1}+\sqrt{0.2}{u}_{t}\\ {y}_{t}\sim Poisson(3{e}^{{x}_{t}}),\end{array}$$

where the series ${\mathit{u}}_{\mathit{t}}$ is a standard Gaussian series of random variables.

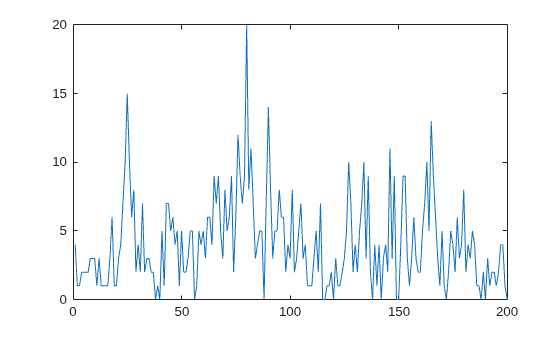

Simulate a series of 200 observations from the process.

rng(500,"twister") % For reproducibility T = 200; thetaDGP = [0.7; 0.2; 3]; numparams = numel(thetaDGP); MdlXSim = arima(AR=thetaDGP(1),Variance=thetaDGP(2), ... Constant=0); xsim = simulate(MdlXSim,T); y = random("poisson",thetaDGP(3)*exp(xsim)); figure plot(y)

**Create Bayesian Nonlinear Model**

The Local Functions section contains the functions `paramMap`

and `logPrior`

required to specify the Bayesian nonlinear state-space model. The `paramMap`

function specifies the state-space model structure and initial state moments (chosen arbitrarily). The `priorDistribution`

function returns the log of the joint prior distribution of the state-space model parameters. You can use the functions only within this script.

Create a Bayesian nonlinear state-space model for the DGP. Indicate that the state-space model observation equation is expressed as a distribution. To speed up computations, the arguments `A`

and `LogY`

of the `paramMap`

function are written to enable simultaneous evaluation of the transition and observation densities of multiple particles. Specify this characteristic by using the `Multipoint`

name-value argument.

Mdl = bnlssm(@paramMap,@priorDistribution,ObservationForm="distribution", ... Multipoint=["A" "LogY"]);

**Perform Gibbs Sampling**

A Gibbs sampler is an Markov chain Monte Carlo method for drawing a sample from the joint posterior distribution of parameters. It successively draws from the full conditional distributions of the states and model parameters, one at a time; results of previous draws are substituted, which enables the Markov chains to explore the parameter space.

The full conditional distribution of the states is the posterior of the smoothed state distribution, which `simsmooth`

computes. The remaining full conditionals are:

$\pi \left(\varphi |\mathit{x},\mathit{y},{\sigma}^{2},\lambda \right)\sim {\mathit{N}}_{\left(-1,1\right)}\left({\mathit{m}}_{\varphi},{\mathit{v}}_{\varphi}^{2}\right)$, where ${\mathit{m}}_{\varphi}=\frac{{\mathit{v}}_{0}^{2}{\sum}_{\mathit{t}=2}^{\mathit{T}}{\mathit{x}}_{\mathit{t}}{\mathit{x}}_{\mathit{t}-1}+{\sigma}^{2}{\mathit{m}}_{0}}{{\mathit{v}}_{0}^{2}{\sum}_{\mathit{t}=2}^{\mathit{T}}{\mathit{x}}_{\mathit{t}-1}^{2}+{\sigma}^{2}}$ and${\mathit{v}}_{\varphi}^{2}=\frac{{\sigma}^{2}{\mathit{v}}_{0}^{2}}{{\mathit{v}}_{0}^{2}{\sum}_{\mathit{t}=2}^{\mathit{T}}{\mathit{x}}_{\mathit{t}-1}^{2}+{\sigma}^{2}}$.

$\pi \left({\sigma}^{2}|\mathit{x},\mathit{y},\varphi ,\lambda \right)\sim \mathrm{IG}\left({\mathit{a}}_{{\sigma}^{2}},{\mathit{b}}_{{\sigma}^{2}}\right)$, where ${\mathit{a}}_{{\sigma}^{2}}={\mathit{a}}_{0}+\frac{\mathit{T}-1}{2}$ and ${\mathit{b}}_{{\sigma}^{2}}=\frac{{\mathit{b}}_{0}}{{1+0.5\mathit{b}}_{0}{\sum}_{\mathit{t}=2}^{\mathit{T}}{\left({\mathit{x}}_{\mathit{t}}{-\varphi \mathit{x}}_{\mathit{t}-1}\right)}^{2}}$.

$\pi \left(\lambda |\mathit{x},\mathit{y},\varphi ,{\sigma}^{2}\right)\sim \mathrm{Gamma}\left({\alpha}_{\lambda},{\beta}_{\lambda}\right)$, where ${\alpha}_{\lambda}={\alpha}_{0}+{\sum}_{\mathit{t}=1}^{\mathit{T}}{\mathit{y}}_{\mathit{t}}$ and ${\beta}_{\lambda}=\frac{{\beta}_{0}}{1+{\beta}_{0}{\sum}_{\mathit{t}=1}^{\mathit{T}}{\mathit{e}}^{{\mathit{x}}_{\mathit{t}}}}$.

You can view the joint posterior distribution $\pi \left(\varphi ,{\sigma}^{2}|\mathit{x},\mathit{y},\lambda \right)$ as the semiconjugate Bayesian linear regression model ${\mathit{z}}_{\mathit{t}}={\varphi \mathit{w}}_{\mathit{t}}+{\mathit{v}}_{\mathit{t}}$, where the response series ${\mathit{z}}_{\mathit{t}}=\left\{{\mathit{x}}_{2},...,{\mathit{x}}_{\mathit{T}}\right\}$, predictor series ${\mathit{w}}_{\mathit{t}}=\left\{{\mathit{x}}_{1},...,{\mathit{x}}_{\mathit{T}-1}\right\}$, and the error series ${\mathit{v}}_{\mathit{t}}\sim \mathit{N}\left(0,{\sigma}^{2}\right)$. If you view the problem this way, you can speed up sampler. During sampling, you can reject any $\varphi $ draws outside its support.

The Local Functions section contains the following functions:

`phiFC`

— Draws from $\pi \left(\varphi |\mathit{x},\mathit{y},{\sigma}^{2},\lambda \right)$`sigma2FC`

— Draws from $\pi \left({\sigma}^{2}|\mathit{x},\mathit{y},\varphi ,\lambda \right)$`lambdaFC`

— Draws from $\pi \left(\lambda |\mathit{x},\mathit{y},\varphi ,{\sigma}^{2}\right)$

Conduct the Gibbs sampler. Draw a sample of 2000 from the full conditional distributions. Draw 1500 particles for each call of `simsmooth`

. Perform rejection sampling at a maximum of 50 iterations. This example chooses the initial conditions arbitrarily.

nGibbs = 2000; Gibbs = zeros(T+numparams,nGibbs); % Preallocate for state and parameter draws numparticles = 1500; maxiterations = 50; % Initial values % theta theta0 = [0.5; 0.1; 2]; % pi(phi,sigma2) hyperparameters m0 = 0; v02 = 1; a0 = 1; b0 = 1; MdlBLM = semiconjugateblm(1,Intercept=0,Mu=m0,V=v02, ... A=a0,B=b0); % lambda hyperparameters alpha0 = 3; beta0 = 1; hyperparams = [m0 v02 a0 b0 alpha0 beta0]; % Prepare wait bar dialog box wb = waitbar(0,"1",Name="Running Gibbs Sampler ...", ... CreateCancelBtn="setappdata(gcbf,Canceling=true)"); setappdata(wb,Canceling=false); % Gibbs sampler theta = theta0; for j = 1:nGibbs % Press Cancel in the dialog to break. if getappdata(wb,"Canceling") fprintf("Gibbs sampler canceled") break end waitbar(j/nGibbs,wb,sprintf("Draw %d of %d",j,nGibbs)); Gibbs(1:T,j) = simsmooth(Mdl,y,theta,NumParticles=numparticles, ... MaxIterations=maxiterations); [Gibbs(T+1,j),Gibbs(T+2,j)] = blmFC(Gibbs(1:T,j),MdlBLM,theta); Gibbs(T+3,j) = lambdaFC(Gibbs(1:T,j),y,hyperparams); theta = Gibbs(T+(1:3),j); end delete(wb)

**Describe $\pi \left(\Theta |\mathit{y}\right)$**

To reduce the influence of initial conditions on the sample, remove the first 50 draws from the Gibbs sample. To reduce the influence of serial correlation in the sample, thin the sample by keeping every fourth draw.

burnin = 50; thin = 4; pphi = Gibbs(T+1,burnin:thin:end); psigma2 = Gibbs(T+2,burnin:thin:end); plambda = Gibbs(T+3,burnin:thin:end);

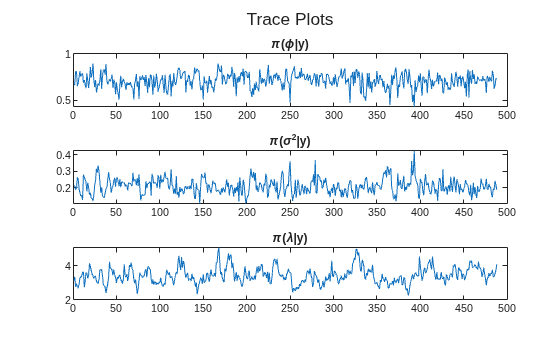

Plot trace plots of the Gibbs sampler.

figure h = tiledlayout(3,1); nexttile plot(pphi) title("\pi(\phi|y)") nexttile plot(psigma2) title("\pi(\sigma^2|y)") nexttile plot(plambda) title("\pi(\lambda|y)") title(h,"Trace Plots")

The trace plots show that the Markov chains are mixing adequately.

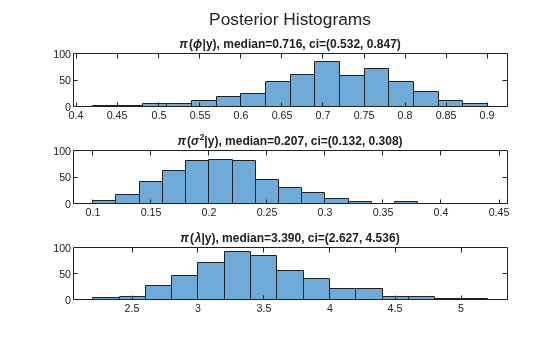

Summarize the posterior distributions by computing sample medians and 95% percentile intervals of the processed posterior draws. Plot histograms of the posterior distributions of the model parameters.

mphi = median(pphi); ciphi = quantile(pphi,[0.025 0.975]); msigma2 = median(psigma2); cisigma2 = quantile(psigma2,[0.025 0.975]); mlambda = median(plambda); cilambda = quantile(plambda,[0.025 0.975]); figure h = tiledlayout(3,1); nexttile histogram(pphi) title(sprintf("\\pi(\\phi|y), median=%.3f, ci=(%.3f, %.3f)",mphi,ciphi)) nexttile histogram(psigma2) title(sprintf("\\pi(\\sigma^2|y), median=%.3f, ci=(%.3f, %.3f)",msigma2,cisigma2)) nexttile histogram(plambda) title(sprintf("\\pi(\\lambda|y), median=%.3f, ci=(%.3f, %.3f)",mlambda,cilambda)) title(h,"Posterior Histograms")

The posterior medians are close to their DGP counterparts.

**Local Functions**

These functions specify the state-space model parameter mappings, in distribution form, the log prior distribution of the parameters, and random draws from full conditional distribution of each parameter.

function [A,B,LogY,Mean0,Cov0,StateType] = paramMap(theta) A = theta(1); B = sqrt(theta(2)); LogY = @(y,x)y.*x - exp(x).*theta(3); Mean0 = 0; Cov0 = 2; StateType = 0; % Stationary state process end function logprior = priorDistribution(theta,hyperparams) % Prior of phi m0 = hyperparams(1); v20 = hyperparams(2); pphi = makedist("normal",mu=m0,sigma=sqrt(v20)); pphi = truncate(pphi,-1,1); lpphi = log(pdf(pphi,theta(1))); % Prior of sigma2 a0 = hyperparams(3); b0 = hyperparams(4); lpsigma2 = -a0*log(b0) - log(gamma(a0)) + (-a0-1)*log(theta(2)) - ... 1./(b0*theta(2)); % Prior of lambda alpha0 = hyperparams(5); beta0 = hyperparams(6); plambda = makdist("gamma",alpha0,beta0); lplambda = log(pdf(plambda,theta(3))); logprior = lpphi + lpsigma2 + lplambda; end function [phi,sigma2] = blmFC(x,mdl,theta) % Reject sampled phi when it is outside the unit circle while true phi = simulate(mdl,x(1:end-1),x(2:end),Sigma2=theta(2)); if abs(phi) < 1 break end end [~,sigma2] = simulate(mdl,x(1:(end-1)),x(2:end),Beta=theta(1)); end function [lambda,alpha,beta] = lambdaFC(x,y,hyperparams) alpha0 = hyperparams(5); beta0 = hyperparams(6); alpha = sum(y) + alpha0; beta = beta0./(beta0*sum(exp(x))+1); lambda = gamrnd(alpha,beta,1); end

### Monitor Underlying Sampling Procedures

`simsmooth`

runs SMC to forward filter the state-space model, which includes resampling particles. To assess the quality of the sample, including whether any posterior filtered state distribution is close to degenerate, you can monitor these algorithms by returning the third output of `smooth`

.

Consider this nonlinear state-space model.

$$\left[\begin{array}{c}{x}_{t,1}\\ {x}_{t,2}\\ {x}_{t,3}\\ {x}_{t,4}\end{array}\right]=\left[\begin{array}{cccc}{\theta}_{1}& {\theta}_{2}& 0& 0\\ 0& 1& 0& 0\\ 0& 0& {\theta}_{3}& {\theta}_{4}\\ 0& 0& 0& 1\end{array}\right]\left[\begin{array}{c}{x}_{t-1,1}\\ {x}_{t-1,2}\\ {x}_{t-1,3}\\ {x}_{t-1,4}\end{array}\right]+\left[\begin{array}{cc}{\theta}_{5}& 0\\ 0& 0\\ 0& {\theta}_{6}\\ 0& 0\end{array}\right]\left[\begin{array}{c}{u}_{t,1}\\ {u}_{t,3}\end{array}\right]$$

$${y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\mu}_{1})+\mathrm{exp}({x}_{t,3}-{\mu}_{3}))+{\theta}_{7}{\epsilon}_{t}.$$

${\mu}_{1}$ and ${\mu}_{3}$ are the unconditional means of the corresponding states. The initial distribution moments of each state are their unconditional mean and covariance.

Simulate a series of 100 observations from the following stationary 2-D VAR process.

$$\begin{array}{l}{x}_{t,1}=1+0.9{x}_{t-1,1}+0.3{u}_{t,1}\\ {x}_{t,3}=-1+-0.75{x}_{t-1,3}+0.2{u}_{t,3}\\ {y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\underset{}{\overset{\u203e}{x}}}_{1})+\mathrm{exp}({x}_{t,3}-{\underset{}{\overset{\u203e}{x}}}_{3}))+0.1{\epsilon}_{t},\end{array}$$

where the disturbance series ${\mathit{u}}_{\mathit{t},\mathit{j}}$ and ${\epsilon}_{\mathit{t}}$ are standard Gaussian random variables.

rng(100,"twister") % For reproducibility T = 100; thetatrue = [0.9; 1; -0.75; -1; 0.3; 0.2; 0.1]; MdlSim = varm(AR={diag(thetatrue([1 3]))},Covariance=diag(thetatrue(5:6).^2), ... Constant=thetatrue([2 4])); XSim = simulate(MdlSim,T); y = log(sum(exp(XSim - mean(XSim)),2)) + thetatrue(7)*randn(T,1);

Create a Bayesian nonlinear state-space model. The Local Functions section contains the required functions specifying the Bayesian nonlinear state-space model structure and joint prior distribution.

Mdl = bnlssm(@paramMap,@priorDistribution);

Approximate the posterior smoothed state distribution of the state-space model. As in the Draw Path from Posterior Smoothed State Distribution example, choose a random set of initial parameter values. Specify the resampling residuals for the SMC. Return the forward-filtering results and the approximate initial smoothed state ${\mathit{x}}_{0}$.

```
theta13 = (-1+(1-(-1)).*rand(2,1));
theta24 = 3*randn(2,1);
theta567 = chi2rnd(1,3,1);
theta = [theta13(1); theta24(1); theta13(2); theta24(2); theta567];
[~,OutputFilter,x0] = simsmooth(Mdl,y,theta,Resample="residual");
```

Output is a 100-by-1 structure array containing several fields, one set of fields for each observation, including:

`FilteredStatesCov`

— Approximate posterior filtered state distribution covariance for the states at each sampling time`DataUsed`

— Whether the forward-filtering algorithm used an observation for posterior estimation`Resample`

— Whether the forward-filtering algorithm resampled the particles associated with an observation

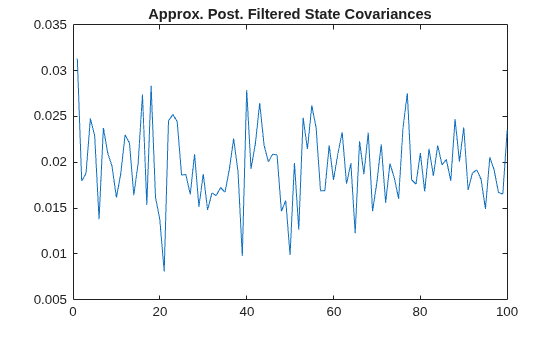

Plot the determinant of the approximate posterior filtered state covariance matrices for states that are not constant.

```
filteredstatecov = cellfun(@(x)det(x([1 3],[1 3])),{OutputFilter.FilteredStatesCov});
figure
plot(filteredstatecov)
title("Approx. Post. Filtered State Covariances")
```

Any covariance determinant that is close to 0 indicates a close-to-degenerate distribution. No covariance determinants in the analysis are close to 0.

Determine whether the forward-filtering algorithm omitted any observations from posterior estimation.

anyObsOmitted = sum([OutputFilter.DataUsed]) ~= T

`anyObsOmitted = `*logical*
0

`anyObsOmitted = 0`

indicates that the algorithm used all observations.

Determine whether `filter`

resampled any particles associated with observations.

whichResampled = numel(find([OutputFilter.Resampled] == true))

whichResampled = 75

The forward-filtering algorithm resampled particles associated with observations the 75 observations listed in `whichResampled`

.

**Local Functions**

These functions specify the state-space model parameter mappings, in equation form, and log prior distribution of the parameters.

function [A,B,C,D,Mean0,Cov0,StateType] = paramMap(theta) A = @(x)blkdiag([theta(1) theta(2); 0 1],[theta(3) theta(4); 0 1])*x; B = [theta(5) 0; 0 0; 0 theta(6); 0 0]; C = @(x)log(exp(x(1)-theta(2)/(1-theta(1))) + ... exp(x(3)-theta(4)/(1-theta(3)))); D = theta(7); Mean0 = [theta(2)/(1-theta(1)); 1; theta(4)/(1-theta(3)); 1]; Cov0 = diag([theta(5)^2/(1-theta(1)^2) 0 theta(6)^2/(1-theta(3)^2) 0]); StateType = [0; 1; 0; 1]; % Stationary state and constant 1 processes end function logprior = priorDistribution(theta) paramconstraints = [(abs(theta([1 3])) >= 1) (theta(5:7) <= 0)]; if(sum(paramconstraints)) logprior = -Inf; else logprior = 0; % Prior density is proportional to 1 for all values % in the parameter space. end end

## Input Arguments

`Mdl`

— Bayesian nonlinear state-space model

`bnlssm`

model object

`Y`

— Observed response data

numeric matrix | cell vector of numeric vectors

Observed response data, specified as a numeric matrix or a cell vector of numeric vectors.

If

`Mdl`

is time invariant with respect to the observation equation,`Y`

is a*T*-by-*n*matrix. Each row of the matrix corresponds to a period and each column corresponds to a particular observation in the model.*T*is the sample size and*n*is the number of observations per period. The last row of`Y`

contains the latest observations.If

`Mdl`

is time varying with respect to the observation equation,`Y`

is a*T*-by-1 cell vector.`Y{t}`

contains an*n*-dimensional vector of observations for period_{t}*t*, where*t*= 1, ...,*T*. For linear observation models, the corresponding dimensions of the coefficient matrices, outputs of`Mdl.ParamMap`

,`C{t}`

, and`D{t}`

must be consistent with the matrix in`Y{t}`

for all periods. For nonlinear observation models, the dimensions of the inputs and outputs associated with the observations must be consistent. Regardless of model type, the last cell of`Y`

contains the latest observations.

`NaN`

elements indicate missing observations. For details on how the Kalman
filter accommodates missing observations, see Algorithms.

**Data Types: **`double`

| `cell`

`params`

— State-space model parameters Θ

numeric vector

State-space model parameters Θ to evaluate the parameter mapping `Mdl.ParamMap`

, specified as a `numparams`

-by-1 numeric vector. Elements of `params0`

must correspond to the elements of the first input arguments of `Mdl.ParamMap`

and `Mdl.ParamDistribution`

.

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`simsmooth(Mdl,Y,params,NumParticles=1e4,Resample="residual")`

specifies generating `1e4`

random paths and to use the residual-resampling
SMC method.

`NumParticles`

— Number of particles

`1000`

(default) | positive integer

Number of particles for SMC, specified as a positive integer.

**Example: **`NumParticles=1e4`

**Data Types: **`double`

`NumPaths`

— Number of sample state paths

`1`

(default) | positive integer

Number of sample state paths to draw from the posterior smoothed state distribution, specified as a positive integer.

**Example: **`NumPaths=1e4`

**Data Types: **`double`

`MaxIterations`

— Maximum number of rejection sampling iterations

`10`

(default) | nonnegative integer

Maximum number of rejection sampling iterations for posterior sampling using the simulation smoother, specified as a nonnegative integer. `simsmooth`

conducts rejection sampling before it conducts the computationally intensive importance sampling algorithm.

**Example: **`MaxIterations=100`

**Data Types: **`double`

`Resample`

— SMC resampling method

`"multinomial"`

(default) | `"residual"`

| `"systematic"`

SMC resampling method, specified as a value in this table.

Value | Description |
---|---|

`"multinomial"` | At time t, the set of previously generated particles (parent set) follows a standard multinomial distribution, with probabilities proportional to their weights. An offspring set is resampled with replacement from the parent set [1]. |

`"residual"` | Residual sampling, a modified version of multinomial resampling that can produce an estimator with lower variance than the multinomial resampling method [6]. |

`"systematic"` | Systematic sampling, which produces an estimator with lower variance than the multinomial resampling method [4]. |

Resampling methods downsample insignificant particles to achieve a smaller estimator variance than if no resampling is performed and to avoid sampling from a degenerate proposal [4].

**Example: **`Resample="residual"`

**Data Types: **`char`

| `string`

`Cutoff`

— Effective sample size threshold for resampling

`0.5*NumParticles`

(default) | nonnegative scalar

Effective sample size threshold, below which `simsmooth`

resamples particles, specified as a nonnegative scalar. For more details, see [4], Ch. 12.3.3.

**Tip**

To resample during every period, set

`Cutoff=numparticles`

, where`numparticles`

is the value of the`NumParticles`

name-value argument.To avoid resampling, set

`Cutoff=0`

.

**Example: **`Cutoff=0.75*numparticles`

**Data Types: **`double`

`SortParticles`

— Flag for sorting particles before resampling

`false`

(default) | `true`

Flag for sorting particles before resampling, specified as a value in this table.

Value | Description |
---|---|

`true` | `simsmooth` sorts the generated particles before resampling them. |

`false` | `simsmooth` does not sort the generated particles. |

When you set `SortPartiles=true`

, `simsmooth`

uses
Hilbert sorting during the SMC routine to sort the particles. This action can reduce
Monte Carlo variation, which is useful when you compare loglikelihoods resulting from
evaluating several `params`

arguments that are close to each other
[3]. However, the sorting routine
requires more computation resources, and can slow down computations, particularly in
problems with a high-dimensional state variable.

**Example: **`SortParticles=true`

**Data Types: **`logical`

`RND`

— Previously generated normal random numbers

structure array

Previously generated normal random numbers, as returned by
`filter`

, to reproduce `simsmooth`

results,
specified as the `RND`

output, a structure array, of previous
`filter`

call. Specify `RND`

to control the
random number generator.

The default is an empty structure array, which causes
`simsmooth`

to generate new random numbers.

**Data Types: **`struct`

## Output Arguments

`X`

— Simulated paths of smoothed states

numeric matrix | 3-D numeric array | cell vector of numeric matrices

Simulated paths of smoothed states, drawn from the posterior smoothed state
distribution
*p*(*x _{T}*,…,

*x*

_{0}|

*y*,…,

_{T}*y*

_{1},Θ), for

*t*= 1,…,

*T*, returned as a

*T*-by-

*m*numeric matrix for one simulated path,

*T*-by-

*m*-by-

`NumPaths`

3-D
numeric array for `NumPaths`

simulated paths, or a
*T*-by-1 cell vector of numeric matrices.

Each row corresponds to a time point in the sample. The last row contains the latest simulated smoothed states.

If `Mdl`

is a time-invariant model with respect to the states,
each column of `X`

corresponds to a state in the model and each page
corresponds to a sample path.

If `Mdl`

is a time-varying model with respect to the states,
then, for each * t* = 1,…,

*T*, cell

`X(``t`

)

contains an
*m*

_{t}-by-

`NumPaths`

matrix of simulated smoothed states. Each row corresponds to a state variable for the
corresponding time and each column corresponds to a simulated path. Each path across all
cells correspond.`OutputFilter`

— SMC forward filtering results by sampling time

structure array

SMC forward filtering results by period, returned as a *T*-by-1
structure array with fields in this table, and where cell *t*
corresponds to the filtering result for time *t*.

Field | Description | Estimate/Approximation of |
---|---|---|

`LogLikelihood` | Scalar approximate loglikelihood objective function value | log
p(y|_{t}y_{1},…,y)_{t} |

`FilteredStates` | m-by-1 vector of approximate
filtered state estimates_{t} | $$E\left({x}_{t}|{y}_{1},\mathrm{...},{y}_{t}\right)$$ |

`FilteredStatesCov` | m-by-_{t}m
variance-covariance matrix of filtered states_{t} | $$Var\left({x}_{t}|{y}_{1},\mathrm{...},{y}_{t}\right)$$ |

`CustomStatistics` | (m +
1)-by-_{t}`NumParticles` simulated particles and
corresponding weights that approximate the filtering distribution | N/A |

`EffectiveSampleSize` | Effective sample size for importance sampling, a scalar in
[0,`NumParticles` ] | N/A |

`DataUsed` | h-by-1 flag indicating whether
the software filters using a particular observation. For example, if
observation _{t}j at time t is a
`NaN` , element j in
`DataUsed` at time t is
`0` . | N/A |

`Resampled` | Flag indicating whether `simsmooth` resampled
particles | N/A |

`x0`

— Simulated paths of smoothed initial state vector

numeric vector | numeric matrix

Simulated paths of the smoothed initial state vector, drawn from the posterior
smoothed state distribution
*p*(*x _{T}*,…,

*x*

_{0}|

*y*,…,

_{T}*y*

_{1},Θ), for

*t*= 1,…,

*T*, returned as an

*m*

_{0}-by-1 numeric vector for one simulated path or an

*m*

_{0}-by-

`NumPaths`

numeric matrix for `NumPaths `

simulated paths.Each row of `x0`

corresponds to a state in the model and each
column corresponds to a sample path.

If you do not request to return `x0`

,
`simsmooth`

does not compute it.

## Tips

Smoothing has several advantages over filtering.

The smoothed state estimator is more accurate than the online filter state estimator because it is based on the full-sample data, rather than only observations up to the estimated sampling time.

A stable approximation to the gradient of the loglikelihood function, which is important for numerical optimization, is available from the smoothed state samples of the simulation smoother (finite differences of the approximated loglikelihood computed from the filter state estimates is numerically unstable).

You can use the simulation smoother to perform Bayesian estimation of the nonlinear state-space model via the Metropolis-within-Gibbs sampler.

Unless you set

`Cutoff=0`

,`simsmooth`

resamples particles according to the specified resampling method`Resample`

. Although resampling particles with high weights improves the results of the SMC, you should also allow the sampler traverse the proposal distribution to obtain novel, high-weight particles. To do this, experiment with`Cutoff`

.

## Algorithms

`simsmooth`

accommodates missing data by not updating filtered state estimates corresponding to missing observations. In other words, suppose there is a missing observation at period *t*. Then, the state forecast for period *t* based on the previous *t* – 1 observations and filtered state for period *t* are equivalent.

## References

[1] Andrieu, Christophe, Arnaud
Doucet, and Roman Holenstein. "Particle Markov Chain Monte Carlo Methods." *Journal of the Royal Statistical Society Series B: Statistical
Methodology* 72 (June 2010): 269–342. https://doi.org/10.1111/j.1467-9868.2009.00736.x.

[2] Andrieu, Christophe, and
Gareth O. Roberts. "The Pseudo-Marginal Approach for Efficient Monte Carlo Computations."
*Ann. Statist.* 37 (April 2009): 697–725. https://dx.doi.org/10.1214/07-AOS574.

[3] Deligiannidis, George, Arnaud Doucet, and Michael Pitt. "The Correlated Pseudo-Marginal Method." *Journal of the Royal Statistical Society, Series B: Statistical Methodology* 80 (June 2018): 839–870. https://doi.org/10.1111/rssb.12280.

[4] Durbin, J, and Siem Jan
Koopman. *Time Series Analysis by State Space Methods*. 2nd ed. Oxford:
Oxford University Press, 2012.

[5] Fernández-Villaverde, Jesús, and Juan F. Rubio-Ramírez. "Estimating Macroeconomic Models: A Likelihood Approach." *Review of Economic Studies* 70(October 2007): 1059–1087. https://doi.org/10.1111/j.1467-937X.2007.00437.x.

[6] Liu, Jun, and Rong Chen. "Sequential Monte Carlo Methods for Dynamic Systems." *Journal of the American Statistical Association* 93 (September 1998): 1032–1044. https://dx.doi.org/10.1080/01621459.1998.10473765.

## Version History

**Introduced in R2024a**

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
