# filter

Forward recursion of Bayesian nonlinear non-Gaussian state-space model

*Since R2023b*

## Syntax

## Description

`filter`

estimates state-distribution moments of a
Bayesian nonlinear non-Gaussian state-space model (`bnlssm`

), conditioned on model
parameters Θ, for each period of the specified response data by using importance sampling and
resampling in the sequential Monte Carlo (SMC) framework. `filter`

approximates the state filtering distribution and likelihood function by applying
*particles*, or weighted random samples.

`[`

returns approximate state-distribution means `X`

,`logL`

] = filter(`Mdl`

,`Y`

,`params`

)`X`

for each sampling time in
the input response data `Y`

and the corresponding loglikelihood
`logL`

resulting from performing forward recursion of, or filtering, the
Bayesian nonlinear state-space model `Mdl`

.
`filter`

evaluates the parameter map
`Mdl.ParamMap`

by using the vector of parameter values
`params`

.

`filter`

filters `Y`

and particles, weighted
random samples representing state values, through the model by using SMC.

`[`

additionally returns the following quantities using any of the input-argument combinations
in the previous syntaxes:`X`

,`logL`

,`Output`

,`RND`

] = filter(___)

`Output`

— Filtering results by sampling periodApproximate loglikelihood values associated with the input data, input parameters, and particles

Filter estimate of state-distribution means

Filter estimate of state-distribution covariance

Custom statistics

Effective sample size

Flags indicating which data the software used to filter

Flags indicating resampling

`RND`

— Normal random variables generated by`filter`

used to reproduce results or reuse random variates generated by a previous call of`filter`

## Examples

### Compute Filter State Estimates and Loglikelihood

This example uses simulated data to compute filter estimates of state distribution means of the following Bayesian nonlinear state-space model in equation. The state-space model contains two independent, stationary, autoregressive states each with a model constant. The observations are a nonlinear function of the states with Gaussian noise. The prior distribution of the parameters is flat. Symbolically, the system of equations is

$$\left[\begin{array}{c}{x}_{t,1}\\ {x}_{t,2}\\ {x}_{t,3}\\ {x}_{t,4}\end{array}\right]=\left[\begin{array}{cccc}{\theta}_{1}& {\theta}_{2}& 0& 0\\ 0& 1& 0& 0\\ 0& 0& {\theta}_{3}& {\theta}_{4}\\ 0& 0& 0& 1\end{array}\right]\left[\begin{array}{c}{x}_{t-1,1}\\ {x}_{t-1,2}\\ {x}_{t-1,3}\\ {x}_{t-1,4}\end{array}\right]+\left[\begin{array}{cc}{\theta}_{5}& 0\\ 0& 0\\ 0& {\theta}_{6}\\ 0& 0\end{array}\right]\left[\begin{array}{c}{u}_{t,1}\\ {u}_{t,3}\end{array}\right]$$

$${y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\mu}_{1})+\mathrm{exp}({x}_{t,3}-{\mu}_{3}))+{\theta}_{7}{\epsilon}_{t}.$$

${\mu}_{1}$ and ${\mu}_{3}$ are the unconditional means of the corresponding states. The initial distribution moments of each state are their unconditional mean and covariance.

Create a Bayesian nonlinear state-space model characterized by the system. The observation equation is in equation form, that is, the function composing the states is nonlinear and the innovation series ${\epsilon}_{\mathit{t}}$ is additive, linear, and Gaussian. The Local Functions section contains two functions required to specify the Bayesian nonlinear state-space model: the state-space model parameter mapping function and the prior distribution of the parameters. You can use the functions only within this script.

Mdl = bnlssm(@paramMap,@priorDistribution)

Mdl = bnlssm with properties: ParamMap: @paramMap ParamDistribution: @priorDistribution ObservationForm: "equation" Multipoint: [1x0 string]

`Mdl`

is a `bnlssm`

model specifying the state-space model structure and prior distribution of the state-space model parameters. Because `Mdl`

contains unknown values, it serves as a template for posterior analysis with observations.

Simulate a series of 100 observations from the following stationary 2-D VAR process.

$$\begin{array}{l}{x}_{t,1}=1+0.9{x}_{t-1,1}+0.3{u}_{t,1}\\ {x}_{t,3}=-1+-0.75{x}_{t-1,3}+0.2{u}_{t,3},\end{array}$$

where the disturbance series ${\mathit{u}}_{\mathit{t},\mathit{j}}$ are standard Gaussian random variables.

rng(1,"twister") % For reproducibility T = 100; thetatrue = [0.9; 1; -0.75; -1; 0.3; 0.2; 0.1]; MdlSim = varm(AR={diag(thetatrue([1 3]))},Covariance=diag(thetatrue(5:6).^2), ... Constant=thetatrue([2 4])); XSim = simulate(MdlSim,T);

Compose simulated observations using the following equation.

$${y}_{t}=\mathrm{log}(\mathrm{exp}({x}_{t,1}-{\underset{}{\overset{\u203e}{x}}}_{1})+\mathrm{exp}({x}_{t,3}-{\underset{}{\overset{\u203e}{x}}}_{3}))+0.1{\epsilon}_{t},$$

where the innovation series ${\epsilon}_{\mathit{t}}$ is a standard Gaussian random variable.

ysim = log(sum(exp(XSim - mean(XSim)),2)) + thetatrue(7)*randn(T,1);

To compute state estimates, the `filter`

function requires response data and a model with known state-space model parameters. Choose a random set with the following constraints:

${\theta}_{1}$ and ${\theta}_{3}$ are within the unit circle. Use $\mathit{U}\left(-1,1\right)$ to generate values.

${\theta}_{2}$ and ${\theta}_{4}$ are real numbers. Use the $\mathit{N}\left(0,{3}^{2}\right)$ distribution to generate values.

${\theta}_{5}$, ${\theta}_{6}$, and ${\theta}_{7}$ are positive real numbers. Use the ${\chi}_{1}^{2}$ distribution to generate values.

theta13 = (-1+(1-(-1)).*rand(2,1)); theta24 = 3*randn(2,1); theta567 = chi2rnd(1,3,1); theta = [theta13(1); theta24(1); theta13(2); theta24(2); theta567];

Compute filtered state estimates and corresponding loglikelihood by passing the Bayesian nonlinear model, simulated data, and parameter values to `filter`

.

[FilterX,logL] = filter(Mdl,ysim,theta); size(FilterX)

`ans = `*1×2*
100 4

logL

logL = -134.1053

`FilterX`

is a 100-by-4 matrix of filter state estimates, with rows corresponding to periods in the sample and columns corresponding to the state variables. `logL`

is the approximate loglikelihood function estimate evaluated at the data and parameter values.

Compare the loglikelihood `logL`

and the loglikelihood computed using $\Theta $ from the data simulation.

[FilterXSim,logLSim] = filter(Mdl,ysim,thetatrue); logLSim

logLSim = -0.4078

`logLSim`

> `logL`

, suggesting that the model evaluated at `thetaSim`

has the better fit.

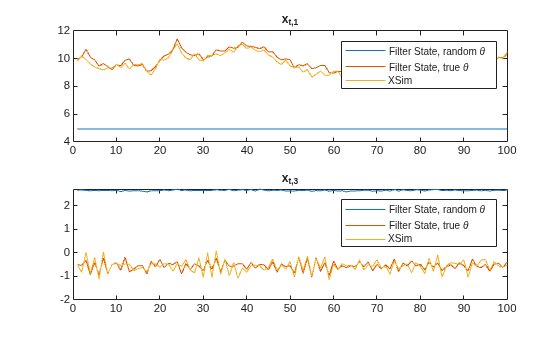

Plot the two sets of filter state estimates with the true state values.

figure tiledlayout(2,1) nexttile plot([FilterX(:,1) FilterXSim(:,1) XSim(:,1)]) title("x_{t,1}") legend("Filter State, random \theta","Filter State, true \theta","XSim") nexttile plot([FilterX(:,3) FilterXSim(:,3) XSim(:,2)]) title("x_{t,3}") legend("Filter State, random \theta","Filter State, true \theta","XSim")

The filter state estimates using the true value of $\Theta $ and the simulated state paths are close. The filter state estimates are far from the simulated state paths.

**Local Functions**

These functions specify the state-space model parameter mappings, in equation form, and log prior distribution of the parameters.

function [A,B,C,D,Mean0,Cov0,StateType] = paramMap(theta) A = @(x)blkdiag([theta(1) theta(2); 0 1],[theta(3) theta(4); 0 1])*x; B = [theta(5) 0; 0 0; 0 theta(6); 0 0]; C = @(x)log(exp(x(1)-theta(2)/(1-theta(1))) + ... exp(x(3)-theta(4)/(1-theta(3)))); D = theta(7); Mean0 = [theta(2)/(1-theta(1)); 1; theta(4)/(1-theta(3)); 1]; Cov0 = diag([theta(5)^2/(1-theta(1)^2) 0 theta(6)^2/(1-theta(3)^2) 0]); StateType = [0; 1; 0; 1]; % Stationary state and constant 1 processes end function logprior = priorDistribution(theta) paramconstraints = [(abs(theta([1 3])) >= 1) (theta(5:7) <= 0)]; if(sum(paramconstraints)) logprior = -Inf; else logprior = 0; % Prior density is proportional to 1 for all values % in the parameter space. end end

### Calibrate State-Space Model Parameters

This example shows how to use `filter`

and Bayesian optimization to calibrate a Bayesian nonlinear state-space. Consider this nonlinear state-space model.

$$\begin{array}{l}{x}_{t}={\theta}_{1}{x}_{t-1}+{\theta}_{2}{u}_{t}\\ {y}_{t}={e}^{{\theta}_{3}{x}_{t}}+{\theta}_{4}+{\theta}_{5}{\epsilon}_{t},\end{array}$$

where $\theta $ has a flat prior and the series ${\mathit{u}}_{\mathit{t}}$ and ${\epsilon}_{\mathit{t}}$ are standard Gaussian random variables.

**Simulate Series**

Simulate a series of 100 observations from the following stationary 2-D VAR process.

$$\begin{array}{l}{x}_{t}=0.5{x}_{t-1}+0.6{u}_{t}\\ {y}_{t}={e}^{-{x}_{t}}+2+0.75{\epsilon}_{t}.\end{array}$$

where the series ${\mathit{u}}_{\mathit{t}}$ and ${\epsilon}_{\mathit{t}}$ are standard Gaussian random variables.

rng(10,"twister") % For reproducibility T = 100; thetaDGP = [0.5; 0.6; -1; 2; 0.75]; numparams = numel(thetaDGP); MdlSim = arima(AR=thetaDGP(1),Variance=sqrt(thetaDGP(2)), ... Constant=0); xsim = simulate(MdlSim,T); ysim = exp(thetaDGP(3).*xsim) + thetaDGP(4) + thetaDGP(5)*randn(T,1);

**Create Bayesian Nonlinear Model**

Create a Bayesian nonlinear state-space model. The Local Functions section contains two functions required to specify the Bayesian nonlinear state-space model: the state-space model parameter mapping function and the prior distribution of the parameters. You can use the functions only within this script. Specify `Multipoint=["A" "C"]`

because the state-transition and measurement-sensitivity parameter mappings in `paraMap`

can evaluate multiple particles simultaneously.

Mdl = bnlssm(@paramMap,@priorDistribution,Multipoint=["A" "C"]);

**Perform Random Exploration**

One way to explore the parameter space for the point that maximizes the likelihood is by random exploration:

Randomly generated set of parameters.

Compute the loglikelihood for that set.

Repeat steps 1 and 2 many times.

Choose the set of parameters that yields the largest loglikelihood.

Perform random exploration for 500 epochs. Choose a random set using the following arbitrary recipe:

${\theta}_{1}\sim \text{\hspace{0.17em}}\mathit{U}\left(-1,1\right)$.

${\theta}_{2}$ and ${\theta}_{5}$ are ${\chi}_{1}^{2}$.

${\theta}_{3}$ and ${\theta}_{4}$ are$\mathit{N}\left(0,2\right)$.

numepochs = 500; numparticles = 10000; theta = NaN(numparams,numepochs); logL = NaN(numepochs,1); for j = 1:numepochs theta(:,j) = [(-1+(1-(-1)).*rand(1,1)); chi2rnd(1,1,1); ... 2*randn(2,1); chi2rnd(1,1,1);]; [~,logL(j)] = filter(Mdl,ysim,theta(:,j),NumParticles=numparticles); end

Choose the set of parameters that maximizes the loglikelihood.

[bestlogL,idx] = max(logL); bestTheta = theta(:,idx); [bestTheta thetaDGP]

`ans = `*5×2*
0.4934 0.5000
0.4843 0.6000
-1.4906 -1.0000
1.6399 2.0000
0.7260 0.7500

The values that maximize the likelihood are fairly close to the values that generated the data.

**Perform Bayesian Optimization**

Bayesian optimization requires you to specify which variables require optimization and their support. To do this, use `optimizableVariable`

to provide a name to the variable and its support. This example limits the support of each variable to a small interval; you must experiment with the support for your application.

thetaOp(5) = optimizableVariable("theta5",[0,2]); thetaOp(1) = optimizableVariable("theta1",[0,0.9]); thetaOp(2) = optimizableVariable("theta2",[0,2]); thetaOp(3) = optimizableVariable("theta3",[-3,0]); thetaOp(4) = optimizableVariable("theta4",[-3,3]);

`thetaOp`

is an `optimizableVariable`

object specifying the name and support of each variable of $\theta $.

`bayesopt`

accepts a function handle to the function that you want to *minimize* with respect to one argument $\theta $ and the optimizable variable specifications. Therefore, provide the function handle `neglog`

, which is associated with the negative loglikelihood function `filterneglogl`

located in Local Functions. Specify the Expected Improvement Plus acquisition function and an exploration ratio of 1.

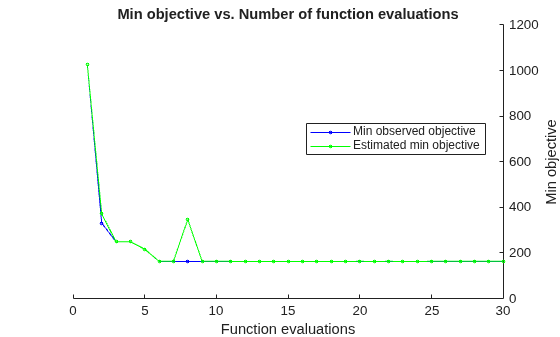

neglogl = @(var)filterneglogl(var,Mdl,ysim,numparticles); rng(1,"twister") results = bayesopt(neglogl,thetaOp,AcquisitionFunctionName="expected-improvement-plus", ... ExplorationRatio=1);

|==================================================================================================================================================| | Iter | Eval | Objective | Objective | BestSoFar | BestSoFar | theta1 | theta2 | theta3 | theta4 | theta5 | | | result | | runtime | (observed) | (estim.) | | | | | | |==================================================================================================================================================| | 1 | Best | 1035.3 | 0.25005 | 1035.3 | 1035.3 | 0.0761 | 0.51116 | -0.78522 | -2.272 | 0.44888 | | 2 | Best | 331.41 | 0.1235 | 331.41 | 372.47 | 0.5021 | 0.8957 | -0.11662 | -1.1518 | 1.8165 | | 3 | Best | 249.01 | 0.14956 | 249.01 | 249.04 | 0.67392 | 0.54178 | -2.091 | -0.82814 | 0.63451 | | 4 | Accept | 381.54 | 0.19028 | 249.01 | 249.17 | 0.74179 | 1.8872 | -1.9159 | -2.5691 | 1.596 | | 5 | Best | 183.98 | 0.1731 | 183.98 | 184.25 | 0.60884 | 0.17723 | -1.2634 | 2.9947 | 1.8405 | | 6 | Best | 182.33 | 0.17774 | 182.33 | 183.34 | 0.60034 | 1.5367 | -2.5329 | 2.5026 | 0.91717 | | 7 | Accept | 247.19 | 0.28516 | 182.33 | 183.13 | 0.89999 | 0.70185 | -1.537 | -1.1312 | 0.7421 | | 8 | Accept | 274.28 | 0.2778 | 182.33 | 174.46 | 0.59232 | 1.7554 | -1.597 | 0.78832 | 0.13249 | | 9 | Best | 177.47 | 0.20017 | 177.47 | 177.45 | 0.89577 | 0.097083 | -0.37012 | 2.9984 | 1.5053 | | 10 | Accept | 1055.7 | 0.26589 | 177.47 | 177.48 | 0.77811 | 1.0092 | -2.4812 | 2.9977 | 0.16125 | | 11 | Best | 172.82 | 0.13244 | 172.82 | 172.81 | 0.067163 | 0.45713 | -2.0117 | 2.3819 | 1.3694 | | 12 | Accept | 182.61 | 0.20778 | 172.82 | 172.81 | 0.1524 | 1.3513 | -1.2805 | 1.7846 | 0.96486 | | 13 | Accept | 293.62 | 0.36298 | 172.82 | 172.8 | 0.020503 | 0.68288 | -0.90552 | -0.39937 | 1.0775 | | 14 | Accept | 213.33 | 0.17319 | 172.82 | 172.79 | 0.66738 | 1.6267 | -2.0922 | 1.7538 | 1.9997 | | 15 | Accept | 247.32 | 0.17942 | 172.82 | 172.82 | 0.39009 | 1.9718 | -2.4707 | 1.0908 | 1.5419 | | 16 | Accept | 212.29 | 0.21339 | 172.82 | 172.78 | 0.89876 | 1.7163 | -0.71511 | 0.54894 | 0.80624 | | 17 | Accept | 173.36 | 0.13541 | 172.82 | 172.81 | 0.89453 | 1.3794 | -0.97214 | 2.1219 | 1.2087 | | 18 | Accept | 222.99 | 0.28253 | 172.82 | 172.79 | 0.0036001 | 1.4357 | -0.62811 | 0.50127 | 0.4746 | | 19 | Accept | 247.67 | 0.17279 | 172.82 | 172.82 | 0.16438 | 1.2307 | -2.1934 | 0.44716 | 1.9995 | | 20 | Best | 164.01 | 0.21078 | 164.01 | 163.91 | 0.75079 | 0.35782 | -2.5596 | 2.682 | 1.1664 | |==================================================================================================================================================| | Iter | Eval | Objective | Objective | BestSoFar | BestSoFar | theta1 | theta2 | theta3 | theta4 | theta5 | | | result | | runtime | (observed) | (estim.) | | | | | | |==================================================================================================================================================| | 21 | Accept | 469.58 | 0.21565 | 164.01 | 163.91 | 0.22341 | 1.0454 | -0.35525 | -2.9856 | 1.9965 | | 22 | Accept | 272.86 | 0.30881 | 164.01 | 163.95 | 0.10452 | 1.885 | -2.5501 | 1.2019 | 0.61558 | | 23 | Accept | 177.98 | 0.16109 | 164.01 | 163.96 | 0.58745 | 0.30598 | -2.6784 | 2.3311 | 1.7068 | | 24 | Accept | 230.65 | 0.22395 | 164.01 | 163.93 | 0.88893 | 1.9352 | -0.68612 | 0.1287 | 0.40965 | | 25 | Accept | 176.39 | 0.2195 | 164.01 | 164.84 | 0.036535 | 0.96617 | -1.4887 | 2.3525 | 1.0554 | | 26 | Accept | 170.33 | 0.14586 | 164.01 | 164.25 | 0.69849 | 1.2507 | -0.93683 | 3 | 1.1078 | | 27 | Best | 163.98 | 0.24402 | 163.98 | 164.04 | 0.8791 | 0.56387 | -1.6589 | 2.9695 | 1.268 | | 28 | Accept | 185.57 | 0.22644 | 163.98 | 164.07 | 0.79305 | 0.32402 | -0.35449 | 2.9236 | 1.9999 | | 29 | Best | 162.03 | 0.13255 | 162.03 | 162.19 | 0.89512 | 0.30185 | -1.2532 | 2.6889 | 1.3122 | | 30 | Accept | 214.85 | 0.21201 | 162.03 | 162.3 | 0.89002 | 0.75265 | -1.1744 | -0.36792 | 0.75282 | __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 23.0234 seconds Total objective function evaluation time: 6.2538 Best observed feasible point: theta1 theta2 theta3 theta4 theta5 _______ _______ _______ ______ ______ 0.89512 0.30185 -1.2532 2.6889 1.3122 Observed objective function value = 162.0337 Estimated objective function value = 162.2987 Function evaluation time = 0.13255 Best estimated feasible point (according to models): theta1 theta2 theta3 theta4 theta5 _______ _______ _______ ______ ______ 0.89512 0.30185 -1.2532 2.6889 1.3122 Estimated objective function value = 162.2987 Estimated function evaluation time = 0.17874

`results`

is a `BayesianOptmization`

object containing properties summarizing the results of Bayesian optimization.

Extract the value that minimizes the negative loglikelihood from `results`

by using `bestPoint`

.

bestPoint(results)

`ans=`*1×5 table*
theta1 theta2 theta3 theta4 theta5
_______ _______ _______ ______ ______
0.89512 0.30185 -1.2532 2.6889 1.3122

The results are fairly close to the values that generated the data.

**Local Functions**

These functions specify the state-space model parameter mappings, in equation form, and the log prior distribution of the parameters, and they compute the negative loglikelihood of the model.

function [A,B,C,D,Mean0,Cov0,StateType] = paramMap(theta) A = @(x)theta(1)*x; B = theta(2); C = @(x)exp(theta(3).*x) + theta(4); D = theta(5); Mean0 = 0; Cov0 = 1; StateType = 0; % Stationary state process end function logprior = priorDistribution(theta) paramconstraints = [abs(theta(1)) >= 1; theta([2 4]) <= 0]; if(sum(paramconstraints)) logprior = -Inf; else logprior = 0; % Prior density is proportional to 1 for all values % in the parameter space. end end function neglogL = filterneglogl(theta,mdl,resp,np) theta = table2array(theta); [~,logL] = filter(mdl,resp,theta,NumParticles=np); neglogL = -logL; end

### Hilbert Sort Particles During SMC

When a set of state-space parameters are close in space, they can yield sufficiently different loglikelihood function values. This phenomenon is due to Monte Carlo sampling error. To address Monte Carlo sampling error so that comparisons among of loglikelihoods evaluated from similar parameter values during calibration is more fair, apply Hilbert sorting to the particles. This example reproduces results to show the effects of sorting particles.

Consider this simple linear Gaussian state-space model.

$$\begin{array}{l}{x}_{t}={x}_{t-1}+{u}_{t}\\ {y}_{t}={x}_{t}+\theta {\epsilon}_{t},\end{array}$$

where the error series ${\mathit{u}}_{\mathit{t}}$ and ${\epsilon}_{\mathit{t}}$ are standard Gaussian random variables.

Assuming that the observation innovation variance is 1, simulate a response series of length 300 from the model. The Local Functions section contains the parameter mapping.

T = 300; rng(1,"twister") % For reproducibility MdlTrue = ssm(@paramMap); y = simulate(MdlTrue,T,Params=1);

Specify two values of $\theta $, at which to evaluate the model, that are close to each other.

theta1 = 0.5; theta2 = 0.5 + 1e-7;

Evaluate the true loglikelihood at each value of $\theta $ by using the `filter`

function of `ssm`

.

[~,logL1] = filter(MdlTrue,y,Params=theta1); [~,logL2] = filter(MdlTrue,y,Params=theta2); [logL1 logL2 abs(logL1-logL2)]

`ans = `*1×3*
-627.5987 -627.5987 0.0000

The values of $\theta $ yield practically identical loglikelihood values.

Create a Bayesian nonlinear state-space model using the parameter mapping and log prior density functions.

Mdl = bnlssm(@paramMap,@priorDistribution);

Evaluate the Bayesian loglikelihood at the values of $\theta $.

[~,logL1] = filter(Mdl,y,theta1); [~,logL2] = filter(Mdl,y,theta2); [logL1 logL2 abs(logL1-logL2)]

`ans = `*1×3*
-629.1780 -628.4513 0.7267

Despite the arguments being close, there is a difference between their corresponding loglikelihoods. The difference can be attributed to Monte Carlo sampling.

Evaluate the loglikelihood at the value of ${\theta}_{1}$ again using the Bayesian model, but return the normal random variates to reproduce subsequent calls of `filter`

.

[~,logL1,~,rnd] = filter(Mdl,y,theta1); rnd

`rnd = `*struct with fields:*
Autocorrelation: 1
Time: 300
Initial: [0x1000 double]
Proposal: {300x1 cell}
Resample: {300x1 cell}
ResampleFlag: [300x1 logical]

`rnd`

is a structure array containing sampling information.

Evaluate the loglikelihood at the value of ${\theta}_{2}$ again, but use the same normal random variates used to evaluate the loglikelihood at ${\theta}_{1}$.

[~,logL2] = filter(Mdl,y,theta2,RND=rnd); [logL1 logL2 abs(logL1-logL2)]

`ans = `*1×3*
-629.3398 -629.2906 0.0491

Still, the loglikelihoods are different.

Evaluate the loglikelihood at the values of $\theta $ by passing them and normal variates to `filter`

again. Apply Hilbert sorting to the particles.

[~,logL1,~,rnd] = filter(Mdl,y,theta1,SortParticles=true); [~,logL2] = filter(Mdl,y,theta2,RND=rnd,SortParticles=true); [logL1 logL2 abs(logL1-logL2)]

`ans = `*1×3*
-631.4925 -631.4925 0.0000

Although the loglikelihood magnitudes are different from the frequentist state-space model, they are practically the same for values of $\theta $ that are very close to each other.

**Local Functions**

These functions specify the state-space model parameter mapping, in equation form, and log prior distribution of the parameter.

function [A,B,C,D,mean0,Cov0] = paramMap(theta) A = 1; B = 1; C = 1; D = theta; mean0 = 0; Cov0 = 0; end function logprior = priorDistribution(theta) paramconstraints = theta <= 0; if(sum(paramconstraints)) logprior = -Inf; else logprior = 0; % Prior density is proportional to 1 for all values % in the parameter space. end end

## Input Arguments

`Mdl`

— Bayesian nonlinear state-space model

`bnlssm`

model object

`Y`

— Observed response data

numeric matrix | cell vector of numeric vectors

Observed response data, specified as a numeric matrix or a cell vector of numeric vectors.

If

`Mdl`

is time invariant with respect to the observation equation,`Y`

is a*T*-by-*n*matrix. Each row of the matrix corresponds to a period and each column corresponds to a particular observation in the model.*T*is the sample size and*n*is the number of observations per period. The last row of`Y`

contains the latest observations.If

`Mdl`

is time varying with respect to the observation equation,`Y`

is a*T*-by-1 cell vector.`Y{t}`

contains an*n*-dimensional vector of observations for period_{t}*t*, where*t*= 1, ...,*T*. For linear observation models, the corresponding dimensions of the coefficient matrices, outputs of`Mdl.ParamMap`

,`C{t}`

, and`D{t}`

must be consistent with the matrix in`Y{t}`

for all periods. For nonlinear observation models, the dimensions of the inputs and outputs associated with the observations must be consistent. Regardless of model type, the last cell of`Y`

contains the latest observations.

`NaN`

elements indicate missing observations. For details on how the Kalman
filter accommodates missing observations, see Algorithms.

**Data Types: **`double`

| `cell`

`params`

— State-space model parameters Θ

numeric vector

State-space model parameters Θ to evaluate the parameter mapping `Mdl.ParamMap`

, specified as a `numparams`

-by-1 numeric vector. Elements of `params0`

must correspond to the elements of the first input arguments of `Mdl.ParamMap`

and `Mdl.ParamDistribution`

.

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`filter(Mdl,Y,params,NumParticles=1e4,Resample="residual")`

specifies `1e4`

particles for the SMC routine and to resample
residuals.

`NumParticles`

— Number of particles

`1000`

(default) | positive integer

Number of particles for SMC, specified as a positive integer.

**Example: **`NumParticles=1e4`

**Data Types: **`double`

`Resample`

— SMC resampling method

`"multinomial"`

(default) | `"residual"`

| `"systematic"`

SMC resampling method, specified as a value in this table.

Value | Description |
---|---|

`"multinomial"` | At time t, the set of previously generated particles (parent set) follows a standard multinomial distribution, with probabilities proportional to their weights. An offspring set is resampled with replacement from the parent set [1]. |

`"residual"` | Residual sampling, a modified version of multinomial resampling that can produce an estimator with lower variance than the multinomial resampling method [6]. |

`"systematic"` | Systematic sampling, which produces an estimator with lower variance than the multinomial resampling method [4]. |

Resampling methods downsample insignificant particles to achieve a smaller estimator variance than if no resampling is performed and to avoid sampling from a degenerate proposal [5].

**Example: **`Resample="residual"`

**Data Types: **`char`

| `string`

`Cutoff`

— Effective sample size threshold for resampling

`0.5*NumParticles`

(default) | nonnegative scalar

Effective sample size threshold, below which `filter`

resamples particles, specified as a nonnegative scalar. For more details, see [5], Ch. 12.3.3.

**Tip**

To resample during every period, set

`Cutoff=numparticles`

, where`numparticles`

is the value of the`NumParticles`

name-value argument.To avoid resampling, set

`Cutoff=0`

.

**Example: **`Cutoff=0.75*numparticles`

**Data Types: **`double`

`SortParticles`

— Flag for sorting particles before resampling

`false`

(default) | `true`

Flag for sorting particles before resampling, specified as a value in this table.

Value | Description |
---|---|

`true` | `filter` sorts the generated particles before resampling them. |

`false` | `filter` does not sort the generated particles. |

When you set `SortPartiles=true`

, `filter`

uses
Hilbert sorting during the SMC routine to sort the particles. This action can reduce
Monte Carlo variation, which is useful when you compare loglikelihoods resulting from
evaluating several `params`

arguments that are close to each other
[3]. However, the sorting routine
requires more computation resources, and can slow down computations, particularly in
problems with a high-dimensional state variable.

**Example: **`SortParticles=true`

**Data Types: **`logical`

`CustomStatistics`

— Custom function of particles and normalized weights

empty array `[]`

(default) | function handle

Custom function of particles and normalized weights for monitoring the SMC,
specified as a function handle (`@customstats`

).

The associated function signature must have this form:

function stat =customStatistics(particles,weights)

where:

is the function name, which you choose.`customStatistics`

`particles`

is the*m*-by-_{t}`NumParticles`

chosen particles at forward-filtering time*t*of the SMC routine.`weights`

is the 1-by-`NumParticles`

normalized importance weights, corresponding to`particles`

, at forward-filtering time*t*of the SMC routine.`stat`

is the evaluation of`customStatistics`

at`particles`

and`weights`

at forward-filtering time*t*of the SMC routine. For example,`stat`

can be a numeric vector or structure array.

**Example: **You can return the particles and weights at each filtering step by setting
`CustomStatistics=@customstats`

, where you write
`customstats`

to return those inputs in a structure array:
`stat.p = particles; stat.w = weights;`

**Data Types: **`function_handle`

`RND`

— Previously generated normal random numbers

structure array

Previously generated normal random numbers to reproduce
`filter`

results, specified as the `RND`

output, a structure array, of previous `filter`

call.

The default is an empty structure array, which causes
`filter`

to generate new random numbers.

**Data Types: **`struct`

## Output Arguments

`X`

— Approximate filtered state estimates *E*(*x*_{t}|*y*_{1},…,*y*_{t})

numeric matrix | cell vector of numeric vectors

_{t}

_{t}

Approximate filtered state estimates
*E*(*x _{t}*|

*y*

_{1},…,

*y*), returned as a

_{t}*T*-by-

*m*numeric matrix or a

*T*-by-1 cell vector of numeric vectors.

Each row corresponds to a time point in the sample. The last row contains the latest filtered states.

For time-invariant models, `filter`

returns a matrix. Each
column corresponds to a state variable
*x _{t}*.

If `Mdl`

is time varying, `X`

is a cell vector.
Cell *t* contains a column vector of filtered state estimates with
length *m _{t}*. Each column corresponds to a state
variable.

`logL`

— Approximate loglikelihood function value

numeric scalar

Approximate loglikelihood function value log *p*(*y*_{1},…,*y _{T}*).

The loglikelihood value has noise induced by SMC.

Missing observations do not contribute to the loglikelihood.

`Output`

— SMC filtering results by sampling time

structure array

SMC filtering results by period, returned as a structure array.

`Output`

is a *T*-by-1 structure, where element
*t* corresponds to the filtering result for time
*t*.

Field | Description | Estimate/Approximation of |
---|---|---|

`LogLikelihood` | Scalar approximate loglikelihood objective function value | log
p(y|_{t}y_{1},…,y)_{t} |

`FilteredStates` | m-by-1 vector of approximate
filtered state estimates_{t} | $$E\left({x}_{t}|{y}_{1},\mathrm{...},{y}_{t}\right)$$ |

`FilteredStatesCov` | m-by-_{t}m
variance-covariance matrix of filtered states_{t} | $$Var\left({x}_{t}|{y}_{1},\mathrm{...},{y}_{t}\right)$$ |

`CustomStatistics` | Determined by `CustomStatistics` setting | Determined by `CustomStatistics` setting |

`EffectiveSampleSize` | Effective sample size for importance sampling, a scalar in
[0,`NumParticles` ] | N/A |

`DataUsed` | h-by-1 flag indicating whether
the software filters using a particular observation. For example, if
observation _{t}j at time t is a
`NaN` , element j in
`DataUsed` at time t is
`0` . | N/A |

`Resampled` | Flag indicating whether `filter` resampled
particles | N/A |

`RND`

— SMC normal random variate information to reproduce results

structure array

SMC normal random variate information to reproduce results of subsequent calls of
`filter`

, returned as a structure array.

To reproduce subsequent filtering results or to use the same random variates as previously used:

Set a random number seed by using the

`rng`

function.Return

`RND`

when you call`filter`

.Set the

`RND`

name-value argument to the output`RND`

when you call`filter`

again to reproduce results or reuse the random variates in`RND`

.

## Tips

Unless you set `Cutoff=0`

, `filter`

resamples
particles according to the specified resampling method `Resample`

. Although
resampling particles with high weights improves the results of the SMC, you should also allow
the sampler traverse the proposal distribution to obtain novel, high-weight particles. To do
this, experiment with `Cutoff`

.

## Algorithms

`filter`

accommodates missing data by not updating filtered state estimates corresponding to missing observations. In other words, suppose there is a missing observation at period *t*. Then, the state forecast for period *t* based on the previous *t* – 1 observations and filtered state for period *t* are equivalent.

## References

[1] Andrieu, Christophe, Arnaud
Doucet, and Roman Holenstein. "Particle Markov Chain Monte Carlo Methods." *Journal of the Royal Statistical Society Series B: Statistical
Methodology* 72 (June 2010): 269–342. https://doi.org/10.1111/j.1467-9868.2009.00736.x.

[2] Andrieu, Christophe, and
Gareth O. Roberts. "The Pseudo-Marginal Approach for Efficient Monte Carlo Computations."
*Ann. Statist.* 37 (April 2009): 697–725. https://dx.doi.org/10.1214/07-AOS574.

[3] Deligiannidis, George, Arnaud Doucet, and Michael Pitt. "The Correlated Pseudo-Marginal Method." *Journal of the Royal Statistical Society, Series B: Statistical Methodology* 80 (June 2018): 839–870. https://doi.org/10.1111/rssb.12280.

[4] Carpenter, James, Peter Clifford, and Paul
Fearnhead. "Improved Particle Filter for Nonlinear Problems." *IEE Proceedings -
Radar, Sonar and Navigation* 146 (February 1999): 2–7. https://doi.org/10.1049/ip-rsn:19990255.

[5] Durbin, J, and Siem Jan
Koopman. *Time Series Analysis by State Space Methods*. 2nd ed. Oxford:
Oxford University Press, 2012.

[6] Liu, Jun, and Rong Chen. "Sequential Monte Carlo Methods for Dynamic Systems." *Journal of the American Statistical Association* 93 (September 1998): 1032–1044. https://dx.doi.org/10.1080/01621459.1998.10473765.

## Version History

**Introduced in R2023b**

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
