predict

Class: dlhdl.Workflow
Package: dlhdl

Predict responses by using deployed network

Description

example

Y = predict(workflowObject,images) predicts responses for the image data, images, by using the deep learning network specified in the dlhdl.Workflow object, workflowObject.

example

Y = predict(workflowObject,X1,...,XN) predicts the responses for the data in the numeric or cell arrays X1, …, XN for the multi-input network specified in the Network argument of the workflowObject. The input XN corresponds to the workflowObject.Network.InputNames(N).

[Y1,...,YM] = predict(___) predicts responses for the M outputs of a multi-output network using any of the previous input arguments. The output YM corresponds to the output of the network specified in workflowObject.Network.OutputNames(M).

[Y,performance] = predict(___,Name,Value) predicts the responses with one or more arguments specified by optional name-value pair arguments.

Input Arguments

expand all

Workflow, specified as a dlhdl.Workflow object.

Input image, specified as a numeric array, cell array or formatted dlarray object. The numeric arrays can be 3-D or 4-D arrays. For 4-D arrays, the fourth dimension is the number of input images. If one of the members of the numeric array has four dimensions, then the other members of the numeric arrays must have four dimensions as well, with the value of the fourth dimension being the same for all members.

If the network specified in the dlhdl.Workflow object is a dlnetwork object, then the input image must be a formatted dlarray object. For more information about dlarray formats, see the fmt input argument of dlarray.

Data Types: single | int8

Numeric or cell arrays for networks with multiple inputs, specified as a numeric array or cell array.

For multiple inputs to image prediction networks, the format of the predictors must match the formats described in the images argument descriptions.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example:

Flag to return profiling results for the deep learning network deployed to the target board, specified as "off" or "on".

Example: Profile = "on"

Output Arguments

expand all

Predicted responses, returned as a numeric array. The format of Y depends on the type of task.

TaskFormat
2-D image regression
  • h-by-w-by-c-by-N numeric array, where h, w, and c are the height, width, and number of channels of the images, respectively, and N is the number of images

3-D image regression
  • h-by-w-by-d-by-c-by-N numeric array, where h, w, d, and c are the height, width, depth, and number of channels of the images, respectively, and N is the number of images

Sequence-to-one regressionN-by-R matrix, where N is the number of sequences and R is the number of responses
Sequence-to-sequence regressionN-by-R matrix, where N is the number of sequences and R is the number of responses
Feature regression

N-by-R matrix, where N is the number of observations and R is the number of responses

For sequence-to-sequence regression problems with one observation, images can be a matrix. In this case, Y is a matrix of responses.

If the output layer of the network is a classification layer, then Y is the predicted classification scores. This table describes the format of the scores for classification tasks.

TaskFormat
Image classificationN-by-K matrix, where N is the number of observations and K is the number of classes
Sequence-to-label classification
Feature classification

Predicted scores or responses of networks with multiple outputs, returned as numeric arrays.

Each output Yj corresponds to the network output net.OutputNames(j) and has format as described in the Y output argument.

Deployed network performance data, returned as an N-by-5 table, where N is the number of layers in the network. This method returns performance only when the Profile name-value argument is set to 'on'. To learn about the data in the performance table, see Profile Inference Run.

Examples

expand all

This example shows how to deploy a custom trained series network to detect pedestrians and bicyclists based on their micro-Doppler signatures. This network is taken from the Pedestrian and Bicyclist Classification Using Deep Learning example from the Phased Array Toolbox. For more details on network training and input data, see Pedestrian and Bicyclist Classification Using Deep Learning.

Prerequisites

  • Xilinx™ Vivado™ Design Suite 2020.2

  • Zynq® UltraScale+™ MPSoC ZCU102 Evaluation Kit

  • HDL Verifier™ Support Package for XIlinx FPGA Boards

  • MATLAB™ Coder ™ Interface for Deep Learning Libraries

  • Deep Learning Toolbox™

  • Deep Learning HDL Toolbox™

The data files used in this example are:

  • The MAT File trainedNetBicPed.mat contains a model trained on training data set trainDataNoCar and its label set trainLabelNoCar.

  • The MAT File testDataBicPed.mat contains the test data set testDataNoCar and its label set testLabelNoCar.

Load Data and Network

Load a pretrained network. Load test data and its labels.

load('trainedNetBicPed.mat','trainedNetNoCar')
load('testDataBicPed.mat')

View the layers of the pre-trained series network

analyzeNetwork(trainedNetNoCar);


Set up HDL Toolpath

Set up the path to your installed Xilinx™ Vivado™ Design Suite 2020.2 executable if it is not already set up. For example, to set the toolpath, enter:

% hdlsetuptoolpath('ToolName', 'Xilinx Vivado','ToolPath', 'C:\Vivado\2020.2\bin');

Create Target Object

Create a target object for your target device with a vendor name and an interface to connect your target device to the host computer. Interface options are JTAG (default) and Ethernet. Vendor options are Intel or Xilinx. Use the installed Xilinx Vivado Design Suite over an Ethernet connection to program the device.

hT = dlhdl.Target('Xilinx', 'Interface', 'Ethernet');

Create Workflow Object

Create an object of the dlhdl.Workflow class. When you create the object, specify the network and the bitstream name. Specify the saved pre-trained series network, trainedNetNoCar, as the network. Make sure the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Zynq UltraScale+ MPSoC ZCU102 board. The bitstream uses a single data type. .

hW = dlhdl.Workflow('Network', trainedNetNoCar, 'Bitstream', 'zcu102_single', 'Target', hT);

Compile trainedNetNoCar Series Network

To compile the trainedNetNoCar series network, run the compile function of the dlhdl.Workflow object .

dn = hW.compile;
### Optimizing series network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "28.0 MB"
    "OutputResultOffset"        "0x01c00000"     "4.0 MB"
    "SystemBufferOffset"        "0x02000000"     "28.0 MB"
    "InstructionDataOffset"     "0x03c00000"     "4.0 MB"
    "ConvWeightDataOffset"      "0x04000000"     "4.0 MB"
    "FCWeightDataOffset"        "0x04400000"     "4.0 MB"
    "EndOffset"                 "0x04800000"     "Total: 72.0 MB"

Program the Bitstream onto FPGA and Download Network Weights

To deploy the network on the Zynq® UltraScale+™ MPSoC ZCU102 hardware, run the deploy function of the dlhdl.Workflow object . This function uses the output of the compile function to program the FPGA board by using the programming file.The function also downloads the network weights and biases. The deploy function checks for the Xilinx Vivado tool and the supported tool version. It then starts programming the FPGA device by using the bitstream, displays progress messages and the time it takes to deploy the network.

hW.deploy;
### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Deep learning network programming has been skipped as the same network is already loaded on the target FPGA.

Run Predictions on Micro-Doppler Signatures

Classify one input from the sample test data set by using the predict function of the dlhdl.Workflow object and display the label. The inputs to the network correspond to the sonograms of the micro-Doppler signatures for a pedestrian or a bicyclist or a combination of both.

testImg = single(testDataNoCar(:, :, :, 1));
testLabel = testLabelNoCar(1);
classnames = trainedNetNoCar.Layers(end).Classes;

% Get predictions from network on single test input
score = hW.predict(testImg, 'Profile', 'On')
### Finished writing input activations.
### Running single input activations.


              Deep Learning Processor Profiler Performance Results

                   LastLayerLatency(cycles)   LastLayerLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    9430692                  0.04287                       1            9430707             23.3
    conv_module            9411355                  0.04278
        conv_1             4178753                  0.01899
        maxpool_1          1394883                  0.00634
        conv_2             1975197                  0.00898
        maxpool_2           706156                  0.00321
        conv_3              813598                  0.00370
        maxpool_3           121790                  0.00055
        conv_4              148165                  0.00067
        maxpool_4            22255                  0.00010
        conv_5               41999                  0.00019
        avgpool2d             8674                  0.00004
    fc_module                19337                  0.00009
        fc                   19337                  0.00009
 * The clock frequency of the DL processor is: 220MHz
score = 1×5 single row vector

    0.9956    0.0000    0.0000    0.0044    0.0000

[~, idx1] = max(score);
predTestLabel = classnames(idx1)
predTestLabel = categorical
     ped

Load five random images from the sample test data set and execute the predict function of the dlhdl.Workflow object to display the labels alongside the signatures. The predictions will happen at once since the input is concatenated along the fourth dimension.

numTestFrames = size(testDataNoCar, 4);
numView = 5;
listIndex = randperm(numTestFrames, numView);
testImgBatch = single(testDataNoCar(:, :, :, listIndex));
testLabelBatch = testLabelNoCar(listIndex);

% Get predictions from network using DL HDL Toolbox on FPGA
[scores, speed] = hW.predict(testImgBatch, 'Profile', 'On');
### Finished writing input activations.
### Running single input activations.


              Deep Learning Processor Profiler Performance Results

                   LastLayerLatency(cycles)   LastLayerLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    9446929                  0.04294                       5           47138869             23.3
    conv_module            9427488                  0.04285
        conv_1             4195175                  0.01907
        maxpool_1          1394705                  0.00634
        conv_2             1975204                  0.00898
        maxpool_2           706332                  0.00321
        conv_3              813499                  0.00370
        maxpool_3           121869                  0.00055
        conv_4              148063                  0.00067
        maxpool_4            22019                  0.00010
        conv_5               42053                  0.00019
        avgpool2d             8684                  0.00004
    fc_module                19441                  0.00009
        fc                   19441                  0.00009
 * The clock frequency of the DL processor is: 220MHz
[~, idx2] = max(scores, [], 2);
predTestLabelBatch = classnames(idx2);

% Display the micro-doppler signatures along with the ground truth and
% predictions.
for k = 1:numView
    index = listIndex(k);
    imagesc(testDataNoCar(:, :, :, index));
    axis xy
    xlabel('Time (s)')
    ylabel('Frequency (Hz)')
    title('Ground Truth: '+string(testLabelNoCar(index))+', Prediction FPGA: '+string(predTestLabelBatch(k)))
    drawnow;
    pause(3);
end

The image shows the micro-Doppler signatures of two bicyclists (bic+bic) which is the ground truth. The ground truth is the classification of the image against which the network prediction is compared. The network prediction retrieved from the FPGA correctly predicts that the image has two bicyclists.

In this example, you use Deep Learning HDL Toolbox™ to deploy a quantized deep convolutional neural network and classify an image. The example uses the pretrained ResNet-18 convolutional neural network to demonstrate transfer learning, quantization, and deployment for the quantized network. Use MATLAB ® to retrieve the prediction results.

ResNet-18 has been trained on over a million images and can classify images into 1000 object categories (such as keyboard, coffee mug, pencil, and many animals). The network has learned rich feature representations for a wide range of images. The network takes an image as input and outputs a label for the object in the image together with the probabilities for each of the object categories.

Required Products

For this example, you need:

  • Deep Learning Toolbox™

  • Deep Learning HDL Toolbox™

  • Deep Learning Toolbox Model for ResNet-18 Network

  • Deep Learning HDL Toolbox™ Support Package for Xilinx® FPGA and SoC Devices

  • Image Processing Toolbox™

  • Deep Learning Toolbox Model Quantization Library

  • MATLAB® Coder™ Interface for Deep Learning Libraries

Transfer Learning Using Resnet-18

To perform classification on a new set of images, you fine-tune a pretrained ResNet-18 convolutional neural network by transfer learning. In transfer learning, you can take a pretrained network and use it as a starting point to learn a new task. Fine-tuning a network with transfer learning is usually much faster and easier than training a network with randomly initialized weights from scratch. You can quickly transfer learned features to a new task using a smaller number of training images.

Load Pretrained ResNet-18 Network

To load the pretrained network ResNet-18, enter:

net = resnet18;

To view the layers of the pretrained network, enter:

analyzeNetwork(net);

The first layer, the image input layer, requires input images of size 227-by-227-by-3, where 3 is the number of color channels.

inputSize = net.Layers(1).InputSize;

Define Training and Validation Data Sets

This example uses the MathWorks MerchData data set. This is a small data set containing 75 images of MathWorks merchandise, belonging to five different classes (cap, cube, playing cards, screwdriver, and torch).

curDir = pwd;
unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
'IncludeSubfolders',true, ...
'LabelSource','foldernames');
[imdsTrain,imdsValidation] = splitEachLabel(imds,0.7,'randomized');
validationData_FPGA = imdsValidation.subset(1:1);

Replace Final Layers

The fully connected layer and classification layer of the pretrained network net are configured for 1000 classes. These two layers fc1000 and ClassificationLayer_predictions in ResNet-18, contain information on how to combine the features that the network extracts into class probabilities and predicted labels . These two layers must be fine-tuned for the new classification problem. Extract all the layers, except the last two layers, from the pretrained network.

lgraph = layerGraph(net)
lgraph =
  LayerGraph with properties:

         Layers: [71×1 nnet.cnn.layer.Layer]
    Connections: [78×2 table]
     InputNames: {'data'}
    OutputNames: {'ClassificationLayer_predictions'}

numClasses = numel(categories(imdsTrain.Labels))
numClasses = 5
newLearnableLayer = fullyConnectedLayer(numClasses, ...
'Name','new_fc', ...
'WeightLearnRateFactor',10, ...
'BiasLearnRateFactor',10);
lgraph = replaceLayer(lgraph,'fc1000',newLearnableLayer);
newClassLayer = classificationLayer('Name','new_classoutput');
lgraph = replaceLayer(lgraph,'ClassificationLayer_predictions',newClassLayer);

Train Network

The network requires input images of size 224-by-224-by-3, but the images in the image datastores have different sizes. Use an augmented image datastore to automatically resize the training images. Specify additional augmentation operations to perform on the training images, such as randomly flipping the training images along the vertical axis and randomly translating them up to 30 pixels horizontally and vertically. Data augmentation helps prevent the network from overfitting and memorizing the exact details of the training images.

pixelRange = [-30 30];
imageAugmenter = imageDataAugmenter( ...
'RandXReflection',true, ...
'RandXTranslation',pixelRange, ...
'RandYTranslation',pixelRange);

To automatically resize the validation images without performing further data augmentation, use an augmented image datastore without specifying any additional preprocessing operations.

augimdsTrain = augmentedImageDatastore(inputSize(1:2),imdsTrain, ...
'DataAugmentation',imageAugmenter);
augimdsValidation = augmentedImageDatastore(inputSize(1:2),imdsValidation);

Specify the training options. For transfer learning, keep the features from the early layers of the pretrained network (the transferred layer weights). To slow down learning in the transferred layers, set the initial learning rate to a small value. Specify the mini-batch size and validation data. The software validates the network every ValidationFrequency iterations during training.

options = trainingOptions('sgdm', ...
'MiniBatchSize',10, ...
'MaxEpochs',6, ...
'InitialLearnRate',1e-4, ...
'Shuffle','every-epoch', ...
'ValidationData',augimdsValidation, ...
'ValidationFrequency',3, ...
'Verbose',false, ...
'Plots','training-progress');

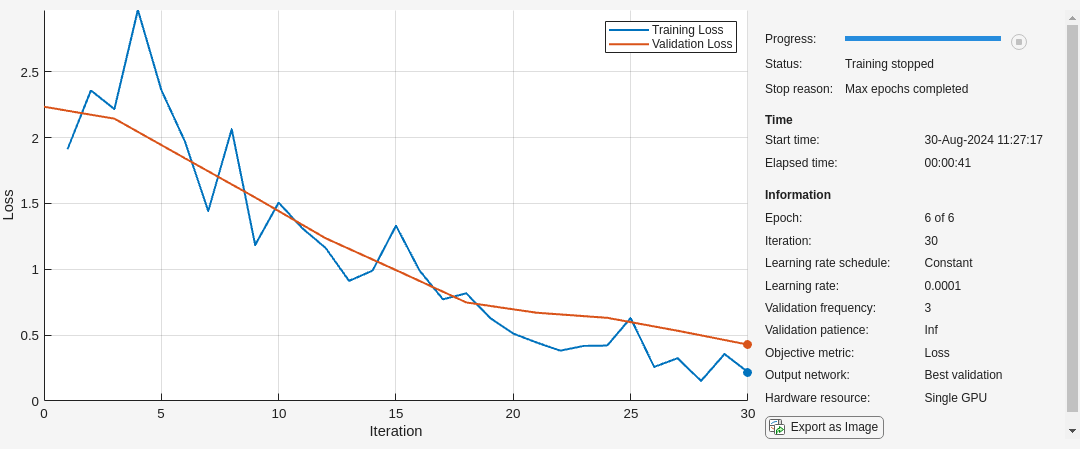

Train the network that consists of the transferred and new layers. By default, trainNetwork uses a GPU if one is available (requires Parallel Computing Toolbox™ and a supported GPU device. For more information, see GPU Computing Requirements (Parallel Computing Toolbox)). Otherwise, the network uses a CPU (requires MATLAB Coder Interface for Deep learning Libraries™). You can also specify the execution environment by using the 'ExecutionEnvironment' name-value argument of trainingOptions.

netTransfer = trainNetwork(augimdsTrain,lgraph,options);

Quantize the Network

Create a dlquantizer object and specify the network to quantize.

dlquantObj = dlquantizer(netTransfer,'ExecutionEnvironment','FPGA');

Calibrate the Quantized Network Object

Use the calibrate function to exercise the network with sample inputs and collect the range information. The calibrate function exercises the network and collects the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network and the dynamic ranges of the activations in all layers of the network. The calibrate function returns a table. Each row of the table contains range information for a learnable parameter of the quantized network.

dlquantObj.calibrate(augimdsTrain)
ans=95×5 table
       Optimized Layer Name       Network Layer Name    Learnables / Activations    MinValue    MaxValue
    __________________________    __________________    ________________________    ________    ________

    {'conv1_Weights'         }    {'conv1'         }           "Weights"            -0.56885    0.65166
    {'conv1_Bias'            }    {'conv1'         }           "Bias"               -0.66869    0.67504
    {'res2a_branch2a_Weights'}    {'res2a_branch2a'}           "Weights"            -0.46037    0.34327
    {'res2a_branch2a_Bias'   }    {'res2a_branch2a'}           "Bias"               -0.82446     1.3337
    {'res2a_branch2b_Weights'}    {'res2a_branch2b'}           "Weights"             -0.8002    0.60524
    {'res2a_branch2b_Bias'   }    {'res2a_branch2b'}           "Bias"                -1.3954     1.7536
    {'res2b_branch2a_Weights'}    {'res2b_branch2a'}           "Weights"            -0.33991     0.3503
    {'res2b_branch2a_Bias'   }    {'res2b_branch2a'}           "Bias"                -1.1367     1.5317
    {'res2b_branch2b_Weights'}    {'res2b_branch2b'}           "Weights"             -1.2616    0.93491
    {'res2b_branch2b_Bias'   }    {'res2b_branch2b'}           "Bias"               -0.86662     1.2352
    {'res3a_branch2a_Weights'}    {'res3a_branch2a'}           "Weights"            -0.19675    0.23903
    {'res3a_branch2a_Bias'   }    {'res3a_branch2a'}           "Bias"                -0.5063    0.69182
    {'res3a_branch2b_Weights'}    {'res3a_branch2b'}           "Weights"             -0.5385    0.74078
    {'res3a_branch2b_Bias'   }    {'res3a_branch2b'}           "Bias"               -0.66884     1.2152
    {'res3a_branch1_Weights' }    {'res3a_branch1' }           "Weights"            -0.66715    0.98369
    {'res3a_branch1_Bias'    }    {'res3a_branch1' }           "Bias"               -0.97269    0.83073
      ⋮

Create Target Object

Use the dlhdl.Target class to create a target object with a custom name for your target device and an interface to connect your target device to the host computer. Interface options are JTAG and Ethernet. To use JTAG,Install Xilinx™ Vivado™ Design Suite 2020.2. To set the Xilinx Vivado toolpath, enter:

% hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2020.2\bin\vivado.bat');
hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Create WorkFlow Object

Use the dlhdl.Workflow class to create an object. When you create the object, specify the network and the bitstream name. Specify the saved pretrained alexnet neural network as the network. Make sure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Xilinx ZCU102 SoC board. The bitstream uses a single data type.

hW = dlhdl.Workflow('Network', dlquantObj, 'Bitstream', 'zcu102_int8','Target',hTarget);

Compile the netTransfer DAG network

To compile the netTransfer DAG network, run the compile method of the dlhdl.Workflow object. You can optionally specify the maximum number of input frames.

dn = hW.compile('InputFrameNumberLimit',15)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_int8.
### The network includes the following layers:
     1   'data'                  Image Input                  224×224×3 images with 'zscore' normalization                          (SW Layer)
     2   'conv1'                 Convolution                  64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
     3   'bn_conv1'              Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
     4   'conv1_relu'            ReLU                         ReLU                                                                  (HW Layer)
     5   'pool1'                 Max Pooling                  3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
     6   'res2a_branch2a'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     7   'bn2a_branch2a'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
     8   'res2a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
     9   'res2a_branch2b'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    10   'bn2a_branch2b'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    11   'res2a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    12   'res2a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    13   'res2b_branch2a'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    14   'bn2b_branch2a'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    15   'res2b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    16   'res2b_branch2b'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    17   'bn2b_branch2b'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    18   'res2b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    19   'res2b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    20   'res3a_branch2a'        Convolution                  128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
    21   'bn3a_branch2a'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    22   'res3a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    23   'res3a_branch2b'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    24   'bn3a_branch2b'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    25   'res3a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    26   'res3a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    27   'res3a_branch1'         Convolution                  128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
    28   'bn3a_branch1'          Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    29   'res3b_branch2a'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    30   'bn3b_branch2a'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    31   'res3b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    32   'res3b_branch2b'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    33   'bn3b_branch2b'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    34   'res3b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    35   'res3b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    36   'res4a_branch2a'        Convolution                  256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    37   'bn4a_branch2a'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    38   'res4a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    39   'res4a_branch2b'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'bn4a_branch2b'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    41   'res4a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    42   'res4a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    43   'res4a_branch1'         Convolution                  256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    44   'bn4a_branch1'          Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    45   'res4b_branch2a'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    46   'bn4b_branch2a'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    47   'res4b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    48   'res4b_branch2b'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    49   'bn4b_branch2b'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    50   'res4b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    51   'res4b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    52   'res5a_branch2a'        Convolution                  512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    53   'bn5a_branch2a'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    54   'res5a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    55   'res5a_branch2b'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    56   'bn5a_branch2b'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    57   'res5a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    58   'res5a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    59   'res5a_branch1'         Convolution                  512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    60   'bn5a_branch1'          Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    61   'res5b_branch2a'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    62   'bn5b_branch2a'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    63   'res5b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    64   'res5b_branch2b'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    65   'bn5b_branch2b'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    66   'res5b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    67   'res5b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    68   'pool5'                 2-D Global Average Pooling   2-D global average pooling                                            (HW Layer)
    69   'new_fc'                Fully Connected              5 fully connected layer                                               (HW Layer)
    70   'prob'                  Softmax                      softmax                                                               (HW Layer)
    71   'new_classoutput'       Classification Output        crossentropyex with 'MathWorks Cap' and 4 other classes               (SW Layer)

### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'new_classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
### Compiling layer group: conv1>>pool1 ...
### Compiling layer group: conv1>>pool1 ... complete.
### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
### Compiling layer group: res3a_branch1 ...
### Compiling layer group: res3a_branch1 ... complete.
### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
### Compiling layer group: res4a_branch1 ...
### Compiling layer group: res4a_branch1 ... complete.
### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
### Compiling layer group: res5a_branch1 ...
### Compiling layer group: res5a_branch1 ... complete.
### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
### Compiling layer group: pool5 ...
### Compiling layer group: pool5 ... complete.
### Compiling layer group: new_fc ...
### Compiling layer group: new_fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "8.0 MB"
    "OutputResultOffset"        "0x00800000"     "4.0 MB"
    "SchedulerDataOffset"       "0x00c00000"     "4.0 MB"
    "SystemBufferOffset"        "0x01000000"     "28.0 MB"
    "InstructionDataOffset"     "0x02c00000"     "4.0 MB"
    "ConvWeightDataOffset"      "0x03000000"     "16.0 MB"
    "FCWeightDataOffset"        "0x04000000"     "4.0 MB"
    "EndOffset"                 "0x04400000"     "Total: 68.0 MB"

### Network compilation complete.
dn = struct with fields:
             weights: [1×1 struct]
        instructions: [1×1 struct]
           registers: [1×1 struct]
    syncInstructions: [1×1 struct]
        constantData: {}

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx ZCU102 hardware, run the deploy function of the dlhdl.Workflow object. This function uses the output of the compile function to program the FPGA board by using the programming file. It also downloads the network weights and biases. The deploy function starts programming the FPGA device, displays progress messages, and the time it takes to deploy the network.

hW.deploy
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 20-Jan-2022 08:45:22
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 20-Jan-2022 08:45:22

Load Image for Prediction

Load the example image.

imgFile = fullfile(pwd,'MerchData','MathWorks Cube','Mathworks cube_0.jpg');
inputImg = imresize(imread(imgFile),[224 224]);
imshow(inputImg)

Run Prediction for One Image

Execute the predict method on the dlhdl.Workflow object and then show the label in the MATLAB command window.

[prediction, speed] = hW.predict(single(inputImg),'Profile','on');
### Finished writing input activations.
### Running single input activation.


              Deep Learning Processor Profiler Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                    7389695                  0.02956                       1            7392277             33.8
    conv1                  1115359                  0.00446
    pool1                   237742                  0.00095
    res2a_branch2a          269669                  0.00108
    res2a_branch2b          270019                  0.00108
    res2a                   103095                  0.00041
    res2b_branch2a          269716                  0.00108
    res2b_branch2b          269895                  0.00108
    res2b                   102385                  0.00041
    res3a_branch1           156246                  0.00062
    res3a_branch2a          227373                  0.00091
    res3a_branch2b          245201                  0.00098
    res3a                    52543                  0.00021
    res3b_branch2a          244793                  0.00098
    res3b_branch2b          244952                  0.00098
    res3b                    51176                  0.00020
    res4a_branch1           135788                  0.00054
    res4a_branch2a          135745                  0.00054
    res4a_branch2b          237464                  0.00095
    res4a                    25612                  0.00010
    res4b_branch2a          237244                  0.00095
    res4b_branch2b          237242                  0.00095
    res4b                    25952                  0.00010
    res5a_branch1           311610                  0.00125
    res5a_branch2a          311719                  0.00125
    res5a_branch2b          596194                  0.00238
    res5a                    13191                  0.00005
    res5b_branch2a          595890                  0.00238
    res5b_branch2b          596795                  0.00239
    res5b                    14141                  0.00006
    pool5                    36932                  0.00015
    new_fc                   17825                  0.00007
 * The clock frequency of the DL processor is: 250MHz
[val, idx] = max(prediction);
dlquantObj.NetworkObject.Layers(end).ClassNames{idx}
ans =
'MathWorks Cube'

Performance Comparison

Compare the performance of the quantized network to the single data type network.

options_FPGA = dlquantizationOptions('Bitstream','zcu102_int8','Target',hTarget);
prediction_FPGA = dlquantObj.validate(imdsValidation,options_FPGA)
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_int8.
### The network includes the following layers:
     1   'data'                  Image Input                  224×224×3 images with 'zscore' normalization                          (SW Layer)
     2   'conv1'                 Convolution                  64 7×7×3 convolutions with stride [2  2] and padding [3  3  3  3]     (HW Layer)
     3   'bn_conv1'              Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
     4   'conv1_relu'            ReLU                         ReLU                                                                  (HW Layer)
     5   'pool1'                 Max Pooling                  3×3 max pooling with stride [2  2] and padding [1  1  1  1]           (HW Layer)
     6   'res2a_branch2a'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
     7   'bn2a_branch2a'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
     8   'res2a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
     9   'res2a_branch2b'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    10   'bn2a_branch2b'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    11   'res2a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    12   'res2a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    13   'res2b_branch2a'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    14   'bn2b_branch2a'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    15   'res2b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    16   'res2b_branch2b'        Convolution                  64 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]    (HW Layer)
    17   'bn2b_branch2b'         Batch Normalization          Batch normalization with 64 channels                                  (HW Layer)
    18   'res2b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    19   'res2b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    20   'res3a_branch2a'        Convolution                  128 3×3×64 convolutions with stride [2  2] and padding [1  1  1  1]   (HW Layer)
    21   'bn3a_branch2a'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    22   'res3a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    23   'res3a_branch2b'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    24   'bn3a_branch2b'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    25   'res3a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    26   'res3a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    27   'res3a_branch1'         Convolution                  128 1×1×64 convolutions with stride [2  2] and padding [0  0  0  0]   (HW Layer)
    28   'bn3a_branch1'          Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    29   'res3b_branch2a'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    30   'bn3b_branch2a'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    31   'res3b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    32   'res3b_branch2b'        Convolution                  128 3×3×128 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    33   'bn3b_branch2b'         Batch Normalization          Batch normalization with 128 channels                                 (HW Layer)
    34   'res3b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    35   'res3b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    36   'res4a_branch2a'        Convolution                  256 3×3×128 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    37   'bn4a_branch2a'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    38   'res4a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    39   'res4a_branch2b'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'bn4a_branch2b'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    41   'res4a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    42   'res4a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    43   'res4a_branch1'         Convolution                  256 1×1×128 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    44   'bn4a_branch1'          Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    45   'res4b_branch2a'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    46   'bn4b_branch2a'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    47   'res4b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    48   'res4b_branch2b'        Convolution                  256 3×3×256 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    49   'bn4b_branch2b'         Batch Normalization          Batch normalization with 256 channels                                 (HW Layer)
    50   'res4b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    51   'res4b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    52   'res5a_branch2a'        Convolution                  512 3×3×256 convolutions with stride [2  2] and padding [1  1  1  1]  (HW Layer)
    53   'bn5a_branch2a'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    54   'res5a_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    55   'res5a_branch2b'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    56   'bn5a_branch2b'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    57   'res5a'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    58   'res5a_relu'            ReLU                         ReLU                                                                  (HW Layer)
    59   'res5a_branch1'         Convolution                  512 1×1×256 convolutions with stride [2  2] and padding [0  0  0  0]  (HW Layer)
    60   'bn5a_branch1'          Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    61   'res5b_branch2a'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    62   'bn5b_branch2a'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    63   'res5b_branch2a_relu'   ReLU                         ReLU                                                                  (HW Layer)
    64   'res5b_branch2b'        Convolution                  512 3×3×512 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    65   'bn5b_branch2b'         Batch Normalization          Batch normalization with 512 channels                                 (HW Layer)
    66   'res5b'                 Addition                     Element-wise addition of 2 inputs                                     (HW Layer)
    67   'res5b_relu'            ReLU                         ReLU                                                                  (HW Layer)
    68   'pool5'                 2-D Global Average Pooling   2-D global average pooling                                            (HW Layer)
    69   'new_fc'                Fully Connected              5 fully connected layer                                               (HW Layer)
    70   'prob'                  Softmax                      softmax                                                               (HW Layer)
    71   'new_classoutput'       Classification Output        crossentropyex with 'MathWorks Cap' and 4 other classes               (SW Layer)

### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'new_classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
### Compiling layer group: conv1>>pool1 ...
### Compiling layer group: conv1>>pool1 ... complete.
### Compiling layer group: res2a_branch2a>>res2a_branch2b ...
### Compiling layer group: res2a_branch2a>>res2a_branch2b ... complete.
### Compiling layer group: res2b_branch2a>>res2b_branch2b ...
### Compiling layer group: res2b_branch2a>>res2b_branch2b ... complete.
### Compiling layer group: res3a_branch1 ...
### Compiling layer group: res3a_branch1 ... complete.
### Compiling layer group: res3a_branch2a>>res3a_branch2b ...
### Compiling layer group: res3a_branch2a>>res3a_branch2b ... complete.
### Compiling layer group: res3b_branch2a>>res3b_branch2b ...
### Compiling layer group: res3b_branch2a>>res3b_branch2b ... complete.
### Compiling layer group: res4a_branch1 ...
### Compiling layer group: res4a_branch1 ... complete.
### Compiling layer group: res4a_branch2a>>res4a_branch2b ...
### Compiling layer group: res4a_branch2a>>res4a_branch2b ... complete.
### Compiling layer group: res4b_branch2a>>res4b_branch2b ...
### Compiling layer group: res4b_branch2a>>res4b_branch2b ... complete.
### Compiling layer group: res5a_branch1 ...
### Compiling layer group: res5a_branch1 ... complete.
### Compiling layer group: res5a_branch2a>>res5a_branch2b ...
### Compiling layer group: res5a_branch2a>>res5a_branch2b ... complete.
### Compiling layer group: res5b_branch2a>>res5b_branch2b ...
### Compiling layer group: res5b_branch2a>>res5b_branch2b ... complete.
### Compiling layer group: pool5 ...
### Compiling layer group: pool5 ... complete.
### Compiling layer group: new_fc ...
### Compiling layer group: new_fc ... complete.

### Allocating external memory buffers:

          offset_name          offset_address    allocated_space
    _______________________    ______________    ________________

    "InputDataOffset"           "0x00000000"     "12.0 MB"
    "OutputResultOffset"        "0x00c00000"     "4.0 MB"
    "SchedulerDataOffset"       "0x01000000"     "4.0 MB"
    "SystemBufferOffset"        "0x01400000"     "28.0 MB"
    "InstructionDataOffset"     "0x03000000"     "4.0 MB"
    "ConvWeightDataOffset"      "0x03400000"     "16.0 MB"
    "FCWeightDataOffset"        "0x04400000"     "4.0 MB"
    "EndOffset"                 "0x04800000"     "Total: 72.0 MB"

### Network compilation complete.

### FPGA bitstream programming has been skipped as the same bitstream is already loaded on the target FPGA.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 20-Jan-2022 08:46:40
### Loading weights to FC Processor.
### FC Weights loaded. Current time is 20-Jan-2022 08:46:40
### Finished writing input activations.
### Running in multi-frame mode with 20 inputs.


              Deep Learning Processor Bitstream Build Info

Resource                   Utilized           Total        Percentage
------------------        ----------      ------------    ------------
LUTs (CLB/ALM)*              248190            274080           90.55
DSPs                            384              2520           15.24
Block RAM                       581               912           63.71
* LUT count represents Configurable Logic Block(CLB) utilization in Xilinx devices and Adaptive Logic Module (ALM) utilization in Intel devices.

### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'new_classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.


              Deep Learning Processor Estimator Performance Results

                   LastFrameLatency(cycles)   LastFrameLatency(seconds)       FramesNum      Total Latency     Frames/s
                         -------------             -------------              ---------        ---------       ---------
Network                   23871185                  0.10851                       1           23871185              9.2
    ____data_norm_add       210750                  0.00096
    ____data_norm           210750                  0.00096
    ____conv1              2165372                  0.00984
    ____pool1               646226                  0.00294
    ____res2a_branch2a      966221                  0.00439
    ____res2a_branch2b      966221                  0.00439
    ____res2a               210750                  0.00096
    ____res2b_branch2a      966221                  0.00439
    ____res2b_branch2b      966221                  0.00439
    ____res2b               210750                  0.00096
    ____res3a_branch1       540749                  0.00246
    ____res3a_branch2a      763860                  0.00347
    ____res3a_branch2b      919117                  0.00418
    ____res3a               105404                  0.00048
    ____res3b_branch2a      919117                  0.00418
    ____res3b_branch2b      919117                  0.00418
    ____res3b               105404                  0.00048
    ____res4a_branch1       509261                  0.00231
    ____res4a_branch2a      509261                  0.00231
    ____res4a_branch2b      905421                  0.00412
    ____res4a                52724                  0.00024
    ____res4b_branch2a      905421                  0.00412
    ____res4b_branch2b      905421                  0.00412
    ____res4b                52724                  0.00024
    ____res5a_branch1      1046605                  0.00476
    ____res5a_branch2a     1046605                  0.00476
    ____res5a_branch2b     2005197                  0.00911
    ____res5a                26368                  0.00012
    ____res5b_branch2a     2005197                  0.00911
    ____res5b_branch2b     2005197                  0.00911
    ____res5b                26368                  0.00012
    ____pool5                54594                  0.00025
    ____new_fc               22571                  0.00010
 * The clock frequency of the DL processor is: 220MHz




              Deep Learning Processor Bitstream Build Info

Resource                   Utilized           Total        Percentage
------------------        ----------      ------------    ------------
LUTs (CLB/ALM)*              168836            274080           61.60
DSPs                            800              2520           31.75
Block RAM                       453               912           49.67
* LUT count represents Configurable Logic Block(CLB) utilization in Xilinx devices and Adaptive Logic Module (ALM) utilization in Intel devices.

### Finished writing input activations.
### Running single input activation.
prediction_FPGA = struct with fields:
       NumSamples: 20
    MetricResults: [1×1 struct]
       Statistics: [2×7 table]

prediction_FPGA.Statistics.FramesPerSecond
ans = 2×1

    9.2161
   33.8157

The first number is the frames per second performance for the single data type network and the second number is the frames per second performance for the quantized network.

This example shows how to deploy a trained you only look once (YOLO) v3 object detector to a target FPGA board. You then use MATLAB to retrieve the object classification from the FPGA board.

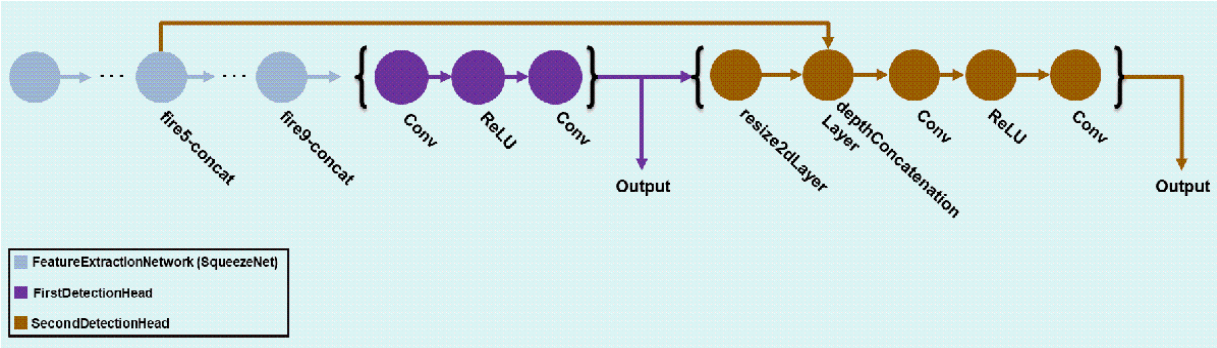

Compared to YOLO v2 networks, YOLO v3 networks have additional detection heads that help detect smaller objects.

Create YOLO v3 Detector Object

In this example, you use a pretrained YOLO v3 object detector. To construct and train a custom YOLO v3 detector, see Object Detection Using YOLO v3 Deep Learning (Computer Vision Toolbox).

Use the downloadPretrainedYOLOv3Detector function to generate a dlnetwork object. To get the code for this function, see the downloadPretrainedYOLOv3Detector Function section.

preTrainedDetector = downloadPretrainedYOLOv3Detector;
Downloaded pretrained detector

The generated network uses training data to estimate the anchor boxes, which help the detector learn to predict the boxes. For more information about anchor boxes, see Anchor Boxes for Object Detection (Computer Vision Toolbox). The downloadPretrainedYOLOv3Detector function creates this YOLO v3 network:

Load the Pretrained network

Extract the network from the pretrained YOLO v3 detector object.

yolov3Detector = preTrainedDetector;
net = yolov3Detector.Network;

Extract the attributes of the network as variables.

anchorBoxes = yolov3Detector.AnchorBoxes;
outputNames = yolov3Detector.Network.OutputNames;
inputSize = yolov3Detector.InputSize;
classNames = yolov3Detector.ClassNames;

Use the analyzeNetwork function to obtain information about the network layers. the function returns a graphical representation of the network that contains detailed parameter information for every layer in the network.

analyzeNetwork(net);

Define FPGA Board Interface

Define the target FPGA board programming interface by using the dlhdl.Target object. Create a programming interface with custom name for your target device and an Ethernet interface to connect the target device to the host computer.

hTarget = dlhdl.Target('Xilinx','Interface','Ethernet');

Prepare Network for Deployment

Prepare the network for deployment by creating a dlhdl.Workflow object. Specify the network and bitstream name. Ensure that the bitstream name matches the data type and the FPGA board that you are targeting. In this example, the target FPGA board is the Xilinx® Zynq® UltraScale+™ MPSoC ZCU102 board and the bitstream uses the single data type.

hW = dlhdl.Workflow('Network',net,'Bitstream','zcu102_single','Target',hTarget);

Compile Network

Run the compile method of the dlhdl.Workflow object to compile the network and generate the instructions, weights, and biases for deployment.

dn = compile(hW);
### Compiling network for Deep Learning FPGA prototyping ...
### Targeting FPGA bitstream zcu102_single.
### The network includes the following layers:
     1   'data'                    Image Input           227×227×3 images                                                     (SW Layer)
     2   'conv1'                   2-D Convolution       64 3×3×3 convolutions with stride [2  2] and padding [0  0  0  0]    (HW Layer)
     3   'relu_conv1'              ReLU                  ReLU                                                                 (HW Layer)
     4   'pool1'                   2-D Max Pooling       3×3 max pooling with stride [2  2] and padding [0  0  0  0]          (HW Layer)
     5   'fire2-squeeze1x1'        2-D Convolution       16 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
     6   'fire2-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
     7   'fire2-expand1x1'         2-D Convolution       64 1×1×16 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
     8   'fire2-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
     9   'fire2-expand3x3'         2-D Convolution       64 3×3×16 convolutions with stride [1  1] and padding [1  1  1  1]   (HW Layer)
    10   'fire2-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    11   'fire2-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    12   'fire3-squeeze1x1'        2-D Convolution       16 1×1×128 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    13   'fire3-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    14   'fire3-expand1x1'         2-D Convolution       64 1×1×16 convolutions with stride [1  1] and padding [0  0  0  0]   (HW Layer)
    15   'fire3-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    16   'fire3-expand3x3'         2-D Convolution       64 3×3×16 convolutions with stride [1  1] and padding [1  1  1  1]   (HW Layer)
    17   'fire3-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    18   'fire3-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    19   'pool3'                   2-D Max Pooling       3×3 max pooling with stride [2  2] and padding [0  1  0  1]          (HW Layer)
    20   'fire4-squeeze1x1'        2-D Convolution       32 1×1×128 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    21   'fire4-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    22   'fire4-expand1x1'         2-D Convolution       128 1×1×32 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    23   'fire4-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    24   'fire4-expand3x3'         2-D Convolution       128 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    25   'fire4-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    26   'fire4-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    27   'fire5-squeeze1x1'        2-D Convolution       32 1×1×256 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    28   'fire5-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    29   'fire5-expand1x1'         2-D Convolution       128 1×1×32 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    30   'fire5-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    31   'fire5-expand3x3'         2-D Convolution       128 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    32   'fire5-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    33   'fire5-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    34   'pool5'                   2-D Max Pooling       3×3 max pooling with stride [2  2] and padding [0  1  0  1]          (HW Layer)
    35   'fire6-squeeze1x1'        2-D Convolution       48 1×1×256 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    36   'fire6-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    37   'fire6-expand1x1'         2-D Convolution       192 1×1×48 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    38   'fire6-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    39   'fire6-expand3x3'         2-D Convolution       192 3×3×48 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    40   'fire6-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    41   'fire6-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    42   'fire7-squeeze1x1'        2-D Convolution       48 1×1×384 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    43   'fire7-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    44   'fire7-expand1x1'         2-D Convolution       192 1×1×48 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    45   'fire7-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    46   'fire7-expand3x3'         2-D Convolution       192 3×3×48 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    47   'fire7-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    48   'fire7-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    49   'fire8-squeeze1x1'        2-D Convolution       64 1×1×384 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    50   'fire8-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    51   'fire8-expand1x1'         2-D Convolution       256 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    52   'fire8-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    53   'fire8-expand3x3'         2-D Convolution       256 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    54   'fire8-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    55   'fire8-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    56   'fire9-squeeze1x1'        2-D Convolution       64 1×1×512 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    57   'fire9-relu_squeeze1x1'   ReLU                  ReLU                                                                 (HW Layer)
    58   'fire9-expand1x1'         2-D Convolution       256 1×1×64 convolutions with stride [1  1] and padding [0  0  0  0]  (HW Layer)
    59   'fire9-relu_expand1x1'    ReLU                  ReLU                                                                 (HW Layer)
    60   'fire9-expand3x3'         2-D Convolution       256 3×3×64 convolutions with stride [1  1] and padding [1  1  1  1]  (HW Layer)
    61   'fire9-relu_expand3x3'    ReLU                  ReLU                                                                 (HW Layer)
    62   'fire9-concat'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    63   'customConv1'             2-D Convolution       1024 3×3×512 convolutions with stride [1  1] and padding 'same'      (HW Layer)
    64   'customBatchNorm1'        Batch Normalization   Batch normalization with 1024 channels                               (HW Layer)
    65   'customRelu1'             ReLU                  ReLU                                                                 (HW Layer)
    66   'customOutputConv1'       2-D Convolution       18 1×1×1024 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    67   'featureConv2'            2-D Convolution       128 1×1×512 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    68   'featureBatchNorm2'       Batch Normalization   Batch normalization with 128 channels                                (HW Layer)
    69   'featureRelu2'            ReLU                  ReLU                                                                 (HW Layer)
    70   'featureResize2'          Resize                nnet.cnn.layer.Resize2DLayer                                         (HW Layer)
    71   'depthConcat2'            Depth concatenation   Depth concatenation of 2 inputs                                      (HW Layer)
    72   'customConv2'             2-D Convolution       256 3×3×384 convolutions with stride [1  1] and padding 'same'       (HW Layer)
    73   'customBatchNorm2'        Batch Normalization   Batch normalization with 256 channels                                (HW Layer)
    74   'customRelu2'             ReLU                  ReLU                                                                 (HW Layer)
    75   'customOutputConv2'       2-D Convolution       18 1×1×256 convolutions with stride [1  1] and padding 'same'        (HW Layer)

### An output layer called 'Output1_customOutputConv1' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### An output layer called 'Output2_customOutputConv2' of type 'nnet.cnn.layer.RegressionOutputLayer' has been added to the provided network. This layer performs no operation during prediction and thus does not affect the output of the network.
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' with type 'nnet.cnn.layer.ImageInputLayer' is implemented in software.
### Notice: The layer 'Output1_customOutputConv1' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Notice: The layer 'Output2_customOutputConv2' with type 'nnet.cnn.layer.RegressionOutputLayer' is implemented in software.
### Compiling layer group: conv1>>fire2-relu_squeeze1x1 ...
### Compiling layer group: conv1>>fire2-relu_squeeze1x1 ... complete.
### Compiling layer group: fire2-expand1x1>>fire2-relu_expand1x1 ...
### Compiling layer group: fire2-expand1x1>>fire2-relu_expand1x1 ... complete.
### Compiling layer group: fire2-expand3x3>>fire2-relu_expand3x3 ...
### Compiling layer group: fire2-expand3x3>>fire2-relu_expand3x3 ... complete.
### Compiling layer group: fire3-squeeze1x1>>fire3-relu_squeeze1x1 ...
### Compiling layer group: fire3-squeeze1x1>>fire3-relu_squeeze1x1 ... complete.
### Compiling layer group: fire3-expand1x1>>fire3-relu_expand1x1 ...
### Compiling layer group: fire3-expand1x1>>fire3-relu_expand1x1 ... complete.
### Compiling layer group: fire3-expand3x3>>fire3-relu_expand3x3 ...
### Compiling layer group: fire3-expand3x3>>fire3-relu_expand3x3 ... complete.
### Compiling layer group: pool3>>fire4-relu_squeeze1x1 ...
### Compiling layer group: pool3>>fire4-relu_squeeze1x1 ... complete.
### Compiling layer group: fire4-expand1x1>>fire4-relu_expand1x1 ...
### Compiling layer group: fire4-expand1x1>>fire4-relu_expand1x1 ... complete.
### Compiling layer group: fire4-expand3x3>>fire4-relu_expand3x3 ...
### Compiling layer group: fire4-expand3x3>>fire4-relu_expand3x3 ... complete.
### Compiling layer group: fire5-squeeze1x1>>fire5-relu_squeeze1x1 ...
### Compiling layer group: fire5-squeeze1x1>>fire5-relu_squeeze1x1 ... complete.
### Compiling layer group: fire5-expand1x1>>fire5-relu_expand1x1 ...
### Compiling layer group: fire5-expand1x1>>fire5-relu_expand1x1 ... complete.
### Compiling layer group: fire5-expand3x3>>fire5-relu_expand3x3 ...
### Compiling layer group: fire5-expand3x3>>fire5-relu_expand3x3 ... complete.
### Compiling layer group: pool5>>fire6-relu_squeeze1x1 ...
### Compiling layer group: pool5>>fire6-relu_squeeze1x1 ... complete.
### Compiling layer group: fire6-expand1x1>>fire6-relu_expand1x1 ...
### Compiling layer group: fire6-expand1x1>>fire6-relu_expand1x1 ... complete.
### Compiling layer group: fire6-expand3x3>>fire6-relu_expand3x3 ...
### Compiling layer group: fire6-expand3x3>>fire6-relu_expand3x3 ... complete.
### Compiling layer group: fire7-squeeze1x1>>fire7-relu_squeeze1x1 ...
### Compiling layer group: fire7-squeeze1x1>>fire7-relu_squeeze1x1 ... complete.
### Compiling layer group: fire7-expand1x1>>fire7-relu_expand1x1 ...
### Compiling layer group: fire7-expand1x1>>fire7-relu_expand1x1 ... complete.
### Compiling layer group: fire7-expand3x3>>fire7-relu_expand3x3 ...
### Compiling layer group: fire7-expand3x3>>fire7-relu_expand3x3 ... complete.
### Compiling layer group: fire8-squeeze1x1>>fire8-relu_squeeze1x1 ...
### Compiling layer group: fire8-squeeze1x1>>fire8-relu_squeeze1x1 ... complete.
### Compiling layer group: fire8-expand1x1>>fire8-relu_expand1x1 ...
### Compiling layer group: fire8-expand1x1>>fire8-relu_expand1x1 ... complete.
### Compiling layer group: fire8-expand3x3>>fire8-relu_expand3x3 ...
### Compiling layer group: fire8-expand3x3>>fire8-relu_expand3x3 ... complete.
### Compiling layer group: fire9-squeeze1x1>>fire9-relu_squeeze1x1 ...
### Compiling layer group: fire9-squeeze1x1>>fire9-relu_squeeze1x1 ... complete.
### Compiling layer group: fire9-expand1x1>>fire9-relu_expand1x1 ...
### Compiling layer group: fire9-expand1x1>>fire9-relu_expand1x1 ... complete.
### Compiling layer group: fire9-expand3x3>>fire9-relu_expand3x3 ...
### Compiling layer group: fire9-expand3x3>>fire9-relu_expand3x3 ... complete.
### Compiling layer group: customConv1>>customOutputConv1 ...
### Compiling layer group: customConv1>>customOutputConv1 ... complete.
### Compiling layer group: featureConv2>>featureRelu2 ...
### Compiling layer group: featureConv2>>featureRelu2 ... complete.
### Compiling layer group: customConv2>>customOutputConv2 ...
### Compiling layer group: customConv2>>customOutputConv2 ... complete.

### Allocating external memory buffers:

          offset_name          offset_address     allocated_space
    _______________________    ______________    _________________

    "InputDataOffset"           "0x00000000"     "24.0 MB"
    "OutputResultOffset"        "0x01800000"     "4.0 MB"
    "SchedulerDataOffset"       "0x01c00000"     "4.0 MB"
    "SystemBufferOffset"        "0x02000000"     "28.0 MB"
    "InstructionDataOffset"     "0x03c00000"     "8.0 MB"
    "ConvWeightDataOffset"      "0x04400000"     "104.0 MB"
    "EndOffset"                 "0x0ac00000"     "Total: 172.0 MB"

### Network compilation complete.

Program Bitstream onto FPGA and Download Network Weights

To deploy the network on the Xilinx® Zynq® UltraScale+ MPSoC ZCU102 hardware, run the deploy method of the dlhdl.Workflow object. This method programs the FPGA board using the output of the compile method and the programming file, downloads the network weights and biases, displays progress messages, and the time it takes to deploy the network.

deploy(hW);
### Programming FPGA Bitstream using Ethernet...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming FPGA device on Xilinx SoC hardware board at 192.168.1.101...
### Copying FPGA programming files to SD card...
### Setting FPGA bitstream and devicetree for boot...
# Copying Bitstream zcu102_single.bit to /mnt/hdlcoder_rd
# Set Bitstream to hdlcoder_rd/zcu102_single.bit
# Copying Devicetree devicetree_dlhdl.dtb to /mnt/hdlcoder_rd
# Set Devicetree to hdlcoder_rd/devicetree_dlhdl.dtb
# Set up boot for Reference Design: 'AXI-Stream DDR Memory Access : 3-AXIM'
### Rebooting Xilinx SoC at 192.168.1.101...
### Reboot may take several seconds...
### Attempting to connect to the hardware board at 192.168.1.101...
### Connection successful
### Programming the FPGA bitstream has been completed successfully.
### Loading weights to Conv Processor.
### Conv Weights loaded. Current time is 21-Jun-2022 20:35:11

Test Network

Load the example image and convert the image into a dlarray. Then classify the image on the FPGA by using the predict method of the dlhdl.Workflow object and display the results.

img = imread('vehicle_image.jpg');
I = single(rescale(img));
I = imresize(I, yolov3Detector.InputSize(1:2));
dlX = dlarray(I,'SSC');

Store the output of each detection head of the network in the features variable. Pass features to the post-processing function processYOLOv3Ouputs to combine the multiple outputs and compute the final results. To get the code for this function, see the processYOLOv3Output Function section.

features = cell(size(net.OutputNames'));
[features{:}] = hW.predict(dlX);
### Finished writing input activations.
### Running single input activation.
[bboxes, scores, labels] = processYOLOv3Output(anchorBoxes, inputSize, classNames, features, I);
resultImage = insertObjectAnnotation(I,'rectangle',bboxes,scores);
imshow(resultImage)

Figure contains an axes object. The axes object contains an object of type image.

The FPGA returns a score prediction of 0.89605 with a bounding box drawn around the object in the image. The FPGA also returns a prediction of vehicle to the labels variable.

downloadPretrainedYOLOv3Detector Function

The downloadPretrainedYOLOv3Detector function to download the pretrained YOLO v3 detector network

function detector = downloadPretrainedYOLOv3Detector
if ~exist('yolov3SqueezeNetVehicleExample_21aSPKG.mat', 'file')
    if ~exist('yolov3SqueezeNetVehicleExample_21aSPKG.zip', 'file')
        zipFile = matlab.internal.examples.downloadSupportFile('vision/data', 'yolov3SqueezeNetVehicleExample_21aSPKG.zip');
        copyfile(zipFile);
    end
    unzip('yolov3SqueezeNetVehicleExample_21aSPKG.zip');
end
pretrained = load("yolov3SqueezeNetVehicleExample_21aSPKG.mat");
detector = pretrained.detector;
disp('Downloaded pretrained detector');
end

processYOLOv3Output Function

The processYOLOv3Output function is attached as a helper file in this example's directory. This function converts the feature maps from multiple detection heads to bounding boxes, scores and labels. A code snippet of the function is shown below.

function [bboxes, scores, labels] = processYOLOv3Output(anchorBoxes, inputSize, classNames, features, img)
% This function converts the feature maps from multiple detection heads to bounding boxes, scores and labels
% processYOLOv3Output is C code generatable

% Breaks down the raw output from predict function into Confidence score, X, Y, Width,
% Height and Class probabilities for each output from detection head
predictions = iYolov3Transform(features, anchorBoxes);

% Initialize parameters for post-processing
inputSize2d = inputSize(1:2);
info.PreprocessedImageSize = inputSize2d(1:2);
info.ScaleX = size(img,1)/inputSize2d(1);
info.ScaleY = size(img,2)/inputSize2d(1);
params.MinSize = [1 1];
params.MaxSize = size(img(:,:,1));
params.Threshold = 0.5;
params.FractionDownsampling = 1;
params.DetectionInputWasBatchOfImages = false;
params.NetworkInputSize = inputSize;
params.DetectionPreprocessing = "none";
params.SelectStrongest = 1;
bboxes = [];
scores = [];
labels = [];

% Post-process the predictions to get bounding boxes, scores and labels
[bboxes, scores, labels] = iPostprocessMultipleDetection(anchorBoxes, inputSize, classNames, predictions, info, params);
end

function [bboxes, scores, labels] = iPostprocessMultipleDetection (anchorBoxes, inputSize, classNames, YPredData, info, params)
% Post-process the predictions to get bounding boxes, scores and labels

% YpredData is a (x,8) cell array, where x = number of detection heads
% Information in each column is:
% column 1 -> confidence scores
% column 2 to column 5 -> X offset, Y offset, Width, Height of anchor boxes
% column 6 -> class probabilities
% column 7-8 -> copy of width and height of anchor boxes

% Initialize parameters for post-processing
classes = classNames;
predictions = YPredData;
extractPredictions = cell(size(predictions));
% Extract dlarray data
for i = 1:size(extractPredictions,1)
    for j = 1:size(extractPredictions,2)
        extractPredictions{i,j} = extractdata(predictions{i,j});
    end
end

% Storing the values of columns 2 to 5 of extractPredictions
% Columns 2 to 5 represent information about X-coordinate, Y-coordinate, Width and Height of predicted anchor boxes
extractedCoordinates = cell(size(predictions,1),4);
for i = 1:size(predictions,1)
    for j = 2:5
        extractedCoordinates{i,j-1} = extractPredictions{i,j};
    end
end

% Convert predictions from grid cell coordinates to box coordinates.
boxCoordinates = anchorBoxGenerator(anchorBoxes, inputSize, classNames, extractedCoordinates, params.NetworkInputSize);
% Replace grid cell coordinates in extractPredictions with box coordinates
for i = 1:size(YPredData,1)
    for j = 2:5
        extractPredictions{i,j} = single(boxCoordinates{i,j-1});
    end
end

% 1. Convert bboxes from spatial to pixel dimension
% 2. Combine the prediction from different heads.
% 3. Filter detections based on threshold.

% Reshaping the matrices corresponding to confidence scores and  bounding boxes
detections = cell(size(YPredData,1),6);
for i = 1:size(detections,1)
    for j = 1:5
        detections{i,j} = reshapePredictions(extractPredictions{i,j});
    end
end
% Reshaping the matrices corresponding to class probablities
numClasses = repmat({numel(classes)},[size(detections,1),1]);
for i = 1:size(detections,1)
    detections{i,6} = reshapeClasses(extractPredictions{i,6},numClasses{i,1});
end

% cell2mat converts the cell of matrices into one matrix, this combines the
% predictions of all detection heads
detections = cell2mat(detections);

% Getting the most probable class and corresponding index
[classProbs, classIdx] = max(detections(:,6:end),[],2);
detections(:,1) = detections(:,1).*classProbs;
detections(:,6) = classIdx;

% Keep detections whose confidence score is greater than threshold.
detections = detections(detections(:,1) >= params.Threshold,:);

[bboxes, scores, labels] = iPostProcessDetections(detections, classes, info, params);
end

function [bboxes, scores, labels] = iPostProcessDetections(detections, classes, info, params)
% Resizes the anchor boxes, filters anchor boxes based on size and apply
% NMS to eliminate overlapping anchor boxes
if ~isempty(detections)

    % Obtain bounding boxes and class data for pre-processed image
    scorePred = detections(:,1);
    bboxesTmp = detections(:,2:5);
    classPred = detections(:,6);
    inputImageSize = ones(1,2);
    inputImageSize(2) = info.ScaleX.*info.PreprocessedImageSize(2);
    inputImageSize(1) = info.ScaleY.*info.PreprocessedImageSize(1);
    % Resize boxes to actual image size.
    scale = [inputImageSize(2) inputImageSize(1) inputImageSize(2) inputImageSize(1)];
    bboxPred = bboxesTmp.*scale;
    % Convert x and y position of detections from centre to top-left.
    bboxPred = iConvertCenterToTopLeft(bboxPred);

    % Filter boxes based on MinSize, MaxSize.
    [bboxPred, scorePred, classPred] = filterBBoxes(params.MinSize, params.MaxSize, bboxPred, scorePred, classPred);

    % Apply NMS to eliminate boxes having significant overlap
    if params.SelectStrongest
        [bboxes, scores, classNames] = selectStrongestBboxMulticlass(bboxPred, scorePred, classPred ,...
            'RatioType', 'Union', 'OverlapThreshold', 0.4);
    else
        bboxes = bboxPred;
        scores = scorePred;
        classNames = classPred;
    end

    % Limit width detections
    detectionsWd = min((bboxes(:,1) + bboxes(:,3)),inputImageSize(1,2));
    bboxes(:,3) = detectionsWd(:,1) - bboxes(:,1);

    % Limit height detections
    detectionsHt = min((bboxes(:,2) + bboxes(:,4)),inputImageSize(1,1));
    bboxes(:,4) = detectionsHt(:,1) - bboxes(:,2);
    bboxes(bboxes<1) = 1;

    % Convert classId to classNames.
    labels = categorical(classes,cellstr(classes));
    labels = labels(classNames);

else
    % If detections are empty then bounding boxes, scores and labels should
    % be empty
    bboxes = zeros(0,4,'single');
    scores = zeros(0,1,'single');
    labels = categorical(classes);
end
end

function x = reshapePredictions(pred)
% Reshapes the matrices corresponding to scores, X, Y, Width and Height to
% make them compatible for combining the outputs of different detection
% heads
[h,w,c,n] = size(pred);
x = reshape(pred,h*w*c,1,n);
end

function x = reshapeClasses(pred,numClasses)
% Reshapes the matrices corresponding to the class probabilities, to make it
% compatible for combining the outputs of different detection heads
[h,w,c,n] = size(pred);
numAnchors = c/numClasses;
x = reshape(pred,h*w,numClasses,numAnchors,n);
x = permute(x,[1,3,2,4]);
[h,w,c,n] = size(x);
x = reshape(x,h*w,c,n);
end

function bboxes = iConvertCenterToTopLeft(bboxes)
% Convert x and y position of detections from centre to top-left.
bboxes(:,1) = bboxes(:,1) - bboxes(:,3)/2 + 0.5;
bboxes(:,2) = bboxes(:,2) - bboxes(:,4)/2 + 0.5;
bboxes = floor(bboxes);
bboxes(bboxes<1) = 1;
end

function tiledAnchors = anchorBoxGenerator(anchorBoxes, inputSize, classNames,YPredCell,inputImageSize)
% Convert grid cell coordinates to box coordinates.
% Generate tiled anchor offset.
tiledAnchors = cell(size(YPredCell));
for i = 1:size(YPredCell,1)
    anchors = anchorBoxes{i,:};
    [h,w,~,n] = size(YPredCell{i,1});
    [tiledAnchors{i,2},tiledAnchors{i,1}] = ndgrid(0:h-1,0:w-1,1:size(anchors,1),1:n);
    [~,~,tiledAnchors{i,3}] = ndgrid(0:h-1,0:w-1,anchors(:,2),1:n);
    [~,~,tiledAnchors{i,4}] = ndgrid(0:h-1,0:w-1,anchors(:,1),1:n);
end

for i = 1:size(YPredCell,1)
    [h,w,~,~] = size(YPredCell{i,1});
    tiledAnchors{i,1} = double((tiledAnchors{i,1} + YPredCell{i,1})./w);
    tiledAnchors{i,2} = double((tiledAnchors{i,2} + YPredCell{i,2})./h);
    tiledAnchors{i,3} = double((tiledAnchors{i,3}.*YPredCell{i,3})./inputImageSize(2));
    tiledAnchors{i,4} = double((tiledAnchors{i,4}.*YPredCell{i,4})./inputImageSize(1));
end
end

function predictions = iYolov3Transform(YPredictions, anchorBoxes)
% This function breaks down the raw output from predict function into Confidence score, X, Y, Width,
% Height and Class probabilities for each output from detection head

predictions = cell(size(YPredictions,1),size(YPredictions,2) + 2);

for idx = 1:size(YPredictions,1)
    % Get the required info on feature size.
    numChannelsPred = size(YPredictions{idx},3);  %number of channels in a feature map
    numAnchors = size(anchorBoxes{idx},1);    %number of anchor boxes per grid
    numPredElemsPerAnchors = numChannelsPred/numAnchors;
    channelsPredIdx = 1:numChannelsPred;
    predictionIdx = ones([1,numAnchors.*5]);

    % X positions.
    startIdx = 1;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,2} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Y positions.
    startIdx = 2;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,3} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Width.
    startIdx = 3;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,4} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Height.
    startIdx = 4;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,5} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Confidence scores.
    startIdx = 5;
    endIdx = numChannelsPred;
    stride = numPredElemsPerAnchors;
    predictions{idx,1} = YPredictions{idx}(:,:,startIdx:stride:endIdx,:);
    predictionIdx = [predictionIdx startIdx:stride:endIdx];

    % Class probabilities.
    classIdx = setdiff(channelsPredIdx,predictionIdx);
    predictions{idx,6} = YPredictions{idx}(:,:,classIdx,:);
end

for i = 1:size(predictions,1)
    predictions{i,7} = predictions{i,4};
    predictions{i,8} = predictions{i,5};
end

% Apply activation to the predicted cell array
% Apply sigmoid activation to columns 1-3 (Confidence score, X, Y)
for i = 1:size(predictions,1)
    for j = 1:3
        predictions{i,j} = sigmoid(predictions{i,j});
    end
end
% Apply exponentiation to columns 4-5 (Width, Height)
for i = 1:size(predictions,1)
    for j = 4:5
        predictions{i,j} = exp(predictions{i,j});
    end
end
% Apply sigmoid activation to column 6 (Class probabilities)
for i = 1:size(predictions,1)
    for j = 6
        predictions{i,j} = sigmoid(predictions{i,j});
    end
end
end

function [bboxPred, scorePred, classPred] = filterBBoxes(minSize, maxSize, bboxPred, scorePred, classPred)
% Filter boxes based on MinSize, MaxSize
[bboxPred, scorePred, classPred] = filterSmallBBoxes(minSize, bboxPred, scorePred, classPred);
[bboxPred, scorePred, classPred] = filterLargeBBoxes(maxSize, bboxPred, scorePred, classPred);
end

function varargout = filterSmallBBoxes(minSize, varargin)
% Filter boxes based on MinSize
bboxes = varargin{1};
tooSmall = any((bboxes(:,[4 3]) < minSize),2);
for ii = 1:numel(varargin)
    varargout{ii} = varargin{ii}(~tooSmall,:);
end
end

function varargout = filterLargeBBoxes(maxSize, varargin)
% Filter boxes based on MaxSize
bboxes = varargin{1};
tooBig = any((bboxes(:,[4 3]) > maxSize),2);
for ii = 1:numel(varargin)
    varargout{ii} = varargin{ii}(~tooBig,:);
end
end

function m = cell2mat(c)
% Converts the cell of matrices into one matrix by concatenating
% the output corresponding to each feature map

elements = numel(c);
% If number of elements is 0 return an empty array
if elements == 0
    m = [];
    return
end
% If number of elements is 1, return same element as matrix
if elements == 1
    if isnumeric(c{1}) || ischar(c{1}) || islogical(c{1}) || isstruct(c{1})
        m = c{1};
        return
    end
end
% Error out for unsupported cell content
ciscell = iscell(c{1});
cisobj = isobject(c{1});
if cisobj || ciscell
    disp('CELL2MAT does not support cell arrays containing cell arrays or objects.');
end
% If input input is struct, extract field names of structure into a cell
if isstruct(c{1})
    cfields = cell(elements,1);
    for n = 1:elements
        cfields{n} = fieldnames(c{n});
    end
    if ~isequal(cfields{:})
        disp('The field names of each cell array element must be consistent and in consistent order.');
    end
end
% If number of dimensions is 2
if ndims(c) == 2
    rows = size(c,1);
    cols = size(c,2);
    if (rows < cols)
        % If rows is less than columns first concatenate each column into 1
        % row then concatenate all the rows
        m = cell(rows,1);
        for n = 1:rows
            m{n} = cat(2,c{n,:});
        end
        m = cat(1,m{:});
    else
        % If columns is less than rows, first concatenate each corresponding
        % row into columns, then combine all columns into 1
        m = cell(1,cols);
        for n = 1:cols
            m{n} = cat(1,c{:,n});
        end
        m = cat(2,m{:});
    end
    return
end
end

References

[1] Redmon, Joseph, and Ali Farhadi. “YOLOv3: An Incremental Improvement.” Preprint, submitted April 8, 2018. https://arxiv.org/abs/1804.02767.

Version History

Introduced in R2020b
