Pedestrian and Bicyclist Classification Using Deep Learning

This example shows how to classify pedestrians and bicyclists based on their micro-Doppler characteristics using a deep learning network and time-frequency analysis.

The movements of different parts of an object placed in front of a radar produce micro-Doppler signatures that can be used to identify the object. This example uses a convolutional neural network (CNN) to identify pedestrians and bicyclists based on their signatures.

This example trains the deep learning network using simulated data and then examines how the network performs at classifying two cases of overlapping signatures.

Synthetic Data Generation by Simulation

The data used to train the network is generated using backscatterPedestrian and backscatterBicyclist from Radar Toolbox™. These functions simulate the radar backscattering of signals reflected from pedestrians and bicyclists, respectively.

The helper function helperBackScatterSignals generates a specified number of pedestrian, bicyclist, and car radar returns. Because the purpose of the example is to classify pedestrians and bicyclists, this example considers car signatures as noise sources only. To get an idea of the classification problem to solve, examine one realization of a micro-Doppler signature from a pedestrian, a bicyclist, and a car. For each realization, the return signals have dimensions Nfast-by-Nslow, where Nfast is the number of fast-time samples and Nslow is the number of slow-time samples. See Radar Data Cube for more information.

numPed = 1; % Number of pedestrian realizations
numBic = 1; % Number of bicyclist realizations
numCar = 1; % Number of car realizations
[xPedRec,xBicRec,xCarRec,Tsamp] = helperBackScatterSignals(numPed,numBic,numCar);

The helper function helperDopplerSignatures computes the short-time Fourier transform (STFT) of a radar return to generate the micro-Doppler signature. To obtain the micro-Doppler signatures, use the helper functions to apply the STFT and a preprocessing method to each signal.

[SPed,T,F] = helperDopplerSignatures(xPedRec,Tsamp);
[SBic,~,~] = helperDopplerSignatures(xBicRec,Tsamp);
[SCar,~,~] = helperDopplerSignatures(xCarRec,Tsamp);

Plot the time-frequency maps for the pedestrian, bicyclist, and car realizations.

% Plot the first realization of objects
figure
subplot(1,3,1)
imagesc(T,F,SPed(:,:,1))
ylabel('Frequency (Hz)')
title('Pedestrian')
axis square xy

subplot(1,3,2)
imagesc(T,F,SBic(:,:,1))
xlabel('Time (s)')
title('Bicyclist')
axis square xy

subplot(1,3,3)
imagesc(T,F,SCar(:,:,1))
title('Car')
axis square xy

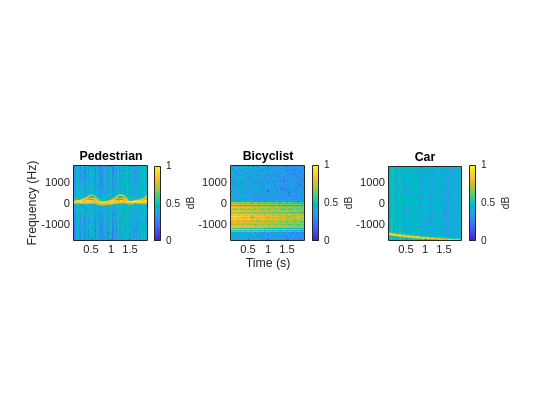

Figure contains 3 axes objects. Axes object 1 with title Pedestrian, ylabel Frequency (Hz) contains an object of type image. Axes object 2 with title Bicyclist, xlabel Time (s) contains an object of type image. Axes object 3 with title Car contains an object of type image.

The normalized spectrograms (STFT absolute values) show that the three objects have quite distinct signatures. Specifically, the spectrograms of the pedestrian and the bicyclist have rich micro-Doppler signatures caused by the swing of arms and legs and the rotation of wheels, respectively. By contrast, in this example, the car is modeled as a point target with a rigid body, so the spectrogram of the car shows that the short-term Doppler frequency shift varies little, indicating little micro-Doppler effect.

Combining Objects

Classifying a single realization as a pedestrian or bicyclist is relatively simple, because the pedestrian and bicyclist micro-Doppler signatures are dissimilar. However, classifying multiple overlapping pedestrians or bicyclists, with the addition of Gaussian noise or car noise, is much more difficult.

If multiple objects exist in the detection region of the radar at the same time, the received radar signal is a summation of the detection signals from all the objects. As an example, generate the received radar signal for a pedestrian and bicyclist with Gaussian background noise.

% Configure Gaussian noise level at the receiver
rx = phased.ReceiverPreamp('Gain',25,'NoiseFigure',10);

xRadarRec = complex(zeros(size(xPedRec)));
for ii = 1:size(xPedRec,3)
    xRadarRec(:,:,ii) = rx(xPedRec(:,:,ii) + xBicRec(:,:,ii));
end

Then obtain micro-Doppler signatures of the received signal by using the STFT.

[S,~,~] = helperDopplerSignatures(xRadarRec,Tsamp);

figure
imagesc(T,F,S(:,:,1)) % Plot the first realization
axis xy
xlabel('Time (s)')
ylabel('Frequency (Hz)')
title('Spectrogram of a Pedestrian and a Bicyclist')

Figure contains an axes object. The axes object with title Spectrogram of a Pedestrian and a Bicyclist, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image.

Because the pedestrian and bicyclist signatures overlap in time and frequency, differentiating between the two objects is difficult.

Generate Training Data

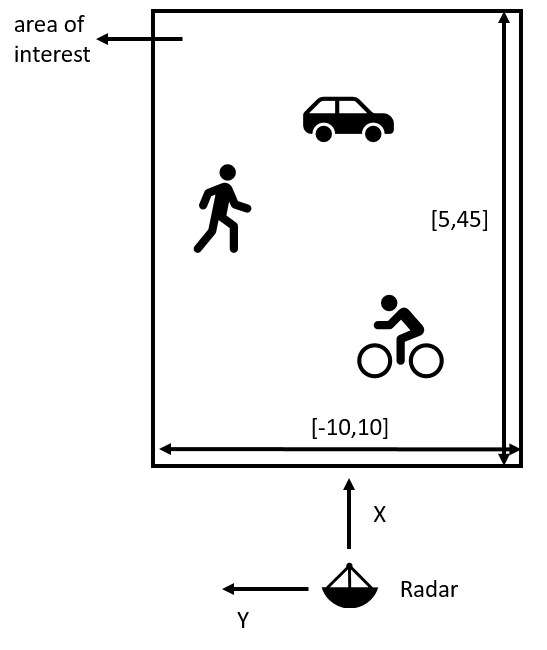

In this example, you train a CNN by using data consisting of simulated realizations of objects with varying properties—for example, bicyclists pedaling at different speeds and pedestrians with different heights walking at different speeds. Assuming the radar is fixed at the origin, in one realization, one object or multiple objects are uniformly distributed in a rectangular area of [5, 45] and [–10, 10] meters along the X and Y axes, respectively.

The other properties of the three objects that are randomly tuned are as follows:

1) Pedestrians

  • Height — Uniformly distributed in the interval of [1.5, 2] meters

  • Heading — Uniformly distributed in the interval of [–180, 180] degrees

  • Speed — Uniformly distributed in the interval of [0, 1.4h] meters/second, where h is the height value

2) Bicyclists

  • Heading — Uniformly distributed in the interval of [–180, 180] degrees

  • Speed — Uniformly distributed in the interval of [1, 10] meters/second

  • Gear transmission ratio — Uniformly distributed in the interval of [0.5, 6]

  • Pedaling or coasting — 50% probability of pedaling (coasting means that the cyclist is moving without pedaling)

3) Cars

  • Velocity — Uniformly distributed in the interval of [0, 10] meters/second along the X and Y directions

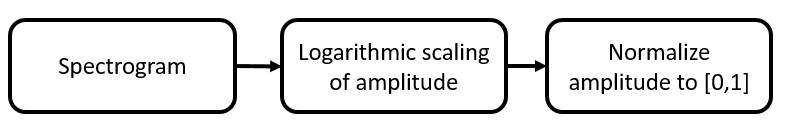

The input to the convolutional network is micro-Doppler signatures consisting of spectrograms expressed in decibels and normalized to [0, 1], as shown in this figure:

Radar returns originate from different objects and different parts of objects. Depending on the configuration, some returns are much stronger than others. Stronger returns tend to obscure weaker ones. Logarithmic scaling augments the features by making return strengths comparable. Amplitude normalization helps the CNN converge faster.

The data set contains realizations of the following scenes:

  • One pedestrian present in the scene

  • One bicyclist present in the scene

  • One pedestrian and one bicyclist present in the scene

  • Two pedestrians present in the scene

  • Two bicyclists present in the scene

Download Data

The data for this example consists of 20,000 pedestrian, 20,000 bicyclist, and 12,500 car signals generated by using the helper functions helperBackScatterSignals and helperDopplerSignatures. The signals are divided into two data sets: one without car noise samples and one with car noise samples.

For the first data set (without car noise), the pedestrian and bicyclist signals were combined, Gaussian noise was added, and micro-Doppler signatures were computed to generate 5000 signatures for each of the five scenes to be classified.

In each category, 80% of the signatures (that is, 4000 signatures) are reserved for the training data set while 20% of the signatures (that is, 1000 signatures) are reserved for the test data set.

To generate the second data set (with car noise), the procedure for the first data set was followed, except that car noise was added to 50% of the signatures. The proportion of signatures with and without car noise is the same in the training and test data sets.

Download and unzip the data in your temporary directory, whose location is specified by MATLAB®'s tempdir command. The data has a size of 21 GB and the download process may take some time. If you have the data in a folder different from tempdir, change the directory name in the subsequent instructions.

% Download the data
dataURL = 'https://ssd.mathworks.com/supportfiles/SPT/data/PedBicCarData.zip';
saveFolder = fullfile(tempdir,'PedBicCarData');
zipFile = fullfile(tempdir,'PedBicCarData.zip');
if ~exist(zipFile,'file')
    websave(zipFile,dataURL);
    unzip(zipFile,tempdir)
elseif ~exist(saveFolder,'dir')
    % Unzip the data
    unzip(zipFile,tempdir)
end

The data files are as follows:

  • trainDataNoCar.mat contains the training data set trainDataNoCar and its label set trainLabelNoCar.

  • testDataNoCar.mat contains the test data set testDataNoCar and its label set testLabelNoCar.

  • trainDataCarNoise.mat contains the training data set trainDataCarNoise and its label set trainLabelCarNoise.

  • testDataCarNoise.mat contains the test data set testDataCarNoise and its label set testLabelCarNoise.

  • TF.mat contains the time and frequency information for the micro-Doppler signatures.

Network Architecture

Create a CNN with five convolution layers and one fully connected layer. The first four convolution layers are followed by a batch normalization layer, a rectified linear unit (ReLU) activation layer, and a max pooling layer. In the last convolution layer, the max pooling layer is replaced by an average pooling layer. The output layer is a classification layer after softmax activation. For network design guidance, see Deep Learning Tips and Tricks (Deep Learning Toolbox).

layers = [
    imageInputLayer([size(S,1),size(S,2),1],'Normalization','none')

    convolution2dLayer(10,16,'Padding','same')
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(10,'Stride',2)

    convolution2dLayer(5,32,'Padding','same')
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(10,'Stride',2)

    convolution2dLayer(5,32,'Padding','same')
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(10,'Stride',2)

    convolution2dLayer(5,32,'Padding','same')
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(5,'Stride',2)

    convolution2dLayer(5,32,'Padding','same')
    batchNormalizationLayer
    reluLayer
    averagePooling2dLayer(2,'Stride',2)

    fullyConnectedLayer(5)
    softmaxLayer

    classificationLayer]
layers =
  24×1 Layer array with layers:

     1   ''   Image Input             400×144×1 images
     2   ''   2-D Convolution         16 10×10 convolutions with stride [1  1] and padding 'same'
     3   ''   Batch Normalization     Batch normalization
     4   ''   ReLU                    ReLU
     5   ''   2-D Max Pooling         10×10 max pooling with stride [2  2] and padding [0  0  0  0]
     6   ''   2-D Convolution         32 5×5 convolutions with stride [1  1] and padding 'same'
     7   ''   Batch Normalization     Batch normalization
     8   ''   ReLU                    ReLU
     9   ''   2-D Max Pooling         10×10 max pooling with stride [2  2] and padding [0  0  0  0]
    10   ''   2-D Convolution         32 5×5 convolutions with stride [1  1] and padding 'same'
    11   ''   Batch Normalization     Batch normalization
    12   ''   ReLU                    ReLU
    13   ''   2-D Max Pooling         10×10 max pooling with stride [2  2] and padding [0  0  0  0]
    14   ''   2-D Convolution         32 5×5 convolutions with stride [1  1] and padding 'same'
    15   ''   Batch Normalization     Batch normalization
    16   ''   ReLU                    ReLU
    17   ''   2-D Max Pooling         5×5 max pooling with stride [2  2] and padding [0  0  0  0]
    18   ''   2-D Convolution         32 5×5 convolutions with stride [1  1] and padding 'same'
    19   ''   Batch Normalization     Batch normalization
    20   ''   ReLU                    ReLU
    21   ''   2-D Average Pooling     2×2 average pooling with stride [2  2] and padding [0  0  0  0]
    22   ''   Fully Connected         5 fully connected layer
    23   ''   Softmax                 softmax
    24   ''   Classification Output   crossentropyex

Specify the optimization solver and the hyperparameters to train the CNN using trainingOptions. This example uses the ADAM optimizer and a mini-batch size of 128. Train the network using either a CPU or GPU. Using a GPU requires Parallel Computing Toolbox™. To see which GPUs are supported, see GPU Computing Requirements (Parallel Computing Toolbox). For information on other parameters, see trainingOptions (Deep Learning Toolbox). This example uses a GPU for training.

options = trainingOptions('adam', ...
    'ExecutionEnvironment','gpu',...
    'MiniBatchSize',128, ...
    'MaxEpochs',30, ...
    'InitialLearnRate',1e-2, ...
    'LearnRateSchedule','piecewise', ...
    'LearnRateDropFactor',0.1, ...
    'LearnRateDropPeriod',10, ...
    'Shuffle','every-epoch', ...
    'Verbose',false, ...
    'Plots','training-progress');

Classify Signatures Without Car Noise

Load the data set without car noise and use the helper function helperPlotTrainData to plot one example of each of the five categories in the training data set.

load(fullfile(tempdir,'PedBicCarData','trainDataNoCar.mat')) % load training data set
load(fullfile(tempdir,'PedBicCarData','testDataNoCar.mat')) % load test data set
load(fullfile(tempdir,'PedBicCarData','TF.mat')) % load time and frequency information

helperPlotTrainData(trainDataNoCar,trainLabelNoCar,T,F)

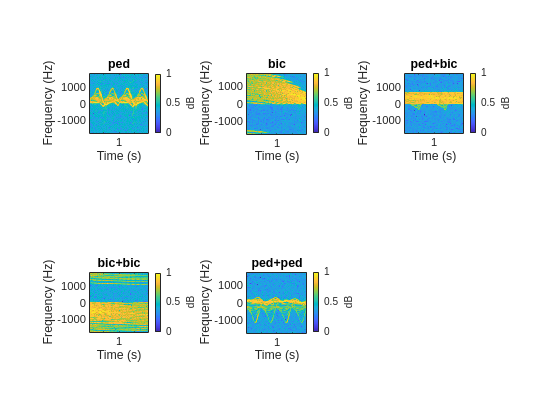

Figure contains 5 axes objects. Axes object 1 with title ped, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image. Axes object 2 with title bic, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image. Axes object 3 with title ped+bic, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image. Axes object 4 with title bic+bic, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image. Axes object 5 with title ped+ped, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image.

Train the CNN that you created. You can view the accuracy and loss during the training process. In 30 epochs, the training process achieves about 95% accuracy.

trainedNetNoCar = trainNetwork(trainDataNoCar,trainLabelNoCar,layers,options);

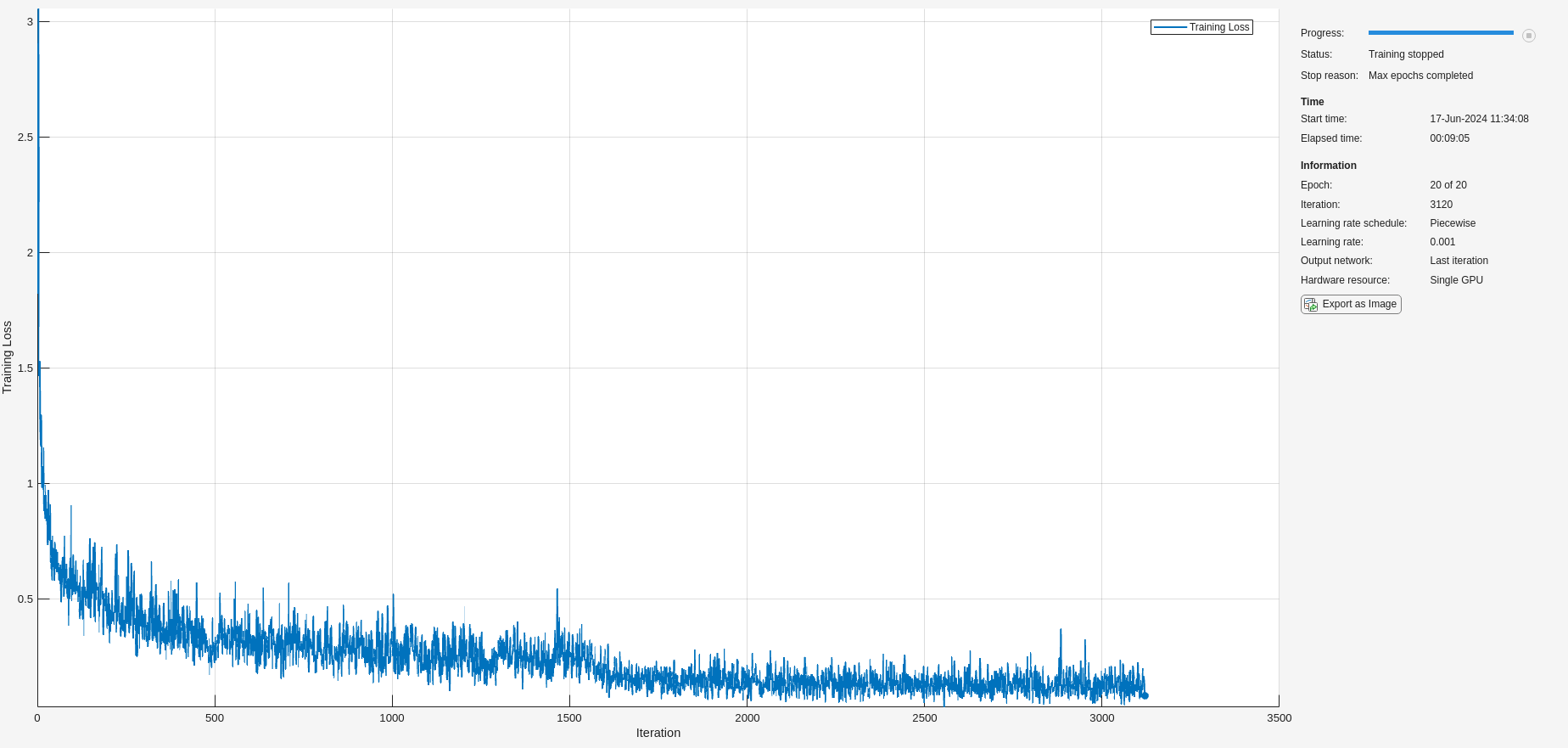

Figure Training Progress (10-Jan-2024 13:41:02) contains 2 axes objects and another object of type uigridlayout. Axes object 1 with xlabel Iteration, ylabel Loss contains 7 objects of type patch, text, line. Axes object 2 with xlabel Iteration, ylabel Accuracy (%) contains 7 objects of type patch, text, line.

Use the trained network and the classify function to obtain the predicted labels for the test data set testDataNoCar. The variable predTestLabel contains the network predictions. The network achieves about 96% accuracy for the test data set without the car noise.

predTestLabel = classify(trainedNetNoCar,testDataNoCar);
testAccuracy = mean(predTestLabel == testLabelNoCar)
testAccuracy = 0.9564

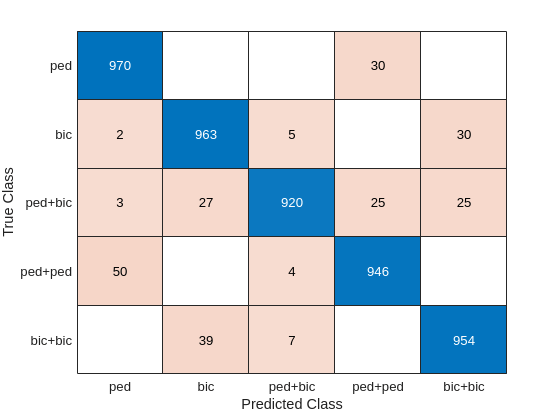

Use a confusion matrix to view detailed information about prediction performance for each category. The confusion matrix for the trained network shows that, in each category, the network predicts the labels of the signals in the test data set with a high degree of accuracy.

figure
confusionchart(testLabelNoCar,predTestLabel);

Figure contains an object of type ConfusionMatrixChart.

Classify Signatures with Car Noise

To analyze the effects of car noise, classify data containing car noise with the trainedNetNoCar network, which was trained without car noise.

Load the car-noise-corrupted test data set testDataCarNoise.mat.

load(fullfile(tempdir,'PedBicCarData','testDataCarNoise.mat'))

Input the car-noise-corrupted test data set to the network. The prediction accuracy for the test data set with the car noise drops significantly, to around 71%, because the network never saw training samples containing car noise.

predTestLabel = classify(trainedNetNoCar,testDataCarNoise);
testAccuracy = mean(predTestLabel == testLabelCarNoise)
testAccuracy = 0.7120

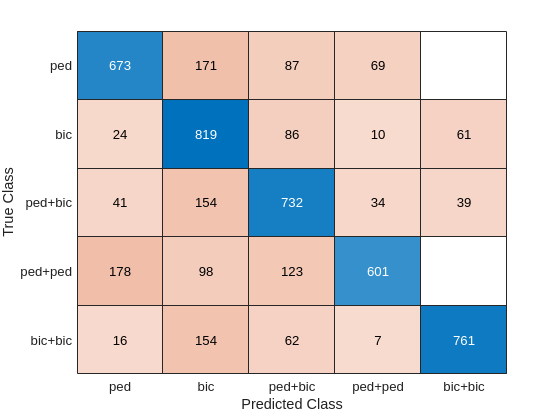

The confusion matrix shows that most prediction errors occur when the network takes in scenes from the "pedestrian," "pedestrian+pedestrian," or "pedestrian+bicyclist" classes and classifies them as "bicyclist."

confusionchart(testLabelCarNoise,predTestLabel);

Figure contains an object of type ConfusionMatrixChart.

Car noise significantly impedes the performance of the classifier. To solve this problem, train the CNN using data that contains car noise.

Retrain CNN by Adding Car Noise to Training Data Set

Load the car-noise-corrupted training data set trainDataCarNoise.mat.

load(fullfile(tempdir,'PedBicCarData','trainDataCarNoise.mat'))

Retrain the network by using the car-noise-corrupted training data set. In 30 epochs, the training process achieves nearly 90% accuracy.

trainedNetCarNoise = trainNetwork(trainDataCarNoise,trainLabelCarNoise,layers,options);

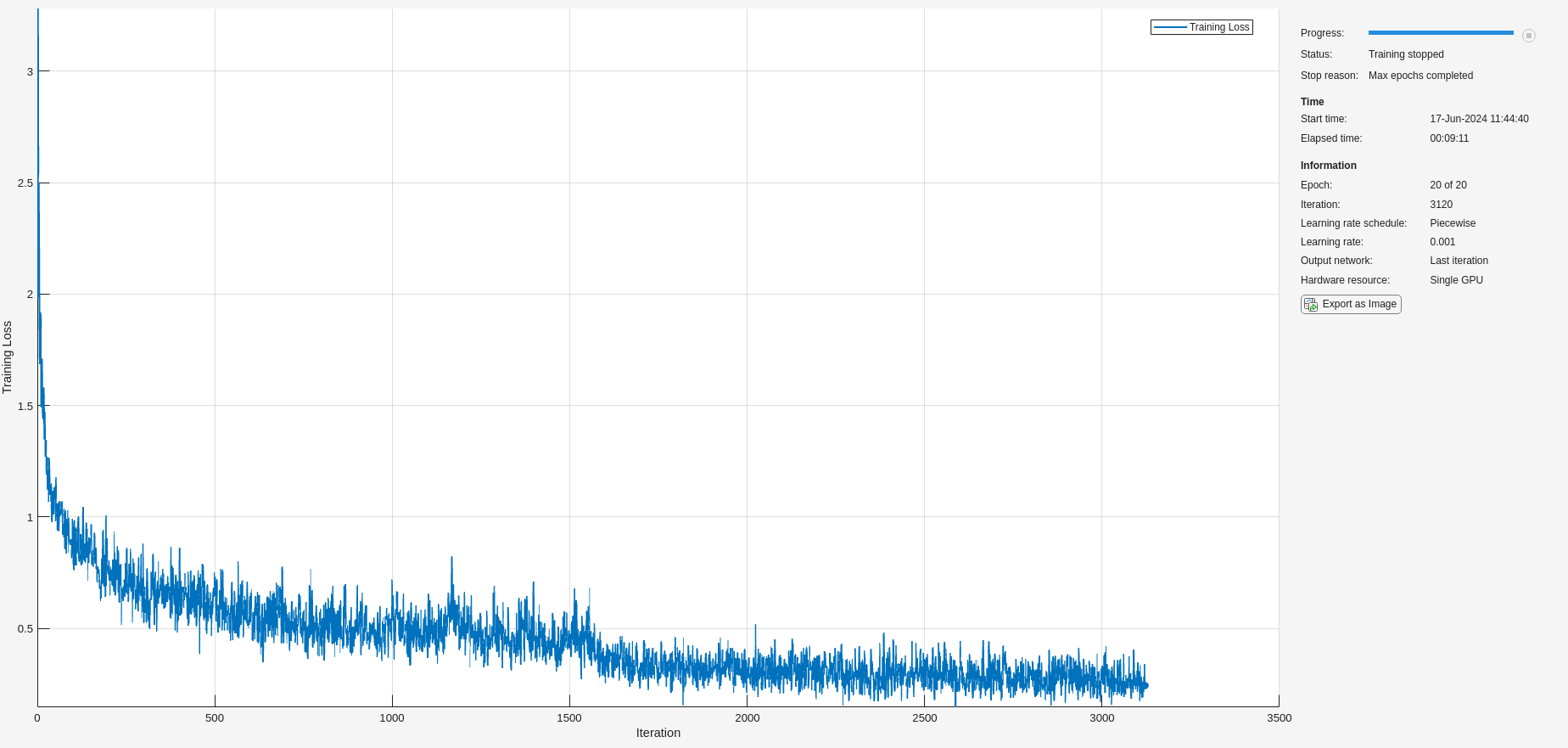

Figure Training Progress (10-Jan-2024 14:05:14) contains 2 axes objects and another object of type uigridlayout. Axes object 1 with xlabel Iteration, ylabel Loss contains 7 objects of type patch, text, line. Axes object 2 with xlabel Iteration, ylabel Accuracy (%) contains 7 objects of type patch, text, line.

Input the car-noise-corrupted test data set to the network trainedNetCarNoise. The prediction accuracy is about 87%, which is approximately 16% higher than the performance of the network trained without car noise samples.

predTestLabel = classify(trainedNetCarNoise,testDataCarNoise);
testAccuracy = mean(predTestLabel == testLabelCarNoise)
testAccuracy = 0.8724

The confusion matrix shows that the network trainedNetCarNoise performs much better at predicting scenes with one pedestrian and scenes with two pedestrians.

confusionchart(testLabelCarNoise,predTestLabel);

Figure contains an object of type ConfusionMatrixChart.

Case Study

To better understand the performance of the network, examine its performance in classifying overlapping signatures. This section is just for illustration. Due to the non-deterministic behavior of GPU training, you may not get the same classification results in this section when you rerun this example.

For example, signature #4 of the car-noise-corrupted test data, which does not have car noise, has two bicyclists with overlapping micro-Doppler signatures. The network correctly predicts that the scene has two bicyclists.

k = 4;
imagesc(T,F,testDataCarNoise(:,:,:,k))
axis xy
xlabel('Time (s)')
ylabel('Frequency (Hz)')
title('Ground Truth: '+string(testLabelCarNoise(k))+', Prediction: '+string(predTestLabel(k)))

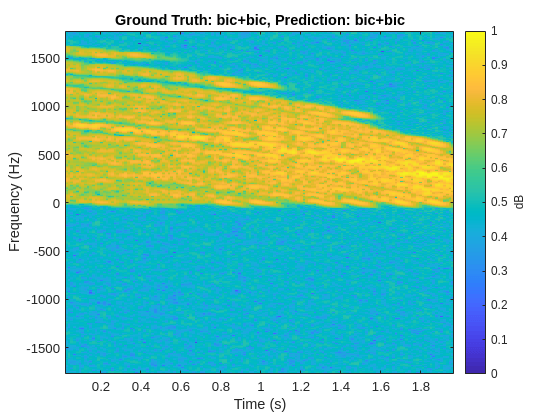

Figure contains an axes object. The axes object with title Ground Truth: bic+bic, Prediction: bic+bic, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image.

From the plot, the signature appears to be from only one bicyclist. Load the data CaseStudyData.mat of the two objects in the scene. The data contains return signals summed along the fast time. Apply the STFT to each signal.

load CaseStudyData.mat
M = 200; % FFT window length
beta = 6; % window parameter
w = kaiser(M,beta); % kaiser window
R = floor(1.7*(M-1)/(beta+1)); % ROUGH estimate
noverlap = M-R; % overlap length

[Sc,F,T] = stft(x,1/Tsamp,'Window',w,'FFTLength',M*2,'OverlapLength',noverlap);

for ii = 1:2
    subplot(1,2,ii)
    imagesc(T,F,10*log10(abs(Sc(:,:,ii))))
    xlabel('Time (s)')
    ylabel('Frequency (Hz)')
    title('Bicyclist')
    axis square xy
    title(['Bicyclist ' num2str(ii)])
    c = colorbar;
    c.Label.String = 'dB';
end

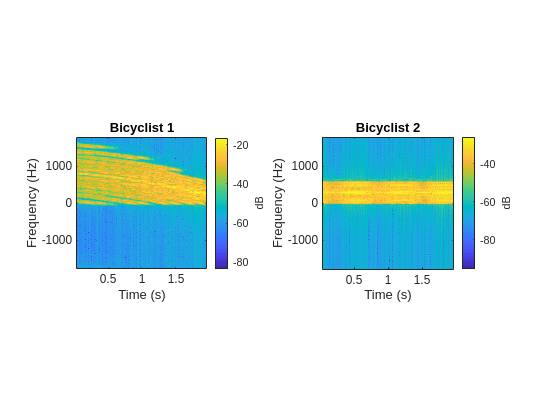

Figure contains 2 axes objects. Axes object 1 with title Bicyclist 1, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image. Axes object 2 with title Bicyclist 2, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image.

The amplitudes of the Bicyclist 2 signature are much weaker than those of Bicyclist 1, and the signatures of the two bicyclists overlap. When they overlap, the two signatures cannot be visually distinguished. However, the neural network classifies the scene correctly.

Another case of interest is when the car noise dominates as in signature #267 of the car-noise-corrupted test data.

figure
k = 267;
imagesc(T,F,testDataCarNoise(:,:,:,k))
axis xy
xlabel('Time (s)')
ylabel('Frequency (Hz)')
title('Ground Truth: '+string(testLabelCarNoise(k))+', Prediction: '+string(predTestLabel(k)))

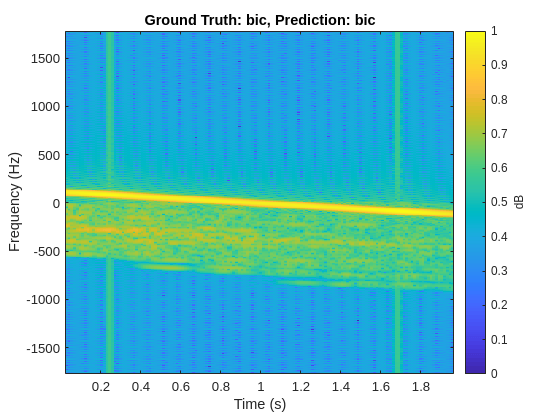

Figure contains an axes object. The axes object with title Ground Truth: bic, Prediction: bic, xlabel Time (s), ylabel Frequency (Hz) contains an object of type image.

The signature of the bicyclist is weak compared to that of the car, and the signature has spikes from the car noise. Because the signature of the car closely resembles that of a bicyclist pedaling or a pedestrian walking at a low speed and has little micro-Doppler effect, there is a high possibility that the network will classify the scene incorrectly. In this case, the network was able to correctly identify the target as a single bicyclist.

References

  1. Chen, V. C. The Micro-Doppler Effect in Radar. London: Artech House, 2011.

  2. Gurbuz, S. Z., and Amin, M. G. "Radar-Based Human-Motion Recognition with Deep Learning: Promising Applications for Indoor Monitoring." IEEE Signal Processing Magazine. Vol. 36, Issue 4, 2019, pp. 16–28.

  3. Belgiovane, D., and C. C. Chen. "Micro-Doppler Characteristics of Pedestrians and Bicycles for Automotive Radar Sensors at 77 GHz." In 11th European Conference on Antennas and Propagation (EuCAP), 2912–2916. Paris: European Association on Antennas and Propagation, 2017.

  4. Angelov, A., A. Robertson, R. Murray-Smith, and F. Fioranelli. "Practical Classification of Different Moving Targets Using Automotive Radar and Deep Neural Networks." IET Radar, Sonar & Navigation. Vol. 12, Number 10, 2017, pp. 1082–1089.

  5. Parashar, K. N., M. C. Oveneke, M. Rykunov, H. Sahli, and A. Bourdoux. "Micro-Doppler Feature Extraction Using Convolutional Auto-Encoders for Low Latency Target Classification." In 2017 IEEE Radar Conference (RadarConf), 1739–1744. Seattle: IEEE, 2017.
