estimatePerformance
Class: dlhdl.ProcessorConfig
Namespace: dlhdl
Retrieve layer-level latencies and performance by using
estimatePerformance
method
Since R2021a
Syntax
Description
estimatePerformance(
returns the layer-level latencies and network performance for the object specified by the
processorConfigObject
, network
) network
argument.
returns
a table containing the performance
= estimatePerformance(processorConfigObject
,network
) network
object layer-level latencies and
performance.
returns
a table containing the performance
= estimatePerformance(processorConfigObject
,network
,Name,Value
) network
object layer-level latencies and
performance, with one or more arguments specified by optional name-value pair
arguments.
Input Arguments
processorConfigObject
— Processor configuration
dlhdl.ProcessorConfig
object
Processor configuration, specified as a
dlhdl.ProcessorConfig
object.
network
— Network object
SeriesNetwork
object | DAGNetwork
object | dlnetwork
object | dlquantizer
object | quantize
object
Name of network object for performance estimate.
Example: estimatePerformance(snet)
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
FrameCount
— Number of frames to consider for the calculation of performance estimation
1 (default) | integer
Number of frames to consider for the calculation of performance estimation, specified as a positive number integer.
Example: 'FrameCount',10
Output Arguments
performance
— Network object performance
table
Network object performance for the ProcessorConfig
object,
returned as a table.
Examples
Estimate Performance of LogoNet Network
Create a file in your current working folder called
getLogoNetwork.m
. In the file, enter:function net = getLogoNetwork if ~isfile('LogoNet.mat') url = 'https://www.mathworks.com/supportfiles/gpucoder/cnn_models/logo_detection/LogoNet.mat'; websave('LogoNet.mat',url); end data = load('LogoNet.mat'); net = data.convnet; end
Create a
dlhdl.ProcessorConfig
object.snet = getLogoNetwork; hPC = dlhdl.ProcessorConfig;
To retrieve the layer-level latencies and performance for the LogoNet network, call the
estimatePerformance
method.hPC.estimatePerformance(snet)
### Notice: The layer 'imageinput' of type 'ImageInputLayer' is split into an image input layer 'imageinput' and an addition layer 'imageinput_norm' for normalization on hardware. ### Notice: The layer 'softmax' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software. ### Notice: The layer 'classoutput' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software. Deep Learning Processor Estimator Performance Results LastFrameLatency(cycles) LastFrameLatency(seconds) FramesNum Total Latency Frames/s ------------- ------------- --------- --------- --------- Network 38810151 0.19405 1 38810151 5.2 ____imageinput_norm 216472 0.00108 ____conv_1 6829224 0.03415 ____maxpool_1 3705912 0.01853 ____conv_2 10454501 0.05227 ____maxpool_2 1173810 0.00587 ____conv_3 9364533 0.04682 ____maxpool_3 1229970 0.00615 ____conv_4 1384564 0.00692 ____maxpool_4 24450 0.00012 ____fc_1 2644886 0.01322 ____fc_2 1692534 0.00846 ____fc_3 89295 0.00045 * The clock frequency of the DL processor is: 200MHz
Estimate Performance of ResNet-18 for Multiple Frame Inputs
Estimate the performance of the ResNet-18 network for multiple frames
by using the dlhdl.ProcessorConfig
object.
Load the ResNet-18 network and save it to net
net = resnet18;
Create a dlhdl.ProcessorConfig
object and save to
hPC
hPC = dlhdl.ProcessorConfig;
Retrieve layer level latencies and performance in frames per second (FPS) for
multiple frames by using the estimatePerformance
method with
FrameNumber
as an optional input argument.
hPC.estimatePerformance(net,'FrameCount',10);
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer' ### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization. ### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software. ### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software. Deep Learning Processor Estimator Performance Results LastFrameLatency(cycles) LastFrameLatency(seconds) FramesNum Total Latency Frames/s ------------- ------------- --------- --------- --------- Network 21328236 0.10664 10 211208850 9.5 ____data_norm_add 210750 0.00105 ____data_norm 210750 0.00105 ____conv1 2164124 0.01082 ____pool1 515064 0.00258 ____res2a_branch2a 966221 0.00483 ____res2a_branch2b 966221 0.00483 ____res2a 210750 0.00105 ____res2b_branch2a 966221 0.00483 ____res2b_branch2b 966221 0.00483 ____res2b 210750 0.00105 ____res3a_branch1 540861 0.00270 ____res3a_branch2a 540749 0.00270 ____res3a_branch2b 919117 0.00460 ____res3a 105404 0.00053 ____res3b_branch2a 919117 0.00460 ____res3b_branch2b 919117 0.00460 ____res3b 105404 0.00053 ____res4a_branch1 503405 0.00252 ____res4a_branch2a 509261 0.00255 ____res4a_branch2b 905421 0.00453 ____res4a 52724 0.00026 ____res4b_branch2a 905421 0.00453 ____res4b_branch2b 905421 0.00453 ____res4b 52724 0.00026 ____res5a_branch1 744525 0.00372 ____res5a_branch2a 751693 0.00376 ____res5a_branch2b 1415373 0.00708 ____res5a 26368 0.00013 ____res5b_branch2a 1415373 0.00708 ____res5b_branch2b 1415373 0.00708 ____res5b 26368 0.00013 ____pool5 54594 0.00027 ____fc1000 207351 0.00104 * The clock frequency of the DL processor is: 200MHz
Deep Learning Processor IP Core Generation for Custom Board
This example uses:
- Deep Learning HDL ToolboxDeep Learning HDL Toolbox
- Deep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC DevicesDeep Learning HDL Toolbox Support Package for Xilinx FPGA and SoC Devices
- HDL CoderHDL Coder
- Deep Learning Toolbox Model for ResNet-18 NetworkDeep Learning Toolbox Model for ResNet-18 Network
This example shows how to create custom board and generate a deep learning processor IP core for the custom board. In this example you:
Create a custom board and reference design
Estimate the network performance and board resource utilization
Generate a custom processor and bitstream
Deploy the network by using the custom bitstream

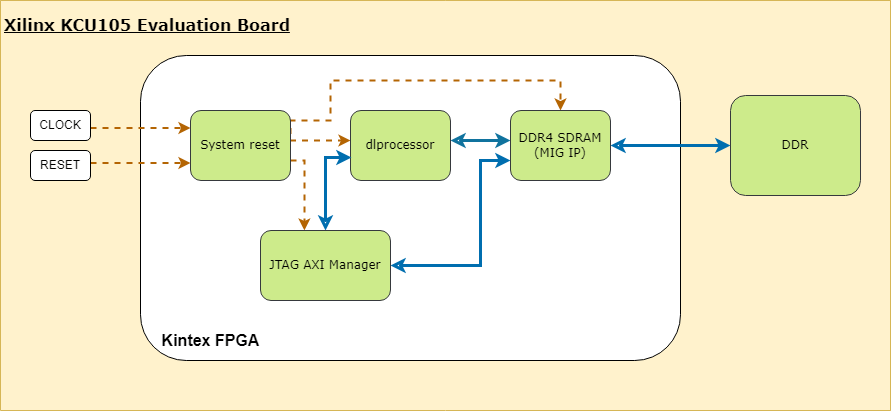

The image shows the process of deploying a network to a custom board and retrieving a prediction from the deployed network.
This example uses the Xilinx® Kintex® UltraScale™ KCU105 board. The board contains these blocks:
System reset block — Used to feed the clock and reset signals to the design.
Memory Interface Generator (MIG) IP block — Used to generate memory controllers and interfaces for Xilinx FPGAs.
MATLAB JTAG AXI Manager block — Used by MATLAB to access onboard memory location. For more details, see JTAG AXI Manager (HDL Verifier).

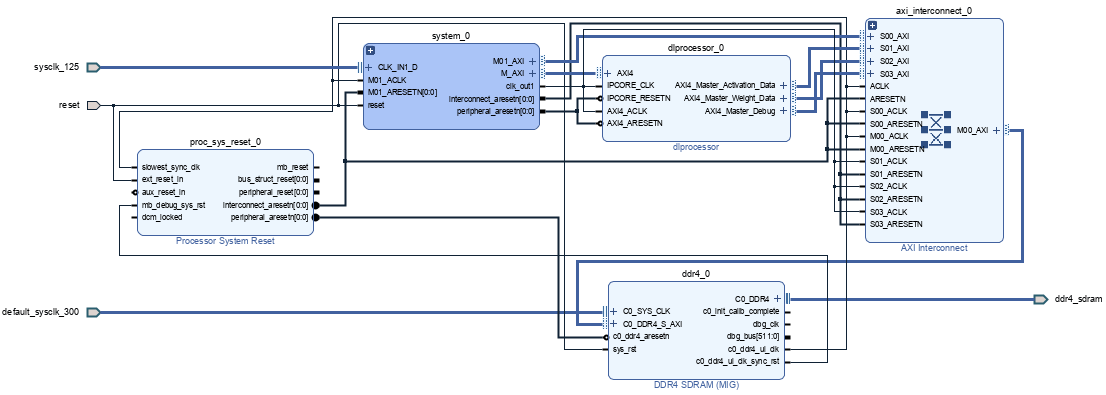

Integrate the generated deep learning processor IP core into your reference design. For more details, see Board and Reference Design Registration System (HDL Coder).
This image shows the generated deep learning processor IP core dl_processor0
integrated into the reference design.
Register Custom Board
Define the interface and attributes of a custom SoC board. To register the Xilinx® Kintex® UltraScale™ KCU105 board:
1. Create a board registration file with the name hdlcoder_board_customization.m
and add it to the MATLAB path. The hdlcoder_board_customization.m
function must return a second output. For more information, see Register a Custom Board (HDL Coder).
Set the target workflow to DeepLearningProcessor
. For information on other target workflows supported by HDL Coder™, see Workflows in HDL Workflow Advisor (HDL Coder).
function [boardList, workflow] = hdlcoder_board_customization % Board plugin registration file % 1. Any registration file with this name on MATLAB path will be picked up % 2. Registration file returns a cell array pointing to the location of % the board plugins % 3. Board plugin must be a package folder accessible from MATLAB path, % and contains a board definition file % % Copyright 2022 The MathWorks, Inc.
boardList = { ... 'DLKCU105.plugin_board', ... }; workflow = hdlcoder.Workflow.DeepLearningProcessor; end
2. Create the board definition file. To generate a deep learning processor, you must define the ExternalMemorySize
. This property defines the memory size of the DDR on the target board.
% Copyright 2022 The MathWorks, Inc.
% Board definition of KCU105 function hB = plugin_board()
% Construct board object
hB = hdlcoder.Board;
hB.BoardName = 'Xilinx Kintex-Ultrascale KCU105 evaluation board';
% FPGA device information hB.FPGAVendor = 'Xilinx'; hB.FPGAFamily = 'KintexU'; hB.FPGADevice = 'xcku040-ffva1156-2-e'; hB.FPGAPackage = ''; hB.FPGASpeed = '';
% Tool information hB.SupportedTool = {'Xilinx Vivado'};
% FPGA JTAG chain position
hB.JTAGChainPosition = 1;
% Size of external DDR memory in bytes hB.ExternalMemorySize = 0x80000000; % 2 GB
% Add interfaces % Standard "External Port" interface hB.addExternalPortInterface( ... 'IOPadConstraint', {'IOSTANDARD = LVCMOS18'});
% Custom board external I/O interface hB.addExternalIOInterface( ... 'InterfaceID', 'LEDs General Purpose', ... 'InterfaceType', 'OUT', ... 'PortName', 'GPLEDs', ... 'PortWidth', 8, ... 'FPGAPin', {'AP8', 'H23', 'P20', 'P21', 'N22', 'M22', 'R23','P23'}, ... 'IOPadConstraint', {'IOSTANDARD = LVCMOS18'});
% Custom board external I/O interface hB.addExternalIOInterface( ... 'InterfaceID', 'User Push Buttons', ... 'InterfaceType', 'IN', ... 'PortName', 'PB', ... 'PortWidth', 1, ... 'FPGAPin', {'AE10'}, ... 'IOPadConstraint', {'IOSTANDARD = LVCMOS18'});
Register Custom Reference Design
Define the interface and attributes of a custom SoC reference design. To create a custom reference design:
1. Create a reference design registration file named hdlcoder_ref_design_customization.m
that contains the list of reference design plugins associated with the board. For more information, see Register a Custom Reference Design (HDL Coder).
function [rd, boardName] = hdlcoder_ref_design_customization % Reference design plugin registration file % 1. The registration file with this name inside of a board plugin folder % will be picked up % 2. Any registration file with this name on MATLAB path will also be picked up % 3. The registration file returns a cell array pointing to the location of % the reference design plugins % 4. The registration file also returns its associated board name % 5. Reference design plugin must be a package folder accessible from % MATLAB path, and contains a reference design definition file % % Copyright 2022 The MathWorks, Inc.
rd = {... 'DLKCU105.matlab_3axi4_master_2020_1.plugin_rd', ... };
boardName = 'Xilinx Kintex-Ultrascale KCU105 evaluation board';
end
2. Create the reference design definition file. To generate a deep learning processor IP core, you must define these three AXI4 Master Interfaces:
AXI4 Master Activation Data
AXI4 Master Weight Data
AXI4 Master Debug
function hRD = plugin_rd() % Reference design definition
% Copyright 2022 The MathWorks, Inc.
% Construct reference design object hRD = hdlcoder.ReferenceDesign('SynthesisTool', 'Xilinx Vivado');
hRD.ReferenceDesignName = 'AXI-Stream DDR Memory Access : 3-AXIM'; hRD.BoardName = 'Xilinx Kintex-Ultrascale KCU105 evaluation board';
% Tool information hRD.SupportedToolVersion = {'2020.1','2020.2','2022.1','2023.1'};
% Add custom design files
% add custom Vivado design hRD.addCustomVivadoDesign( ... 'CustomBlockDesignTcl', 'system_top.tcl',... 'VivadoBoardPart', 'xilinx.com:kcu105:part0:1.0');
% Add HDL Verifier JTAG as AXI Master IP from support package hRD.addIPRepository( ... 'IPListFunction','hdlverifier.fpga.vivado.iplist', ... 'NotExistMessage', 'IP Repository not found.');
% Add interfaces
% add clock interface hRD.addClockInterface( ... 'ClockConnection', 'system_0/clk_out1', ... 'ResetConnection', 'system_0/peripheral_aresetn',... 'DefaultFrequencyMHz', 125,... 'MinFrequencyMHz', 10,... 'MaxFrequencyMHz', 250,... 'ClockNumber', 1,... 'ClockModuleInstance', 'system_0/clk_wiz_0');
% add AXI4 and AXI4-Lite slave interfaces % This slave interface is used for intracting between DDR4 and Deep Learning IP hRD.addAXI4SlaveInterface( ... 'InterfaceConnection', 'system_0/M_AXI', ... 'BaseAddress', '0x44A00000',... 'MasterAddressSpace', 'system_0/hdlverifier_axi_manager_0/axi4m',... 'InterfaceType', 'AXI4');
% AXI4 Master Interface for the layer activation data with max data bit-width of 512 hRD.addAXI4MasterInterface(... 'InterfaceID', 'AXI4 Master Activation Data', ... 'ReadSupport', true, ... 'WriteSupport', true, ... 'MaxDataWidth', 512, ... 'AddrWidth', 32, ... 'InterfaceConnection', 'axi_interconnect_0/S01_AXI',... 'TargetAddressSegments', {{'ddr4_0/C0_DDR4_MEMORY_MAP/C0_DDR4_ADDRESS_BLOCK',hex2dec('80000000'),hex2dec('80000000')}});
% AXI4 Master Interface for the layer weight data with max data bit-width of 512 hRD.addAXI4MasterInterface(... 'InterfaceID', 'AXI4 Master Weight Data', ... 'ReadSupport', true, ... 'WriteSupport', true, ... 'MaxDataWidth', 512, ... 'AddrWidth', 32, ... 'InterfaceConnection', 'axi_interconnect_0/S02_AXI',... 'TargetAddressSegments', {{'ddr4_0/C0_DDR4_MEMORY_MAP/C0_DDR4_ADDRESS_BLOCK',hex2dec('80000000'),hex2dec('80000000')}});
% AXI4 Master Interface for the debugger with max data bit-width of 512 hRD.addAXI4MasterInterface(... 'InterfaceID', 'AXI4 Master Debug', ... 'ReadSupport', true, ... 'WriteSupport', true, ... 'MaxDataWidth', 512, ... 'AddrWidth', 32, ... 'InterfaceConnection', 'axi_interconnect_0/S03_AXI',... 'TargetAddressSegments', {{'ddr4_0/C0_DDR4_MEMORY_MAP/C0_DDR4_ADDRESS_BLOCK',hex2dec('80000000'),hex2dec('80000000')}});
3. The reference design plugin file must contain information about the target interface and the deep learning processor IP core, the memory address space for the deep learning processor IP core, and a command to validate the reference design. The file also requires information on the resources consumed by the reference design. This information is used during resource estimation. Add the deep learning processor information to the reference design file:
% Deep learning specific properties hRD.registerDeepLearningTargetInterface("JTAG"); hRD.registerDeepLearningMemoryAddressSpace(0x80000000, 0x80000000); % 2GB
% Resource utilization information
hRD.ResourcesUsed.LogicElements = 30500;
hRD.ResourcesUsed.DSP = 3;
hRD.ResourcesUsed.RAM = 26.5;
Performance Estimation
Reduce the time required to design and deploy a custom deep learning network that meets performance requirements by analyzing the layer-level latencies before deploying the network.
Estimate the performance of network for your custom board by collecting calibration data from the custom board, by:
Generating a calibration bitstream
Deploying the calibration bitstream to the target custom board
Retrieving the external to internal memory transaction latencies
Create a Processor Configuration object.
hPC = dlhdl.ProcessorConfig;
Specify the TargetPlatform
. This automatically sets the SynthesisToolChipFamily, SynthesisToolDeviceName
, and ReferenceDesign
properties.
hPC.TargetPlatform = 'Xilinx Kintex-Ultrascale KCU105 evaluation board';
Set the target frequency.
hPC.TargetFrequency = 100;
This example uses a ResNet-18 pretrained network. For more details, see resnet18
. Set the deep learning network:
net = resnet18;
To fit this design onto the target, reduce the number of parallel convolution processor kernel threads for the conv
module to 9.
setModuleProperty(hPC, 'conv', 'ConvThreadNumber', 9);
Set the Xilinx Vivado toolpath to your design tool using the hdlsetuptoolpath
function, then build the calibration bitstream.
hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath','C:\Xilinx\Vivado\2020.2\bin\vivado.bat'); bitstreamPath = buildCalibrationBitstream(hPC);
Deploy the bitstream to the hardware and obtain the external- to-internal memory transaction latencies. You can use these values to get better estimates for the layer-level latencies.
deployCalibrationBitstream(hPC, bitstreamPath);
The deployCalibrationBitstream
saves the calibration data
from the hardware as a structure in the CalibrationData
property of the dlhdl.ProcessorConfig
object. The function also saves the calibration data as a MAT-file with the name calibrationData.mat
. You can load this data into a new dlhdl.ProcessorConfig
object by entering:
load('calibrationData.mat');
hPC.CalibrationData = calData;

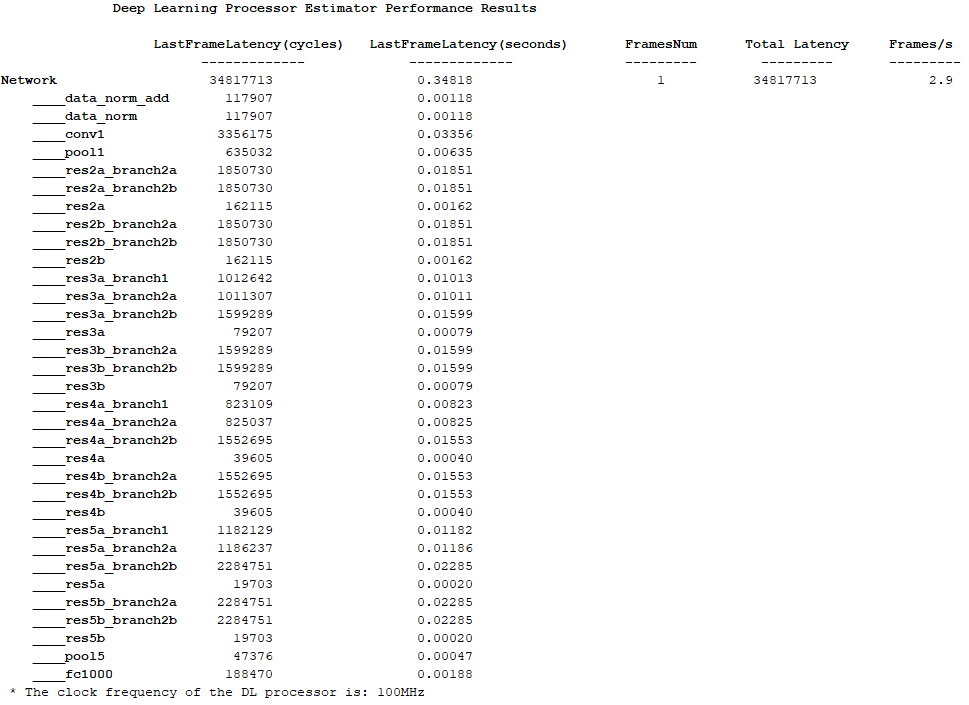

Estimate the performance of the network for the custom processor configuration.
estimatePerformance(hPC, net);
Resource Estimation
Verify that the generated bistream and network fit on your target custom board, by using estimateResources
to estimate the resource utilization. To learn how to estimate the resource utilization for your custom boards, see Estimate Resource Utilization for Custom Board and Reference Design.
Generate Custom Bitstream for Custom Processor Configuration
Generate a bitstream for the custom processor configuration hPC
.
dlhdl.buildProcessor(hPC);
Locate the bitstream file and associated MAT file at cwd\dlhdl_prj\
, where cwd
is your current working folder. The name of the bitstream file is dlprocessor.bit
. The name of the MAT file is dlprocessor.mat
. To use the generated bitstream for the supported Xilinx boards, copy the dlprocessor.bit
and dlprocessor.mat
files to the current working folder.
Deploy the Custom Bitstream and Run Predictions on the Network
After you generate the bitstream, deploy the network and run the predictions on the network. For more information, refer to the Prototype Deep Learning Networks on FPGA and SoC Devices page. For an example on prototyping, see Bicyclist and Pedestrian Classification by Using FPGA.
Create Target Object
Create a target object with the vendor name of the target device. Specify the interface to connect the target device to the host using the Interface
name-value pair. This example connects to the target using the JTAG interface.
hT = dlhdl.Target('Xilinx', 'Interface', 'JTAG')
Create Workflow Object for ResNet-18 Network
Create an object of the dlhdl.Workflow
class. Specify the network, the bitstream name, and the target object.
hW = dlhdl.Workflow('Network', net, 'Bitstream', 'dlprocessor.bit', 'Target', hT);
Compile the Network
Run the compile
function of the dlhdl.Workflow
object.
compile(hW)

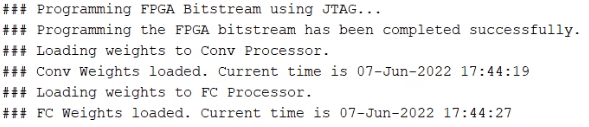

Deploy the Bitstream to the FPGA
To deploy the network on the Xilinx KCU105 Kintex hardware, run the deploy
function of the dlhdl.Workflow
object.
deploy(hW)
Run Prediction for the Network
Load the sample image.
img = imread('sampleImage1.png');
imshow(img);

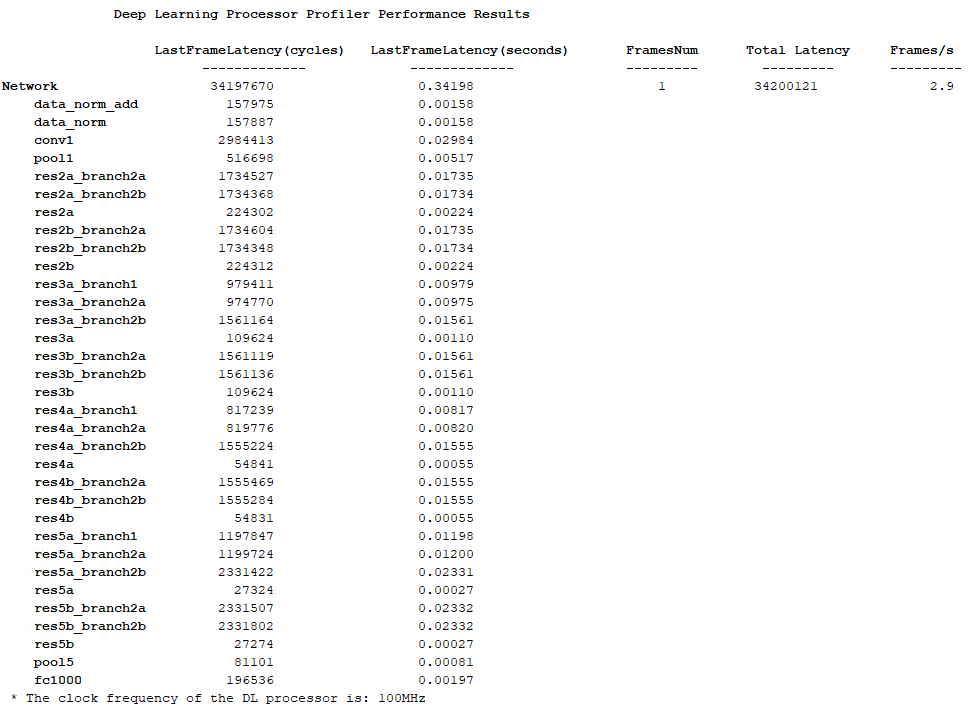

Run a prediction on the image. The result
output argument contains the output of the layer preceding the ClassificationOutputLayer
and speed
contains the profiler table.
[result, speed] = predict(hW, img, 'Profile', 'on');
Get the output class from the prediction.
[value,idx] = max(result); classNames = net.Layers(end).Classes; classNames(idx)
Limitations
When you estimate the performance Deep Learning HDL Toolbox™ assumes that the deep learning processor is connected to the DDR memory dedicated for the programmable logic (PL) portion of the FPGA or SoC and does not account for the DDR memory communications arbitration with other components.
Tips
To obtain the performance estimation for a dlquantizer
object, set the
dlhdl.ProcessorConfig
object ProcessorDataType
to
int8
.
Version History
Introduced in R2021a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
