pmmod
Phase modulation
Description
Examples
Recover Phase Modulated Signal from AWGN Channel
Set the sample rate. To plot the signals, create a time vector.
fs = 50; t = (0:2*fs+1)'/fs;
Create a sinusoidal input signal.
x = sin(2*pi*t) + sin(4*pi*t);
Set the carrier frequency and phase deviation.
fc = 10; phasedev = pi/2;
Modulate the input signal.
tx = pmmod(x,fc,fs,phasedev);
Pass the signal through an AWGN channel.
rx = awgn(tx,10,'measured');
Demodulate the noisy signal.
y = pmdemod(rx,fc,fs,phasedev);

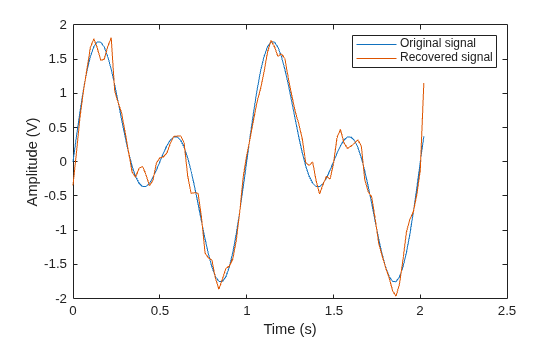

Plot the original and recovered signals.
figure; plot(t,[x y]); legend('Original signal','Recovered signal'); xlabel('Time (s)') ylabel('Amplitude (V)')
Input Arguments
x
— Input signal
vector | matrix
Input signal, specified as a vector or matrix of positive integers. If
x
is a matrix, pmmod
processes the columns
independently.
Example: sin(2*pi*t) + sin(6*pi*t)
Data Types: double
Fc
— Carrier frequency
positive scalar
Carrier frequency, specified as a positive scalar.
Data Types: double
Fs
— Sample rate
positive scalar
Sample rate, specified as a positive scalar. Fs
must be at
least 2*Fc
.
Data Types: double
ini_phase
— Initial phase
0 (default) | scalar | []
Initial phase of the modulated signal (in radians), specified as a real scalar.
Example: pi/4
Data Types: double
phasedev
— Phase deviation
positive scalar
Phase deviation, specified as a positive scalar in radians.
Data Types: double
Output Arguments
y
— PM-modulated output signal
vector | matrix
Complex baseband representation of a PM-modulated signal, returned as vector or
matrix of complex values. The columns of y
represent independent
channels.
Data Types: double
| single
Complex Number Support: Yes
Version History
Introduced before R2006a
