fmmod

Frequency modulation

Description

example

y = fmmod(x,Fc,Fs,freqdev) returns a frequency modulated (FM) signal y, given the input message signal x, where the carrier signal has frequency Fc and sampling rate Fs. freqdev is the frequency deviation of the modulated signal.

Note

  • The value of Fs must satisfy Fs ≥ 2Fc.

  • The value of freqdev must satisfy freqdev < Fc.

y = fmmod(x,Fc,Fs,freqdev,ini_phase) specifies the initial phase of the modulated signal.

Examples

collapse all

Set the sampling frequency to 1kHz and carrier frequency to 200 Hz. Generate a time vector having a duration of 0.2 s.

fs = 1000;
fc = 200;
t = (0:1/fs:0.2)';

Create two tone sinusoidal signal with frequencies 30 and 60 Hz.

x = sin(2*pi*30*t)+2*sin(2*pi*60*t);

Set the frequency deviation to 50 Hz.

fDev = 50;

Frequency modulate x.

y = fmmod(x,fc,fs,fDev);

Plot the original and modulated signals.

plot(t,x,'c',t,y,'b--')
xlabel('Time (s)')
ylabel('Amplitude')
legend('Original Signal','Modulated Signal')

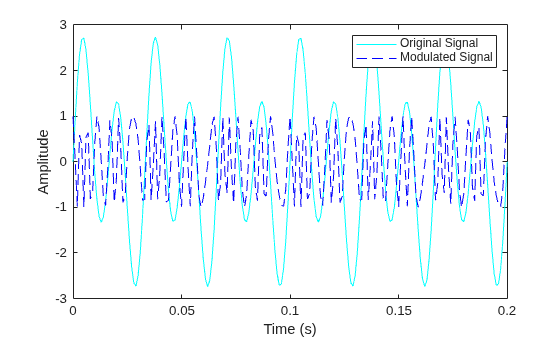

Figure contains an axes object. The axes object with xlabel Time (s), ylabel Amplitude contains 2 objects of type line. These objects represent Original Signal, Modulated Signal.

Input Arguments

collapse all

Input message signal, specified as a scalar, vector, matrix, or a 3-D array. Each element of x must be real.

Data Types: single | double

Carrier frequency in hertz (Hz), specified as a positive real scalar.

Data Types: single | double

Sampling rate in hertz (Hz), specified as a positive real scalar.

Data Types: single | double

Frequency deviation of the modulated signal in hertz (Hz), specified as a positive real scalar.

Data Types: single | double

Initial phase of the modulated signal in radians, specified as a real scalar.

Data Types: single | double

Output Arguments

collapse all

Frequency modulated signal, returned as a scalar, vector, matrix, or 3-D array.

Version History

Introduced before R2006a
