# weightingFilter

Frequency-weighted filter

## Description

The `weightingFilter` System object™ performs frequency-weighted filtering independently across each input channel.

To perform frequency-weighted filtering:

1. Create the `weightingFilter` object and set its properties.

2. Call the object with arguments, as if it were a function.

## Creation

### Syntax

``weightFilt = weightingFilter``
``weightFilt = weightingFilter(weightType)``
``weightFilt = weightingFilter(weightType,Fs)``
``weightFilt = weightingFilter(___,Name,Value)``

### Description

````weightFilt = weightingFilter` creates a System object, `weightFilt`, that performs frequency-weighted filtering independently across each input channel.```
````weightFilt = weightingFilter(weightType)` sets the Method property to `weightType`.```
````weightFilt = weightingFilter(weightType,Fs)` sets the SampleRate property to `Fs`.```
````weightFilt = weightingFilter(___,Name,Value)` sets each property `Name` to the specified `Value`. Unspecified properties have default values. Example: ```weightFilt = weightingFilter('C-weighting','SampleRate',96000)``` creates a C-weighting filter with a sample rate of 96,000 Hz.```

## Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the `release` function unlocks them.

If a property is tunable, you can change its value at any time.

Type of weighting, specified as `'A-weighting'`, `'C-weighting'`, or `'K-weighting'`. See Algorithms for more information.

Tunable: No

Data Types: `char` | `string`

Input sample rate in Hz, specified as a positive scalar.

Tunable: Yes

Data Types: `single` | `double`

## Usage

### Syntax

``audioOut = weightFilt(audioIn)``

### Description

example

````audioOut = weightFilt(audioIn)` applies frequency-weighted filtering to the input signal, `audioIn`, and returns the filtered signal, `audioOut`. The type of filtering is specified by the algorithm and properties of the `weightingFilter` System object, `weightFilt`.```

### Input Arguments

expand all

Audio input to the weighting filter, specified as a matrix. The columns of the matrix are treated as independent audio channels.

Data Types: `single` | `double`

### Output Arguments

expand all

Audio output from the weighting filter, returned as a matrix the same size as `audioIn`.

Data Types: `single` | `double`

## Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named `obj`, use this syntax:

`release(obj)`

expand all

 `visualize` Visualize and validate filter response `getFilter` Return biquad filter object with design parameters set `createAudioPluginClass` Create audio plugin class that implements functionality of System object `isStandardCompliant` Verify filter design is IEC 61672-1:2002 compliant
 `clone` Create duplicate System object `isLocked` Determine if System object is in use `release` Release resources and allow changes to System object property values and input characteristics `reset` Reset internal states of System object `step` Run System object algorithm

Note

`weightingFilter` supports additional filter analysis functions. See Compare and Analyze Weighting Types for details.

## Examples

collapse all

Check the compliance status of filter designs and visualize them.

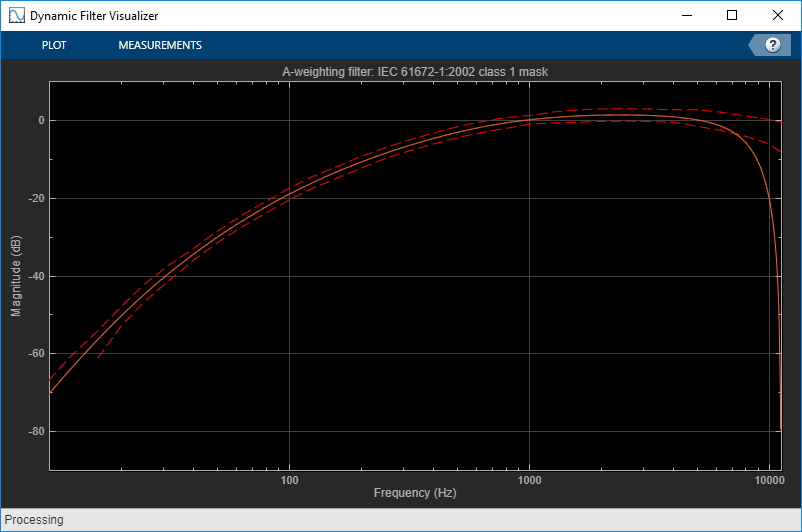

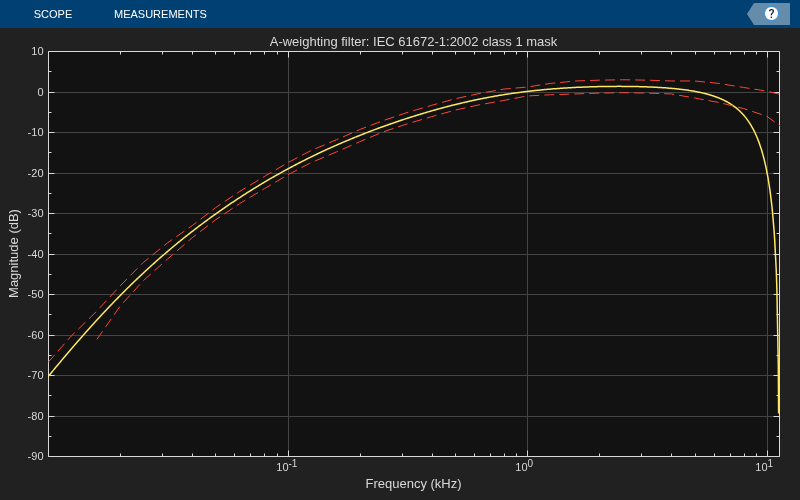

Create an A-weighting filter with a 22.5 kHz sample rate. Verify that the filter is standard compliant and visualize the filter design.

```aWeight = weightingFilter('A-weighting','SampleRate',22500); complianceStatus = isStandardCompliant(aWeight,'class 1')```
```complianceStatus = logical 0 ```
`visualize(aWeight,'class 1')`

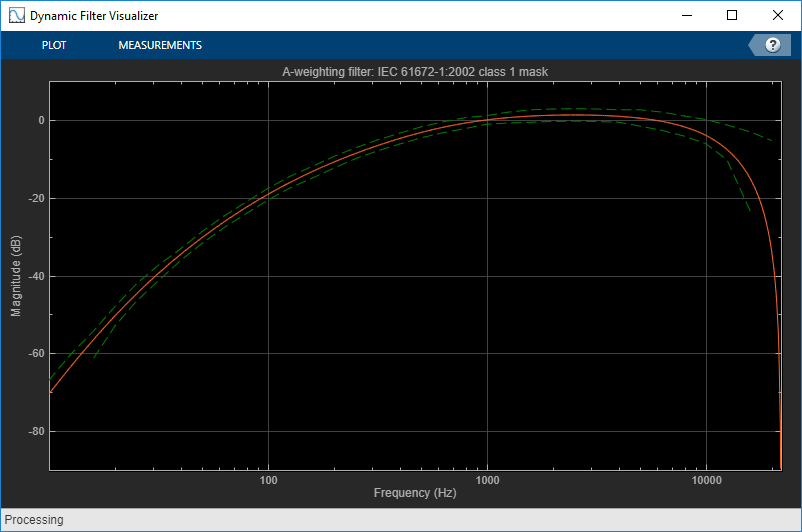

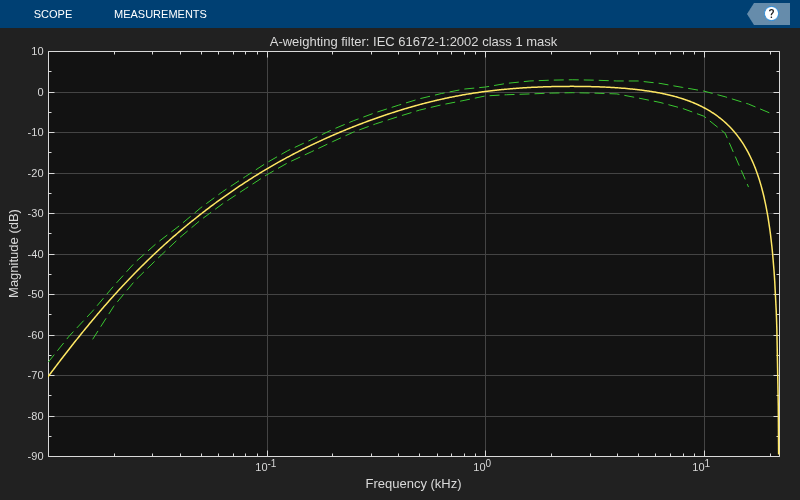

Change your A-weighting filter sample rate to 44.1 kHz. Verify that the filter is standard compliant and visualize the filter design.

`aWeight.SampleRate = 44100;`

`complianceStatus = isStandardCompliant(aWeight,'class 1')`
```complianceStatus = logical 1 ```

Use the `weightingFilter` System object™ to design an A-weighted filter, and then process an audio signal using your frequency-weighted filter design.

Create a `dsp.AudioFileReader` System object.

```samplesPerFrame = 1024; reader = dsp.AudioFileReader('Filename', ... 'RockGuitar-16-44p1-stereo-72secs.wav', ... 'SamplesPerFrame',samplesPerFrame, ... 'PlayCount',Inf);```

Create a `weightingFilter` System object. Use the sample rate of the reader as the sample rate of the weighting filter.

```Fs = reader.SampleRate; weightFilt = weightingFilter('A-weighting',Fs);```

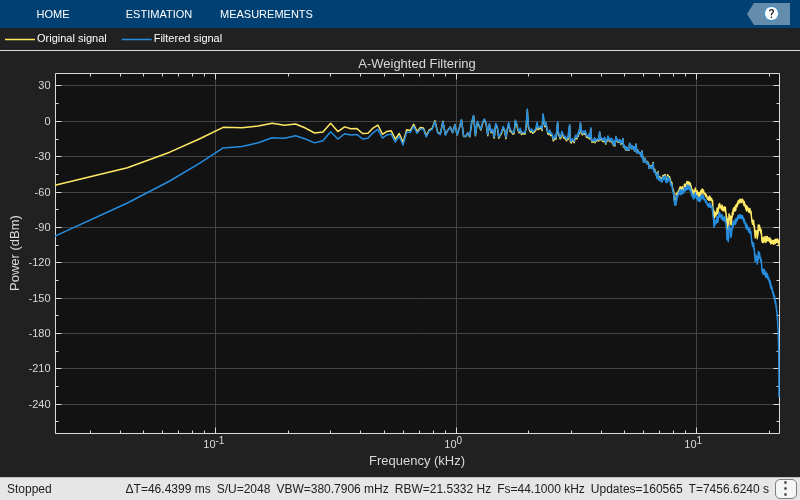

Create a spectrum analyzer to visualize the original audio signal and the audio signal after frequency-weighted filtering.

```scope = dsp.SpectrumAnalyzer( ... 'SampleRate',Fs, ... 'PlotAsTwoSidedSpectrum',false, ... 'FrequencyScale','Log', ... 'FrequencyResolutionMethod','WindowLength', ... 'WindowLength',samplesPerFrame, ... 'Title','A-Weighted Filtering', ... 'ShowLegend',true, ... 'ChannelNames',{'Original signal','Filtered signal'});```

Process the audio signal in an audio stream loop. Visualize the filtered audio and the original audio. As a best practice, release the System objects when complete.

```tic while toc < 20 x = reader(); y = weightFilt(x); scope([x(:,1),y(:,1)]) end release(weightFilt) release(reader) release(scope)```

Compare the A-weighted, C-weighted, and K-weighted filtering of an engine sound.

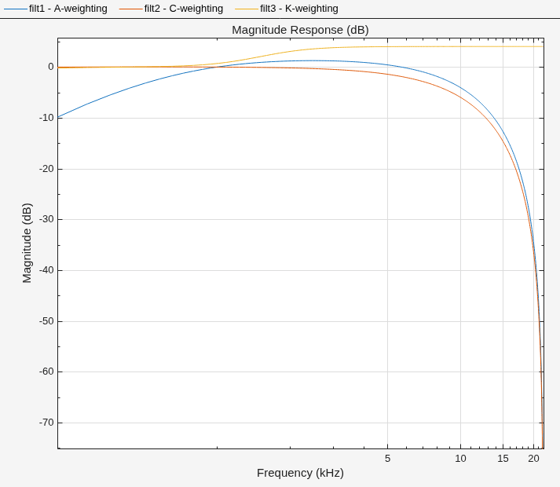

Create an A-weighting filter, a C-weighting filter, and a K-weighting filter. Compare and analyze the filters using `FVTool`.

```wF{1} = weightingFilter; wF{2} = weightingFilter('C-weighting'); wF{3} = weightingFilter('K-weighting'); fvtool(wF{1},wF{2},wF{3},'FrequencyScale','Log','Fs',wF{1}.SampleRate) legend('A-weighting','C-weighting','K-weighting','location','best')```

The `weightingFilter` object supports several filter analysis methods. For more information, use `help `at the command line:

`help weightingFilter.helpFilterAnalysis`
``` The following analysis methods are available for discrete-time filter System objects: fvtool - Filter visualization tool info - Filter information freqz - Frequency response phasez - Phase response zerophase - Zero-phase response grpdelay - Group delay response phasedelay - Phase delay response impz - Impulse response impzlength - Length of impulse response stepz - Step response zplane - Pole/zero plot cost - Cost estimate for implementation of the filter System object measure - Measure characteristics of the frequency response order - Filter order coeffs - Filter coefficients in a structure firtype - Determine the type (1-4) of a linear phase FIR filter System object tf - Convert to transfer function zpk - Convert to zero-pole-gain ss - Convert to state space representation isallpass - Verify if filter System object is allpass isfir - Verify if filter System object is FIR islinphase - Verify if filter System object is linear phase ismaxphase - Verify if filter System object is maximum phase isminphase - Verify if filter System object is minimum phase isreal - Verify if filter System object is minimum real issos - Verify if filter System object is in second-order sections form isstable - Verify if filter System object is stable realizemdl - Filter realization (Simulink diagram) specifyall - Fully specify fixed-point filter System object settings cascade - Create a FilterCascade System object Second-order sections: scale - Scale second-order sections of BiquadFilter System object scalecheck - Check scaling of BiquadFilter System object reorder - Reorder second-order sections of BiquadFilter System object cumsec - Cumulative second-order section of BiquadFilter System object scaleopts - Create an options object for second-order section scaling sos - Convert to second-order-sections (for IIRFilter System objects only) Fixed-Point (Fixed-Point Designer Required): freqrespest - Frequency response estimate via filtering freqrespopts - Create an options object for frequency response estimate noisepsd - Power spectral density of filter output due to roundoff noise noisepsdopts - Create an options object for output noise PSD computation Multirate Analysis: polyphase - Polyphase decomposition of multirate filter System object gain (CIC decimator) - Gain of CIC decimator filter System object gain (CIC interpolator) - Gain of CIC interpolator filter System object For decimator, interpolator, or rate change filter System objects the analysis tools perform computations relative to the rate at which the filter is running. If a sampling frequency is specified, it is assumed that the filter is running at that rate. Help for weightingFilter.helpFilterAnalysis is inherited from superclass DSP.PRIVATE.FILTERANALYSIS ```

Create a `dsp.AudioFileReader` and specify a sound file. Create an `audioDeviceWriter` with default properties. In an audio stream loop, play the white noise, and then listen to it filtered through the A-weighted, C-weighted, and K-weighted filters, successively.

```fileReader = dsp.AudioFileReader('Engine-16-44p1-stereo-20sec.wav'); deviceWriter = audioDeviceWriter('SampleRate',fileReader.SampleRate); fprintf('No filtering...')```
```No filtering... ```
```for i = 1:400 x = fileReader(); if i==100 index = 1; fprintf('A-weighted filtering...') elseif i==200 index = 2; fprintf('C-weighted filtering...') elseif i==300 index = 3; fprintf('K-weighted filtering...\n') end if i>99 y = wF{index}(x); else y = x; end deviceWriter(y); end```
```A-weighted filtering... ```
```C-weighted filtering... ```
```K-weighted filtering... ```

As a best practice, release your objects once done.

```release(deviceWriter) release(fileReader)```

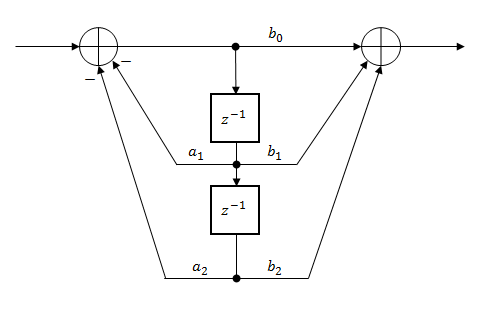

The `weightingFilter` object uses second-order sections (SOS) for filtering. To extract the weighting filter design, use `getFilter` to return a `dsp.BiquadFilter` object with the `SOSMatrix` and `ScaleValues` properties set.

Use `weightingFilter` to create C-weighted and A-weighted filter objects. Use `getFilter` to return corresponding `dsp.BiquadFilter` objects.

```cFilt = weightingFilter('C-weighting'); aFilt = weightingFilter('A-weighting'); cSOSFilter = getFilter(cFilt); aSOSFilter = getFilter(aFilt);```

Create an audio file reader and audio device writer for audio input/output. Use the sample rate of your reader as the sample rate of your writer.

```fileReader = dsp.AudioFileReader('JetAirplane-16-11p025-mono-16secs.wav'); deviceWriter = audioDeviceWriter('SampleRate',fileReader.SampleRate);```

In an audio stream loop, play the unfiltered signal. Release your file reader so that the next time you call it, it reads from the beginning of the file.

```tic while toc<8 x = fileReader(); deviceWriter(x); end release(fileReader)```

Play the signal processed by the A-weighted filter. Then play the signal processed by the C-weighted filter. Cache the power in each frame of the original and filtered signals for analysis. As a best practice, release your file reader and device writer once complete.

```y = []; count = 1; tic while ~isDone(fileReader) x = fileReader(); aFiltered = aSOSFilter(x); cFiltered = cSOSFilter(x); if toc>8 deviceWriter(cFiltered); else deviceWriter(aFiltered); end xPower(count) = var(x); aPower(count) = var(aFiltered); cPower(count) = var(cFiltered); y = [y;x]; count = count+1; end release(fileReader) release(deviceWriter)```

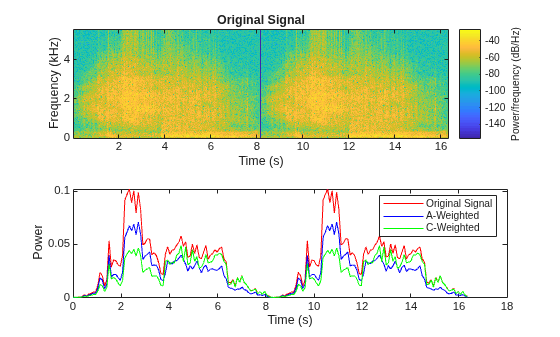

Plot the power of the original signal, the A-weighted signal, and the C-weighted signal over time.

```subplot(2,1,1) spectrogram(y,512,256,4096,fileReader.SampleRate,'yaxis') title('Original Signal') subplot(2,1,2) t = linspace(0,16.3468,count-1); plot(t,xPower,'r',t,aPower,'b',t,cPower,'g') legend('Original Signal','A-Weighted','C-Weighted') xlabel('Time (s)') ylabel('Power')```

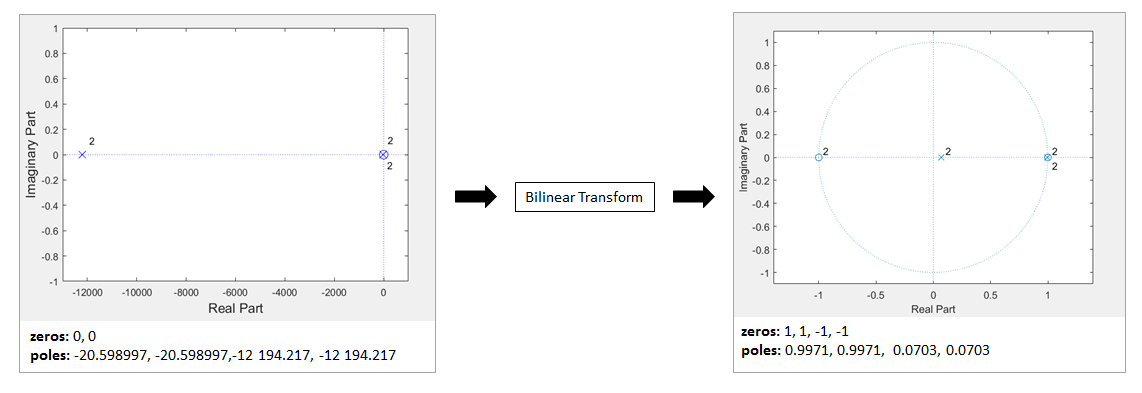

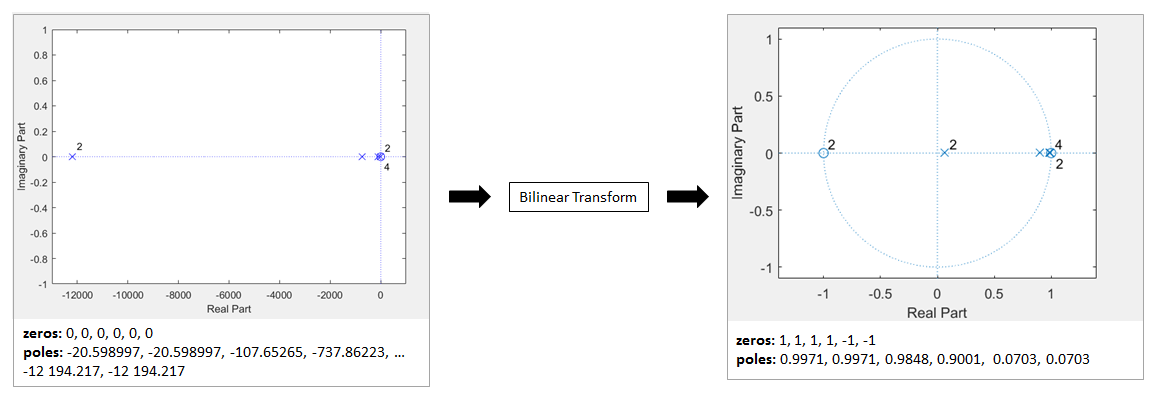

expand all

## References

[1] Acoustical Society of America. Design Response of Weighting Networks for Acoustical Measurements. ANSI S1.42-2001. New York, NY: American National Standards Institute, 2001.

[2] International Electrotechnical Commission. Electroacoustics Sound Level Meters Part 1: Specifications. First Edition. IEC 61672-1. 2002–2005.

[3] International Telecommunication Union. Algorithms to measure audio programme loudness and true-peak audio level. ITU-R BS.1770-4. 2015.

[4] Mansbridge, Stuart, Saoirse Finn, and Joshua D. Reiss. "Implementation and Evaluation of Autonomous Multi-track Fader Control." Paper presented at the 132nd Audio Engineering Society Convention, Budapest, Hungary, 2012.
