Spiral Antennas

Archimedean, rectangular, and equiangular spiral

Spiral Antenna Catalog


`spiralArchimedean`	`spiralEquiangular`	`spiralRectangular`		Antenna Element Catalog

Spiral antennas are frequency-independent antennas. These antennas are used in wireless communications and applications that requires larger bandwidth of operation.

Apps

Antenna Designer

Design, visualize, and analyze antennas

Objects

`spiralArchimedean`	Create Archimedean spiral antenna
`spiralEquiangular`	Create equiangular spiral antenna
`spiralRectangular`	Create rectangular spiral antenna on X-Y plane

Functions

`show`	Display antenna or array structure; display shape as filled patch
`info`	Display information about antenna or array
`rectspirallength2turns`	Calculate number of turns for specified arm length in rectangular spiral antenna

Featured Examples

Archimedean Spiral Design Investigation

Compares the results published in [1] for an Archimedean spiral antenna with those obtained using the toolbox model of the spiral antenna. The two-arm Archimedean spiral antenna( r = R ϕ ) can be regarded as a dipole, the arms of which have been wrapped into the shape of an Archimedean spiral. This idea came from Edwin Turner around 1954.

Open Live Script

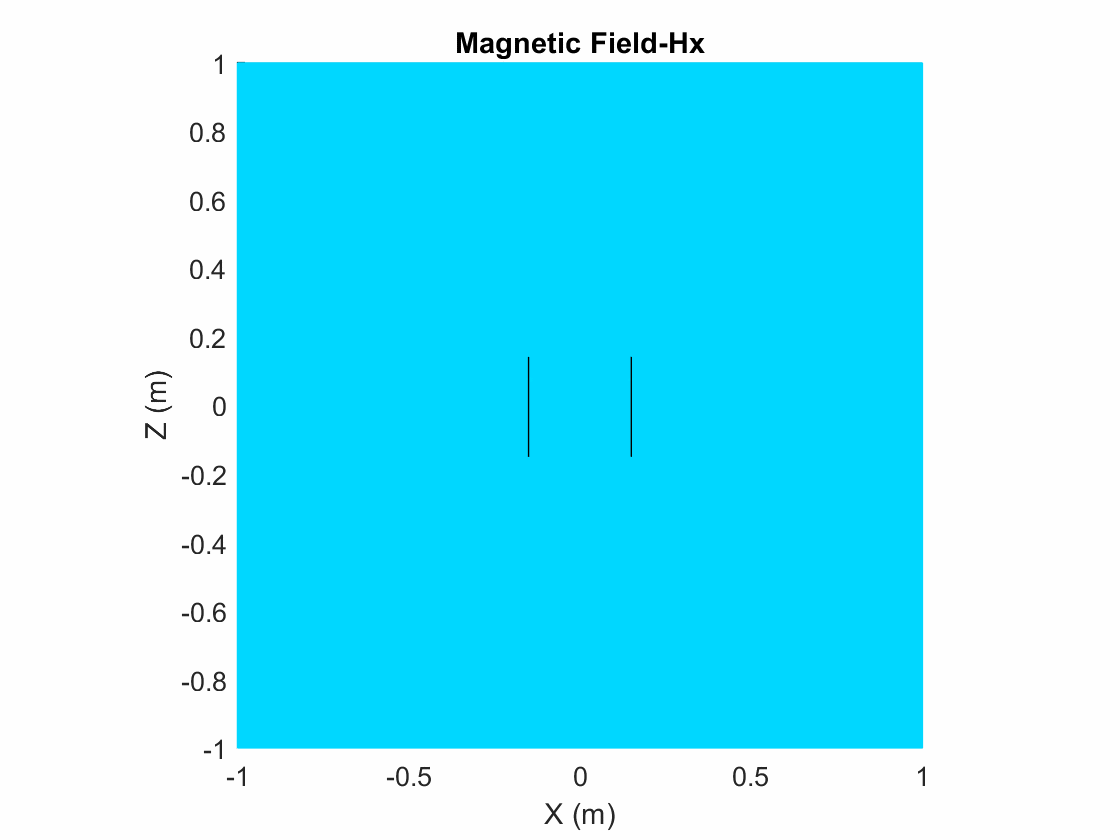

Modeling Resonant Coupled Wireless Power Transfer System

Create and analyze a resonant coupling type wireless power transfer (WPT) system with an emphasis on concepts such as resonant mode, coupling effect, and magnetic field pattern. The analysis is based on a two-element system of spiral resonators.

Open Live Script

Reflector Backed Equiangular Spiral

The spiral antenna is an inherently broadband, and bidirectional radiator. This example will analyze the behavior of an equiangular spiral antenna backed by a reflector [1]. The spiral and the reflector are Perfect Electric Conductors (PEC).

Open Script
