PID Controller Simulator

PID controller simulator on an LTI system w/ or w/o input delays
35K Downloads
Updated 26 Feb 2018

View License

Editor's Note: Popular File 2020

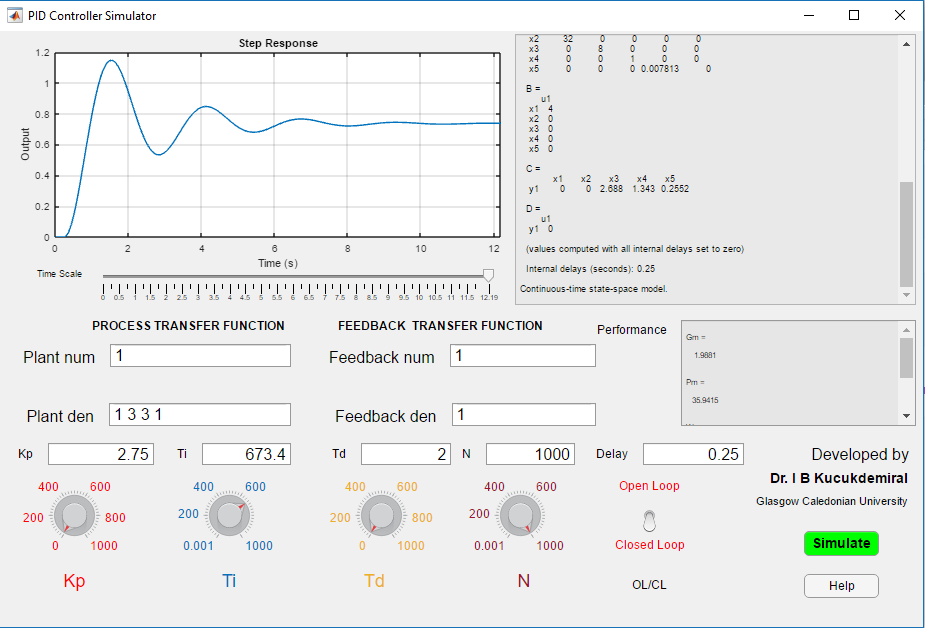

In order to run the program, the user must have an access to MATLAB R2017a or higher. Also the application requires the installation of Control Systems Toolbox. The plant is to be defined by the coefficients of the numerator and denominator polynomials of its transfer function. System's input delay and the feedback transfer function can now be taken into consideration in this new version.
