Flexible Body Models in Simscape Multibody

version 21.1.3.9 (20.8 MB) by Steve Miller
Lumped parameter and state-space methods for static, modal, and dynamic analysis

3.2K Downloads

Updated 17 Apr 2021

From GitHub

View license on GitHub

Please note: in MATLAB R2018b and higher there are blocks that ship with Simscape Multibody for flexible body modeling. Please refer to:

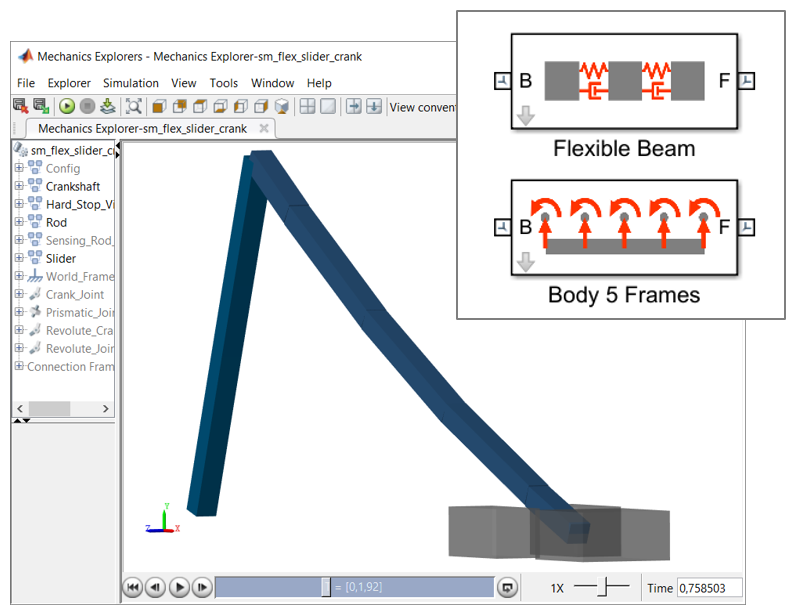

This file contains flexible beam models implemented in Simscape Multibody that use lumped parameter and finite element data approaches. It includes methods to compute static deflection, natural frequencies, plot mode shapes, and obtain the state-space representation from lumped parameter model.
Please read the README.md file to get started.
See this example to learn about flexible body models in Simscape Multibody libraries: https://www.mathworks.com/matlabcentral/fileexchange/88992-simscape-multibody-reduced-order-flexible-cylinder
Use the "Download from GitHub" button above to get files compatible with the latest release of MATLAB.
Use the links below to get files compatible with earlier releases of MATLAB.
Learn about modeling flexible bodies in Simscape Multibody
Find other Simscape examples by searching posts for the keyword "physical modeling"
