wlanLLTFChannelEstimate
Channel estimation using L-LTF
Syntax
Description
returns
the channel estimate and performs frequency smoothing over the specified
filter span. For more information, see Frequency Smoothing.chEst
= wlanLLTFChannelEstimate(___,span
)
This syntax supports input options from prior syntaxes.
Examples
Estimate SISO Channel Using L-LTF
Create VHT format configuration object. Generate a time-domain waveform for an 802.11ac VHT packet.
vht = wlanVHTConfig; txWaveform = wlanWaveformGenerator([1;0;0;1],vht);
Multiply the transmitted VHT signal by -0.1 + 0.5i and pass it through an AWGN channel with a 30 dB signal-to-noise ratio.
rxWaveform = awgn(txWaveform*(-0.1+0.5i),30);
Extract the L-LTF field indices and demodulate the L-LTF. Perform channel estimation without frequency smoothing.
idxLLTF = wlanFieldIndices(vht,'L-LTF');
demodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),vht);
est = wlanLLTFChannelEstimate(demodSig,vht);
Plot the channel estimate.

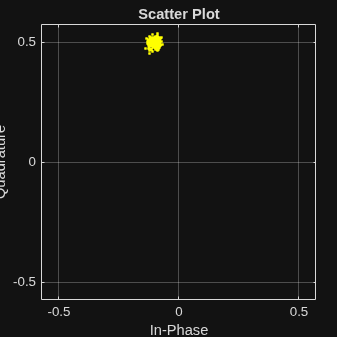

scatterplot(est) grid
The channel estimate matches the complex channel multiplier.
L-LTF Channel Estimation After TGn Channel
Generate a time domain waveform for an 802.11n HT packet, pass it through a TGn fading channel and perform L-LTF channel estimation. Trailing zeros are added to the waveform to allow for TGn channel delay.
Create the HT packet configuration and transmit waveform.
cfgHT = wlanHTConfig; txWaveform = wlanWaveformGenerator([1;0;0;1],cfgHT);
Configure a TGn channel with 20 MHz bandwidth.
tgnChannel = wlanTGnChannel; tgnChannel.SampleRate = 20e6;
Pass the waveform through the TGn channel, adding trailing zeros to allow for channel delay.
rxWaveform = tgnChannel([txWaveform; zeros(15,1)]);
Skip the first four samples to synchronize the received waveform for channel delay.
rxWaveform = rxWaveform(5:end,:);
Extract the L-LTF and perform channel estimation.
idnLLTF = wlanFieldIndices(cfgHT,'L-LTF');
sym = wlanLLTFDemodulate(rxWaveform(idnLLTF(1):idnLLTF(2),:),cfgHT);
est = wlanLLTFChannelEstimate(sym,cfgHT);
Estimate 80 MHz SISO Channel Using L-LTF
Create a VHT format configuration object. Using these objects, generate a time-domain waveform for an 802.11ac VHT packet.
vht = wlanVHTConfig('ChannelBandwidth','CBW80'); txWaveform = wlanWaveformGenerator([1;0;0;1],vht);
Multiply the transmitted VHT signal by -0.4 + 0.3i and pass it through an AWGN channel.
rxWaveform = awgn(txWaveform*(-0.4+0.3i),30);
Specify the channel bandwidth for demodulation and channel estimation. Extract the L-LTF field indices, demodulate the L-LTF, and perform channel estimation without frequency smoothing.
chanBW = 'CBW80'; idxLLTF = wlanFieldIndices(vht,'L-LTF'); demodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),chanBW); est = wlanLLTFChannelEstimate(demodSig,chanBW);
Plot the channel estimate.

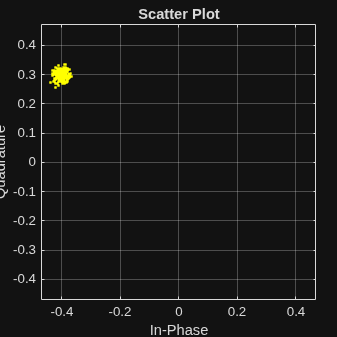

scatterplot(est) grid
The channel estimate matches the complex channel multiplier.
Estimate SISO Channel Using L-LTF and Smoothing Filter
Create a VHT format configuration object. Generate a time-domain waveform for an 802.11ac VHT packet.
vht = wlanVHTConfig; txWaveform = wlanWaveformGenerator([1;0;0;1],vht);
Multiply the transmitted VHT signal by 0.2 - 0.6i and pass it through an AWGN channel having a 10 dB SNR.
rxWaveform = awgn(txWaveform*complex(0.2,-0.6),10);
Extract the L-LTF from the received waveform. Demodulate the L-LTF.
idxLLTF = wlanFieldIndices(vht, 'L-LTF');
lltfDemodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),vht);
Use the demodulated L-LTF signal to generate the channel estimate.
est = wlanLLTFChannelEstimate(lltfDemodSig,vht);
Plot the channel estimate.

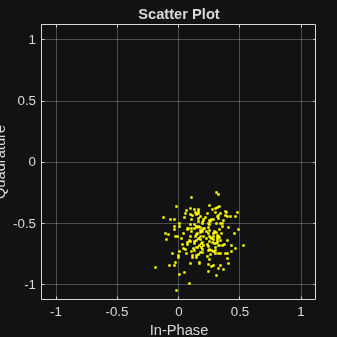

scatterplot(est) grid
The channel estimate is noisy, which may lead to inaccurate data recovery.
Estimate the channel again with the filter span set to 11.

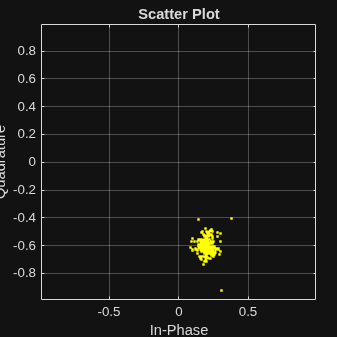

est = wlanLLTFChannelEstimate(lltfDemodSig,vht,11); scatterplot(est) grid
The filtering provides a better channel estimate.
Estimate Channel with L-LTF and Recover VHT-SIG-A
Create a VHT format configuration object. Generate L-LTF and VHT-SIG-A fields.
vht = wlanVHTConfig; txLLTF = wlanLLTF(vht); txSig = wlanVHTSIGA(vht);
Create a TGac channel for an 80 MHz bandwidth and a Model-A delay profile. Pass the transmitted L-LTF and VHT-SIG-A signals through the channel.
tgacChan = wlanTGacChannel('SampleRate',80e6,'ChannelBandwidth','CBW80', ... 'DelayProfile','Model-A'); rxLLTFNoNoise = tgacChan(txLLTF); rxSigNoNoise = tgacChan(txSig);
Create an AWGN noise channel with an SNR = 15 dB. Add the AWGN noise to L-LTF and VHT-SIG-A signals.
chNoise = comm.AWGNChannel('NoiseMethod','Signal to noise ratio (SNR)', ... 'SNR',15); rxLLTF = chNoise(rxLLTFNoNoise); rxSig = chNoise(rxSigNoNoise);
Create an AWGN channel having a noise variance corresponding to a 9 dB noise figure receiver. Pass the faded signals through the AWGN channel.
nVar = 10^((-228.6 + 10*log10(290) + 10*log10(80e6) + 9)/10); awgnChan = comm.AWGNChannel('NoiseMethod','Variance','Variance',nVar); rxLLTF = awgnChan(rxLLTF); rxSig = awgnChan(rxSig);
Demodulate the received L-LTF.
demodLLTF = wlanLLTFDemodulate(rxLLTF,vht);
Estimate the channel using the demodulated L-LTF.
chEst = wlanLLTFChannelEstimate(demodLLTF,vht);
Recover the VHT-SIG-A signal and verify that there was no CRC failure.
[recBits,crcFail] = wlanVHTSIGARecover(rxSig,chEst,nVar,'CBW80');
crcFail
crcFail = logical
0
Input Arguments
demodSig
— Demodulated L-LTF OFDM symbols
3-D array
Demodulated L-LTF OFDM symbols, specified as an NST-by-NSYM-by-NR array. NST is
the number of occupied subcarriers. NSYM is
the number of demodulated L-LTF symbols (one or two). NR is
the number of receive antennas. Each column of the 3-D array is a
demodulated L-LTF OFDM symbol. If you specify two L-LTF symbols, wlanLLTFChannelEstimate
averages
the channel estimate over both symbols.
Data Types: single
| double
Complex Number Support: Yes
cfg
— Format configuration
wlanEHTRecoveryConfig
object | wlanEHTTBConfig
object | wlanEHTMUConfig
object | wlanHERecoveryConfig
object | wlanHETBConfig
object | wlanHEMUConfig
object | wlanHESUConfig
object | wlanVHTConfig
object | wlanHTConfig
object | wlanNonHTConfig
object
Format configuration, specified as one of these objects:
wlanEHTRecoveryConfig
for EHT signal recoverywlanEHTTBConfig
for the EHT trigger-based formatwlanEHTMUConfig
for the EHT multi-user formatwlanHERecoveryConfig
for HE signal recoverywlanHETBConfig
for the HE trigger-based formatwlanHEMUConfig
for the HE multi-user formatwlanHESUConfig
for the HE single user formatwlanVHTConfig
for the VHT formatwlanHTConfig
for the HT formatwlanNonHTConfig
for the non-HT format
The wlanLLTFChannelEstimate
function
uses the ChannelBandwidth
property of cfg
.
cbw
— Channel bandwidth
'CBW5'
| 'CBW10'
| 'CBW20'
| 'CBW40'
| 'CBW80'
| 'CBW160'
| 'CBW320'
Channel bandwidth, specified as one of these values.
'CBW5'
— Channel bandwidth of 5 MHz'CBW10'
— Channel bandwidth of 10 MHz'CBW20'
— Channel bandwidth of 20 MHz'CBW40'
— Channel bandwidth of 40 MHz'CBW80'
— Channel bandwidth of 80 MHz'CBW160'
— Channel bandwidth of 160 MHz'CBW320'
— Channel bandwidth of 320 MHz
Data Types: char
| string
span
— Filter span
positive odd integer
Filter span of the frequency smoothing filter, specified as
a positive odd integer and expressed as a number of subcarriers. Frequency
smoothing is applied only when span
is specified
and is greater than one. See Frequency Smoothing.
Data Types: single
| double
Output Arguments
chEst
— Channel estimate
3-D array
Channel estimate containing data and pilot subcarriers, returned as an NST-by-1-by-NR array. NST is the number of occupied subcarriers. The value of 1 corresponds to the single transmitted stream in the L-LTF. NR is the number of receive antennas.
More About
L-LTF
The L-LTF is the second field in the 802.11™ OFDM PLCP legacy preamble. The L-LTF is a component of EHT, HE, VHT, HT, and non-HT PPDUs.
Channel estimation, fine frequency offset estimation, and fine symbol timing offset estimation rely on the L-LTF.
The L-LTF is composed of a cyclic prefix (CP) followed by two identical long training symbols (C1 and C2). The CP consists of the second half of the long training symbol.
The L-LTF duration varies with channel bandwidth.
Channel Bandwidth (MHz) | Subcarrier Frequency Spacing ΔF (kHz) | Fast Fourier Transform (FFT) Period (TFFT = 1 / ΔF) | Cyclic Prefix or Training Symbol Guard Interval (GI2) Duration (TGI2 = TFFT / 2) | L-LTF Duration (TLONG = TGI2 + 2 × TFFT) |
---|---|---|---|---|
20, 40, 80, 160, and 320 | 312.5 | 3.2 μs | 1.6 μs | 8 μs |
10 | 156.25 | 6.4 μs | 3.2 μs | 16 μs |
5 | 78.125 | 12.8 μs | 6.4 μs | 32 μs |
Frequency Smoothing
Frequency smoothing can improve channel estimation by averaging out noise.
Frequency smoothing is recommended only for cases in which a single transmit antenna is used. Frequency smoothing consists of applying a moving-average filter that spans multiple adjacent subcarriers. Channel conditions dictate whether frequency smoothing is beneficial.
If adjacent subcarriers are highly correlated, frequency smoothing results in significant noise reduction.
In a highly frequency-selective channel, smoothing can degrade the quality of the channel estimate.
References
[1] Van de Beek, J.-J., O. Edfors, M. Sandell, S. K. Wilson, and P. O. Borjesson. “On Channel Estimation in OFDM Systems.” Vehicular Technology Conference, IEEE 45th, Volume 2, IEEE, 1995.
[2] IEEE Std 802.11-2020 (Revision of IEEE Std 802.11-2016). “Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications.” IEEE Standard for Information Technology — Telecommunications and Information Exchange between Systems — Local and Metropolitan Area Networks — Specific Requirements.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2015bR2024b: Generate C/C++ code for EHT blind recovery
You can now generate C and C++ code using MATLAB®
Coder™ when you specify the cfg
input as a wlanEHTRecoveryConfig
object.
R2023b: HE and EHT support
You can specify the cfg
input as an object of one of these types:
R2022b: Single precision support
You can specify the function's numeric inputs as single precision values.
See Also
wlanNonHTConfig
| wlanHTConfig
| wlanVHTConfig
| wlanLLTFDemodulate
| wlanHTLTFChannelEstimate
| wlanVHTLTFChannelEstimate
1 IEEE® Std 802.11-2012 Adapted and reprinted with permission from IEEE. Copyright IEEE 2012. All rights reserved.
