Acoustic Scene Recognition Using Late Fusion

This example shows how to create a multi-model late fusion system for acoustic scene recognition. The example trains a convolutional neural network (CNN) using mel spectrograms and an ensemble classifier using wavelet scattering. The example uses the TUT dataset for training and evaluation [1].

Introduction

Acoustic scene classification (ASC) is the task of classifying environments from the sounds they produce. ASC is a generic classification problem that is foundational for context awareness in devices, robots, and many other applications [1]. Early attempts at ASC used mel-frequency cepstral coefficients (mfcc (Audio Toolbox)) and Gaussian mixture models (GMMs) to describe their statistical distribution. Other popular features used for ASC include zero crossing rate, spectral centroid (spectralCentroid (Audio Toolbox)), spectral rolloff (spectralRolloffPoint (Audio Toolbox)), spectral flux (spectralFlux (Audio Toolbox) ), and linear prediction coefficients (lpc (Signal Processing Toolbox)) [5]. Hidden Markov models (HMMs) were trained to describe the temporal evolution of the GMMs. More recently, the best performing systems have used deep learning, usually CNNs, and a fusion of multiple models. The most popular feature for top-ranked systems in the DCASE 2017 contest was the mel spectrogram (melSpectrogram (Audio Toolbox)). The top-ranked systems in the challenge used late fusion and data augmentation to help their systems generalize.

To illustrate a simple approach that produces reasonable results, this example trains a CNN using mel spectrograms and an ensemble classifier using wavelet scattering. The CNN and ensemble classifier produce roughly equivalent overall accuracy, but perform better at distinguishing different acoustic scenes. To increase overall accuracy, you merge the CNN and ensemble classifier results using late fusion.

Load Acoustic Scene Recognition Data Set

To run the example, you must first download the data set [1]. The full data set is approximately 15.5 GB. Depending on your machine and internet connection, downloading the data can take about 4 hours.

downloadFolder = tempdir;
datasetFolder = fullfile(downloadFolder,'TUT-acoustic-scenes-2017');

if ~exist(datasetFolder,'dir')
    disp('Downloading TUT-acoustic-scenes-2017 (15.5 GB)...')
    HelperDownload_TUT_acoustic_scenes_2017(datasetFolder);
end

Read in the development set metadata as a table. Name the table variables FileName, AcousticScene, and SpecificLocation.

metadata_train = readtable(fullfile(datasetFolder,'TUT-acoustic-scenes-2017-development','meta.txt'), ...
    'Delimiter',{'\t'}, ...
    'ReadVariableNames',false);
metadata_train.Properties.VariableNames = {'FileName','AcousticScene','SpecificLocation'};
head(metadata_train)
ans =

  8×3 table

             FileName             AcousticScene    SpecificLocation
    __________________________    _____________    ________________

    {'audio/b020_90_100.wav' }      {'beach'}          {'b020'}
    {'audio/b020_110_120.wav'}      {'beach'}          {'b020'}
    {'audio/b020_100_110.wav'}      {'beach'}          {'b020'}
    {'audio/b020_40_50.wav'  }      {'beach'}          {'b020'}
    {'audio/b020_50_60.wav'  }      {'beach'}          {'b020'}
    {'audio/b020_30_40.wav'  }      {'beach'}          {'b020'}
    {'audio/b020_160_170.wav'}      {'beach'}          {'b020'}
    {'audio/b020_170_180.wav'}      {'beach'}          {'b020'}

metadata_test = readtable(fullfile(datasetFolder,'TUT-acoustic-scenes-2017-evaluation','meta.txt'), ...
    'Delimiter',{'\t'}, ...
    'ReadVariableNames',false);
metadata_test.Properties.VariableNames = {'FileName','AcousticScene','SpecificLocation'};
head(metadata_test)
ans =

  8×3 table

         FileName         AcousticScene    SpecificLocation
    __________________    _____________    ________________

    {'audio/1245.wav'}      {'beach'}          {'b174'}
    {'audio/1456.wav'}      {'beach'}          {'b174'}
    {'audio/1318.wav'}      {'beach'}          {'b174'}
    {'audio/967.wav' }      {'beach'}          {'b174'}
    {'audio/203.wav' }      {'beach'}          {'b174'}
    {'audio/777.wav' }      {'beach'}          {'b174'}
    {'audio/231.wav' }      {'beach'}          {'b174'}
    {'audio/768.wav' }      {'beach'}          {'b174'}

Note that the specific recording locations in the test set do not intersect with the specific recording locations in the development set. This makes it easier to validate that the trained models can generalize to real-world scenarios.

sharedRecordingLocations = intersect(metadata_test.SpecificLocation,metadata_train.SpecificLocation);
fprintf('Number of specific recording locations in both train and test sets = %d\n',numel(sharedRecordingLocations))
Number of specific recording locations in both train and test sets = 0

The first variable of the metadata tables contains the file names. Concatenate the file names with the file paths.

train_filePaths = fullfile(datasetFolder,'TUT-acoustic-scenes-2017-development',metadata_train.FileName);

test_filePaths = fullfile(datasetFolder,'TUT-acoustic-scenes-2017-evaluation',metadata_test.FileName);

Create audio datastores for the train and test sets. Set the Labels property of the audioDatastore (Audio Toolbox) to the acoustic scene. Call countEachLabel (Audio Toolbox) to verify an even distribution of labels in both the train and test sets.

adsTrain = audioDatastore(train_filePaths, ...
    'Labels',categorical(metadata_train.AcousticScene), ...
    'IncludeSubfolders',true);
display(countEachLabel(adsTrain))

adsTest = audioDatastore(test_filePaths, ...
    'Labels',categorical(metadata_test.AcousticScene), ...
    'IncludeSubfolders',true);
display(countEachLabel(adsTest))
  15×2 table

         Label          Count
    ________________    _____

    beach                312
    bus                  312
    cafe/restaurant      312
    car                  312
    city_center          312
    forest_path          312
    grocery_store        312
    home                 312
    library              312
    metro_station        312
    office               312
    park                 312
    residential_area     312
    train                312
    tram                 312

  15×2 table

         Label          Count
    ________________    _____

    beach                108
    bus                  108
    cafe/restaurant      108
    car                  108
    city_center          108
    forest_path          108
    grocery_store        108
    home                 108
    library              108
    metro_station        108
    office               108
    park                 108
    residential_area     108
    train                108
    tram                 108

You can reduce the data set used in this example to speed up the run time at the cost of performance. In general, reducing the data set is a good practice for development and debugging. Set reduceDataset to true to reduce the data set.

reduceDataset = false;
if reduceDataset
    adsTrain = splitEachLabel(adsTrain,20);
    adsTest = splitEachLabel(adsTest,10);
end

Call read (Audio Toolbox) to get the data and sample rate of a file from the train set. Audio in the database has consistent sample rate and duration. Normalize the audio and listen to it. Display the corresponding label.

[data,adsInfo] = read(adsTrain);
data = data./max(data,[],'all');

fs = adsInfo.SampleRate;
sound(data,fs)

fprintf('Acoustic scene = %s\n',adsTrain.Labels(1))
Acoustic scene = beach

Call reset (Audio Toolbox) to return the datastore to its initial condition.

reset(adsTrain)

Feature Extraction for CNN

Each audio clip in the dataset consists of 10 seconds of stereo (left-right) audio. The feature extraction pipeline and the CNN architecture in this example are based on [3]. Hyperparameters for the feature extraction, the CNN architecture, and the training options were modified from the original paper using a systematic hyperparameter optimization workflow.

First, convert the audio to mid-side encoding. [3] suggests that mid-side encoded data provides better spatial information that the CNN can use to identify moving sources (such as a train moving across an acoustic scene).

dataMidSide = [sum(data,2),data(:,1)-data(:,2)];

Divide the signal into one-second segments with overlap. The final system uses a probability-weighted average on the one-second segments to predict the scene for each 10-second audio clip in the test set. Dividing the audio clips into one-second segments makes the network easier to train and helps prevent overfitting to specific acoustic events in the training set. The overlap helps to ensure all combinations of features relative to one another are captured by the training data. It also provides the system with additional data that can be mixed uniquely during augmentation.

segmentLength = 1;
segmentOverlap = 0.5;

[dataBufferedMid,~] = buffer(dataMidSide(:,1),round(segmentLength*fs),round(segmentOverlap*fs),'nodelay');
[dataBufferedSide,~] = buffer(dataMidSide(:,2),round(segmentLength*fs),round(segmentOverlap*fs),'nodelay');
dataBuffered = zeros(size(dataBufferedMid,1),size(dataBufferedMid,2)+size(dataBufferedSide,2));
dataBuffered(:,1:2:end) = dataBufferedMid;
dataBuffered(:,2:2:end) = dataBufferedSide;

Use melSpectrogram (Audio Toolbox) to transform the data into a compact frequency-domain representation. Define parameters for the mel spectrogram as suggested by [3].

windowLength = 2048;
samplesPerHop = 1024;
samplesOverlap = windowLength - samplesPerHop;
fftLength = 2*windowLength;
numBands = 128;

melSpectrogram operates along channels independently. To optimize processing time, call melSpectrogram with the entire buffered signal.

spec = melSpectrogram(dataBuffered,fs, ...
    'Window',hamming(windowLength,'periodic'), ...
    'OverlapLength',samplesOverlap, ...
    'FFTLength',fftLength, ...
    'NumBands',numBands);

Convert the mel spectrogram into the logarithmic scale.

spec = log10(spec+eps);

Reshape the array to dimensions (Number of bands)-by-(Number of hops)-by-(Number of channels)-by-(Number of segments). When you feed an image into a neural network, the first two dimensions are the height and width of the image, the third dimension is the channels, and the fourth dimension separates the individual images.

X = reshape(spec,size(spec,1),size(spec,2),size(data,2),[]);

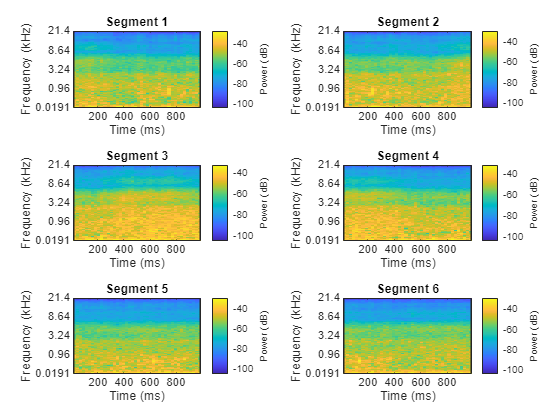

Call melSpectrogram without output arguments to plot the mel spectrogram of the mid channel for the first six of the one-second increments.

for channel = 1:2:11
    figure
    melSpectrogram(dataBuffered(:,channel),fs, ...
        'Window',hamming(windowLength,'periodic'), ...
        'OverlapLength',samplesOverlap, ...
        'FFTLength',fftLength, ...
        'NumBands',numBands);
    title(sprintf('Segment %d',ceil(channel/2)))
end

The helper function HelperSegmentedMelSpectrograms performs the feature extraction steps outlined above.

To speed up processing, extract mel spectrograms of all audio files in the datastores using tall arrays. Unlike in-memory arrays, tall arrays remain unevaluated until you request that the calculations be performed using the gather function. This deferred evaluation enables you to work quickly with large data sets. When you eventually request the output using gather, MATLAB combines the queued calculations where possible and takes the minimum number of passes through the data. If you have Parallel Computing Toolbox™, you can use tall arrays in your local MATLAB session, or on a local parallel pool. You can also run tall array calculations on a cluster if you have MATLAB® Parallel Server™ installed.

If you do not have Parallel Computing Toolbox™, the code in this example still runs.

pp = parpool('IdleTimeout',inf);

train_set_tall = tall(adsTrain);
xTrain = cellfun(@(x)HelperSegmentedMelSpectrograms(x,fs, ...
    'SegmentLength',segmentLength, ...
    'SegmentOverlap',segmentOverlap, ...
    'WindowLength',windowLength, ...
    'HopLength',samplesPerHop, ...
    'NumBands',numBands, ...
    'FFTLength',fftLength), ...
    train_set_tall, ...
    'UniformOutput',false);
xTrain = gather(xTrain);
xTrain = cat(4,xTrain{:});

test_set_tall = tall(adsTest);
xTest = cellfun(@(x)HelperSegmentedMelSpectrograms(x,fs, ...
    'SegmentLength',segmentLength, ...
    'SegmentOverlap',segmentOverlap, ...
    'WindowLength',windowLength, ...
    'HopLength',samplesPerHop, ...
    'NumBands',numBands, ...
    'FFTLength',fftLength), ...
    test_set_tall, ...
    'UniformOutput',false);
xTest = gather(xTest);
xTest = cat(4,xTest{:});
Starting parallel pool (parpool) using the 'local' profile ...
Connected to the parallel pool (number of workers: 6).
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 4 min 48 sec
Evaluation completed in 4 min 48 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 1 min 40 sec
Evaluation completed in 1 min 40 sec

Replicate the labels of the training set so that they are in one-to-one correspondence with the segments.

numSegmentsPer10seconds = size(dataBuffered,2)/2;
yTrain = repmat(adsTrain.Labels,1,numSegmentsPer10seconds)';
yTrain = yTrain(:);

Data Augmentation for CNN

The DCASE 2017 dataset contains a relatively small number of acoustic recordings for the task, and the development set and evaluation set were recorded at different specific locations. As a result, it is easy to overfit to the data during training. One popular method to reduce overfitting is mixup. In mixup, you augment your dataset by mixing the features of two different classes. When you mix the features, you mix the labels in equal proportion. That is:

$$\begin{array}{l}\tilde{\mathrm{x}} =\lambda {\mathrm{x}}_i +\left(1-\lambda
\right){\mathrm{x}}_j \\\tilde{y} =\lambda y_i +\left(1-\lambda\right)y_j \end{array}$$

Mixup was reformulated by [2] as labels drawn from a probability distribution instead of mixed labels. The implementation of mixup in this example is a simplified version of mixup: each spectrogram is mixed with a spectrogram of a different label with lambda set to 0.5. The original and mixed datasets are combined for training.

xTrainExtra = xTrain;
yTrainExtra = yTrain;
lambda = 0.5;
for i = 1:size(xTrain,4)

    % Find all available spectrograms with different labels.
    availableSpectrograms = find(yTrain~=yTrain(i));

    % Randomly choose one of the available spectrograms with a different label.
    numAvailableSpectrograms = numel(availableSpectrograms);
    idx = randi([1,numAvailableSpectrograms]);

    % Mix.
    xTrainExtra(:,:,:,i) = lambda*xTrain(:,:,:,i) + (1-lambda)*xTrain(:,:,:,availableSpectrograms(idx));

    % Specify the label as randomly set by lambda.
    if rand > lambda
        yTrainExtra(i) = yTrain(availableSpectrograms(idx));
    end
end
xTrain = cat(4,xTrain,xTrainExtra);
yTrain = [yTrain;yTrainExtra];

Call summary to display the distribution of labels for the augmented training set.

summary(yTrain)
     beach                 11769
     bus                   11904
     cafe/restaurant       11873
     car                   11820
     city_center           11886
     forest_path           11936
     grocery_store         11914
     home                  11923
     library               11817
     metro_station         11804
     office                11922
     park                  11871
     residential_area      11704
     train                 11773
     tram                  11924

Define and Train CNN

Define the CNN architecture. This architecture is based on [1] and modified through trial and error. See List of Deep Learning Layers (Deep Learning Toolbox) to learn more about deep learning layers available in MATLAB®.

imgSize = [size(xTrain,1),size(xTrain,2),size(xTrain,3)];
numF = 32;
layers = [ ...
    imageInputLayer(imgSize)

    batchNormalizationLayer

    convolution2dLayer(3,numF,'Padding','same')
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,numF,'Padding','same')
    batchNormalizationLayer
    reluLayer

    maxPooling2dLayer(3,'Stride',2,'Padding','same')

    convolution2dLayer(3,2*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,2*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer

    maxPooling2dLayer(3,'Stride',2,'Padding','same')

    convolution2dLayer(3,4*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,4*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer

    maxPooling2dLayer(3,'Stride',2,'Padding','same')

    convolution2dLayer(3,8*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,8*numF,'Padding','same')
    batchNormalizationLayer
    reluLayer

    averagePooling2dLayer(ceil(imgSize(1:2)/8))

    dropoutLayer(0.5)

    fullyConnectedLayer(15)
    softmaxLayer
    classificationLayer];

Define trainingOptions (Deep Learning Toolbox) for the CNN. These options are based on [3] and modified through a systematic hyperparameter optimization workflow.

miniBatchSize = 128;
tuneme = 128;
lr = 0.05*miniBatchSize/tuneme;
options = trainingOptions('sgdm', ...
    'InitialLearnRate',lr, ...
    'MiniBatchSize',miniBatchSize, ...
    'Momentum',0.9, ...
    'L2Regularization',0.005, ...
    'MaxEpochs',8, ...
    'Shuffle','every-epoch', ...
    'Plots','training-progress', ...
    'Verbose',false, ...
    'LearnRateSchedule','piecewise', ...
    'LearnRateDropPeriod',2, ...
    'LearnRateDropFactor',0.2);

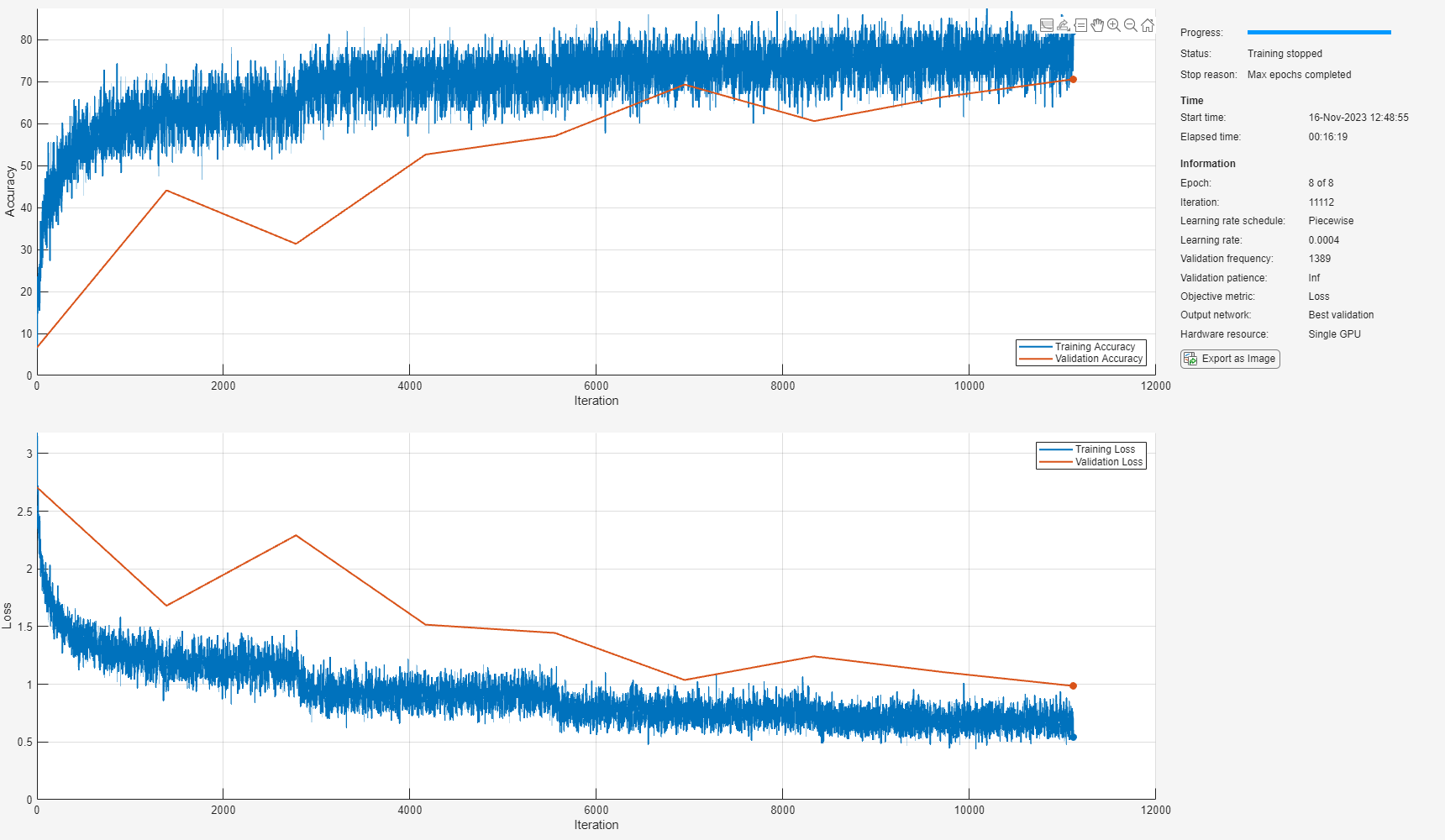

Call trainNetwork (Deep Learning Toolbox) to train the network.

trainedNet = trainNetwork(xTrain,yTrain,layers,options);

Evaluate CNN

Call predict (Deep Learning Toolbox) to predict responses from the trained network using the held-out test set.

cnnResponsesPerSegment = predict(trainedNet,xTest);

Average the responses over each 10-second audio clip.

classes = trainedNet.Layers(end).Classes;
numFiles = numel(adsTest.Files);

counter = 1;
cnnResponses = zeros(numFiles,numel(classes));
for channel = 1:numFiles
    cnnResponses(channel,:) = sum(cnnResponsesPerSegment(counter:counter+numSegmentsPer10seconds-1,:),1)/numSegmentsPer10seconds;
    counter = counter + numSegmentsPer10seconds;
end

For each 10-second audio clip, choose the maximum of the predictions, then map it to the corresponding predicted location.

[~,classIdx] = max(cnnResponses,[],2);
cnnPredictedLabels = classes(classIdx);

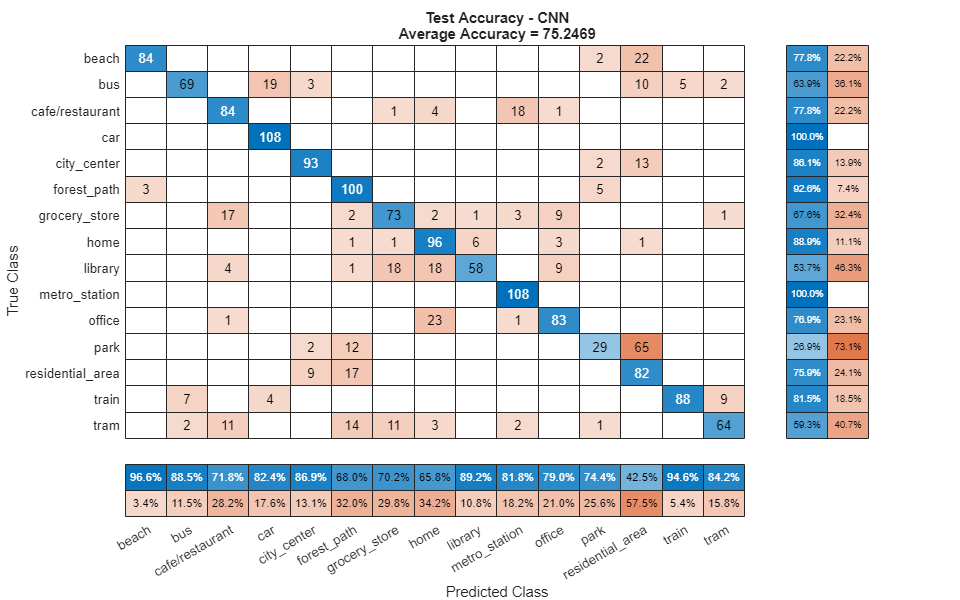

Call confusionchart (Deep Learning Toolbox) to visualize the accuracy on the test set. Return the average accuracy to the Command Window.

figure
cm = confusionchart(adsTest.Labels,cnnPredictedLabels,'title','Test Accuracy - CNN');
cm.ColumnSummary = 'column-normalized';
cm.RowSummary = 'row-normalized';

fprintf('Average accuracy of CNN = %0.2f\n',mean(adsTest.Labels==cnnPredictedLabels)*100)
Average accuracy of CNN = 75.12

Feature Extraction for Ensemble Classifier

Wavelet scattering has been shown in [4] to provide a good representation of acoustic scenes. Define a waveletScattering object. The invariance scale and quality factors were determined through trial and error.

sf = waveletScattering('SignalLength',size(data,1), ...
                       'SamplingFrequency',fs, ...
                       'InvarianceScale',0.75, ...
                       'QualityFactors',[4 1]);

Convert the audio signal to mono, and then call featureMatrix to return the scattering coefficients for the scattering decomposition framework, sf.

dataMono = mean(data,2);
scatteringCoeffients = featureMatrix(sf,dataMono,'Transform','log');

Average the scattering coefficients over the 10-second audio clip.

featureVector = mean(scatteringCoeffients,2);
fprintf('Number of wavelet features per 10-second clip = %d\n',numel(featureVector))
Number of wavelet features per 10-second clip = 290

The helper function HelperWaveletFeatureVector performs the above steps. Use a tall array with cellfun and HelperWaveletFeatureVector to parallelize the feature extraction. Extract wavelet feature vectors for the train and test sets.

scatteringTrain = cellfun(@(x)HelperWaveletFeatureVector(x,sf),train_set_tall,'UniformOutput',false);
xTrain = gather(scatteringTrain);
xTrain = cell2mat(xTrain')';

scatteringTest = cellfun(@(x)HelperWaveletFeatureVector(x,sf),test_set_tall,'UniformOutput',false);
xTest = gather(scatteringTest);
xTest = cell2mat(xTest')';
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 30 min 22 sec
Evaluation completed in 30 min 22 sec
Evaluating tall expression using the Parallel Pool 'local':
- Pass 1 of 1: Completed in 10 min 30 sec
Evaluation completed in 10 min 30 sec

Define and Train Ensemble Classifier

Use fitcensemble to create a trained classification ensemble model (ClassificationEnsemble).

subspaceDimension = min(150,size(xTrain,2) - 1);
numLearningCycles = 30;
classificationEnsemble = fitcensemble(xTrain,adsTrain.Labels, ...
    'Method','Subspace', ...
    'NumLearningCycles',numLearningCycles, ...
    'Learners','discriminant', ...
    'NPredToSample',subspaceDimension, ...
    'ClassNames',removecats(unique(adsTrain.Labels)));

Evaluate Ensemble Classifier

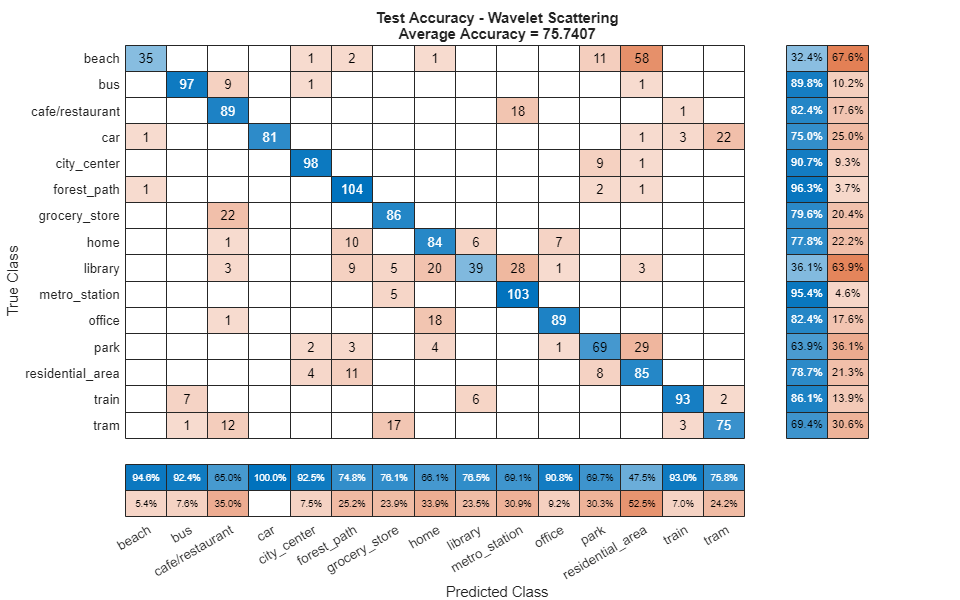

For each 10-second audio clip, call predict to return the labels and the weights, then map it to the corresponding predicted location. Call confusionchart (Deep Learning Toolbox) to visualize the accuracy on the test set. Print the average.

[waveletPredictedLabels,waveletResponses] = predict(classificationEnsemble,xTest);

figure
cm = confusionchart(adsTest.Labels,waveletPredictedLabels,'title','Test Accuracy - Wavelet Scattering');
cm.ColumnSummary = 'column-normalized';
cm.RowSummary = 'row-normalized';

fprintf('Average accuracy of classifier = %0.2f\n',mean(adsTest.Labels==waveletPredictedLabels)*100)
Average accuracy of classifier = 76.23

Apply Late Fusion

For each 10-second clip, calling predict on the wavelet classifier and the CNN returns a vector indicating the relative confidence in their decision. Multiply the waveletResponses with the cnnResponses to create a late fusion system.

fused = waveletResponses .* cnnResponses;
[~,classIdx] = max(fused,[],2);

predictedLabels = classes(classIdx);

Evaluate Late Fusion

Call confusionchart to visualize the fused classification accuracy. Print the average accuracy to the Command Window.

figure
cm = confusionchart(adsTest.Labels,predictedLabels,'title','Test Accuracy - Fusion');
cm.ColumnSummary = 'column-normalized';
cm.RowSummary = 'row-normalized';

fprintf('Average accuracy of fused models = %0.2f\n',mean(adsTest.Labels==predictedLabels)*100)
Average accuracy of fused models = 79.57

Close the parallel pool.

delete(pp)
Parallel pool using the 'local' profile is shutting down.

References

[1] A. Mesaros, T. Heittola, and T. Virtanen. Acoustic Scene Classification: an Overview of DCASE 2017 Challenge Entries. In proc. International Workshop on Acoustic Signal Enhancement, 2018.

[2] Huszar, Ferenc. "Mixup: Data-Dependent Data Augmentation." InFERENCe. November 03, 2017. Accessed January 15, 2019. https://www.inference.vc/mixup-data-dependent-data-augmentation/.

[3] Han, Yoonchang, Jeongsoo Park, and Kyogu Lee. "Convolutional neural networks with binaural representations and background subtraction for acoustic scene classification." the Detection and Classification of Acoustic Scenes and Events (DCASE) (2017): 1-5.

[4] Lostanlen, Vincent, and Joakim Anden. Binaural scene classification with wavelet scattering. Technical Report, DCASE2016 Challenge, 2016.

[5] A. J. Eronen, V. T. Peltonen, J. T. Tuomi, A. P. Klapuri, S. Fagerlund, T. Sorsa, G. Lorho, and J. Huopaniemi, "Audio-based context recognition," IEEE Trans. on Audio, Speech, and Language Processing, vol 14, no. 1, pp. 321-329, Jan 2006.

[6] TUT Acoustic scenes 2017, Development dataset

[7] TUT Acoustic scenes 2017, Evaluation dataset

Appendix -- Supporting Functions

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%HelperSegmentedMelSpectrograms
function X = HelperSegmentedMelSpectrograms(x,fs,varargin)

p = inputParser;
addParameter(p,'WindowLength',1024);
addParameter(p,'HopLength',512);
addParameter(p,'NumBands',128);
addParameter(p,'SegmentLength',1);
addParameter(p,'SegmentOverlap',0);
addParameter(p,'FFTLength',1024);
parse(p,varargin{:})
params = p.Results;

x = [sum(x,2),x(:,1)-x(:,2)];
x = x./max(max(x));

[xb_m,~] = buffer(x(:,1),round(params.SegmentLength*fs),round(params.SegmentOverlap*fs),'nodelay');
[xb_s,~] = buffer(x(:,2),round(params.SegmentLength*fs),round(params.SegmentOverlap*fs),'nodelay');
xb = zeros(size(xb_m,1),size(xb_m,2)+size(xb_s,2));
xb(:,1:2:end) = xb_m;
xb(:,2:2:end) = xb_s;

spec = melSpectrogram(xb,fs, ...
    'Window',hamming(params.WindowLength,'periodic'), ...
    'OverlapLength',params.WindowLength - params.HopLength, ...
    'FFTLength',params.FFTLength, ...
    'NumBands',params.NumBands, ...
    'FrequencyRange',[0,floor(fs/2)]);
spec = log10(spec+eps);

X = reshape(spec,size(spec,1),size(spec,2),size(x,2),[]);
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%HelperWaveletFeatureVector
function features = HelperWaveletFeatureVector(x,sf)
x = mean(x,2);
features = featureMatrix(sf,x,'Transform','log');
features = mean(features,2);
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

See Also

Related Topics
