confusionchart

Create confusion matrix chart for classification problem

Syntax

cm = confusionchart(trueLabels,predictedLabels)
cm = confusionchart(m)
cm = confusionchart(m,classLabels)
cm = confusionchart(parent,___)
cm = confusionchart(___,Name,Value)

Description

example

cm = confusionchart(trueLabels,predictedLabels) creates a confusion matrix chart from true labels trueLabels and predicted labels predictedLabels and returns a ConfusionMatrixChart object. The rows of the confusion matrix correspond to the true class and the columns correspond to the predicted class. Diagonal and off-diagonal cells correspond to correctly and incorrectly classified observations, respectively. Use cm to modify the confusion matrix chart after it is created. For a list of properties, see ConfusionMatrixChart Properties.

example

cm = confusionchart(m) creates a confusion matrix chart from the numeric confusion matrix m. Use this syntax if you already have a numeric confusion matrix in the workspace.

example

cm = confusionchart(m,classLabels) specifies class labels that appear along the x-axis and y-axis. Use this syntax if you already have a numeric confusion matrix and class labels in the workspace.

cm = confusionchart(parent,___) creates the confusion chart in the figure, panel, or tab specified by parent.

cm = confusionchart(___,Name,Value) specifies additional ConfusionMatrixChart properties using one or more name-value pair arguments. Specify the properties after all other input arguments. For a list of properties, see ConfusionMatrixChart Properties.

Examples

collapse all

Load a sample of predicted and true labels for a classification problem. trueLabels is the true labels for an image classification problem and predictedLabels is the predictions of a convolutional neural network.

load('Cifar10Labels.mat','trueLabels','predictedLabels');

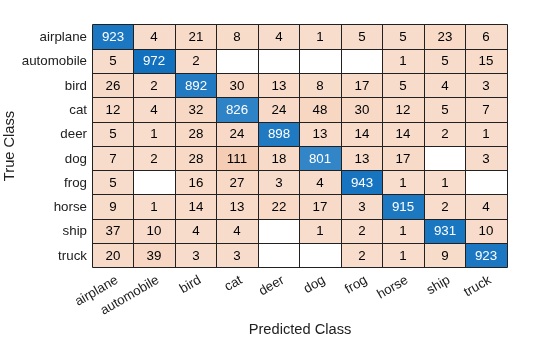

Create a confusion matrix chart.

figure
cm = confusionchart(trueLabels,predictedLabels);

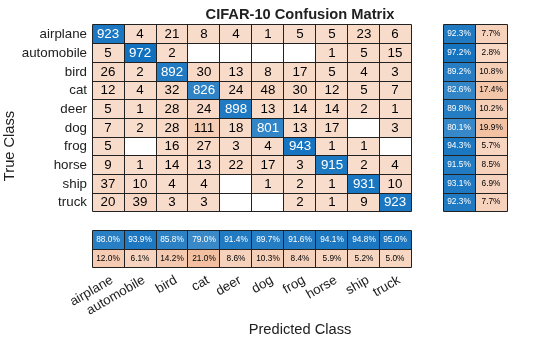

Modify the appearance and behavior of the confusion matrix chart by changing property values. Add column and row summaries and a title. A column-normalized column summary displays the number of correctly and incorrectly classified observations for each predicted class as percentages of the number of observations of the corresponding predicted class. A row-normalized row summary displays the number of correctly and incorrectly classified observations for each true class as percentages of the number of observations of the corresponding true class.

cm.ColumnSummary = 'column-normalized';
cm.RowSummary = 'row-normalized';
cm.Title = 'CIFAR-10 Confusion Matrix';

You can use confusionchart to create a confusion matrix chart from a numeric confusion matrix.

Load a sample confusion matrix m and the associated class labels classLabels.

load('Cifar10ConfusionMat.mat','m','classLabels');
m
m = 10×10

   923     4    21     8     4     1     5     5    23     6
     5   972     2     0     0     0     0     1     5    15
    26     2   892    30    13     8    17     5     4     3
    12     4    32   826    24    48    30    12     5     7
     5     1    28    24   898    13    14    14     2     1
     7     2    28   111    18   801    13    17     0     3
     5     0    16    27     3     4   943     1     1     0
     9     1    14    13    22    17     3   915     2     4
    37    10     4     4     0     1     2     1   931    10
    20    39     3     3     0     0     2     1     9   923

classLabels
classLabels = 10x1 categorical array
     airplane
     automobile
     bird
     cat
     deer
     dog
     frog
     horse
     ship
     truck

Create a confusion matrix chart from the numeric confusion matrix and the class labels.

cm = confusionchart(m,classLabels);

Load a sample of predicted and true labels for a classification problem. trueLabels are the true labels for an image classification problem and predictedLabels are the predictions of a convolutional neural network. Create a confusion matrix chart with column and row summaries

load('Cifar10Labels.mat','trueLabels','predictedLabels');
figure
cm = confusionchart(trueLabels,predictedLabels, ...
    'ColumnSummary','column-normalized', ...
    'RowSummary','row-normalized');

To sort the classes of the confusion matrix by class-wise recall (true positive rate), normalize the cell values across each row, that is, by the number of observations that have the same true class. Sort the classes by the corresponding diagonal cell values and reset the normalization of the cell values. The classes are now sorted such that the percentages in the blue cells in the row summaries to the right are decreasing.

cm.Normalization = 'row-normalized';
sortClasses(cm,'descending-diagonal');
cm.Normalization = 'absolute';

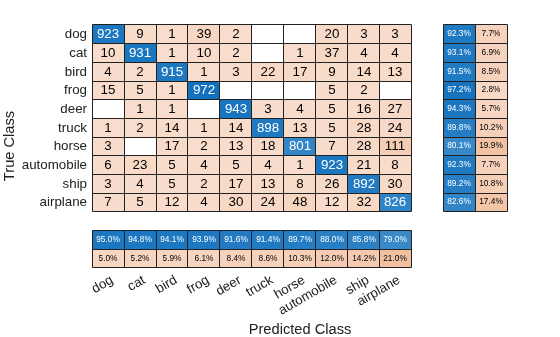

To sort the classes by class-wise precision (positive predictive value), normalize the cell values across each column, that is, by the number of observations that have the same predicted class. Sort the classes by the corresponding diagonal cell values and reset the normalization of the cell values. The classes are now sorted such that the percentages in the blue cells in the column summaries at the bottom are decreasing.

cm.Normalization = 'column-normalized';
sortClasses(cm,'descending-diagonal');
cm.Normalization = 'absolute';

Input Arguments

collapse all

True labels of classification problem, specified as a categorical vector, numeric vector, string vector, character array, cell array of character vectors, or logical vector. If trueLabels is a vector, then each element corresponds to one observation. If trueLabels is a character array, then it must be two-dimensional with each row corresponding to the label of one observation.

Predicted labels of classification problem, specified as a categorical vector, numeric vector, string vector, character array, cell array of character vectors, or logical vector. If predictedLabels is a vector, then each element corresponds to one observation. If predictedLabels is a character array, then it must be two-dimensional with each row corresponding to the label of one observation.

Confusion matrix, specified as a matrix. m must be square and its elements must be positive integers. The element m(i,j) is the number of times an observation of the ith true class was predicted to be of the jth class. Each colored cell of the confusion matrix chart corresponds to one element of the confusion matrix m.

Class labels of the confusion matrix chart, specified as a categorical vector, numeric vector, string vector, character array, cell array of character vectors, or logical vector. If classLabels is a vector, then it must have the same number of elements as the confusion matrix has rows and columns. If classLabels is a character array, then it must be two-dimensional with each row corresponding to the label of one class.

Parent container in which to plot, specified as a Figure, Panel, or Tab object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: cm = confusionchart(trueLabels,predictedLabels,'Title','My Title Text','ColumnSummary','column-normalized')

Note

The properties listed here are only a subset. For a complete list, see ConfusionMatrixChart Properties.

Title of the confusion matrix chart, specified as a character vector or string scalar.

Example: cm = confusionchart(__,'Title','My Title Text')

Example: cm.Title = 'My Title Text'

Column summary of the confusion matrix chart, specified as one of the following:

OptionDescription
'off'Do not display a column summary.
'absolute'Display the total number of correctly and incorrectly classified observations for each predicted class.
'column-normalized'Display the number of correctly and incorrectly classified observations for each predicted class as percentages of the number of observations of the corresponding predicted class. The percentages of correctly classified observations can be thought of as class-wise precisions (or positive predictive values).
'total-normalized'Display the number of correctly and incorrectly classified observations for each predicted class as percentages of the total number of observations.

Example: cm = confusionchart(__,'ColumnSummary','column-normalized')

Example: cm.ColumnSummary = 'column-normalized'

Row summary of the confusion matrix chart, specified as one of the following:

OptionDescription
'off'Do not display a row summary.
'absolute'Display the total number of correctly and incorrectly classified observations for each true class.
'row-normalized'Display the number of correctly and incorrectly classified observations for each true class as percentages of the number of observations of the corresponding true class. The percentages of correctly classified observations can be thought of as class-wise recalls (or true positive rates).
'total-normalized'Display the number of correctly and incorrectly classified observations for each true class as percentages of the total number of observations.

Example: cm = confusionchart(__,'RowSummary','row-normalized')

Example: cm.RowSummary = 'row-normalized'

Normalization of cell values, specified as one of the following:

OptionDescription
'absolute'Display the total number of observations in each cell.
'column-normalized'Normalize each cell value by the number of observations that has the same predicted class.
'row-normalized'Normalize each cell value by the number of observations that has the same true class.
'total-normalized'Normalize each cell value by the total number of observations.

Modifying the normalization of cell values also affects the colours of the cells.

Example: cm = confusionchart(__,'Normalization','total-normalized')

Example: cm.Normalization = 'total-normalized'

Tips

Introduced in R2018b
