detect

Detect object keypoints using HRNet object keypoint detector

Since R2023b

Description

keypoints = detect(detector,I,bboxes) detects object keypoints within an RGB image, I, using an HRNet object keypoint detector, detector. The detect function automatically resizes and rescales the input to match the size of the images used to train the detector. The function returns the locations of keypoints detected in each input image as a set of object keypoints.

[keypoints,scores] = detect(detector,I,bboxes) returns the detection confidence score for each keypoint. The confidence score determines the location accuracy of the detected keypoint. The value of keypoint confidence score is in the range of [0, 1]. A higher score indicates greater confidence in the detection.

example

[keypoints,scores,valid] = detect(detector,I,bboxes) returns the validity for each detected object keypoint.

[keypoints,scores,valid] = detect(detector,ds) detects object keypoints within all images returned by the read function of the input datastore ds and returns the detection results as a table.

detectionResults = detect(___,Name=Value) specifies options using one or more name-value arguments. For example, KeypointSize=2 specifies the keypoint size to be two pixels.

Examples

collapse all

Read a sample image into the workspace.

I = imread("visionteam.jpg");

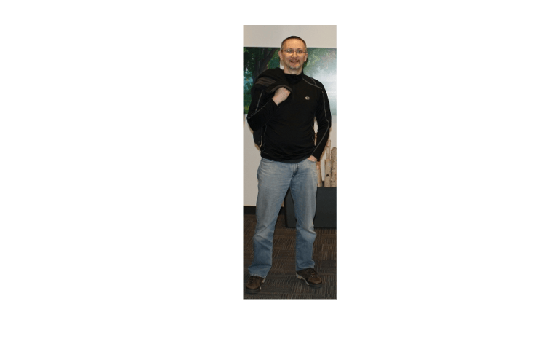

Crop and display one person from the image.

personBox = [262.5 19.51 127.98 376.98];
[personImg] = imcrop(I,personBox);
figure
imshow(personImg)

Specify a bounding box for the person in the image. You can use the bounding box region as input to the object keypoint detector to detect the person.

bbox = [3.87,21.845,118.97,345.91];

Load a pretrained HRNet object keypoint detector.

keypointDetector = hrnetObjectKeypointDetector("human-full-body-w32");

Detect the keypoints of the person in the image by using the pretrained HRNet object keypoint detector.

[keypoints,keypointScores,valid] = detect(keypointDetector,personImg,bbox)
keypoints = 17x2 single matrix

   72.8781   40.7078
   77.1927   36.2037
   63.9647   36.2037
   86.2008   45.2118
   55.2407   40.7078
  100.2811   85.7481
   33.9517   76.7401
  114.5508  135.2925
   17.5455  135.2925
  102.2699  180.3329
      ⋮

keypointScores = 17x1 single column vector

    0.9616
    0.9819
    0.9797
    0.9824
    0.9627
    0.9540
    0.8812
    0.9696
    0.9909
    0.9675
      ⋮

valid = 17x1 logical array

   1
   1
   1
   1
   1
   1
   1
   1
   1
   1
      ⋮

Insert the person keypoints into the image and display the results.

detectedKeypoints = insertObjectKeypoints(personImg,keypoints,KeypointColor="yellow",KeypointSize=2);
imshow(detectedKeypoints)

Input Arguments

collapse all

HRNet object keypoint detector, specified as an hrnetObjectKeypointDetector object.

Test images, specified as a numeric array of size H-by-W-by-C-by-T. Images must be real, nonsparse, and RGB.

  • H— Height of the image, in pixels.

  • W— Width of the image, in pixels.

  • C— The channel size in each image must be equal to the input channel size. Because this function requires RGB images, the channel size must be 3.

  • T— Number of test images in the array. The function computes the object keypoint detection results for each test image in the array.

The intensity range of the test image must be similar to the intensity range of the images used to train the detector. For example, if you train the detector on uint8 images, rescale the test image to the range [0, 255] by using the im2uint8 or rescale function. The size of the test image must be comparable to the sizes of the images used in training. If these sizes are very different, the detector has difficulty detecting object keypoints because the scale of the objects in the test image differs from the scale of the objects the detector is trained to identify.

Data Types: uint8 | uint16 | int16 | double | single

Locations of the objects detected in the input image or images, specified as one of these options:

  • M-by-4 matrix— The input is a single test image. M is the number of object bounding boxes in the image.

  • T-by-1 cell array— The input is an array of test images. T is the number of test images in the array. Each cell contains an M-by-4 matrix of object bounding boxes for the corresponding image, where M is the number of bounding boxes in the image.

The table describes the possible formats of bounding boxes.

Bounding BoxDescription
rectangle

Defined in spatial coordinates as an M-by-4 numeric matrix with rows of the form [x y w h], where:

  • M is the number of axis-aligned rectangles.

  • x and y specify the upper-left corner of the rectangle.

  • w specifies the width of the rectangle, which is its length along the x-axis.

  • h specifies the height of the rectangle, which is its length along the y-axis.

Data Types: uint8 | uint16 | int16 | double | single

Test images, specified as an ImageDatastore, CombinedDatastore, or TransformedDatastore object containing the full filenames of the test images. The images in the datastore must be RGB images.

When using the read function the datastore ds must return a table or a cell array with these columns:

image databboxesbox labels
T-by-1 cell array, in which each cell contains an input image. The images in the datastore must be RGB images.

T-by-1 cell array, in which each cell contains an M-by-4 matrix of 2-D bounding boxes specifying object locations within the corresponding input image. Each row of the matrix specifies the location of a bounding box in the format [x y w h].

T-by-1 cell array, in which each cell contains an M-by-1 categorical vector of object class names. All the categorical data returned by the datastore must use the same categories.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: detect(detector,I,MiniBatchSize=16) detects object keypoints in each image using 16-element batches of bounding boxes.

Minimum batch size, specified as a positive integer. Use the MiniBatchSize argument when processing an image with a large number of objects. When you specify this argument, the function groups the bounding boxes surrounding the objects into batches of the specified size and processes them together to improve computational efficiency. Increase the minimum batch size to decrease processing time. Decrease the size to use less memory.

Hardware resource on which to run the detector, specified as "auto", "gpu", or "cpu".

  • "auto" — Use a GPU if it is available. Otherwise, use the CPU.

  • "gpu" — Use the GPU. To use a GPU, you must have Parallel Computing Toolbox™ and a CUDA®-enabled NVIDIA® GPU. If a suitable GPU is not available, the function returns an error. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox).

  • "cpu" — Use the CPU.

Performance optimization, specified as one of these options:

  • "auto" — Automatically apply a number of optimizations suitable for the input network and hardware resource.

  • "mex" — Compile and execute a MEX function. This option is available only when using a GPU. Using a GPU requires Parallel Computing Toolbox and a CUDA enabled NVIDIA GPU. If Parallel Computing Toolbox or a suitable GPU is not available, then the function returns an error. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox).

  • "none" — Disable all acceleration.

The default option is "auto". If you specify "auto", MATLAB® applies a number of compatible optimizations. The "auto" option, MATLAB never generates a MEX function.

Using the Acceleration options "auto" and "mex" can offer performance benefits, but at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using new input data.

The "mex" option generates and executes a MEX function based on the network and parameters used in the function call. You can have several MEX functions associated with a single network at one time. Clearing the network variable also clears any MEX functions associated with that network.

The "mex" option is available only for input data specified as a numeric array, cell array of numeric arrays, table, or image datastore. No other type of datastore supports the "mex" option.

The "mex" option is available only when you use a GPU. You must also have a C/C++ compiler installed. For setup instructions, see MEX Setup (GPU Coder).

"mex" acceleration does not support all layers. For a list of supported layers, see Supported Layers (GPU Coder).

Output Arguments

collapse all

Locations of object keypoints detected in the input image or images, returned as one of these options:

  • 17-by-2-by-M array — The input is a single test image. Each row in the array is of the form [x y] where x and y specify the location of a detected keypoint in an object. M is the number of objects in the image.

  • T-by-1 cell array — The input is an array of test images. T is the number of test images in the array. Each cell in the cell array contains a 17-by-2-by-M array specifying the keypoint detections for the M objects in the image.

Each object has 17 detected keypoints.

Data Types: double

Detection confidence scores for object keypoints, returned as one of these options:

  • 17-by-M matrix — The input is a single test image. M is the number of objects in the image.

  • T-by-1 cell array — The input is an array of test images. T is the number of test images in the array. Each cell in the array contains a 17-by-M matrix indicating the detection scores for the keypoints of each of the M objects in an image.

Each object in an image has 17 has keypoint confidence scores. A higher score indicates higher confidence in the detection.

Data Types: double

Validity of the detected object keypoints, returned as one of these options:

  • 17-by-M logical matrix — The input is a single test image. M is the number of objects in the image.

  • T-by-1 cell array — The input is an array of test images. T is the number of test images in the array. Each cell in the array contains a 17-by-M logical matrix indicating the keypoint validity values for the keypoints of each of the M objects in the corresponding image.

Each object in an image has 17 keypoint validity values. A value of 1 (true) indicates a valid keypoint and 0 (false) indicates an invalid keypoint.

Data Types: logical

Detection results, returned as a two-column table with variable names Keypoints and Scores. Each element of the Keypoints column contains a 17-by-2-by-M array, for M objects in the image. Each row of the array contains a keypoint location for the corresponding object in the format [x y]. Each element of the Scores column contains 17-by-1-by-M array, where M is the number of objects in the image. Each row of the array contains the keypoint detection confidence score for one of the 17 keypoints in the corresponding object in that image.

Extended Capabilities

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

Introduced in R2023b
