extractFeatures

Extract interest point descriptors

Syntax

[features,validPoints] = extractFeatures(I,points)

[features,validPoints] = extractFeatures(I,points,Name,Value)

Description

[features,validPoints] = extractFeatures(I,points) returns extracted feature vectors, also known as descriptors, and their corresponding locations, from a binary or intensity image.

The function derives the descriptors from pixels surrounding an interest point. The pixels represent and match features specified by a single-point location. Each single-point specifies the center location of a neighborhood. The method you use for descriptor extraction depends on the class of the input points.

[features,validPoints] = extractFeatures(I,points,Name,Value) uses additional options specified by one or more Name,Value pair arguments.

Examples

Extract Corner Features from an Image.

Read the image.

  I = imread('cameraman.tif');

Find and extract corner features.

  corners = detectHarrisFeatures(I);
  [features, valid_corners] = extractFeatures(I, corners);

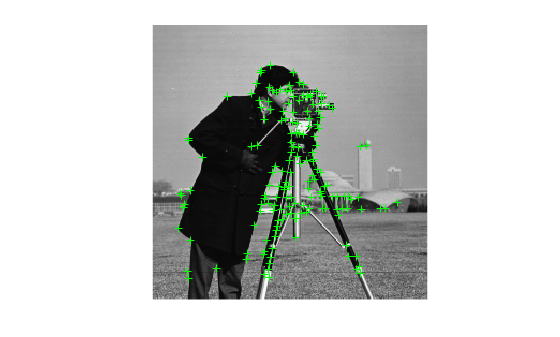

Display image.

  figure; imshow(I); hold on

Plot valid corner points.

  plot(valid_corners);

Extract SURF Features from an Image

Read image.

    I = imread('cameraman.tif');

Find and extract features.

    points = detectSURFFeatures(I);
    [features, valid_points] = extractFeatures(I, points);

Display and plot ten strongest SURF features.

    figure; imshow(I); hold on;
    plot(valid_points.selectStrongest(10),'showOrientation',true);

Extract MSER Features from an Image

Read image.

    I = imread('cameraman.tif');

Find features using MSER with SURF feature descriptor.

    regions = detectMSERFeatures(I);
    [features, valid_points] = extractFeatures(I,regions,'Upright',true);

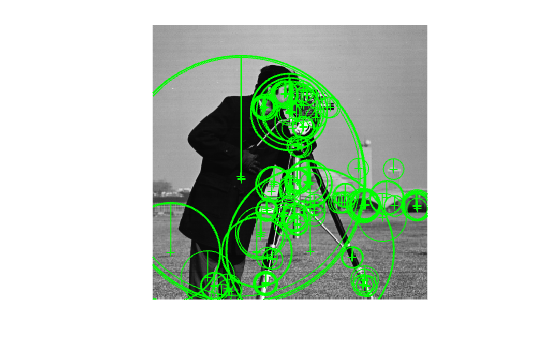

Display SURF features corresponding to the MSER ellipse centers.

    figure; imshow(I); hold on;
    plot(valid_points,'showOrientation',true);

Input Arguments

I — Input image

binary image | M-by-N 2-D grayscale image

Input image, specified as either a binary or 2-D grayscale image.

Data Types: logical | single | double | int16 | uint8 | uint16

points — Center location point

SIFTPoints | BRISKPoints object | cornerPoints object | SURFPoints object | KAZEPoints object | MSERRegions object | ORBPoints object | M-by-2 matrix of [x,y] coordinates

Center location point of a square neighborhood, specified as either a SIFTPoints, BRISKPoints, SURFPoints, KAZEPoints, MSERRegions, cornerPoints , or ORBPoints object, or an M-by-2 matrix of M number of [x y] coordinates. The table lists the possible input classes of points that can be used for extraction.

Class of Points
SIFTPoints	Scale-Invariant Feature Transform (SIFT)
BRISKPoints	Binary Robust Invariant Scalable Keypoints (BRISK)
SURFPoints object	Speeded-Up Robust Features (SURF)
MSERRegions object	Maximally Stable Extremal Regions (MSER)
cornerPoints	Features from Accelerated Segment Test (FAST), Minimum eigen-value, or Harris
KAZEPoints	Non-linear image pyramid-based rotation and orientation invariant features. Similar to SURF, but contains less noisy points.
ORBPoints	Oriented FAST and rotated BRIEF (ORB) features.
M-by-2 matrix of [x y] coordinates	Simple square neighborhood around [x y] point locations

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Method','Block' specifies the Block method for descriptor extraction.

Method — Descriptor extraction method

'Auto' (default) | 'SIFT' | 'BRISK' | 'FREAK' | 'SURF' | 'ORB' | 'KAZE' | 'Block'

Descriptor extraction method, specified as 'SIFT', 'FREAK', 'SURF', 'ORB', 'Block', or 'Auto'.

The table describes how the function implements the descriptor extraction methods.

Method	Feature Vector (Descriptor)
SIFT	Scale-Invariant Feature Transform (SIFT). The function sets the Orientation property of the validPoints output object to the orientation of the extracted features, in radians.
BRISK	Binary Robust Invariant Scalable Keypoints (BRISK). The function sets the Orientation property of the validPoints output object to the orientation of the extracted features, in radians.
FREAK	Fast Retina Keypoint (FREAK). The function sets the Orientation property of the validPoints output object to the orientation of the extracted features, in radians.
SURF	Speeded-Up Robust Features (SURF).The function sets the Orientation property of the validPoints output object to the orientation of the extracted features, in radians. When you use an MSERRegions object with the SURF method, the Centroid property of the object extracts SURF descriptors. The Axes property of the object selects the scale of the SURF descriptors such that the circle representing the feature has an area proportional to the MSER ellipse area. The scale is calculated as 1/4*sqrt((majorAxes/2).*(minorAxes/2)) and saturated to 1.6, as required by the SURFPoints object.
ORB	Oriented FAST and rotated BRIEF (ORB) features.The Orientation property of the validPoints output object is automatically set to the Orientation property of the input ORBPoints object points.
KAZE	Non-linear pyramid-based features. The function sets the Orientation property of the validPoints output object to the orientation of the extracted features, in radians. When you use an MSERRegions object with the KAZE method, the Location property of the object is used to extract KAZE descriptors. The Axes property of the object selects the scale of the KAZE descriptors such that the circle representing the feature has an area proportional to the MSER ellipse area.
Block	Simple square neighbhorhood. The Block method extracts only the neighborhoods fully contained within the image boundary. Therefore, the output, validPoints, can contain fewer points than the input POINTS.
Auto	The function selects the Method, based on the class of the input points and implements: The FREAK method for a cornerPoints input object. The SURF method for a SURFPoints or MSERRegions input object. The BRISK method for a BRISKPoints input object. The ORB method for a ORBPoints input object. For an M-by-2 input matrix of [x y] coordinates, the function implements the Block method.

Note

The descriptor extraction method must be ORB, if the input points is an ORBPoints object. Also, ORB descriptor extraction method is not supported for any other class of points, except ORBPoints.

BlockSize — Block size

11 (default) | odd integer scalar

Block size, specified as an odd integer scalar. This value defines the local square neighborhood BlockSize-by-BlockSize, centered at each interest point. This option applies only when the function implements the Block method.

Upright — Rotation invariance flag

false | logical scalar

Rotation invariance flag, specified a logical scalar. When you set this property to true, the orientation of the feature vectors are not estimated and the feature orientation is set to pi/2. Set this to true when you do not need the image descriptors to capture rotation information. When you set this property to false, the orientation of the features is estimated and the features are then invariant to rotation.

Note

The rotation invariance flag 'Upright' is not supported if the input points is an ORBPoints object.

FeatureSize — Length of feature vector

64 (default) | 128

Length of the SURF or KAZE feature vector (descriptor), specified as 64 or 128. This option applies only when the function implements the SURF or KAZE method. The larger feature size of 128 provides greater accuracy, but decreases the feature matching speed.

Output Arguments

features — Feature vectors

M-by-N matrix | binaryFeatures object

Feature vectors, returned as a binaryFeatures object or an M-by-N matrix of M feature vectors, also known as descriptors. Each descriptor is of length N.

validPoints — Valid points

SIFTPointsBRISKPoints object | cornerPoints object | SURFPoints object | KAZEPoints object | MSERRegions object | ORBPoints object | M-by-2 matrix of [x,y] coordinates

Valid points associated with each output feature vector (descriptor) in features, returned in the same format as the input. Valid points can be a SIFTPoints, BRISKPoints, cornerPoints, SURFPoints, KAZEPoints, MSERRegions, ORBPoints object, or an M-by-2 matrix of [x,y] coordinates.

The function extracts descriptors from a region around each interest point. If the region lies outside of the image, the function cannot compute a feature descriptor for that point. When the point of interest lies too close to the edge of the image, the function cannot compute the feature descriptor. In this case, the function ignores the point. The point is not included in the valid points output.

References

[1] G. Bradski and A. Kaehler, Learning OpenCV : Computer Vision with the OpenCV Library, O'Reilly, Sebastopol, CA, 2008.

[2] Herbert Bay, Andreas Ess, Tinne Tuytelaars, Luc Van Gool, SURF: Speeded Up Robust Features", Computer Vision and Image Understanding (CVIU), Vol. 110, No. 3, pp. 346--359, 2008

[3] Bay, Herbert, Andreas Ess, Tinne Tuytelaars, and Luc Van Gool, "SURF: Speeded Up Robust Features", Computer Vision and Image Understanding (CVIU), Vol. 110, No. 3, pp. 346--359, 2008.

[4] Alahi, Alexandre, Ortiz, Raphael, and Pierre Vandergheynst, "FREAK: Fast Retina Keypoint", IEEE Conference on Computer Vision and Pattern Recognition, 2012.

[5] Alcantarilla, P.F., A. Bartoli, and A.J. Davison. "KAZE Features", ECCV 2012, Part VI, LNCS 7577 pp. 214, 2012

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• 'Method' must be a compile-time constant.

• Supports MATLAB^® Function block for BRISK, FREAK, and SURF methods only.

• Generates portable C code using a C++ compiler that links to OpenCV (Version 4.2.0) libraries for SIFT, BRISK, ORB, FREAK, and SURF Methods. See Portable C Code Generation for Functions That Use OpenCV Library.

• The KAZE method and the detectKAZEFeatures function do not support code generation.
