Analyze UAV Autopilot Flight Log Using Flight Log Analyzer

This example shows you how to launch the Flight Log Analyzer app, import flight log data, create figures and plots, export signals and using custom signal mapping in the app.

The Flight Log Analyzer app enables you to analyze log files generated by simulated or real flights.

Log analysis helps find the root cause of a crash, or monitor the health during a flight of a vehicle. You can perform basic analysis to determine:

  • How well the controllers track their references

  • Whether there is any strong vibration

  • If the vehicle experiences power failures

Open Flight Log Analyzer App

In the Apps tab, under Control System Design and Analysis, click Flight Log Analyzer.

Alternatively, you can use the flightLogAnalyzer function from the MATLAB® command prompt.

Import ULOG File

Load the ULOG file.

ulg = ulogreader('flight.ulg')
ulg =
  ulogreader with properties:

            FileName: 'flight.ulg'
           StartTime: 00:00:00.176000
             EndTime: 00:02:15.224000
     AvailableTopics: [51x5 table]
    DropoutIntervals: [0x2 duration]

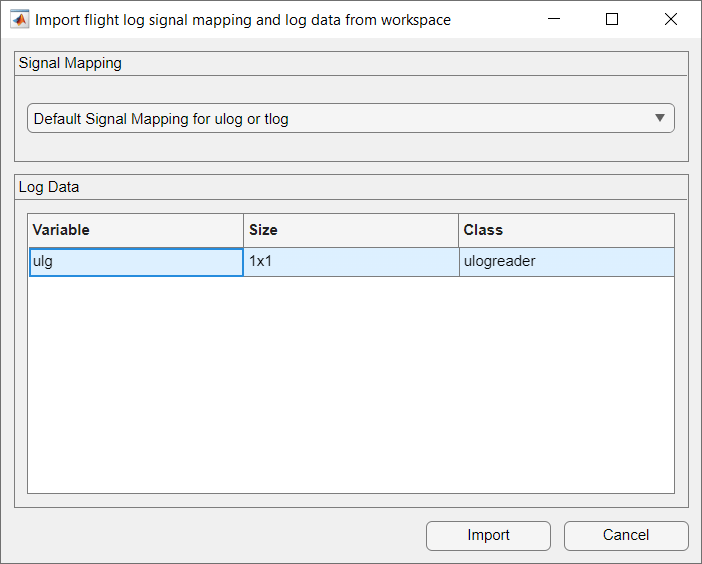

On the Flight Log Analyzer app toolstrip, select Import > From Workspace. In the Log Data section of the Import flight log signal mapping and log data from Workspace dialog box, select the ulogreader object ulg and click Import.

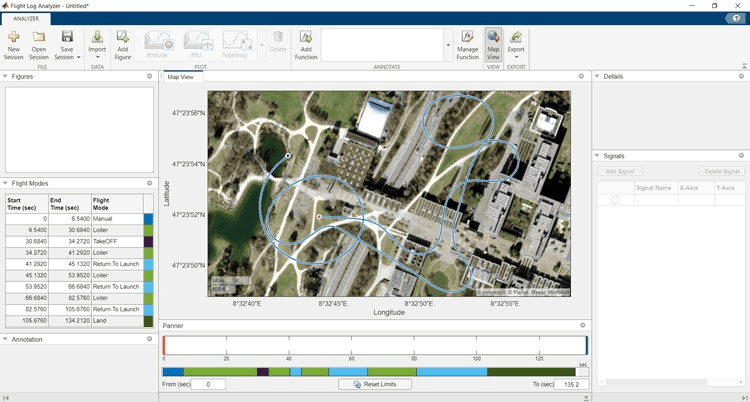

By default, the app displays a satellite map with logged GPS data and the flight modes as a table. The flight modes, along with their corresponding start and end times, are tabulated in the Flight Modes pane.

Create Figures and Plots

Every UAV (fixed or multi-rotor) is equipped with a set of sensors, such as a gyroscope, accelerometer, magnetometer, and barometer, to determine the vehicle state. A vehicle state includes the position, velocity, altitude, speed, and rates of rotation of the vehicle.

Add Predefined Plot

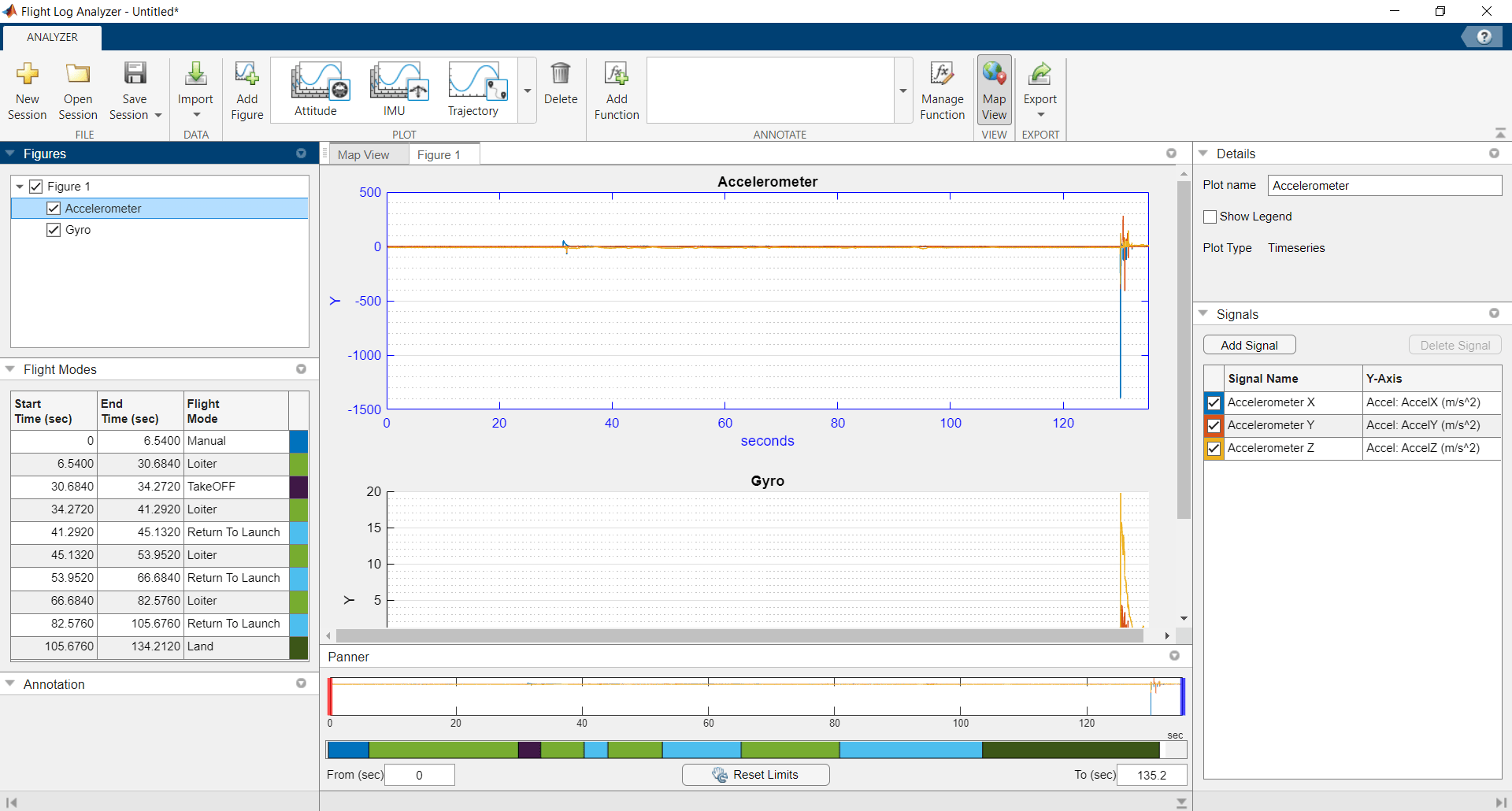

In the Plot section of the app toolstrip, click Add Figure to add an empty figure to the plotting pane. Then, in the plot gallery, click IMU to add plots to the figure for the gyroscope, Gyro, and accelerometer, Accelerometer.

You can use various predefined plots from the plot gallery to visualize data from different sensors.

Change Plot Focus Using Panner

In the Flight Modes pane, find the first instance of the Loiter flight mode and note its Start Time and End Time values. Focus on the flight mode by, in the Panner pane, dragging the red and blue handles to the Start Time and End Time, respectively, of the desired flight mode. Alternatively, you can type the Start Time and End Time values in the Left and Right boxes, beneath the strip plot. Click the Acceleration plot to focus on it.

If UAV vibration is in a good range, then z-axis acceleration should remain below x-axis and y-axis acceleration. The plotted flight data indicates that, at this point in the flight, UAV vibration is in a good range. Using the Panner, focus on the other three Loiter flight modes and observe the acceleration of the UAV.

Add Custom Plot

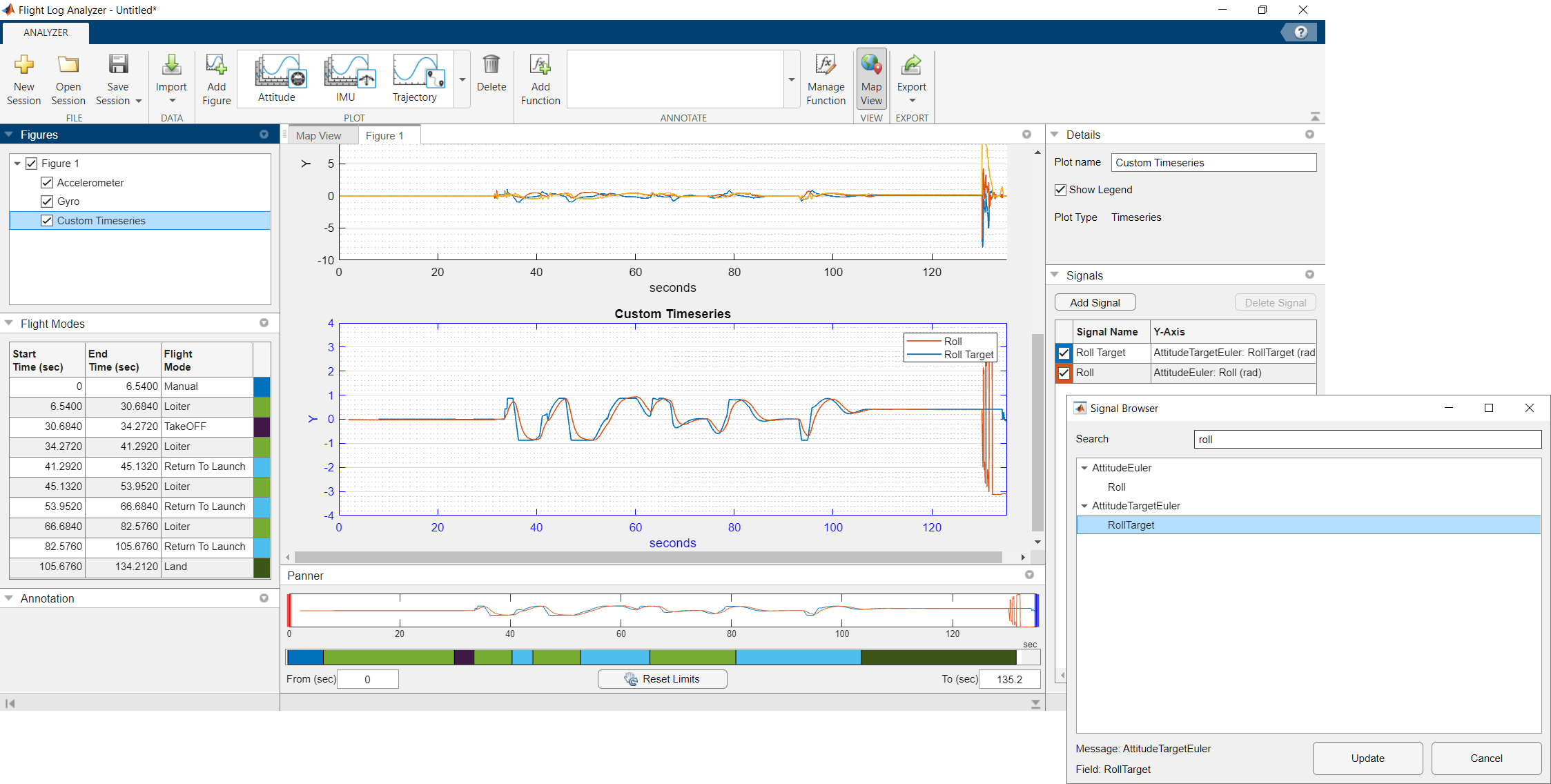

Next, create a custom Timeseries plot to compare the estimated roll against the roll target.

  1. First, in the Custom Plots section of the plot gallery, click Timeseries.

  2. In the Signals pane, click Add Signal twice to add two signals.

  3. Double-click the Y-Axis column of the first signal and, in the Signal Browser pane, type RollTarget in the Search box, and then click the arrow next to AttitudeTargetEuler and select RollTarget. Then, click Update.

  4. Repeat the previous three steps for the second signal to add Roll.

  5. Rename the first signal to RollTarget and the second signal to Roll. To rename a signal, double-click its entry in the Signal Name column and type the new name.

  6. In the Details pane, select Show Legend to show the legend on the plot.

The plot shows that the estimated roll closely follows the roll target until the last few seconds of the flight.

Export Signals

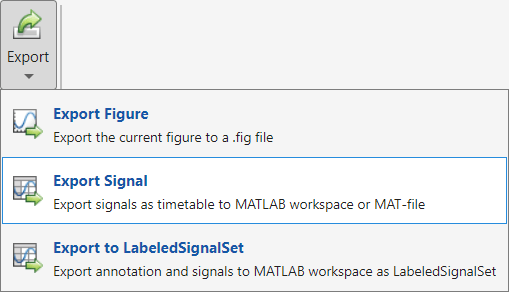

To further analyze the data, you can export signals. On the app toolstrip, click Export, and then select Export Signal.

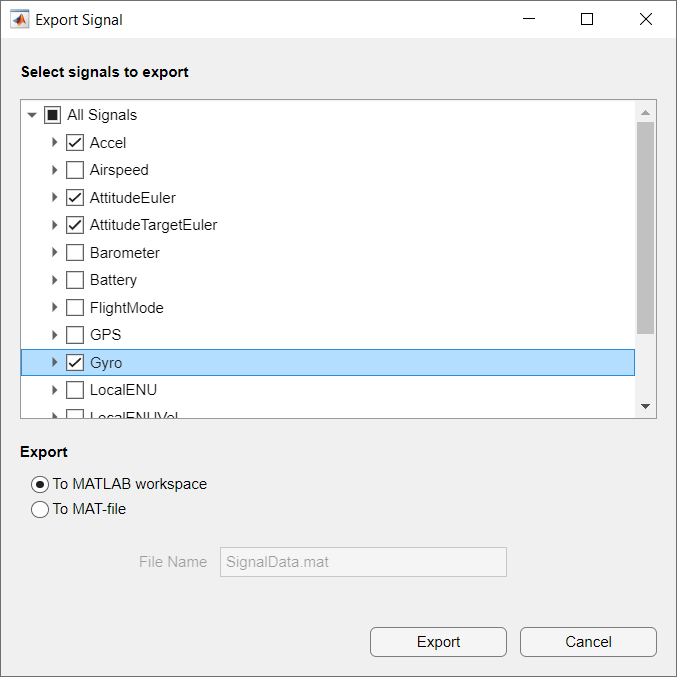

Use the Export Signal dialog box to select signals of interest and export them To Workspace or To MAT-file. The signals are exported as a timetable.

Using Custom Signal Mapping in Flight Log Analyzer App

The default signal mapping returns a predefined set of signals.

flsmObj = flightLogSignalMapping('ulog');
info(flsmObj,"Signal")
ans=18×4 table
         SignalName          IsMapped                                                                                                   SignalFields                                                                                                                       FieldUnits
    _____________________    ________    __________________________________________________________________________________________________________________________________________________________________________________________________________    ___________________________________________________

    "Accel"                   true       "AccelX, AccelY, AccelZ"                                                                                                                                                                                      "m/s^2, m/s^2, m/s^2"
    "Airspeed"                true       "PressDiff, IndicatedAirSpeed, Temperature"                                                                                                                                                                   "Pa, m/s, degreeC"
    "AttitudeEuler"           true       "Roll, Pitch, Yaw"                                                                                                                                                                                            "rad, rad, rad"
    "AttitudeRate"            true       "BodyRotationRateX, BodyRotationRateY, BodyRotationRateZ"                                                                                                                                                     "rad/s, rad/s, rad/s"
    "AttitudeTargetEuler"     true       "RollTarget, PitchTarget, YawTarget"                                                                                                                                                                          "rad, rad, rad"
    "Barometer"               true       "PressAbs, PressAltitude, Temperature"                                                                                                                                                                        "Pa, m, degreeC"
    "Battery"                 true       "Voltage_1, Voltage_2, Voltage_3, Voltage_4, Voltage_5, Voltage_6, Voltage_7, Voltage_8, Voltage_9, Voltage_10, Voltage_11, Voltage_12, Voltage_13, Voltage_14, Voltage_15, Voltage_16, RemainingCapacity"    "v, v, v, v, v, v, v, v, v, v, v, v, v, v, v, v, %"
    "GPS"                     true       "Latitude, Longitude, Altitude, GroundSpeed, CourseAngle, SatellitesVisible"                                                                                                                                  "degree, degree, m, m/s, degree, N/A"
    "Gyro"                    true       "GyroX, GyroY, GyroZ"                                                                                                                                                                                         "rad/s, rad/s, rad/s"
    "LocalENU"                true       "X, Y, Z"                                                                                                                                                                                                     "m, m, m"
    "LocalENUTarget"          true       "XTarget, YTarget, ZTarget"                                                                                                                                                                                   "m, m, m"
    "LocalENUVel"             true       "VX, VY, VZ"                                                                                                                                                                                                  "m/s, m/s, m/s"
    "LocalENUVelTarget"       true       "VXTarget, VYTarget, VZTarget"                                                                                                                                                                                "m/s, m/s, m/s"
    "LocalNED"                true       "X, Y, Z"                                                                                                                                                                                                     "m, m, m"
    "LocalNEDTarget"          true       "XTarget, YTarget, ZTarget"                                                                                                                                                                                   "m, m, m"
    "LocalNEDVel"             true       "VX, VY, VZ"                                                                                                                                                                                                  "m/s, m/s, m/s"
      ⋮

In addition the predefined set of signals, you can map other signals present in the flight log. For example, use mapSignal to map WindSpeed to the flightLogSignalMapping object, flsmObj.

mapSignal(flsmObj,"WindSpeed", ...
    @(data)getTime(getTable(data,"wind_estimate")), ...
    @(data)getModeValue(getTable(data,"wind_estimate")), ...
    ["WindSpeed_East","WindSpeed_North"]);

Check that flsmObj now contains the new signal.

info(flsmObj,"Signal")
ans=19×4 table
         SignalName          IsMapped                                                                                                   SignalFields                                                                                                                       FieldUnits
    _____________________    ________    __________________________________________________________________________________________________________________________________________________________________________________________________________    ___________________________________________________

    "Accel"                   true       "AccelX, AccelY, AccelZ"                                                                                                                                                                                      "m/s^2, m/s^2, m/s^2"
    "Airspeed"                true       "PressDiff, IndicatedAirSpeed, Temperature"                                                                                                                                                                   "Pa, m/s, degreeC"
    "AttitudeEuler"           true       "Roll, Pitch, Yaw"                                                                                                                                                                                            "rad, rad, rad"
    "AttitudeRate"            true       "BodyRotationRateX, BodyRotationRateY, BodyRotationRateZ"                                                                                                                                                     "rad/s, rad/s, rad/s"
    "AttitudeTargetEuler"     true       "RollTarget, PitchTarget, YawTarget"                                                                                                                                                                          "rad, rad, rad"
    "Barometer"               true       "PressAbs, PressAltitude, Temperature"                                                                                                                                                                        "Pa, m, degreeC"
    "Battery"                 true       "Voltage_1, Voltage_2, Voltage_3, Voltage_4, Voltage_5, Voltage_6, Voltage_7, Voltage_8, Voltage_9, Voltage_10, Voltage_11, Voltage_12, Voltage_13, Voltage_14, Voltage_15, Voltage_16, RemainingCapacity"    "v, v, v, v, v, v, v, v, v, v, v, v, v, v, v, v, %"
    "GPS"                     true       "Latitude, Longitude, Altitude, GroundSpeed, CourseAngle, SatellitesVisible"                                                                                                                                  "degree, degree, m, m/s, degree, N/A"
    "Gyro"                    true       "GyroX, GyroY, GyroZ"                                                                                                                                                                                         "rad/s, rad/s, rad/s"
    "LocalENU"                true       "X, Y, Z"                                                                                                                                                                                                     "m, m, m"
    "LocalENUTarget"          true       "XTarget, YTarget, ZTarget"                                                                                                                                                                                   "m, m, m"
    "LocalENUVel"             true       "VX, VY, VZ"                                                                                                                                                                                                  "m/s, m/s, m/s"
    "LocalENUVelTarget"       true       "VXTarget, VYTarget, VZTarget"                                                                                                                                                                                "m/s, m/s, m/s"
    "LocalNED"                true       "X, Y, Z"                                                                                                                                                                                                     "m, m, m"
    "LocalNEDTarget"          true       "XTarget, YTarget, ZTarget"                                                                                                                                                                                   "m, m, m"
    "LocalNEDVel"             true       "VX, VY, VZ"                                                                                                                                                                                                  "m/s, m/s, m/s"
      ⋮

To use this custom signal mapping in the Flight Log Analyzer app:

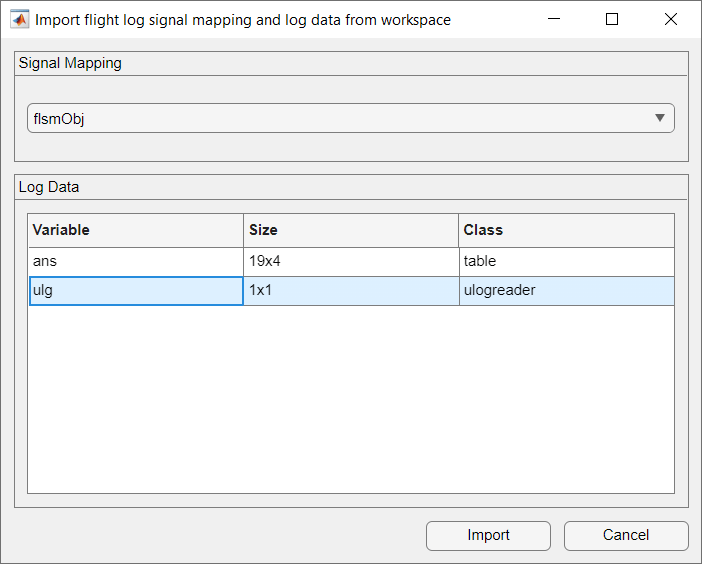

  1. On the app toolstrip, click Import and select From Workspace.

  2. In the dialog box, select flsmObj from the Signal Mapping list.

  3. Select the ulogreader object ulg from the Log Data section.

  4. Click Import.

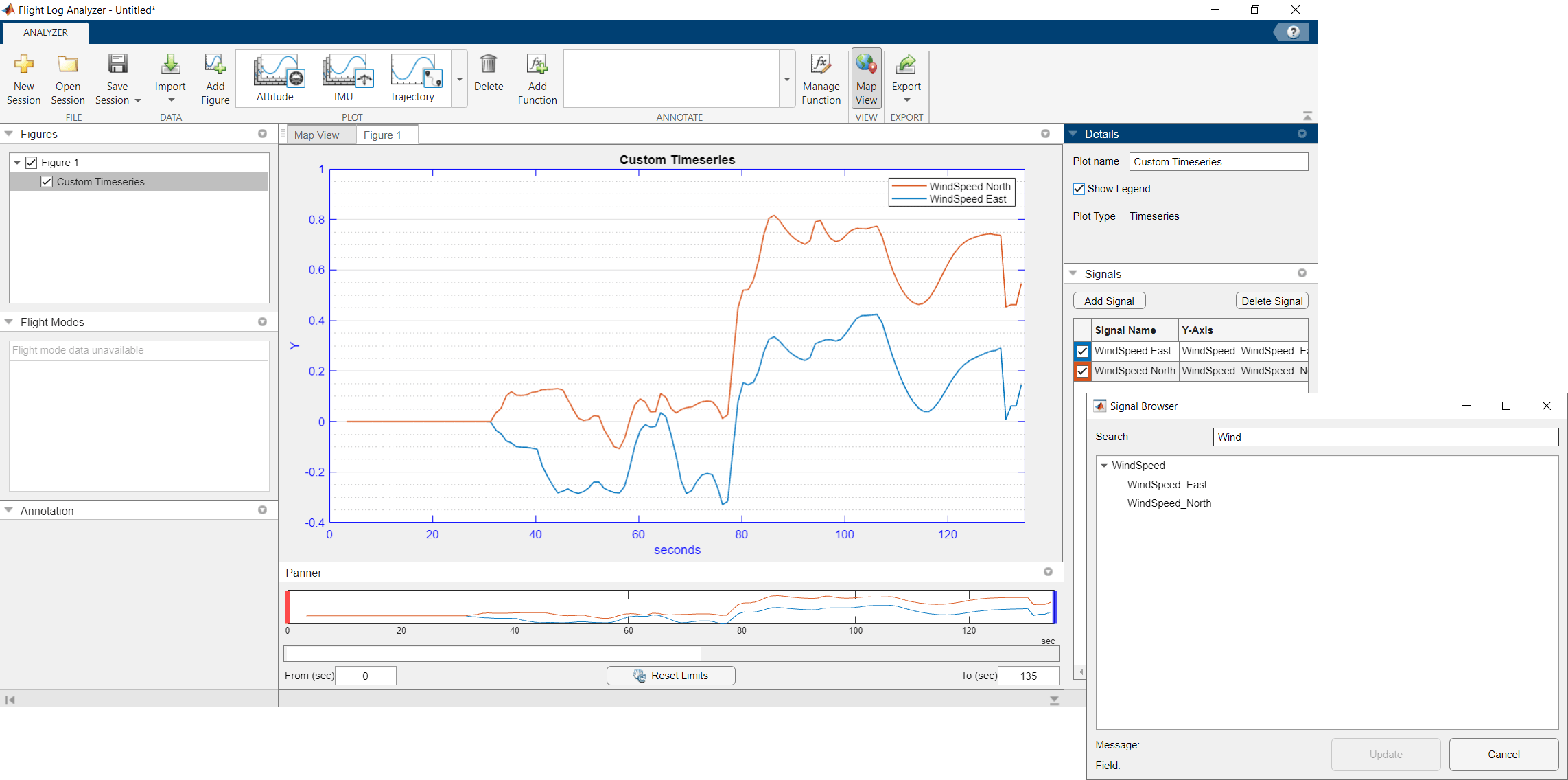

Create a custom Timeseries plot and follow the steps in Add Custom Plot to add the WindSpeed_East and WindSpeed_North signals from the Signal Browser.

You can use this process to map other signals to the custom signal mapping object and visualize them in the app.
