uavMission
Description
The uavMission
object stores UAV mission data that can be used
to generate flight trajectories for use in UAV scenario simulation.
Creation
Description
creates an empty mission,
M
= uavMissionM
.
specifies properties using one or more name-value arguments in addition to any
combination of input arguments from previous syntaxes.M
= uavMission(___,Name=Value
)
Input Arguments
file
— Mission plan file path
string scalar | character vector
Mission plan file path, specified as a string scalar or character vector. You must
specify either a PX4 Mission JSON file (.plan
) or MAVLink waypoints
file (.waypoints
).
Example: uavMission(PlanFile="documents/matlab/uavwpts.waypoints")
Data Types: char
| string
Properties
HomeLocation
— Home location
[0 0 0]
(default) | three-element row vector
Home location, specified as a three-element row vector of the form [latitude longitude altitude]. The first two elements specify the latitude and longitude, respectively, of the UAV starting location in degrees, and the third specifies the starting altitude of the UAV in meters.
Example: uavMission(HomeLocation=[4 2 10])
InitialYaw
— Initial yaw angle
0
(default) | numeric scalar
Initial yaw angle, specified as a numeric scalar. This property specifies the angle between the x-axis of the UAV and north direction in the local NED frame of the mission's home location, in degrees.
Example: uavMission(InitialYaw=45)
Speed
— Reference speed of UAV
8
(default) | numeric scalar
Reference speed of the UAV, specified as a numeric scalar in meters per second.
Example: uavMission(Speed=5)
Data Types: double
Frame
— Mission waypoint reference frame
"Global"
(default) | "GlobalRelativeAlt"
| "LocalENU"
| "LocalNED"
Mission waypoint reference frame, specified as one of these values:
"Global"
— Global reference frame"GlobalRelativeAlt"
— Global reference frame with an altitude relative to the home location"LocalENU"
— Local east-north-up (ENU) reference frame"LocalNED"
— Local north-east-down (NED) reference frame
Example: uavMission(Frame="Global")
Data Types: char
| string
NumMissionItems
— Number of mission items
0
(default) | nonnegative integer
Number of mission items stored as a nonnegative integer.
NumMissionItems
increments each time a mission item is added to
the mission.
This property is read-only.
Object Functions
addChangeSpeed | Add change speed mission item |
addHover | Add hover mission item |
addLand | Add landing mission item |
addLoiter | Add loiter mission item |
addTakeoff | Add takeoff mission item |
addWaypoint | Add waypoint mission item |
copy | Copy UAV Mission |
removeItem | Remove mission items at specified indices |
show | Visualize UAV mission |
showdetails | UAV mission data table |
Examples
Generate Flight Trajectory for UAV Mission
Create a UAV mission by using the flight plan stored in a .plan
file and show the mission.
mission = uavMission(PlanFile="flight.plan"); show(mission); axis equal
Create parsers for a multirotor UAV and a fixed-wing UAV.
mrmParser = multirotorMissionParser(TransitionRadius=2,TakeoffSpeed=2); fwmParser = fixedwingMissionParser(TransitionRadius=15,TakeoffPitch=10);
Generate one flight trajectory using each parser.
mrmTraj = parse(mrmParser,mission); fwmTraj = parse(fwmParser,mission);
Visualize the waypoints, flight trajectory and body frames for each UAV.
figure show(mrmTraj,FrameSize=20,NumSamples=75); title("Multirotor Flight Trajectory") axis equal
figure show(fwmTraj,FrameSize=20,NumSamples=75); title("Fixed-Wing Flight Trajectory") axis equal
Plot the mission, waypoints, flight trajectory and UAV body frames in the same plot for each UAV.
figure show(mission); hold on show(mrmTraj,FrameSize=20,NumSamples=75); hold off title("Mission Using Multirotor Trajectory") axis equal
show(mission); hold on show(fwmTraj,FrameSize=20,NumSamples=75); hold off title("Mission Using Fixed-Wing Trajectory") axis equal
Create UAV Mission Manually
Create a UAV mission object with a home location at the origin of the local ENU coordinate frame and an initial speed of 5 meters per second.
m = uavMission(Frame="LocalENU",HomeLocation=[0 0 0],Speed=5)
m = uavMission with properties: HomeLocation: [0 0 0] InitialYaw: 0 Frame: "LocalENU" Speed: 5 NumMissionItems: 0
Add a takeoff mission item to the mission with an altitude of 25
meters, pitch of 15
degrees, and yaw of 0
degrees.
addTakeoff(m,20,Pitch=15,Yaw=0);
Add two waypoint mission items to the mission. Between the two waypoints, increase the speed of the UAV to 20
meters per second. After the second waypoint, reduce the speed of the UAV back to 5
meters per second.
addWaypoint(m,[10 0 30]); addChangeSpeed(m,20) addWaypoint(m,[20 0 40]); addChangeSpeed(m,5) addWaypoint(m,[30 0 50])
Add loiter and hover mission items to the mission, specifying for the UAV to loiter and hover around the second waypoint at a radius of 50
meters for 20
seconds each.
addLoiter(m,[40 0 60],10,20); addHover(m,[50 0 70],10,20);
Add a landing mission item to the mission to land the UAV.
addLand(m,[70 0 0],Yaw=0);
Show the mission item data table.
showdetails(m)
ans=9×17 table
Idx Timestamp MissionType ParameterName1 ParameterValue1 ParameterName2 ParameterValue2 ParameterName3 ParameterValue3 ParameterName4 ParameterValue4 ParameterName5 ParameterValue5 ParameterName6 ParameterValue6 ParameterName7 ParameterValue7
___ _________ _____________ ______________ _______________ ______________ _______________ ______________ _______________ ______________ _______________ __________________ _______________ ______________ _______________ ______________ _______________
1 NaN "Takeoff" "Altitude" 20 "Pitch" 15 "Yaw" 0 "" NaN "" NaN "" NaN "" NaN
2 NaN "Waypoint" "X" 10 "Y" 0 "Z" 30 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
3 NaN "ChangeSpeed" "Speed" 20 "" NaN "" NaN "" NaN "" NaN "" NaN "" NaN
4 NaN "Waypoint" "X" 20 "Y" 0 "Z" 40 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
5 NaN "ChangeSpeed" "Speed" 5 "" NaN "" NaN "" NaN "" NaN "" NaN "" NaN
6 NaN "Waypoint" "X" 30 "Y" 0 "Z" 50 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
7 NaN "Loiter" "X" 40 "Y" 0 "Z" 60 "Radius" 10 "Duration" 20 "" NaN "" NaN
8 NaN "Hover" "X" 50 "Y" 0 "Z" 70 "Radius" 10 "Duration" 20 "" NaN "" NaN
9 NaN "Land" "X" 70 "Y" 0 "Z" 0 "Yaw" 0 "" NaN "" NaN "" NaN
Remove the hover action at index 7
, and then add another waypoint at index 8
after the hover item moves to index 7
. Show the mission details table again to see the changes.
removeItem(m,7); addWaypoint(m,[65 0 70],InsertAtRow=8); showdetails(m)
ans=9×17 table
Idx Timestamp MissionType ParameterName1 ParameterValue1 ParameterName2 ParameterValue2 ParameterName3 ParameterValue3 ParameterName4 ParameterValue4 ParameterName5 ParameterValue5 ParameterName6 ParameterValue6 ParameterName7 ParameterValue7
___ _________ _____________ ______________ _______________ ______________ _______________ ______________ _______________ ______________ _______________ __________________ _______________ ______________ _______________ ______________ _______________
1 NaN "Takeoff" "Altitude" 20 "Pitch" 15 "Yaw" 0 "" NaN "" NaN "" NaN "" NaN
2 NaN "Waypoint" "X" 10 "Y" 0 "Z" 30 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
3 NaN "ChangeSpeed" "Speed" 20 "" NaN "" NaN "" NaN "" NaN "" NaN "" NaN
4 NaN "Waypoint" "X" 20 "Y" 0 "Z" 40 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
5 NaN "ChangeSpeed" "Speed" 5 "" NaN "" NaN "" NaN "" NaN "" NaN "" NaN
6 NaN "Waypoint" "X" 30 "Y" 0 "Z" 50 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
7 NaN "Hover" "X" 50 "Y" 0 "Z" 70 "Radius" 10 "Duration" 20 "" NaN "" NaN
8 NaN "Waypoint" "X" 65 "Y" 0 "Z" 70 "Yaw" NaN "AcceptanceRadius" NaN "" NaN "" NaN
9 NaN "Land" "X" 70 "Y" 0 "Z" 0 "Yaw" 0 "" NaN "" NaN "" NaN
Visualize the mission.
show(m);
axis equal
Execute Coverage Plan Using UAV Mission
Initialize the settings to use for the coverage planner, coverage space, and mission. Set a coverage width to 65 meters, the region as polygon vertices, takeoff and landing locations, the UAV elevation during flight to 150 meters, and a geocenter.
coverageWidth = 65; region = [-210 130; 10 130; 10 20; 110 20; 110 -130; -140 -130; -140 -20; -210 -20]; takeoff = [-250 150 0]; landing = [0 -200 0]; uavElevation = 150; geocenter = [-45 71 0];

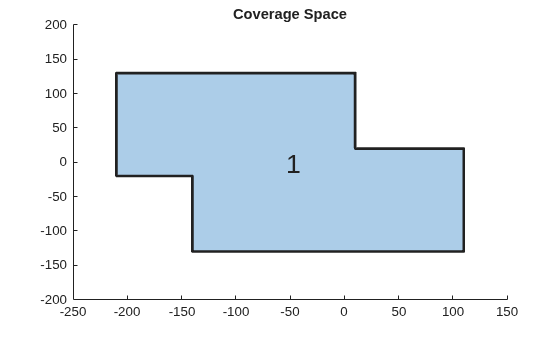

Create the coverage space with those UAV coverage space settings.
cs = uavCoverageSpace(Polygons=region, ... UnitWidth=coverageWidth, ... ReferenceHeight=uavElevation, ... ReferenceLocation=geocenter); cs.show; title("Coverage Space")
Create a coverage planner for the coverage space and plan the coverage path with the specified takeoff and landing locations.
cp = uavCoveragePlanner(cs); [waypoints,solnInfo] = cp.plan(takeoff,landing);

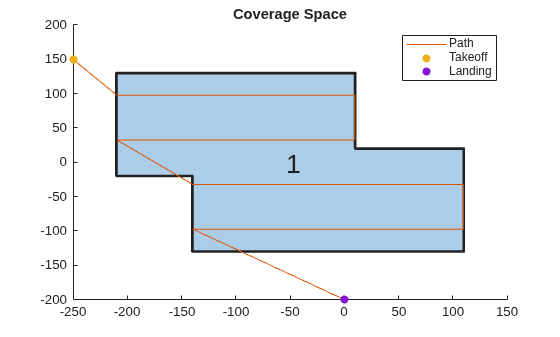

Plot the waypoints, and the takeoff and landing locations on the coverage space.
hold on plot(waypoints(:,1),waypoints(:,2)) scatter(takeoff(1),takeoff(2),"filled") scatter(landing(1),landing(2),"filled") legend("","Path","Takeoff","Landing") hold off
Export the waypoints to a waypoints
file and create a UAV mission from that file with a speed of 10
meters per second and an initial yaw of 90
degrees.
exportWaypointsPlan(cp,solnInfo,"customCoverage.waypoints"); mission = uavMission(PlanFile="customCoverage.waypoints",Speed=10,InitialYaw=90);

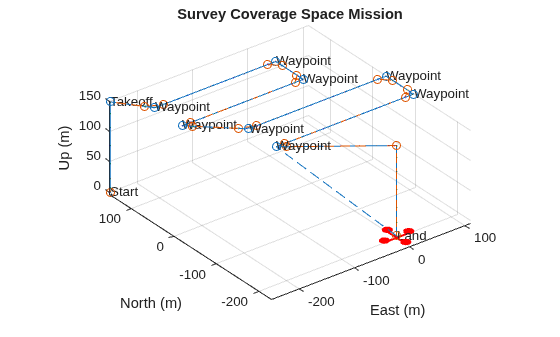

Use the exampleHelperSimulateUAVMission
helper function to visualize the UAV mission with a simulation time of 60 seconds.
exampleHelperSimulateUAVMission(mission,geocenter)
Version History
Introduced in R2022b
