uavDubinsPathSegment

Dubins path segment connecting two poses of UAV

expand all in page

Description

The uavDubinsPathSegment object holds information for a Dubins path segment that connects start and goal poses of a UAV as a sequence of motions in the north-east-down coordinate system.

The motion options are:

  • Straight

  • Left turn (counterclockwise)

  • Right turn (clockwise)

  • Helix left turn (counterclockwise)

  • Helix right turn (clockwise)

  • No motion

The turn direction is defined as viewed from the top of the UAV. Helical motions are used to ascend or descend.

Creation

Syntax

pathSegObj = connect(connectionObj,StartPose,GoalPose)
pathSegObj = uavDubinsPathSegment(connectionObj,StartPose,GoalPose)
pathSegObj = uavDubinsPathSegment(connectionObj,StartPose,GoalPose,MotionTypes)
pathSegObj = uavDubinsPathSegment(StartPose,GoalPose,FlightPathAngle,AirSpeed,MinTurningRadius,HelixRadius,MotionTypes,MotionLengths)

Description

To generate a uavDubinsPathSegment object, use the connect function with a uavDubinsConnection object:

pathSegObj = connect(connectionObj,StartPose,GoalPose) connects the start and goal poses using the specified uavDubinsConnection object.

To specifically define a path segment:

pathSegObj = uavDubinsPathSegment(connectionObj,StartPose,GoalPose) creates a Dubins path segment to connect start and goal poses of a UAV. The uavDubinsConnection object provides the minimum turning radius and flight path angle. It internally computes the optimal path and assigns it to pathSegObj.

pathSegObj = uavDubinsPathSegment(connectionObj,StartPose,GoalPose,MotionTypes) creates a Dubins path segment to connect start and goal poses of a UAV with the given MotionTypes.

example

pathSegObj = uavDubinsPathSegment(StartPose,GoalPose,FlightPathAngle,AirSpeed,MinTurningRadius,HelixRadius,MotionTypes,MotionLengths) creates a Dubins path segment to connect start and goal poses of a UAV by explicitly specifying all the parameters.

Input Arguments

expand all

Dubins path connection object, specified as a uavDubinsConnection object

Properties

expand all

This property is read-only.

Initial pose of the UAV at the start of the path segment, specified as a four-element numeric vector [x, y, z, headingAngle].

x, y, and z specify the position in meters. headingAngle specifies the heading angle in radians.

Data Types: double

This property is read-only.

Goal pose of the UAV at the end of the path segment, specified as a four-element numeric vector [x, y, z, headingAngle].

x, y, and z specify the position in meters. headingAngle specifies the heading angle in radians.

Data Types: double

This property is read-only.

Minimum turning radius of the UAV, specified as a positive numeric scalar in meters. This value corresponds to the radius of the circle at the maximum roll angle and a constant airspeed of the UAV.

Data Types: double

This property is read-only.

Helical path radius of the UAV, specified as a positive numeric scalar in meters.

Data Types: double

This property is read-only.

Flight path angle of the UAV to reach the goal altitude, specified as a positive numeric scalar in radians.

Data Types: double

This property is read-only.

Airspeed of the UAV, specified as a positive numeric scalar in m/s.

Data Types: double

This property is read-only.

Length of each motion in the path segment, specified as a four-element numeric vector in meters. Each motion length corresponds to a motion type specified in the MotionTypes property.

Data Types: double

This property is read-only.

Type of each motion in the path segment, specified as a three-element string cell array.

Motion TypeDescription
"S"

Straight

"L"

Left turn (counterclockwise)

"R"

Right turn (clockwise)

"Hl"

Helix left turn (counterclockwise)

"Hr"

Helix right turn (clockwise)

"N"

No motion

Note

The no motion segment "N" is used as a filler at the end when only three path segments are needed.

Each motion type corresponds to a motion length specified in the MotionLengths property.

For UAV Dubins connections, the available path types are: {'LSLN'} {'LSRN'} {'RSLN'} {'RSRN'} {'RLRN'} {'LRLN'} {'HlLSL'} {'HlLSR'} {'HrRSL'} {'HrRSR'} {'HrRLR'} {'HlLRL'} {'LSLHl'} {'LSRHr'} {'RSLHl'} {'RSRHr'} {'RLRHr'} {'LRLHl'} {'LRSL'} {'LRSR'} {'LRLR'} {'RLSR'} {'RLRL'} {'RLSL'} {'LSRL'} {'RSRL'} {'LSLR'} {'RSLR'}.

Example: {'L','R','L','N'}

Data Types: cell

This property is read-only.

Length of the path segment or the flight path, specified as a positive numeric scalar in meters. This length is the sum of the elements in the MotionLengths vector.

Data Types: double

Object Functions

interpolateInterpolate poses along UAV Dubins path segment
showVisualize UAV Dubins path segment

Examples

collapse all

Open Live Script

This example shows how to calculate a UAV Dubins path segment and connect poses using the uavDubinsConnection object for a specified motion type.

Create a uavDubinsConnection object.

connectionObj = uavDubinsConnection;

Define start and goal poses as [x, y, z, headingAngle] vectors.

startPose = [0 0 0 0]; % [meters, meters, meters, radians]
goalPose = [0 0 20 pi];

Calculate a valid path segment and connect the poses for a specified motion type.

pathSegObj = uavDubinsPathSegment(connectionObj,startPose,goalPose,{'L','S','L','N'});

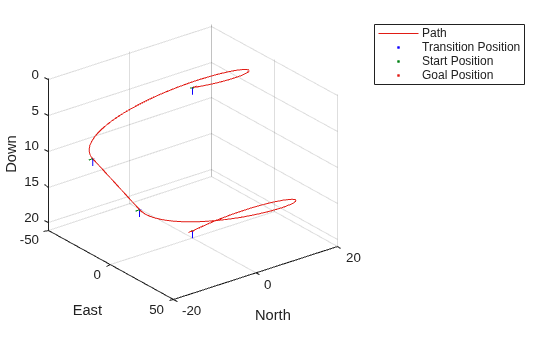

Show the generated path.

show(pathSegObj)

Figure contains an axes object. The axes object with xlabel North, ylabel East contains 24 objects of type patch, line. One or more of the lines displays its values using only markers These objects represent Path, Transition Position, Start Position, Goal Position.

Verify the motion type of the returned path segment.

fprintf('Motion Type: %s\n',strjoin(pathSegObj.MotionTypes));
Motion Type: L S L N

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2019b
