oobQuantilePredict

Quantile predictions for out-of-bag observations from bag of regression trees

Syntax

YFit = oobQuantilePredict(Mdl)

YFit = oobQuantilePredict(Mdl,Name,Value)

[YFit,YW] = oobQuantilePredict(___)

Description

YFit = oobQuantilePredict(Mdl) returns a vector of medians of the predicted responses at all out-of-bag observations in Mdl.X, the predictor data, and using Mdl, which is a bag of regression trees. Mdl must be a TreeBagger model object and Mdl.OOBIndices must be nonempty.

YFit = oobQuantilePredict(Mdl,Name,Value) uses additional options specified by one or more Name,Value pair arguments. For example, specify quantile probabilities or trees to include for quantile estimation.

[YFit,YW] = oobQuantilePredict(___) also returns a sparse matrix of response weights using any of the previous syntaxes.

Input Arguments

Mdl — Bag of regression trees

TreeBagger model object (default)

Bag of regression trees, specified as a TreeBagger model object created by the TreeBagger function.

• The value of Mdl.Method must be regression.

• When you train Mdl using the TreeBagger function, you must specify the name-value pair 'OOBPrediction','on'. Consequently, TreeBagger saves required out-of-bag observation index matrix in Mdl.OOBIndices.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Quantile — Quantile probability

0.5 (default) | numeric vector containing values in [0,1]

Quantile probability, specified as the comma-separated pair consisting of 'Quantile' and a numeric vector containing values in the interval [0,1]. For each observation (row) in Mdl.X, oobQuantilePredict estimates corresponding quantiles for all probabilities in Quantile.

Example: 'Quantile',[0 0.25 0.5 0.75 1]

Data Types: single | double

Trees — Indices of trees to use in response estimation

'all' (default) | numeric vector of positive integers

Indices of trees to use in response estimation, specified as the comma-separated pair consisting of 'Trees' and 'all' or a numeric vector of positive integers. Indices correspond to the cells of Mdl.Trees; each cell therein contains a tree in the ensemble. The maximum value of Trees must be less than or equal to the number of trees in the ensemble (Mdl.NumTrees).

For 'all', oobQuantilePredict uses the indices 1:Mdl.NumTrees.

Example: 'Trees',[1 10 Mdl.NumTrees]

Data Types: char | string | single | double

TreeWeights — Weights to attribute to responses from individual trees

numeric vector of nonnegative values

Weights to attribute to responses from individual trees, specified as the comma-separated pair consisting of 'TreeWeights' and a numeric vector of numel(trees) nonnegative values. trees is the value of the Trees name-value pair argument.

The default is ones(size(trees)).

Data Types: single | double

Output Arguments

YFit — Estimated quantiles

numeric matrix

Estimated quantiles for out-of-bag observations, returned as an n-by-numel(tau) numeric matrix. n is the number of observations in the training data (numel(Mdl.Y)) and tau is the value of the Quantile name-value pair argument. That is, YFit(j,k) is the estimated 100*tau(k) percentile of the response distribution given X(j,:) and using Mdl.

YW — Response weights

sparse matrix

Response weights, returned as an n-by-n sparse matrix. n is the number of responses in the training data (numel(Mdl.Y)). YW(:,j) specifies the response weights for the observation in Mdl.X(j,:).

oobQuantilePredict predicts quantiles using linear interpolation of the empirical cumulative distribution function (cdf). For a particular observation, you can use its response weights to estimate quantiles using alternative methods, such as approximating the cdf using kernel smoothing.

Examples

Predict Out-of-Bag Medians Using Quantile Regression

Load the carsmall data set. Consider a model that predicts the fuel economy (in MPG) of a car given its engine displacement.

load carsmall

Train an ensemble of bagged regression trees using the entire data set. Specify 100 weak learners and save out-of-bag indices.

rng(1); % For reproducibility
Mdl = TreeBagger(100,Displacement,MPG,'Method','regression',...
    'OOBPrediction','on');

Mdl is a TreeBagger ensemble.

Perform quantile regression to predict the out-of-bag median fuel economy for all training observations.

oobMedianMPG = oobQuantilePredict(Mdl);

oobMedianMPG is an n-by-1 numeric vector of medians corresponding to the conditional distribution of the response given the sorted observations in Mdl.X. n is the number of observations, size(Mdl.X,1).

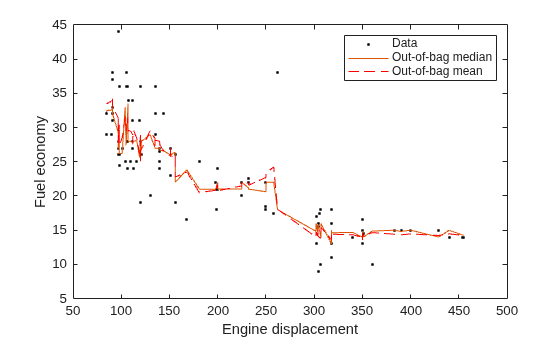

Sort the observations in ascending order. Plot the observations and the estimated medians on the same figure. Compare the out-of-bag median and mean responses.

[sX,idx] = sort(Mdl.X);
oobMeanMPG = oobPredict(Mdl);

figure;
plot(Displacement,MPG,'k.');
hold on
plot(sX,oobMedianMPG(idx));
plot(sX,oobMeanMPG(idx),'r--');
ylabel('Fuel economy');
xlabel('Engine displacement');
legend('Data','Out-of-bag median','Out-of-bag mean');
hold off;

Estimate Out-of-Bag Prediction Intervals Using Percentiles

Load the carsmall data set. Consider a model that predicts the fuel economy of a car (in MPG) given its engine displacement.

load carsmall

Train an ensemble of bagged regression trees using the entire data set. Specify 100 weak learners and save out-of-bag indices.

rng(1); % For reproducibility
Mdl = TreeBagger(100,Displacement,MPG,'Method','regression',...
    'OOBPrediction','on');

Perform quantile regression to predict the out-of-bag 2.5% and 97.5% percentiles.

oobQuantPredInts = oobQuantilePredict(Mdl,'Quantile',[0.025,0.975]);

oobQuantPredInts is an n-by-2 numeric matrix of prediction intervals corresponding to the out-of-bag observations in Mdl.X. n is number of observations, size(Mdl.X,1). The first column contains the 2.5% percentiles and the second column contains the 97.5% percentiles.

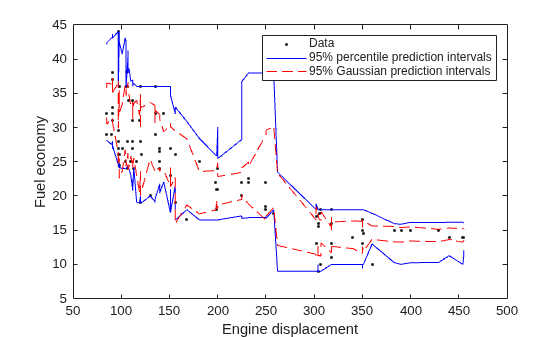

Plot the observations and the estimated medians on the same figure. Compare the percentile prediction intervals and the 95% prediction intervals, assuming the conditional distribution of MPG is Gaussian.

[oobMeanMPG,oobSTEMeanMPG] = oobPredict(Mdl);
STDNPredInts = oobMeanMPG + [-1 1]*norminv(0.975).*oobSTEMeanMPG;
[sX,idx] = sort(Mdl.X);

figure;
h1 = plot(Displacement,MPG,'k.');
hold on
h2 = plot(sX,oobQuantPredInts(idx,:),'b');
h3 = plot(sX,STDNPredInts(idx,:),'r--');
ylabel('Fuel economy');
xlabel('Engine displacement');
legend([h1,h2(1),h3(1)],{'Data','95% percentile prediction intervals',...
    '95% Gaussian prediction intervals'});
hold off;

Estimate Out-of-Bag Conditional Cumulative Distribution Using Quantile Regression

Load the carsmall data set. Consider a model that predicts the fuel economy of a car (in MPG) given its engine displacement.

load carsmall

Train an ensemble of bagged regression trees using the entire data set. Specify 100 weak learners and save the out-of-bag indices.

rng(1); % For reproducibility
Mdl = TreeBagger(100,Displacement,MPG,'Method','regression',...
    'OOBPrediction','on');

Estimate the out-of-bag response weights.

[~,YW] = oobQuantilePredict(Mdl);

YW is an n-by-n sparse matrix containing the response weights. n is the number of training observations, numel(Y). The response weights for the observation in Mdl.X(j,:) are in YW(:,j). Response weights are independent of any specified quantile probabilities.

Estimate the out-of-bag, conditional cumulative distribution function (ccdf) of the responses by:

1. Sorting the responses is ascending order, and then sorting the response weights using the indices induced by sorting the responses.

2. Computing the cumulative sums over each column of the sorted response weights.

[sortY,sortIdx] = sort(Mdl.Y);
cpdf = full(YW(sortIdx,:));
ccdf = cumsum(cpdf);

ccdf(:,j) is the empirical out-of-bag ccdf of the response, given observation j.

Choose a random sample of four training observations. Plot the training sample and identify the chosen observations.

[randX,idx] = datasample(Mdl.X,4);
figure;
plot(Mdl.X,Mdl.Y,'o');
hold on
plot(randX,Mdl.Y(idx),'*','MarkerSize',10);
text(randX-10,Mdl.Y(idx)+1.5,{'obs. 1' 'obs. 2' 'obs. 3' 'obs. 4'});
legend('Training Data','Chosen Observations');
xlabel('Engine displacement')
ylabel('Fuel economy')
hold off

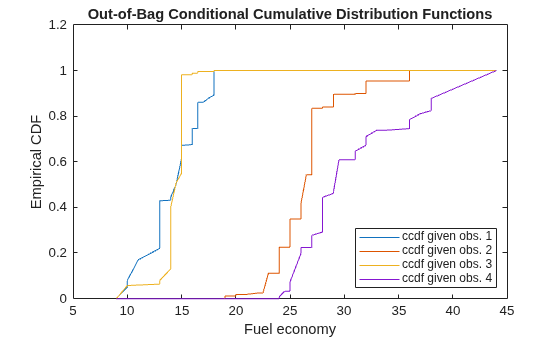

Plot the out-of-bag ccdf for the four chosen responses in the same figure.

figure;
plot(sortY,ccdf(:,idx));
legend('ccdf given obs. 1','ccdf given obs. 2',...
    'ccdf given obs. 3','ccdf given obs. 4',...
    'Location','SouthEast')
title('Out-of-Bag Conditional Cumulative Distribution Functions')
xlabel('Fuel economy')
ylabel('Empirical CDF')

More About

Out-of-Bag

In a bagged ensemble, observations are out-of-bag when they are left out of the training sample for a particular learner. Observations are in-bag when they are used to train a particular learner.

When bagging learners, a practitioner takes a bootstrap sample (that is, a random sample with replacement) of size n for each learner, and then trains the learners using their respective bootstrap samples. Drawing n out of n observations with replacement omits on average about 37% of observations for each learner.

The out-of-bag ensemble error, the ensemble error estimated using out-of-bag observations only, is an unbiased estimator of the true ensemble error.

Quantile Random Forest

Quantile random forest [2] is a quantile-regression method that uses a random forest [1] of regression trees to model the conditional distribution of a response variable, given the value of predictor variables. You can use a fitted model to estimate quantiles in the conditional distribution of the response.

Besides quantile estimation, you can use quantile regression to estimate prediction intervals or detect outliers. For example:

• To estimate 95% quantile prediction intervals, estimate the 0.025 and 0.975 quantiles.

• To detect outliers, estimate the 0.01 and 0.99 quantiles. All observations smaller than the 0.01 quantile and larger than the 0.99 quantile are outliers. All observations that are outside the interval [L,U] can be considered outliers:

  $$L=Q_1-1.5*IQR$$

  and

  $$U=Q_3+1.5*IQR,$$

  where:

  • Q₁ is the 0.25 quantile.

  • Q₃ is the 0.75 quantile.

  • IQR = Q₃ – Q₁ (the interquartile range).

Response Weights

Response weights are scalars that represent the conditional distribution of the response given a value in the predictor space. The observations in the bootstrap samples and the leaves that the training and test observations share induce response weights.

Given the observation x, the response weight for observation j in the training sample using tree t in the ensemble is

$$w_{tj}(x)=\frac{I\{X_j\in S_t(x)\}}{{\displaystyle \sum _{k=1}^{n_{\text{train}}}I\{X_k\in S_t(x)\}}},$$

where:

• I{h} is the indicator function.

• S_t(x) is the leaf of tree t containing x.

• n_train is the number of training observations.

In other words, the response weights of a particular tree form the conditional relative frequency distribution of the response.

The response weights for the entire ensemble are averaged over the trees:

$$w_j^{\ast }(x)=\frac{1}{T}{\displaystyle \sum _{t=1}^T{w}_{tj}(x)}.$$

Algorithms

oobQuantilePredict estimates out-of-bag quantiles by applying quantilePredict to all observations in the training data (Mdl.X). For each observation, the method uses only the trees for which the observation is out-of-bag.

For observations that are in-bag for all trees in the ensemble, oobQuantilePredict assigns the sample quantile of the response data. In other words, oobQuantilePredict does not use quantile regression for out-of-bag observations. Instead, it assigns quantile(Mdl.Y,tau), where tau is the value of the Quantile name-value pair argument.

References

[1] Meinshausen, N. “Quantile Regression Forests.” Journal of Machine Learning Research, Vol. 7, 2006, pp. 983–999.

[2] Breiman, L. “Random Forests.” Machine Learning. Vol. 45, 2001, pp. 5–32.

Version History

Introduced in R2016b
