Compute empirical cumulative distribution function (ecdf) for baseline and target data specified for drift detection

    Description

    example

    E = ecdf(DDiagnostics) returns the table E, which stores the ecdf values for all the variables specified for drift detection in the call to detectdrift.

    ecdf returns NaN values for categorical variables.

    example

    E = ecdf(DDiagnostics,Variables=variables) returns the table E for the variables specified by variables.

    Examples

    collapse all

    Generate baseline and target data with two variables, where the distribution parameters of the second variable change for target data.

    rng('default') % For reproducibility
    baseline = [normrnd(0,1,100,1),wblrnd(1.1,1,100,1)];
    target = [normrnd(0,1,100,1),wblrnd(1.2,2,100,1)];

    Perform permutation testing for any drift between the baseline and target data.

    DDiagnostics = detectdrift(baseline,target)
    DDiagnostics =
      DriftDiagnostics

                  VariableNames: ["x1"    "x2"]
           CategoricalVariables: []
                    DriftStatus: ["Stable"    "Drift"]
                        PValues: [0.2850 0.0030]
            ConfidenceIntervals: [2x2 double]
        MultipleTestDriftStatus: "Drift"
                 DriftThreshold: 0.0500
               WarningThreshold: 0.1000


      Properties, Methods



    Compute the ecdf values for both variables.

    E = ecdf(DDiagnostics)
    E=2×3 table
                    x             F_Baseline         F_Target
              ______________    ______________    ______________

        x1    {201x1 double}    {201x1 double}    {201x1 double}
        x2    {201x1 double}    {201x1 double}    {201x1 double}



    E is a table with two rows and three columns. The two rows correspond to the two variables. For each variable, ecdf computes the ecdf values over a common domain for baseline and target data. It stores the common domain for each variable in the column x, the ecdf values for baseline data in the column F_Baseline, and the ecdf values for target data in the column F_Target.

    Access the ecdf values for variable 2 in baseline data.

    E.F_Baseline{2}
    ans = 201×1

             0
        0.0100
        0.0100
        0.0200
        0.0300
        0.0400
        0.0500
        0.0600
        0.0700
        0.0800
          ⋮



    Plot the empirical cumulative distribution function values of baseline and target data for variable x2.

    stairs(E.x{2},E.F_Baseline{2},LineWidth=1.5)
    hold on
    stairs(E.x{2},E.F_Target{2},LineWidth=1.5)
    title('ECDF for x2')
    xlabel('x2')
    ylabel('Empirical CDF')
    legend('Baseline','Target',Location = 'east')
    hold off

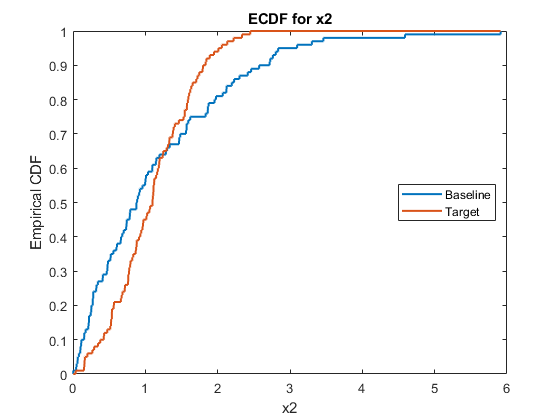

    Figure contains an axes object. The axes object with title ECDF for x2 contains 2 objects of type stair. These objects represent Baseline, Target.

    The plot of the ecdf values also show the drift in the distribution of the target data.

    Copyright 2021 The MathWorks, Inc.

    Load the sample data.

    load humanactivity

    For details on the data set, enter Description at the command line.

    Assign the first 1000 observations as baseline data and next 1000 as target data.

    baseline = feat(1:1000,:);
    target = feat(1001:2000,:);

    Test for drift on all variables.

    DDiagnostics = detectdrift(baseline,target);

    Compute the ecdf values for only the first five variables.

    E = ecdf(DDiagnostics,Variables=[1:5])
    E=5×3 table
                     x             F_Baseline          F_Target
              _______________    _______________    _______________

        x1    {2001x1 double}    {2001x1 double}    {2001x1 double}
        x2    {2001x1 double}    {2001x1 double}    {2001x1 double}
        x3    {2001x1 double}    {2001x1 double}    {2001x1 double}
        x4    {2001x1 double}    {2001x1 double}    {2001x1 double}
        x5    {2001x1 double}    {2001x1 double}    {2001x1 double}



    Access the ecdf values for the third variable in baseline data.

    E.F_Baseline{3}
    ans = 2001×1

             0
             0
             0
             0
             0
             0
        0.0010
        0.0020
        0.0030
        0.0040
          ⋮



    Plot the empirical cumulative distribution function values of baseline and target data for variable x3.

    stairs(E.x{3},E.F_Baseline{3},LineWidth=1.5)
    hold on
    stairs(E.x{3},E.F_Target{3},LineWidth=1.5)
    title('ECDF for x3')
    xlabel('x3')
    ylabel('Empirical CDF')
    legend('Baseline','Target',Location = 'southeast')
    hold off

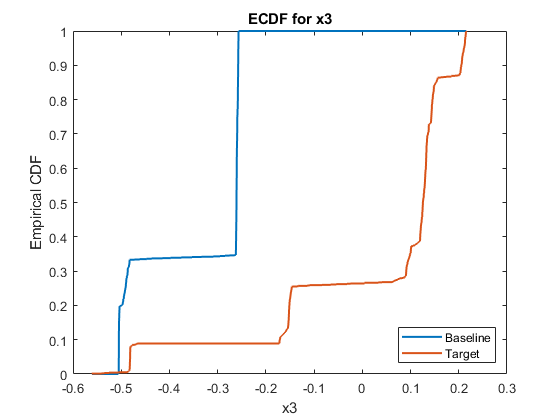

    Figure contains an axes object. The axes object with title ECDF for x3 contains 2 objects of type stair. These objects represent Baseline, Target.

    The ecdf plot shows the drift in the target data for variable x3.

    Input Arguments

    collapse all

    Diagnostics of the permutation testing for drift detection, specified as a DriftDiagnostics object returned by detectdrift.

    List of variables for which to compute the ecdf values, specified as a string array, a cell array of character vectors, or a list of integer indices.

    Example: Variables=["x1","x3"]

    Example: Variables=(1,3)

    Data Types: single | double | char | string

    Output Arguments

    collapse all

    ecdf values for all variables specified for drift detection in the call to detectdrift, returned as a table with the following columns.

    Column nameDescription
    xCommon domain over which to evaluate the empirical cdf
    F_Baselineecdf values for the baseline data
    F_Targetecdf for the target data

    For each variable in E, the columns hold x and the ecdf values in cell arrays. To access the values, you can index into the table; for example, to obtain the ecdf values for the second variable in baseline data, use E.F_Baseline{2,1}.
