cvshrink

Cross-validate regularization of linear discriminant

Syntax

``err = cvshrink(Mdl)``
``````[err,gamma] = cvshrink(Mdl)``````
``````[err,gamma,delta] = cvshrink(Mdl)``````
``````[err,gamma,delta,numpred] = cvshrink(Mdl)``````
``[___] = cvshrink(Mdl,Name=Value)``

Description

````err = cvshrink(Mdl)` returns a vector of cross-validated classification error values for differing values of the regularization parameter `gamma`.```
``````[err,gamma] = cvshrink(Mdl)``` also returns the vector of `gamma` values.```
``````[err,gamma,delta] = cvshrink(Mdl)``` also returns the vector of `delta` values.```
``````[err,gamma,delta,numpred] = cvshrink(Mdl)``` returns a vector or matrix containing the number of nonzero predictors for each setting of the parameters `gamma` and `delta`.```

example

````[___] = cvshrink(Mdl,Name=Value)` specifies additional options using one or more name-value arguments. For example, you can specify the number of delta and gamma intervals for cross-validation, and the verbosity level of progress messages. ```

Examples

collapse all

Regularize a discriminant analysis classifier, and view the tradeoff between the number of predictors in the model and the classification accuracy.

Create a linear discriminant analysis classifier for the `ovariancancer` data. Set the `SaveMemory` and `FillCoeffs` options to keep the resulting model reasonably small.

```load ovariancancer obj = fitcdiscr(obs,grp,... 'SaveMemory','on','FillCoeffs','off');```

Use 10 levels of `Gamma` and 10 levels of `Delta` to search for good parameters. This search is time-consuming. Set `Verbose` to `1` to view the progress.

```rng('default') % for reproducibility [err,gamma,delta,numpred] = cvshrink(obj,... 'NumGamma',9,'NumDelta',9,'Verbose',1);```
```Done building cross-validated model. Processing Gamma step 1 out of 10. Processing Gamma step 2 out of 10. Processing Gamma step 3 out of 10. Processing Gamma step 4 out of 10. Processing Gamma step 5 out of 10. Processing Gamma step 6 out of 10. Processing Gamma step 7 out of 10. Processing Gamma step 8 out of 10. Processing Gamma step 9 out of 10. Processing Gamma step 10 out of 10. ```

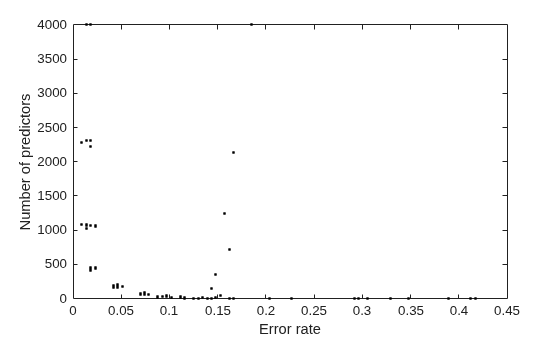

Plot the classification error rate against the number of predictors.

```plot(err,numpred,'k.') xlabel('Error rate'); ylabel('Number of predictors');```

Input Arguments

collapse all

Trained discriminant analysis classifier, specified as a `ClassificationDiscriminant` model object, trained with `fitcdiscr`.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: ```[err,gamma,delta,numpred] = cvshrink(Mdl,NumGamma=9,NumDelta=9,Verbose=1);```

Delta values for cross-validation, specified as a numeric scalar, row vector, or matrix.

• Scalar `delta``cvshrink` uses this value of `delta` with every value of `gamma` for regularization.

• Row vector `delta` — For each `i` and `j`, `cvshrink` uses `delta(j)` with `gamma(i)` for regularization.

• Matrix `delta` — The number of rows of `delta` must equal the number of elements in `gamma`. For each `i` and `j`, `cvshrink` uses `delta(i,j)` with `gamma(i)` for regularization.

Example: `delta=[0 .01 .1]`

Data Types: `double`

Gamma values for cross-validation, specified as a numeric vector.

Example: `gamma=[0 .01 .1]`

Data Types: `double`

Number of delta intervals for cross-validation, specified as a nonnegative integer. For every value of `gamma`, `cvshrink` cross-validates the discriminant using `NumDelta + 1` values of `delta`, uniformly spaced from zero to the maximal `delta` at which all predictors are eliminated for this value of `gamma`. If you set `delta`, `cvshrink` ignores `NumDelta`.

Example: `NumDelta=3`

Data Types: `double`

Number of gamma intervals for cross-validation, specified as a nonnegative integer. `cvshrink` cross-validates the discriminant using `NumGamma + 1` values of `gamma`, uniformly spaced from `MinGamma` to `1`. If you set `gamma`, `cvshrink` ignores `NumGamma`.

Example: `NumGamma=3`

Data Types: `double`

Verbosity level, specified as `0`, `1`, or `2`. Higher values give more progress messages.

Example: `Verbose=2`

Data Types: `double`

Output Arguments

collapse all

Misclassification error rate, returned as a numeric vector or matrix of errors. The misclassification error rate is the average fraction of misclassified data over all folds.

• If `delta` is a scalar (default), `err(i)` is the misclassification error rate for `Mdl` regularized with `gamma(i)`.

• If `delta` is a vector, `err(i,j)` is the misclassification error rate for `Mdl` regularized with `gamma(i)` and `delta(j)`.

• If `delta` is a matrix, `err(i,j)` is the misclassification error rate for `Mdl` regularized with `gamma(i)` and `delta(i,j)`.

Gamma values used for regularization, returned as a numeric vector. See Gamma and Delta.

Delta values used for regularization, returned as a numeric vector or matrix. See Gamma and Delta.

• If you specify a scalar for the `delta` name-value argument, the output `delta` is a row vector the same size as `gamma`, with entries equal to the input scalar.

• If you specify a row vector for the `delta` name-value argument, the output `delta` is a matrix with the same number of columns as the row vector, and with the number of rows equal to the number of elements of `gamma`. The output `delta(i,j)` is equal to the input `delta(j)`.

• If you specify a matrix for the `delta` name-value argument, the output `delta` is the same as the input matrix. The number of rows of `delta` must equal the number of elements in `gamma`.

Number of predictors in the model at various regularizations, returned as a numeric vector or matrix. `numpred` has the same size as `err`.

• If `delta` is a scalar (default), `numpred(i)` is the number of predictors for `Mdl` regularized with `gamma(i)` and `delta`.

• If `delta` is a vector, `numpred(i,j)` is the number of predictors for `Mdl` regularized with `gamma(i)` and `delta(j)`.

• If `delta` is a matrix, `numpred(i,j)` is the number of predictors for `Mdl` regularized with `gamma(i)` and `delta(i,j)`.

collapse all

Gamma and Delta

Regularization is the process of finding a small set of predictors that yield an effective predictive model. For linear discriminant analysis, there are two parameters, γ and δ, that control regularization as follows. `cvshrink` helps you select appropriate values of the parameters.

Let Σ represent the covariance matrix of the data X, and let $\stackrel{^}{X}$ be the centered data (the data X minus the mean by class). Define

`$D=\text{diag}\left({\stackrel{^}{X}}^{T}*\stackrel{^}{X}\right).$`

The regularized covariance matrix $\stackrel{˜}{\Sigma }$ is

`$\stackrel{˜}{\Sigma }=\left(1-\gamma \right)\Sigma +\gamma D.$`

Whenever γ ≥ `MinGamma`, $\stackrel{˜}{\Sigma }$ is nonsingular.

Let μk be the mean vector for those elements of X in class k, and let μ0 be the global mean vector (the mean of the rows of X). Let C be the correlation matrix of the data X, and let $\stackrel{˜}{C}$ be the regularized correlation matrix:

`$\stackrel{˜}{C}=\left(1-\gamma \right)C+\gamma I,$`

where I is the identity matrix.

The linear term in the regularized discriminant analysis classifier for a data point x is

`${\left(x-{\mu }_{0}\right)}^{T}{\stackrel{˜}{\Sigma }}^{-1}\left({\mu }_{k}-{\mu }_{0}\right)=\left[{\left(x-{\mu }_{0}\right)}^{T}{D}^{-1/2}\right]\left[{\stackrel{˜}{C}}^{-1}{D}^{-1/2}\left({\mu }_{k}-{\mu }_{0}\right)\right].$`

The parameter δ enters into this equation as a threshold on the final term in square brackets. Each component of the vector $\left[{\stackrel{˜}{C}}^{-1}{D}^{-1/2}\left({\mu }_{k}-{\mu }_{0}\right)\right]$ is set to zero if it is smaller in magnitude than the threshold δ. Therefore, for class k, if component j is thresholded to zero, component j of x does not enter into the evaluation of the posterior probability.

The `DeltaPredictor` property is a vector related to this threshold. When δ ≥ `DeltaPredictor(i)`, all classes k have

`$|{\stackrel{˜}{C}}^{-1}{D}^{-1/2}\left({\mu }_{k}-{\mu }_{0}\right)|\le \delta .$`

Therefore, when δ ≥ `DeltaPredictor(i)`, the regularized classifier does not use predictor `i`.

Tips

• Examine the `err` and `numpred` outputs to see the tradeoff between the cross-validated error and the number of predictors. When you find a satisfactory point, set the corresponding `gamma` and `delta` properties in the model using dot notation. For example, if `(i,j)` is the location of the satisfactory point, set:

```Mdl.Gamma = gamma(i); Mdl.Delta = delta(i,j);```

Version History

Introduced in R2012b
