operpoint

Create operating point for Simulink model

Syntax

op = operpoint(sys)

Description

op = operpoint(sys) returns an object, op, containing the operating point of a Simulink® model, sys. Specify sys as either a character vector or a string. Use the object with the function linearize to create linearized models. The operating point object has the following properties:

  • Model — Simulink model name, specified as a character vector.

  • States — State operating point specification, specified as a structure array. Each structure in the array represents the supported states of one Simulink block. (For a list of supported states for operating point objects, see Simulink Model States Included in Operating Point Object.) Edit the properties of this object using dot notation or the set function.

    Each States structure has the following fields:

    Nx(read only)

    Number of states in the Simulink block.

    Block

    Simulink block name.

    StateName

    Name of state, specified as a character vector.

    x

    Simulink block state values, specified as a vector of states. This vector includes all supported states.

    When creating state value specifications for operating point searches using findop and you set the value of a state that you want fixed, also set the Known field of the States property for that state to 1.

    Ts

    (Only for discrete-time states) Sample time and offset of each Simulink block state, specified as a vector.

    SampleType

    State time rate, specified as one of the following values:

    • 'CSTATE' — Continuous-time state

    • 'DSTATE' — Discrete—time state

    inReferencedModel

    Vector indicating whether each state is inside a reference model:

    • 1 — State is inside a reference model

    • 0 — State is in the current model file

    Description

    Block state description, specified as a character vector.

  • Inputs — Input level at the operating point, specified as a vector of input objects. Each input object represents the input levels of one root-level inport block in the Simulink block.

    Each entry in Inputs has the following fields:

    Block

    Inport block name.

    PortWidth

    Number of inport block signals.

    PortDimensions

    Dimension of signals accepted by the inport.

    u

    Inport block input levels at the operating point, specified as a vector of input levels.

    When creating input specifications for operating-point searches using findop, also set the Known field of the Inputs property for known input levels that remain fixed during operating point search.

    Description

    Inport block input description, specified as a character vector.

  • Time — Times at which any time-varying functions in the model are evaluated, specified as a vector.

  • Version — Object version number.

Examples

collapse all

Open Simulink model.

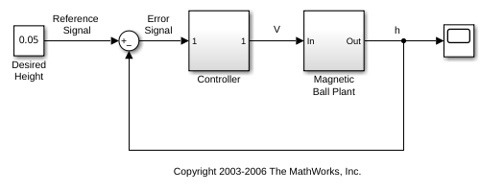

open_system('magball')

Create operating point for the model.

op = operpoint('magball')
 Operating point for the Model magball.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
(1.) magball/Controller/PID Controller/Filter/Cont. Filter/Filter
      x: 0
(2.) magball/Controller/PID Controller/Integrator/Continuous/Integrator
      x: 14
(3.) magball/Magnetic Ball Plant/Current
      x: 7
(4.) magball/Magnetic Ball Plant/dhdt
      x: 0
(5.) magball/Magnetic Ball Plant/height
      x: 0.05

Inputs: None
----------

op lists each block in the model that has states. There are no root-level inports in this model, therefore op does not contain inputs.

You can create new operpoint variables in three ways:

  • Using the operpoint command

  • Using assignment with the equals (=) operator

  • Using the copy command

Using the = operator results in linked variables that both point to the same underlying data. Using the copy command results in an independent operpoint object. In this example, create operpoint objects both ways, and examine their behavior.

mdl = 'watertank';
open_system(mdl);
op1 = operpoint(mdl)
 Operating point for the Model watertank.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
(1.) watertank/PID Controller/Integrator/Continuous/Integrator
      x: 0
(2.) watertank/Water-Tank System/H
      x: 1

Inputs: None
----------

Create a new operating-point object using assignment with the = operator.

op2 = op1;

op2 is an operpoint object that points to the same underlying data as op1. Because of this link, you cannot independently change properties of the two operpoint objects. To see this, change a property of op2. For instance, change the value for the first state from 0 to 2. The change shows in the States section of the display.

op2.States(1).x = 2
 Operating point for the Model watertank.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
(1.) watertank/PID Controller/Integrator/Continuous/Integrator
      x: 2
(2.) watertank/Water-Tank System/H
      x: 1

Inputs: None
----------

Examine the display of op1 to see that the corresponding property value of op1 also changes from 0 to 2.

op1
 Operating point for the Model watertank.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
(1.) watertank/PID Controller/Integrator/Continuous/Integrator
      x: 2
(2.) watertank/Water-Tank System/H
      x: 1

Inputs: None
----------

To create an independent copy of an operating-point object, use the copy command.

op3 = copy(op1);

Now, when you change a property of op3, op1 does not change. For instance, change the value for the first state from 2 to 4.

op3.States(1).x = 4
 Operating point for the Model watertank.
 (Time-Varying Components Evaluated at time t=0)

States:
----------
(1.) watertank/PID Controller/Integrator/Continuous/Integrator
      x: 4
(2.) watertank/Water-Tank System/H
      x: 1

Inputs: None
----------

In op1, the corresponding value remains 2.

op1.States(1).x
ans = 2

This copy behavior occurs because operpoint is a handle object. For more information about handle objects, see Handle Object Behavior (MATLAB).

Tips

  • You can create new operpoint variables of in 3 ways:

    • Construct a new object with the operpoint command.

    • Create a new variable by assignment with the equals (=) operator.

    • Copy an operpoint object using the copy command.

    Using operpoint or copy creates a new, independent object. When you use assignment, there is a link between the old and new variable. For an example, see Copy an Operating Point.

Alternatives

As an alternative to the operpoint function, compute operating points to meet your application specifications. For more information, see Compute Steady-State Operating Points.
