pow2db
Convert power to decibels
Syntax
Description
Examples
Power Spectrum of a Noisy Sinusoid

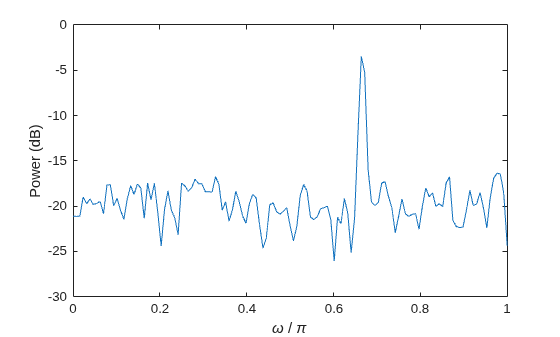

Generate 1024 samples of a noisy sinusoid having a normalized frequency of rad/sample. Estimate the power spectrum of the signal using pwelch
. Express the estimate in decibels and plot it.
n = 0:1024-1; x = cos(2*pi*n/3) + randn(size(n)); [pxx,w] = pwelch(x,'power'); dB = pow2db(pxx); plot(w/pi,dB) xlabel('\omega / \pi') ylabel('Power (dB)')

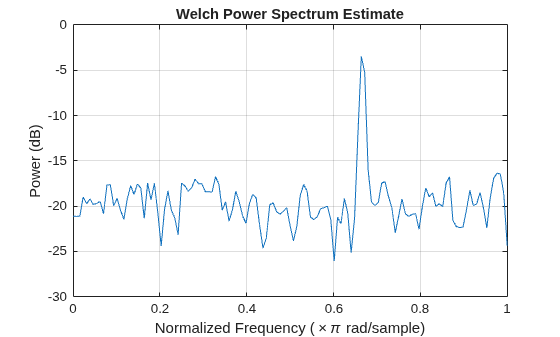

Repeat the computation using pwelch
without output arguments.
pwelch(x,'power')
Input Arguments
y
— Input array
scalar | vector | matrix | N-D array
Input array, specified as a scalar, vector, matrix, or N-D array. When
y
is nonscalar, pow2db
is an
element-wise operation.
Data Types: single
| double
Output Arguments
ydb
— Power measurements in decibels
scalar | vector | matrix | N-D array
Power measurements in decibels, returned as a scalar, vector, matrix, or
N-D array of the same size as
y
.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2007b
