Discrete-time analytic signal using Hilbert transform
Analytic Signal of a Sequence
Define a sequence and compute its analytic signal using
xr = [1 2 3 4]; x = hilbert(xr)
x = 1×4 complex 1.0000 + 1.0000i 2.0000 - 1.0000i 3.0000 - 1.0000i 4.0000 + 1.0000i
The imaginary part of
x is the Hilbert transform of
xr, and the real part is
imx = imag(x)
imx = 1×4 1 -1 -1 1
rex = real(x)
rex = 1×4 1 2 3 4
The last half of the discrete Fourier transform (DFT) of
x is zero. (In this example, the last half of the transform is just the last element.) The DC and Nyquist elements of
fft(x) are purely real.
dft = fft(x)
dft = 1×4 complex 10.0000 + 0.0000i -4.0000 + 4.0000i -2.0000 + 0.0000i 0.0000 + 0.0000i
Analytic Signal and Hilbert Transform
hilbert function finds the exact analytic signal for a finite block of data. You can also generate the analytic signal by using an finite impulse response (FIR) Hilbert transformer filter to compute an approximation to the imaginary part.

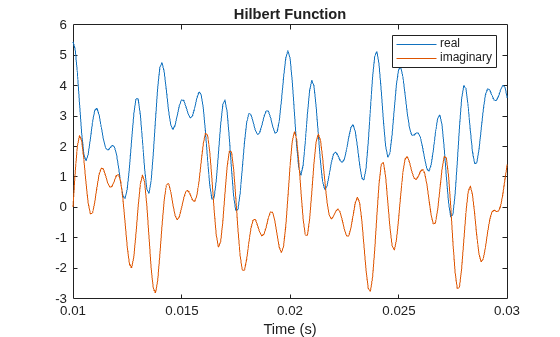

Generate a sequence composed of three sinusoids with frequencies 203, 721, and 1001 Hz. The sequence is sampled at 10 kHz for about 1 second. Use the
hilbert function to compute the analytic signal. Plot it between 0.01 seconds and 0.03 seconds.
fs = 1e4; t = 0:1/fs:1; x = 2.5 + cos(2*pi*203*t) + sin(2*pi*721*t) + cos(2*pi*1001*t); y = hilbert(x); plot(t,real(y),t,imag(y)) xlim([0.01 0.03]) legend('real','imaginary') title('hilbert Function') xlabel('Time (s)')

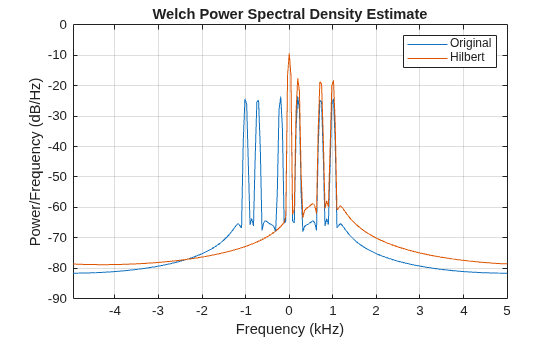

Compute Welch estimates of the power spectral densities of the original sequence and the analytic signal. Divide the sequences into Hamming-windowed, nonoverlapping sections of length 256. Verify that the analytic signal has no power at negative frequencies.

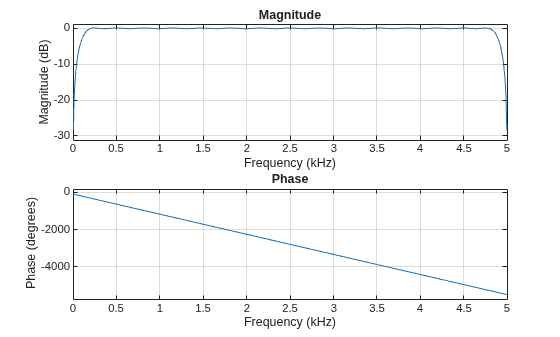

designfilt function to design a 60th-order Hilbert transformer FIR filter. Specify a transition width of 400 Hz. Visualize the frequency response of the filter.
fo = 60; d = designfilt('hilbertfir','FilterOrder',fo, ... 'TransitionWidth',400,'SampleRate',fs); freqz(d,1024,fs)
Filter the sinusoidal sequence to approximate the imaginary part of the analytic signal.
hb = filter(d,x);
The group delay of the filter,
grd, is equal to one-half the filter order. Compensate for this delay. Remove the first
grd samples of the imaginary part and the last

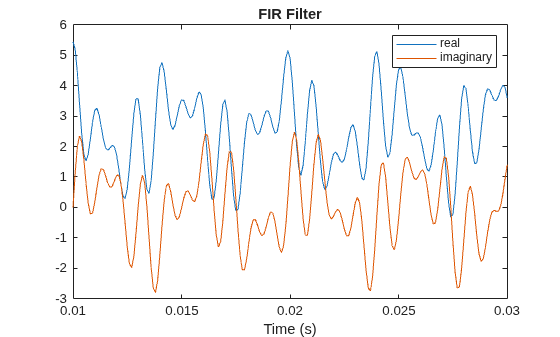

grd samples of the real part and the time vector. Plot the result between 0.01 seconds and 0.03 seconds.
grd = fo/2; y2 = x(1:end-grd) + 1j*hb(grd+1:end); t2 = t(1:end-grd); plot(t2,real(y2),t2,imag(y2)) xlim([0.01 0.03]) legend('real','imaginary') title('FIR Filter') xlabel('Time (s)')

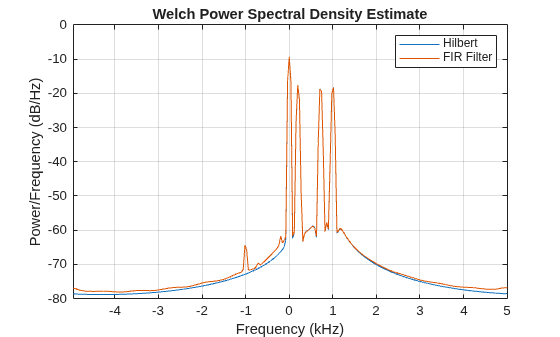

Estimate the power spectral density (PSD) of the approximate analytic signal and compare it to the
pwelch([y;[y2 zeros(1,grd)]].',256,0,,fs,'centered') legend('hilbert','FIR Filter')
xr — Input signal
vector | matrix
Input signal, specified as a real-valued vector or matrix. If
xr is complex, then
ignores its imaginary part.
sin(2*pi*(0:15)/16) specifies one period of a
sin(2*pi*(0:15)'./[16 8]) specifies a
two-channel sinusoidal signal.
n — DFT length
positive integer scalar
DFT length, specified as a positive integer scalar.
x — Analytic signal
vector | matrix
Analytic signal, returned as a vector or matrix.
hilbert returns a complex helical sequence,
sometimes called the analytic signal, from a real data
The analytic signal x = xr + jxi has a real part, xr, which is the original data, and an imaginary part, xi, which contains the Hilbert transform. The imaginary part is a version of the original real sequence with a 90° phase shift. Sines are therefore transformed to cosines, and conversely, cosines are transformed to sines. The Hilbert-transformed series has the same amplitude and frequency content as the original sequence. The transform includes phase information that depends on the phase of the original.
The Hilbert transform is useful in calculating instantaneous attributes of a time series, especially the amplitude and the frequency. The instantaneous amplitude is the amplitude of the complex Hilbert transform; the instantaneous frequency is the time rate of change of the instantaneous phase angle. For a pure sinusoid, the instantaneous amplitude and frequency are constant. The instantaneous phase, however, is a sawtooth, reflecting how the local phase angle varies linearly over a single cycle. For mixtures of sinusoids, the attributes are short term, or local, averages spanning no more than two or three points. See Hilbert Transform and Instantaneous Frequency for examples.
Reference  describes the Kolmogorov method for minimum
phase reconstruction, which involves taking the Hilbert transform of the logarithm
of the spectral density of a time series. The toolbox function
rceps performs this reconstruction.
The analytic signal for a sequence
xr has a one-sided
Fourier transform. That is, the transform vanishes for negative
frequencies. To approximate the analytic signal,
the FFT of the input sequence, replaces those FFT coefficients that correspond to
negative frequencies with zeros, and calculates the inverse FFT of the result.
hilbert uses a four-step algorithm:
Calculate the FFT of the input sequence, storing the result in a vector
Create a vector
h(i)have the values:
i= 2, 3, … ,
(n/2)+2, … ,
Calculate the element-wise product of
Calculate the inverse FFT of the sequence obtained in step 3 and returns the first
nelements of the result.
This algorithm was first introduced in . The
technique assumes that the input signal,
x, is a finite block of
data. This assumption allows the function to remove the spectral redundancy in
x exactly. Methods based on FIR filtering can only approximate
the analytic signal, but they have the advantage that they operate continuously on the
data. See Single-Sideband Amplitude Modulation for another example of a Hilbert transform computed
with an FIR filter.
 Claerbout, Jon F. Fundamentals of Geophysical Data Processing with Applications to Petroleum Prospecting. Oxford, UK: Blackwell, 1985.
 Marple, S. L. “Computing the Discrete-Time Analytic Signal via FFT.” IEEE® Transactions on Signal Processing. Vol. 47, 1999, pp. 2600–2603.
 Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. 2nd Ed. Upper Saddle River, NJ: Prentice Hall, 1999.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
