# Pure Pursuit

Linear and angular velocity control commands

• Library:
• Robotics System Toolbox / Mobile Robot Algorithms

## Description

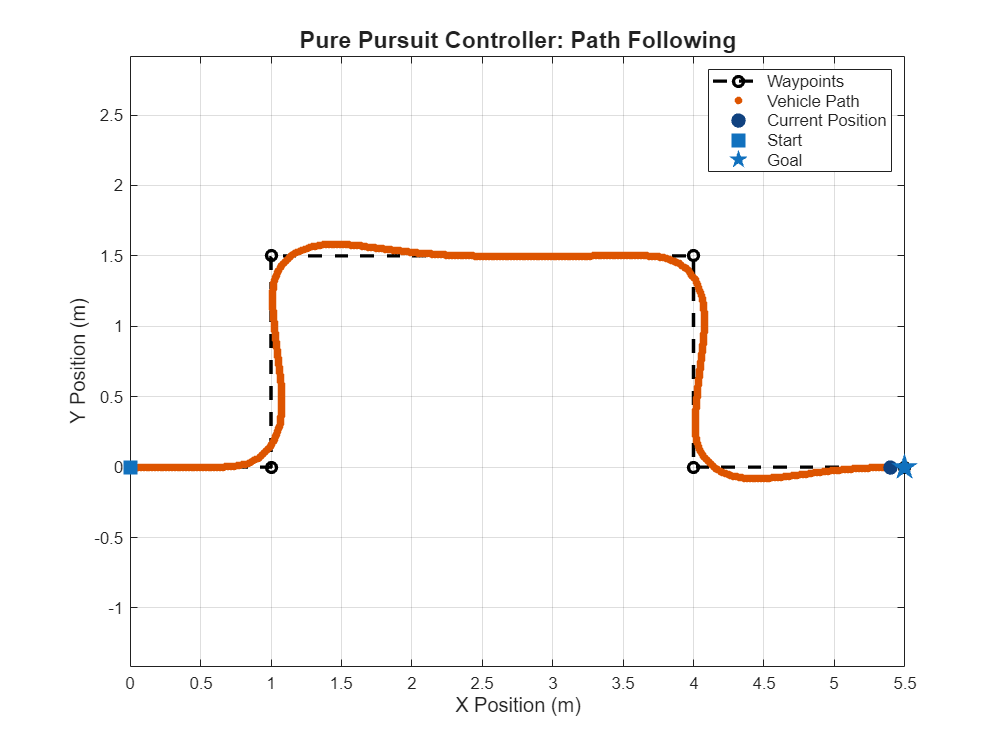

The Pure Pursuit block computes linear and angular velocity commands for following a path using a set of waypoints and the current pose of a differential drive robot. The block takes updated poses to update velocity commands for the robot to follow a path along a desired set of waypoints. Use the Max angular velocity and Desired linear velocity parameters to update the velocities based on the performance of the robot.

The Lookahead distance parameter computes a look-ahead point on the path, which is an instantaneous local goal for the robot. The angular velocity command is computed based on this point. Changing Lookahead distance has a significant impact on the performance of the algorithm. A higher look-ahead distance results in a smoother trajectory for the robot, but can cause the robot to cut corners along the path. Too low of a look-ahead distance can result in oscillations in tracking the path, causing unstable behavior. For more information on the pure pursuit algorithm, see Pure Pursuit Controller.

## Ports

### Input

expand all

Current robot pose, specified as an `[x y theta]` vector, which corresponds to the x-y position and orientation angle, theta. Positive angles are measured counterclockwise from the positive x-axis.

Waypoints, specified as an n-by-2 array of ```[x y]``` pairs, where n is the number of waypoints. You can generate the waypoints from the `robotics.PRM` class or specify them as an array in Simulink®.

### Output

expand all

Linear velocity, specified as a scalar in meters per second.

Data Types: `double`

Angular velocity, specified as a scalar in radians per second.

Data Types: `double`

Target direction for the robot, specified as a scalar in radians. The forward direction of the robot is considered zero radians, with positive angles measured counterclockwise. This output can be used as the input to the TargetDir port for the Vector Field Histogram block.

#### Dependencies

To enable this port, select the Show TargetDir output port parameter.

## Parameters

expand all

Desired linear velocity, specified as a scalar in meters per second. The controller assumes that the robot drives at a constant linear velocity and that the computed angular velocity is independent of the linear velocity.

Maximum angular velocity, specified as a scalar in radians per second. The controller saturates the absolute angular velocity output at the given value.

Look-ahead distance, specified as a scalar in meters. The look-ahead distance changes the response of the controller. A robot with a higher look-ahead distance produces smooth paths but takes larger turns at corners. A robot with a smaller look-ahead distance follows the path closely and takes sharp turns, but oscillate along the path. For more information on the effects of look-ahead distance, see Pure Pursuit Controller.

Select this parameter to enable the TargetDir out port. This port gives the target direction as an angle in radians from the forward position, with positive angles measured counterclockwise.
