hide_system

Hide RF Blockset model window created using rfsystem

    Description

    example

    hide_system(rfs) hides the RF Blockset™ model window created using rfsystem System object™ rfs.

    Examples

    collapse all

    Create a fifth-order bandpass RF filter and an amplifier with the gain of 3 dB.

    f1 = rffilter('ResponseType','Bandpass','FilterOrder',5,'PassbandFrequency',[4.85 5.15]*1e9);
    a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35);


    Create an rfbudget object using the elements at an input frequency of 5 GHz, an available input power of -30 dBm, and a bandwidth of 200 MHz.

    rfb = rfbudget([f1 a1],5e9,-30,200e6);


    Create an RF system using the rfbudget object.

    rfs = rfsystem(rfb,'ModelName','myRFmodel');


    Release system resources and turn off fast restart.

    release(rfs)

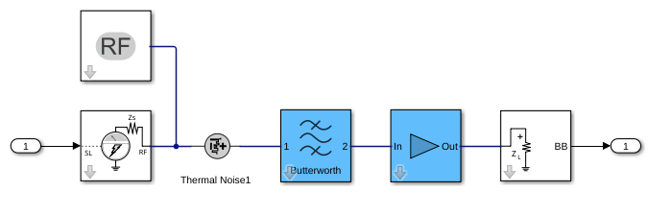

    Open an RF Blockset model of the designed RF system using the open_system object function.

    open_system(rfs)


    Hide the RF Blockset model.

    hide_system(rfs)


    Input Arguments

    collapse all

    RF system, specified as an rfsystem object

    Version History

    Introduced in R2021a
