amplifier

Create two-port amplifier element

Description

Use the amplifier object to create a two-port amplifier element or to analyze a commercial off-the-shelf (COTS) amplifier. You can also use the amplifier object to model an amplifier in an RF system created using an rfbudget object or the RF Budget Analyzer app and, then export this element to RF Blockset™ or to rfsystem System object™ for circuit envelope analysis.

Creation

Description

example

amp = amplifier creates an amplifier object with default property values.

example

amp = amplifier(Name=Value) sets amplifier object properties using one or more name-value arguments. You can specify multiple name-value arguments.

Properties

expand all

Name of amplifier, specified as a character vector. All names must be valid MATLAB® variable names.

Example: Name='amp'

S-parameter characterization in amplifier, specified as a logical true or 1 or false or 0. When you set this property to true, the amplifier object uses the NetworkData and NoiseData properties to compute gain, matching, and noise. When you set this property to false, the amplifier object use the Gain, Zin, Zout, and NF properties to compute gain, matching, and noise.

Example: UseSparameters=1

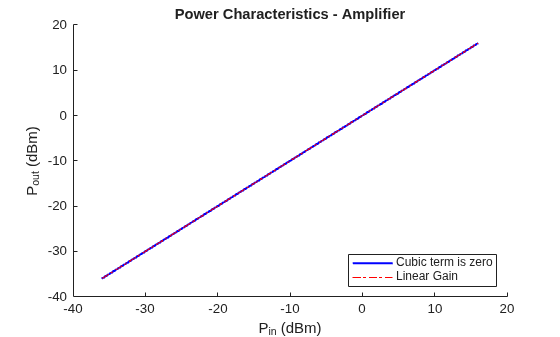

Available power gain, specified as a real finite scalar in dB.

Example: Gain=10

Noise figure, specified as a real finite nonnegative scalar dB.

Example: NF=-10

Second-order output-referred intercept point, specified as a real scalar in dBm.

Example: OIP2=8

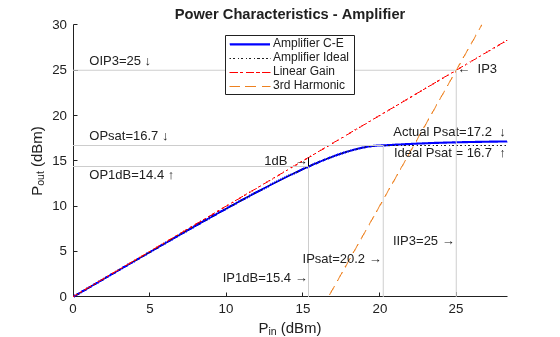

Third-order output-referred intercept point, specified as a real scalar in dBm.

Example: OIP3=10

Input impedance, specified as a positive real part finite scalar in ohms. You can also use a complex value with a positive real part.

Example: Zin=40

Output impedance, specified as a scalar in ohms. You can also use a complex value with a positive real part.

Example: Zout=40

Name of the two-port Touchstone file from which to extract the NetworkData and the NoiseData properties, specified as a string scalar or character vector.

Example: FileName='default.s2p'

Network data of the amplifier, specified as a two-port network parameter object. The network parameter objects are of the type:

Network parameter object defines the frequency-dependent gain and impedance matching for the amplifier, typically, a sparameters object from a two-port Touchstone file. To specify a frequency-independent network data, set the NetworkData property to []. This resets network data to a frequency-independent two-port network object defined by the Gain, Zin, and Zout properties.

Example: NetworkData=nd

Noise data of the amplifier, specified as a noiseParameters object. The noiseParameter object contains a frequency-dependent noise figure loaded from a two-port Touchstone file or built at the MATLAB® command line. To specify a frequency-independent noise figure, set the NoiseData to [].

Example: NoiseData=np

This property is read-only.

Number of ports, returned as a scalar integer.

This property is read-only.

Names of port terminals, returned as a cell vector.

Object Functions

cloneCreate copy of existing circuit element or circuit object

Examples

collapse all

Use the RF Toolbox amplifier object to model a Qorvo CMD240 COTS amplifier. First, use the sparameter object to capture the S-parameter data from the CMD240 data file (Copyright (c) Qorvo, Inc., reproduced with permission).

S = sparameters('cmd240-sparameters.s2p');
rfplot(S)

Figure contains an axes object. The axes object contains 4 objects of type line. These objects represent dB(S_{11}), dB(S_{21}), dB(S_{12}), dB(S_{22}).

Then use the noiseParameters object to build the noise data.

NF = [4 2.9 2.2 1.8 2.2 2 2.1 2.3 2.4 3.1 3.7];
freqs = (2:2:22)*1e9;
nd = noiseParameters(NF,freqs,50)
nd =
  noiseParameters with properties:

    Frequencies: [11x1 double]
           Fmin: [11x1 double]
       GammaOpt: [11x1 double]
             Rn: [11x1 double]

Create an amplifier using the CMD240 data file and add the noise data to the amplifier.

a1 = amplifier('FileName','cmd240-sparameters.s2p','OIP3',27.8);
a1.NoiseData = nd % clears FileName since there is no noise in the file.
a1 =
  amplifier: Amplifier element

              Name: 'Amplifier'
    UseNetworkData: 1
          FileName: ''
       NetworkData: [1x1 sparameters]
         NoiseData: [1x1 noiseParameters]
              OIP2: Inf
              OIP3: 27.8000
          NumPorts: 2
         Terminals: {'p1+'  'p2+'  'p1-'  'p2-'}

Alternatively, you can use the nport object to hold both the S-parameter and the noise data and then use the rfwrite function to create a Touchstone file.

n = nport(NetworkData=S,NoiseData=nd);
rfwrite(n,'CMD240withNF.s2p','Format','RI')
a = amplifier('FileName','CMD240withNF.s2p','OIP3',27.8);

Use the rfbudget object to compare harmonic balance and Friis analysis.

b = rfbudget(a,10e9,-30,1e3,'Solver','HarmonicBalance');
b.Friis
ans = struct with fields:
       OutputPower: -15.0349
    TransducerGain: 14.9651
                NF: 2.2000
              IIP2: []
              OIP2: []
              IIP3: 12.7828
              OIP3: 27.8000
               SNR: 111.7752

b.HarmonicBalance
ans = struct with fields:
       OutputPower: -15.0353
    TransducerGain: 14.9647
                NF: 2.1995
              IIP2: Inf
              OIP2: Inf
              IIP3: 12.7821
              OIP3: 27.7980
               SNR: 111.7756

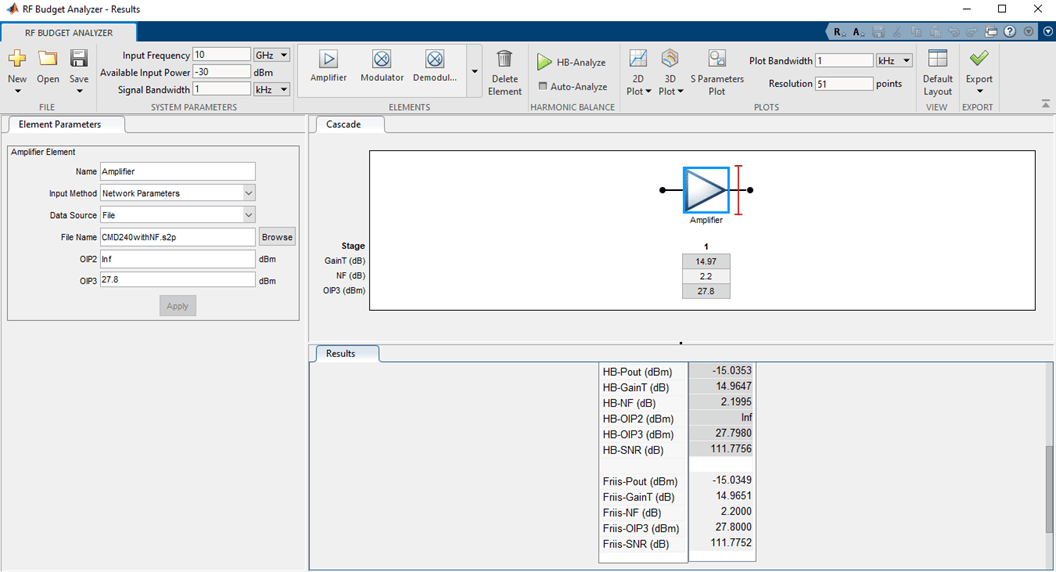

Gain is about 15 dB and noise figure is about 2.2 dB. This matches the product data sheet. For more information, see CMD240 product data sheet. You can verify this in RF Budget Analyzer app.

show(b)

You can also use the exportTestbench function to verify with RF Blockset simulation. Type exportTestbench(b) command at the command line to open measurement testbench from RF budget object.

exportTestbench(b)

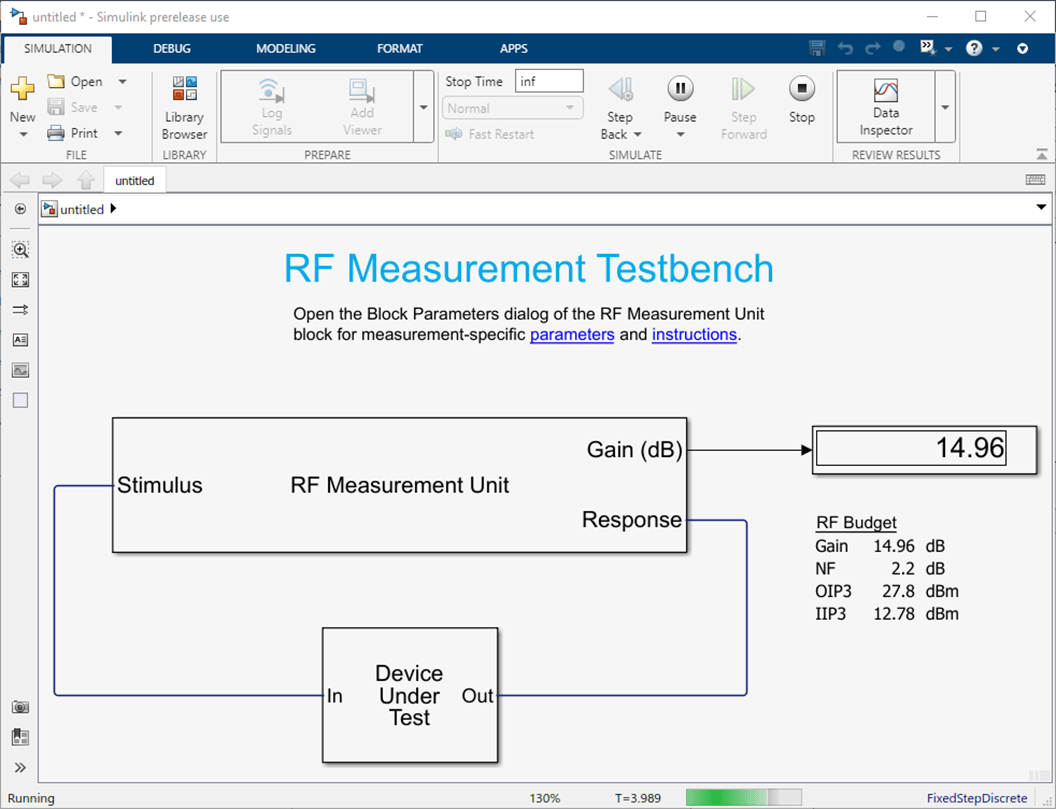

Click Run to see the Gain is about 15 dB.

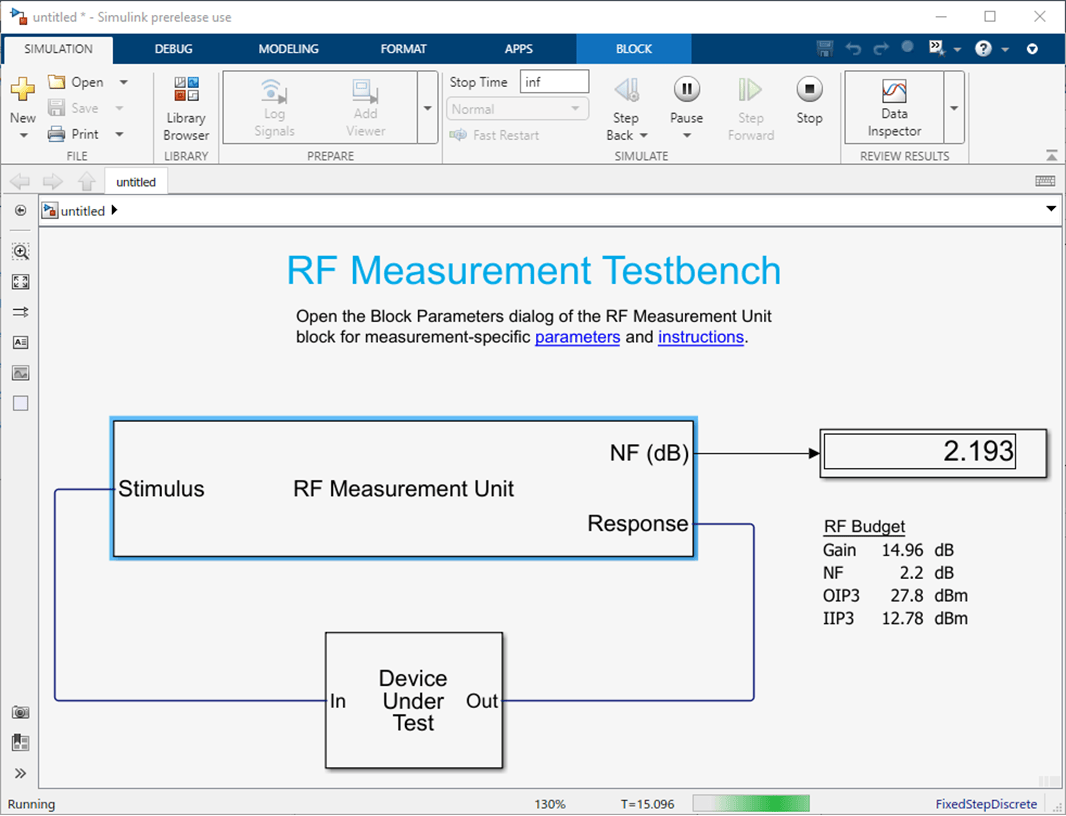

Set the Measured quantity of the RF Measurement Unit to NF and then click Run to see the noise figure is about 2.2 dB.

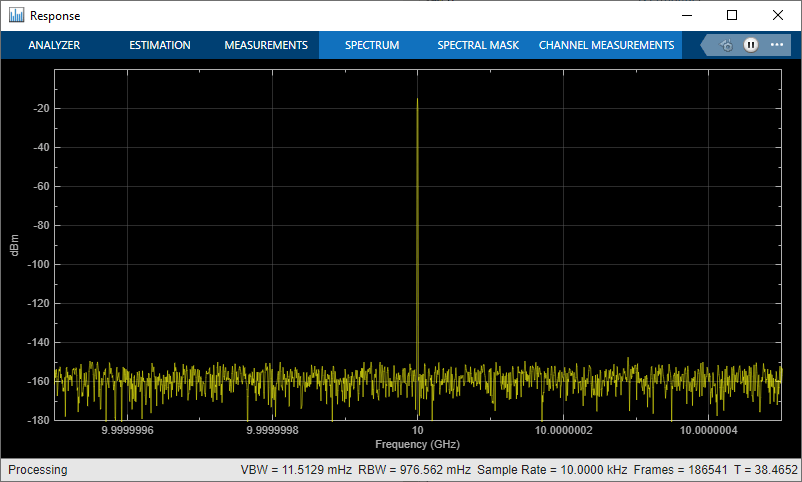

The amplifier response is displayed in the Spectrum Analyzer window.

Create an amplifier from the default.s2p Touchstone file.

a = amplifier(FileName='default.s2p')
a =
  amplifier: Amplifier element

              Name: 'Amplifier'
    UseNetworkData: 1
          FileName: 'default.s2p'
       NetworkData: [1x1 sparameters]
         NoiseData: [1x1 noiseParameters]
              OIP2: Inf
              OIP3: Inf
          NumPorts: 2
         Terminals: {'p1+'  'p2+'  'p1-'  'p2-'}

Define a measured noise figure, noise frequencies, and the reference impedance data.

NF = [4 3 2 2 2 2 2 2.5 2.5 3 3.5];
freqs = (2:2:22)*1e9;
z0 = 50;

Build the noise parameters from the measured NF data.

np = noiseParameters(NF,freqs,z0);

Add this noise data to the amplifier object.

a = amplifier(FileName='default.s2p',NoiseData=np)
a =
  amplifier: Amplifier element

              Name: 'Amplifier'
    UseNetworkData: 1
          FileName: ''
       NetworkData: [1x1 sparameters]
         NoiseData: [1x1 noiseParameters]
              OIP2: Inf
              OIP3: Inf
          NumPorts: 2
         Terminals: {'p1+'  'p2+'  'p1-'  'p2-'}

Create an amplifier object named 'LNA' and has a gain of 10 dB.

a = amplifier(Name='LNA',Gain=10)
a =
  amplifier: Amplifier element

              Name: 'LNA'
    UseNetworkData: 0
              Gain: 10
                NF: 0
              OIP2: Inf
              OIP3: Inf
               Zin: 50
              Zout: 50
          NumPorts: 2
         Terminals: {'p1+'  'p2+'  'p1-'  'p2-'}

Create an amplifier object with a gain of 4 dB. Create another amplifier object that has an output third-order intercept (OIP3) 13 dBm.

amp1 = amplifier('Gain',4);
amp2 = amplifier('OIP3',13);

Build a 2-port circuit using the amplifiers.

c = circuit([amp1 amp2])
c =
  circuit: Circuit element

    ElementNames: {'Amplifier'  'Amplifier_1'}
        Elements: [1x2 amplifier]
           Nodes: [0 1 2 3]
            Name: 'unnamed'
        NumPorts: 2
       Terminals: {'p1+'  'p2+'  'p1-'  'p2-'}

Create an amplifier with a gain of 4 dB.

a = amplifier('Gain',4);

Create a modulator with an OIP3 of 13 dBm.

m = modulator('OIP3',13);

Create an nport using passive.s2p.

n = nport('passive.s2p');

Create an rf element with a gain of 10 dB.

r = rfelement('Gain',10);

Calculate the rf budget of a series of rf elements at an input frequency of 2.1 GHz, an available input power of -30 dBm, and a bandwidth of 10 MHz.

b = rfbudget([a m r n],2.1e9,-30,10e6)
b =
  rfbudget with properties:

               Elements: [1x4 rf.internal.rfbudget.Element]
         InputFrequency: 2.1 GHz
    AvailableInputPower: -30 dBm
        SignalBandwidth:  10 MHz
                 Solver: Friis
             AutoUpdate: true

   Analysis Results
        OutputFrequency: (GHz) [  2.1    3.1    3.1     3.1]
            OutputPower: (dBm) [  -26    -26    -16   -20.6]
         TransducerGain: (dB)  [    4      4     14     9.4]
                     NF: (dB)  [    0      0      0  0.1392]
                   IIP2: (dBm) []
                   OIP2: (dBm) []
                   IIP3: (dBm) [  Inf      9      9       9]
                   OIP3: (dBm) [  Inf     13     23    18.4]
                    SNR: (dB)  [73.98  73.98  73.98   73.84]

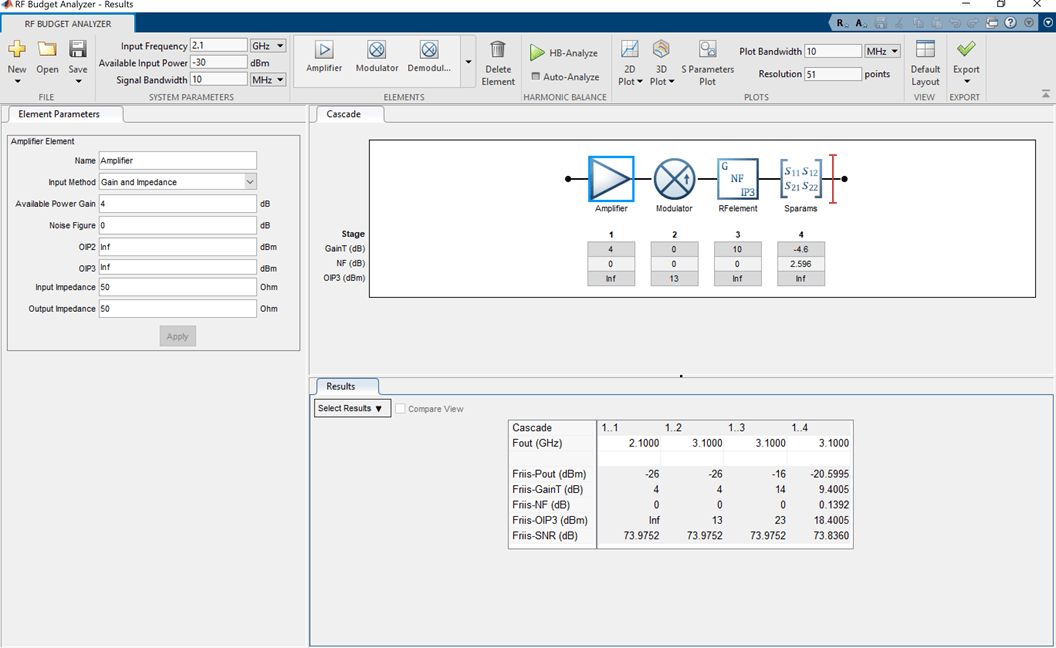

Type the show command at the command window to display the analysis in the RF Budget Analyzer app.

show(b)

Version History

Introduced in R2017a
