# pdeplot

Plot solution or mesh for 2-D problem

## Syntax

## Description

`pdeplot(`

plots the solution of a `model`

,"XYData",results.NodalSolution)`model`

at nodal locations as a
colored surface plot using the default `"cool"`

colormap.

`pdeplot(`

plots the temperature at nodal locations for a 2-D thermal analysis model. This
syntax creates a colored surface plot using the `model`

,"XYData",results.Temperature,"ColorMap","hot")`"hot"`

colormap.

`pdeplot(`

plots the von Mises stress and shows the deformed shape for a 2-D structural
analysis model.`model`

,"XYData",results.VonMisesStress,"Deformation",results.Displacement)

`pdeplot(`

plots the `model`

,"XYData",results.ModeShapes.ux)`x`

-component of the modal displacement for a 2-D
structural modal analysis model.

`pdeplot(___,`

plots the mesh, the data at the nodal locations, or both the mesh and the data,
depending on the `Name,Value`

)`Name,Value`

pair arguments. Use any
arguments from the previous syntaxes.

Specify at least one of the `FlowData`

(vector field plot),
`XYData`

(colored surface plot), or
`ZData`

(3-D height plot) name-value pairs. Otherwise,
`pdeplot`

plots the mesh with no data. You can combine
any number of plot types.

For a thermal model, you can plot temperature or gradient of temperature.

For a structural model, you can plot displacement, stress, strain, and von Mises stress. In addition, you can show the deformed shape and specify the scaling factor for the deformation plot.

For an electromagnetic model, you can plot electric or magnetic potentials, fields, and flux densities.

## Examples

### 2-D Mesh Plot

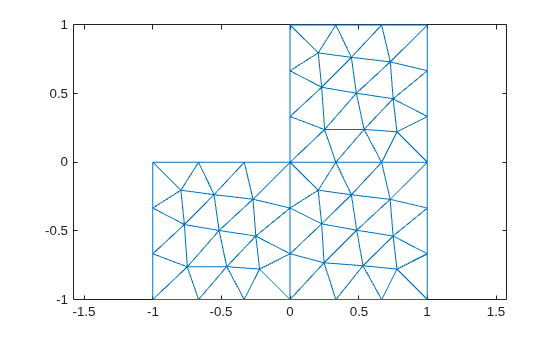

Create a PDE model. Include the geometry of the built-in function `lshapeg`

. Mesh the geometry and plot it.

model = createpde; geometryFromEdges(model,@lshapeg); mesh = generateMesh(model); pdeplot(model)

Alternatively, you can plot a mesh by using `mesh`

as an input argument.

pdeplot(mesh)

Another approach is to use the nodes and elements of the mesh as input arguments for `pdeplot`

.

pdeplot(mesh.Nodes,mesh.Elements)

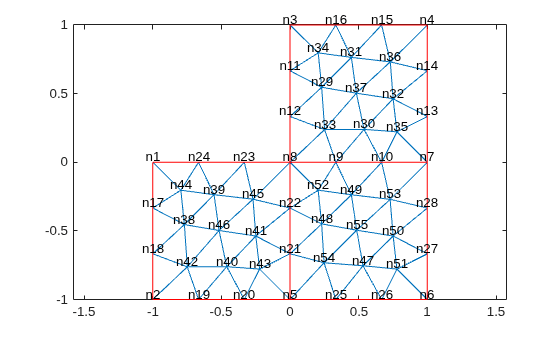

Display the node labels. Use `xlim`

and `ylim`

to zoom in on particular nodes.

pdeplot(model,"NodeLabels","on") xlim([-0.2,0.2]) ylim([-0.2,0.2])

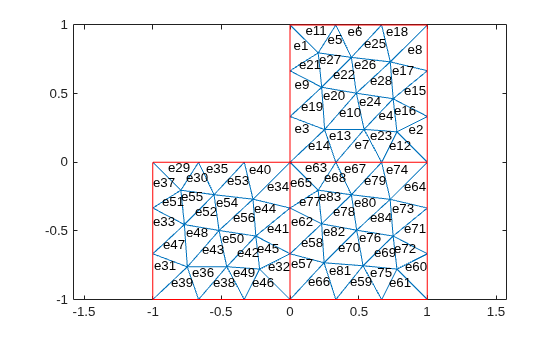

Display the element labels.

pdeplot(model,"ElementLabels","on") xlim([-0.2,0.2]) ylim([-0.2,0.2])

### Solution Plots

Create colored 2-D and 3-D plots of a solution to a PDE model.

Create a PDE model. Include the geometry of the built-in function `lshapeg`

. Mesh the geometry.

model = createpde; geometryFromEdges(model,@lshapeg); generateMesh(model);

Set the zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0);

Specify the coefficients and solve the PDE.

specifyCoefficients(model,"m",0, ... "d",0, ... "c",1, ... "a",0, ... "f",1); results = solvepde(model)

results = StationaryResults with properties: NodalSolution: [1177x1 double] XGradients: [1177x1 double] YGradients: [1177x1 double] ZGradients: [] Mesh: [1x1 FEMesh]

Access the solution at the nodal locations.

u = results.NodalSolution;

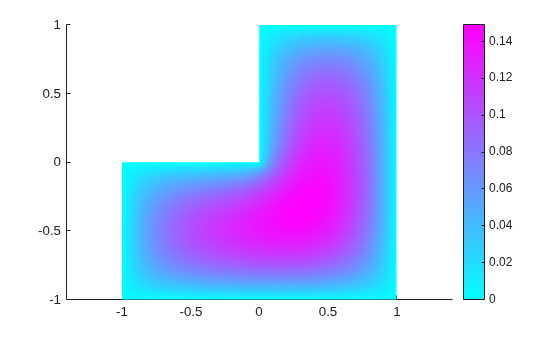

Plot the 2-D solution.

`pdeplot(model,"XYData",u)`

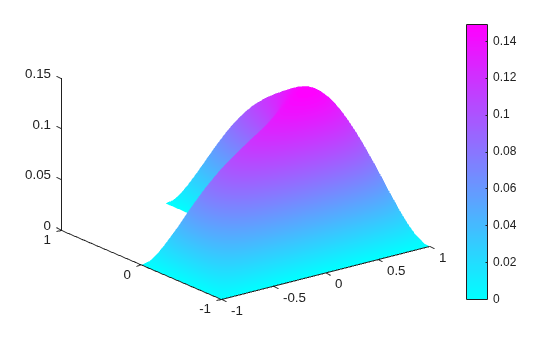

Plot the 3-D solution.

pdeplot(model,"XYData",u,"ZData",u)

### Solution Quiver Plot

Plot the gradient of a PDE solution as a quiver plot.

Create a PDE model. Include the geometry of the built-in function `lshapeg`

. Mesh the geometry.

model = createpde; geometryFromEdges(model,@lshapeg); generateMesh(model);

Set the zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0);

Specify coefficients and solve the PDE.

specifyCoefficients(model,"m",0, ... "d",0, ... "c",1, ... "a",0, ... "f",1); results = solvepde(model)

results = StationaryResults with properties: NodalSolution: [1177x1 double] XGradients: [1177x1 double] YGradients: [1177x1 double] ZGradients: [] Mesh: [1x1 FEMesh]

Access the gradient of the solution at the nodal locations.

ux = results.XGradients; uy = results.YGradients;

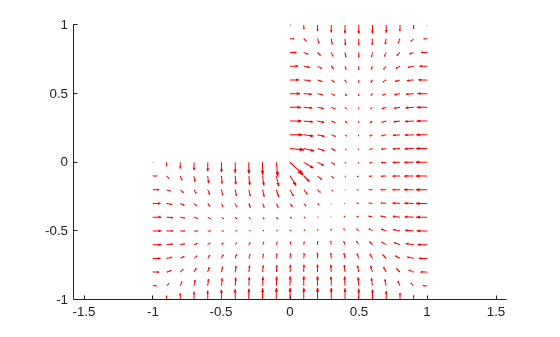

Plot the gradient as a quiver plot.

`pdeplot(model,"FlowData",[ux,uy])`

### Composite Plot

Plot the solution of a 2-D PDE in 3-D with the `"jet"`

coloring and a mesh, and include a quiver plot. Get handles to the axes objects.

Create a PDE model. Include the geometry of the built-in function `lshapeg`

. Mesh the geometry.

model = createpde; geometryFromEdges(model,@lshapeg); generateMesh(model);

Set zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ... "Edge",1:model.Geometry.NumEdges, ... "u",0);

Specify coefficients and solve the PDE.

specifyCoefficients(model,"m",0, ... "d",0, ... "c",1, ... "a",0, ... "f",1); results = solvepde(model)

results = StationaryResults with properties: NodalSolution: [1177x1 double] XGradients: [1177x1 double] YGradients: [1177x1 double] ZGradients: [] Mesh: [1x1 FEMesh]

Access the solution and its gradient at the nodal locations.

u = results.NodalSolution; ux = results.XGradients; uy = results.YGradients;

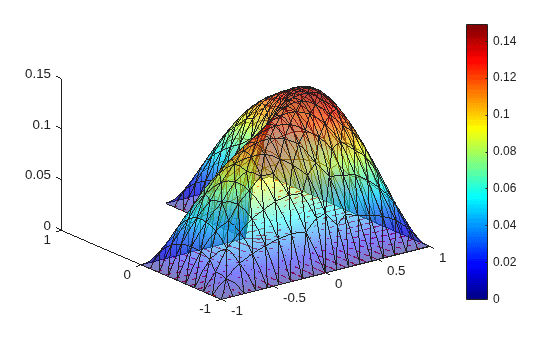

Plot the solution in 3-D with the `"jet"`

coloring and a mesh, and include the gradient as a quiver plot.

h = pdeplot(model,"XYData",u,"ZData",u, ... "FaceAlpha",0.5, ... "FlowData",[ux,uy], ... "ColorMap","jet", ... "Mesh","on");

### Solution to Transient Thermal Model

Solve a 2-D transient thermal problem.

Create a transient thermal model for this problem.

thermalmodel = createpde("thermal","transient");

Create the geometry and include it in the model.

SQ1 = [3; 4; 0; 3; 3; 0; 0; 0; 3; 3]; D1 = [2; 4; 0.5; 1.5; 2.5; 1.5; 1.5; 0.5; 1.5; 2.5]; gd = [SQ1 D1]; sf = 'SQ1+D1'; ns = char('SQ1','D1'); ns = ns'; dl = decsg(gd,sf,ns); geometryFromEdges(thermalmodel,dl); pdegplot(thermalmodel,"EdgeLabels","on","FaceLabels","on") xlim([-1.5 4.5]) ylim([-0.5 3.5]) axis equal

For the square region, assign these thermal properties:

Thermal conductivity is $10\text{\hspace{0.17em}}\mathrm{W}/\left(\mathrm{m}{\cdot}^{\circ}\mathrm{C}\right)$

Mass density is $2\text{\hspace{0.17em}}\mathrm{kg}/{\mathrm{m}}^{3}$

Specific heat is $0.1\text{\hspace{0.17em}}\mathrm{J}/\left({\mathrm{kg}\cdot}^{\circ}\mathrm{C}\right)$

thermalProperties(thermalmodel,"ThermalConductivity",10, ... "MassDensity",2, ... "SpecificHeat",0.1, ... "Face",1);

For the diamond region, assign these thermal properties:

Thermal conductivity is $2\text{\hspace{0.17em}}\mathrm{W}/\left(\mathrm{m}{\cdot}^{\circ}\mathrm{C}\right)$

Mass density is $1\text{\hspace{0.17em}}\mathrm{kg}/{\mathrm{m}}^{3}$

Specific heat is $0.1\text{\hspace{0.17em}}\mathrm{J}/\left({\mathrm{kg}\cdot}^{\circ}\mathrm{C}\right)$

thermalProperties(thermalmodel,"ThermalConductivity",2, ... "MassDensity",1, ... "SpecificHeat",0.1, ... "Face",2);

Assume that the diamond-shaped region is a heat source with a density of $4\text{\hspace{0.17em}}\mathrm{W}/{\mathrm{m}}^{2}$.

`internalHeatSource(thermalmodel,4,"Face",2);`

Apply a constant temperature of 0 **°**C to the sides of the square plate.

thermalBC(thermalmodel,"Temperature",0,"Edge",[1 2 7 8]);

Set the initial temperature to 0 **°**C.

thermalIC(thermalmodel,0);

Generate the mesh.

generateMesh(thermalmodel);

The dynamics for this problem are very fast. The temperature reaches a steady state in about 0.1 second. To capture the most active part of the dynamics, set the solution time to `logspace(-2,-1,10)`

. This command returns 10 logarithmically spaced solution times between 0.01 and 0.1.

tlist = logspace(-2,-1,10);

Solve the equation.

thermalresults = solve(thermalmodel,tlist);

Plot the solution with isothermal lines by using a contour plot.

T = thermalresults.Temperature; pdeplot(thermalmodel,"XYData",T(:,10),"Contour","on","ColorMap","hot")

### Plot Deformed Shape for Static Plane-Strain Problem

Create a structural analysis model for a static plane-strain problem.

structuralmodel = createpde("structural","static-planestrain");

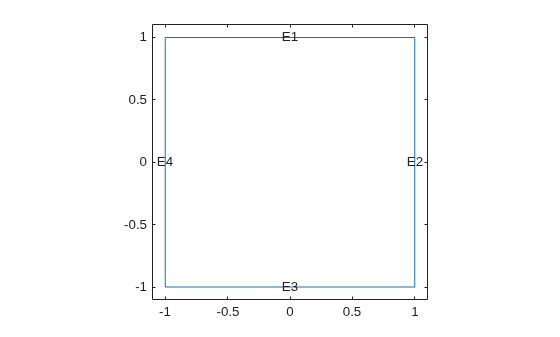

Create the geometry and include it in the model. Plot the geometry.

geometryFromEdges(structuralmodel,@squareg); pdegplot(structuralmodel,"EdgeLabels","on") axis equal

Specify Young's modulus and Poisson's ratio.

structuralProperties(structuralmodel,"PoissonsRatio",0.3, ... "YoungsModulus",210E3);

Specify the *x*-component of the enforced displacement for edge 1.

structuralBC(structuralmodel,"XDisplacement",0.001,"Edge",1);

Specify that edge 3 is a fixed boundary.

structuralBC(structuralmodel,"Constraint","fixed","Edge",3);

Generate a mesh and solve the problem.

generateMesh(structuralmodel); structuralresults = solve(structuralmodel);

Plot the deformed shape using the default scale factor. By default, `pdeplot`

internally determines the scale factor based on the dimensions of the geometry and the magnitude of deformation.

pdeplot(structuralmodel, ... "XYData",structuralresults.VonMisesStress, ... "Deformation",structuralresults.Displacement, ... "ColorMap","jet")

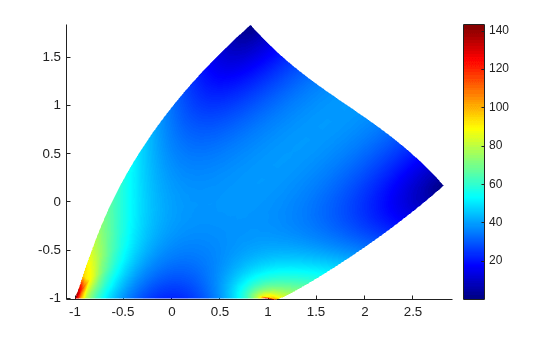

Plot the deformed shape with the scale factor 500.

pdeplot(structuralmodel, ... "XYData",structuralresults.VonMisesStress, ... "Deformation",structuralresults.Displacement, ... "DeformationScaleFactor",500,... "ColorMap","jet")

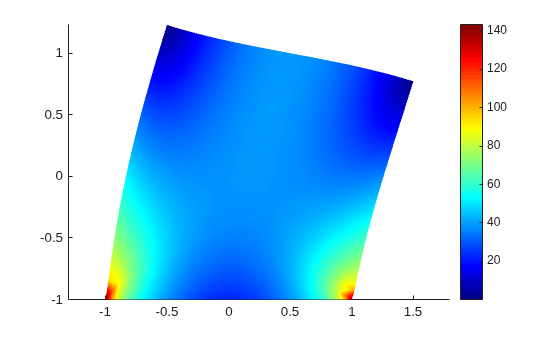

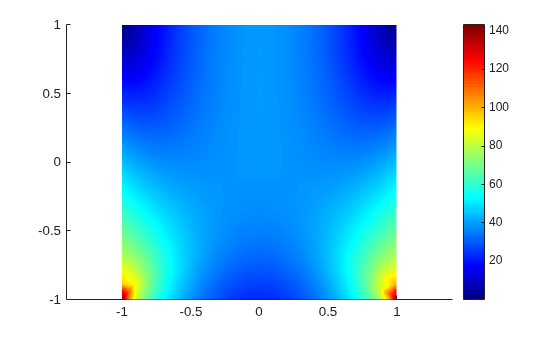

Plot the deformed shape without scaling.

pdeplot(structuralmodel,"XYData",structuralresults.VonMisesStress, ... "ColorMap","jet")

### Solution to Modal Analysis Structural Model

Find the fundamental (lowest) mode of a 2-D cantilevered beam, assuming prevalence of the plane-stress condition.

Specify geometric and structural properties of the beam, along with a unit plane-stress thickness.

length = 5; height = 0.1; E = 3E7; nu = 0.3; rho = 0.3/386;

Create a modal plane-stress model, assign a geometry, and generate a mesh.

structuralmodel = createpde("structural","modal-planestress"); gdm = [3;4;0;length;length;0;0;0;height;height]; g = decsg(gdm,'S1',('S1')'); geometryFromEdges(structuralmodel,g);

Define a maximum element size (five elements through the beam thickness).

```
hmax = height/5;
msh=generateMesh(structuralmodel,"Hmax",hmax);
```

Specify the structural properties and boundary constraints.

structuralProperties(structuralmodel,"YoungsModulus",E, ... "MassDensity",rho, ... "PoissonsRatio",nu); structuralBC(structuralmodel,"Edge",4,"Constraint","fixed");

Compute the analytical fundamental frequency (Hz) using the beam theory.

I = height^3/12; analyticalOmega1 = 3.516*sqrt(E*I/(length^4*(rho*height)))/(2*pi)

analyticalOmega1 = 126.9498

Specify a frequency range that includes an analytically computed frequency and solve the model.

`modalresults = solve(structuralmodel,"FrequencyRange",[0,1e6])`

modalresults = ModalStructuralResults with properties: NaturalFrequencies: [32x1 double] ModeShapes: [1x1 FEStruct] Mesh: [1x1 FEMesh]

The solver finds natural frequencies and modal displacement values at nodal locations. To access these values, use `modalresults.NaturalFrequencies`

and `modalresults.ModeShapes`

.

modalresults.NaturalFrequencies/(2*pi)

ans =32×110^{5}× 0.0013 0.0079 0.0222 0.0433 0.0711 0.0983 0.1055 0.1462 0.1930 0.2455 ⋮

modalresults.ModeShapes

ans = FEStruct with properties: ux: [6511x32 double] uy: [6511x32 double] Magnitude: [6511x32 double]

Plot the *y*-component of the solution for the fundamental frequency.

pdeplot(structuralmodel,"XYData",modalresults.ModeShapes.uy(:,1)) title(['First Mode with Frequency ', ... num2str(modalresults.NaturalFrequencies(1)/(2*pi)),' Hz']) axis equal

### Solution to 2-D Electrostatic Analysis Model

Solve an electromagnetic problem and find the electric potential and field distribution for a 2-D geometry representing a plate with a hole.

Create an electromagnetic model for electrostatic analysis.

emagmodel = createpde("electromagnetic","electrostatic");

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHolePlanar.stl"); pdegplot(emagmodel,"EdgeLabels","on")

Specify the vacuum permittivity value in the SI system of units.

emagmodel.VacuumPermittivity = 8.8541878128E-12;

Specify the relative permittivity of the material.

`electromagneticProperties(emagmodel,"RelativePermittivity",1);`

Apply the voltage boundary conditions on the edges framing the rectangle and the circle.

electromagneticBC(emagmodel,"Voltage",0,"Edge",1:4); electromagneticBC(emagmodel,"Voltage",1000,"Edge",5);

Specify the charge density for the entire geometry.

`electromagneticSource(emagmodel,"ChargeDensity",5E-9);`

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)

R = ElectrostaticResults with properties: ElectricPotential: [1218x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

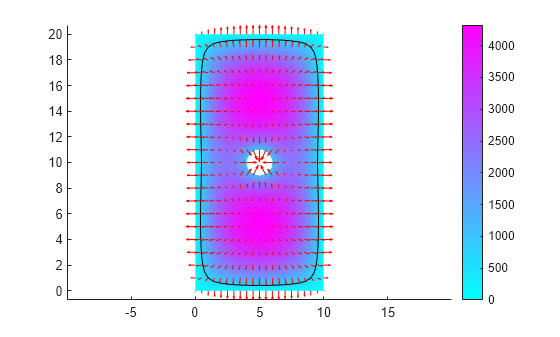

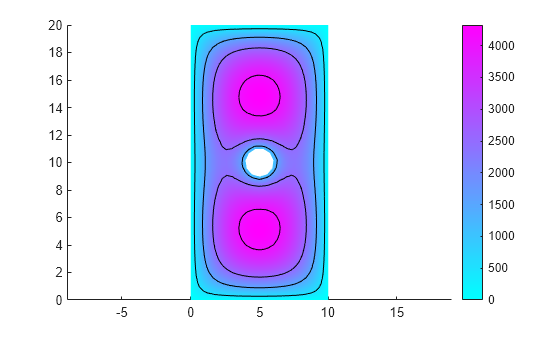

Plot the electric potential and field.

pdeplot(emagmodel,"XYData",R.ElectricPotential, ... "FlowData",[R.ElectricField.Ex ... R.ElectricField.Ey]) axis equal

### [p,e,t] Mesh and Solution Plots

Plot the `p,e,t`

mesh. Display the solution using 2-D and 3-D colored plots.

Create the geometry, mesh, boundary conditions, PDE coefficients, and solution.

[p,e,t] = initmesh('lshapeg'); u = assempde("lshapeb",p,e,t,1,0,1);

Plot the mesh.

pdeplot(p,e,t)

Plot the solution as a 2-D colored plot.

`pdeplot(p,e,t,"XYData",u)`

Plot the solution as a 3-D colored plot.

pdeplot(p,e,t,"XYData",u,"ZData",u)

## Input Arguments

`model`

— Model object

`PDEModel`

object | `ThermalModel`

object | `StructuralModel`

object | `ElectromagneticModel`

object

Model object, specified as a `PDEModel`

object,
`ThermalModel`

object,
`StructuralModel`

object, or
`ElectromagneticModel`

object.

**Example: **`model = createpde(1)`

**Example: **```
thermalmodel =
createpde("thermal","steadystate")
```

**Example: **```
structuralmodel =
createpde("structural","static-solid")
```

**Example: **```
emagmodel =
createpde("electromagnetic","magnetostatic")
```

`mesh`

— Mesh object

`Mesh`

property of a `PDEModel`

object | output of `generateMesh`

Mesh object, specified as the `Mesh`

property of a `PDEModel`

object or as the
output of `generateMesh`

.

**Example: **`model.Mesh`

`nodes`

— Nodal coordinates

2-by-*NumNodes* matrix

Nodal coordinates, specified as a 2-by-*NumNodes* matrix.
*NumNodes* is the number of nodes.

`elements`

— Element connectivity matrix in terms of node IDs

3-by-*NumElements* matrix | 6-by-*NumElements* matrix

Element connectivity matrix in terms of the node IDs, specified as a
3-by-*NumElements* or
6-by-*NumElements* matrix. Linear meshes contain only
corner nodes. For linear meshes, the connectivity matrix has three nodes per
2-D element. Quadratic meshes contain corner nodes and nodes in the middle
of each edge of an element. For quadratic meshes, the connectivity matrix
has six nodes per 2-D element.

`p`

— Mesh points

matrix

Mesh points, specified as a 2-by-`Np`

matrix of points, where
`Np`

is the number of points in the mesh. For a description of the
(`p`

,`e`

,`t`

) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the **PDE Modeler** app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

`e`

— Mesh edges

matrix

Mesh edges, specified as a `7`

-by-`Ne`

matrix of edges,
where `Ne`

is the number of edges in the mesh. For a description of the
(`p`

,`e`

,`t`

) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the **PDE Modeler** app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

`t`

— Mesh triangles

matrix

Mesh triangles, specified as a `4`

-by-`Nt`

matrix of
triangles, where `Nt`

is the number of triangles in the mesh. For a
description of the (`p`

,`e`

,`t`

)
matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the **PDE Modeler** app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`pdeplot(model,"XYData",u,"ZData",u)`

When you use a `PDEModel`

object,
`pdeplot(model,"XYData",u,"ZData",u)`

sets surface plot
coloring to the solution `u`

, and sets the heights for a 3-D plot
to `u`

. Here `u`

is a
`NodalSolution`

property of the PDE results returned by
`solvepde`

or `solvepdeeig`

.

When you use a `[p,e,t]`

representation,
`pdeplot(p,e,t,"XYData",u,"ZData",u)`

sets surface plot
coloring to the solution `u`

and sets the heights for a 3-D plot to
the solution `u`

. Here `u`

is a solution returned
by a legacy solver, such as `assempde`

.

**Tip**

Specify at least one of the `FlowData`

(vector field plot),
`XYData`

(colored surface plot), or
`ZData`

(3-D height plot) name-value pairs. Otherwise,
`pdeplot`

plots the mesh with no data.

**Data Plots**

`XYData`

— Colored surface plot data

vector

Colored surface plot data, specified as a vector. If you use a
`[p,e,t]`

representation, specify data for points
in a vector of length `size(p,2)`

, or specify data for
triangles in a vector of length `size(t,2)`

.

Typically, you set

`XYData`

to the solution`u`

. The`pdeplot`

function uses`XYData`

for coloring both 2-D and 3-D plots.`pdeplot`

uses the colormap specified in the`ColorMap`

name-value pair, using the style specified in the`XYStyle`

name-value pair.When the

`Contour`

name-value pair is`"on"`

,`pdeplot`

also plots level curves of`XYData`

.`pdeplot`

plots the real part of complex data.

To plot the `k`

th component of a solution to a PDE
system, extract the relevant part of the solution. For example, when
using a `PDEModel`

object, specify:

results = solvepde(model); u = results.NodalSolution; % each column of u has one component of u pdeplot(model,"XYData",u(:,k)) % data for column k

When using a `[p,e,t]`

representation,
specify:

np = size(p,2); % number of node points uk = reshape(u,np,[]); % each uk column has one component of u pdeplot(p,e,t,"XYData",uk(:,k)) % data for column k

**Example: **`"XYData",u`

**Data Types: **`double`

`XYStyle`

— Coloring choice

`"interp"`

(default) | `"off"`

| `"flat"`

Coloring choice, specified as one of the following values:

`"off"`

— No shading, only mesh is displayed.`"flat"`

— Each triangle in the mesh has a uniform color.`"interp"`

— Plot coloring is smoothly interpolated.

The coloring choice relates to the `XYData`

name-value pair.

**Example: **`"XYStyle","flat"`

**Data Types: **`char`

| `string`

`ZData`

— Data for 3-D plot heights

matrix

Data for the 3-D plot heights, specified as a matrix. If you use a
`[p,e,t]`

representation, provide data for points
in a vector of length `size(p,2)`

or data for triangles
in a vector of length `size(t,2)`

.

Typically, you set

`ZData`

to`u`

, the solution. The`XYData`

name-value pair sets the coloring of the 3-D plot.The

`ZStyle`

name-value pair specifies whether the plot is continuous or discontinuous.`pdeplot`

plots the real part of complex data.

To plot the `k`

th component of a solution to a PDE
system, extract the relevant part of the solution. For example, when
using a `PDEModel`

object, specify:

results = solvepde(model); u = results.NodalSolution; % each column of u has one component of u pdeplot(model,"XYData",u(:,k),"ZData",u(:,k)) % data for column k

When using a `[p,e,t]`

representation,
specify:

np = size(p,2); % number of node points uk = reshape(u,np,[]); % each uk column has one component of u pdeplot(p,e,t,"XYData",uk(:,k),"ZData",uk(:,k)) % data for column k

**Example: **`"ZData",u`

**Data Types: **`double`

`ZStyle`

— 3-D plot style

`"continuous"`

(default) | `"off"`

| `"discontinuous"`

3-D plot style, specified as one of these values:

`"off"`

— No 3-D plot.`"discontinuous"`

— Each triangle in the mesh has a uniform height in a 3-D plot.`"continuous"`

— 3-D surface plot is continuous.

If you use `ZStyle`

without specifying the
`ZData`

name-value pair, then
`pdeplot`

ignores
`ZStyle`

.

**Example: **`"ZStyle","discontinuous"`

**Data Types: **`char`

| `string`

`FlowData`

— Data for quiver plot

matrix

Data for the quiver plot,
specified as an `M`

-by-`2`

matrix,
where `M`

is the number of mesh nodes.
`FlowData`

contains the *x* and
*y* values of the field at the mesh points.

When you use a `PDEModel`

object, set
`FlowData`

as follows:

```
results = solvepde(model);
gradx = results.XGradients;
grady = results.YGradients;
pdeplot(model,"FlowData",[gradx grady])
```

When you use a `[p,e,t]`

representation, set
`FlowData`

as follows:

[gradx,grady] = pdegrad(p,t,u); % Calculate gradient pdeplot(p,e,t,"FlowData",[gradx;grady])

When you use `ZData`

to represent a 2-D PDE solution
as a 3-D plot and you also include a quiver plot, the quiver plot
appears in the *z* = 0 plane.

`pdeplot`

plots the real part of complex data.

**Example: **`"FlowData",[ux uy]`

**Data Types: **`double`

`FlowStyle`

— Indicator to show quiver plot

`"arrow"`

(default) | `"off"`

Indicator to show the quiver plot, specified as
`"arrow"`

or `"off"`

. Here,
`"arrow"`

displays the quiver plot specified by the `FlowData`

name-value pair.

**Example: **`"FlowStyle","off"`

**Data Types: **`char`

| `string`

`XYGrid`

— Indicator to convert mesh data to *x*-*y* grid

`"off"`

(default) | `"on"`

Indicator to convert the mesh data to
*x*-*y* grid before plotting,
specified as `"off"`

or `"on"`

.

**Note**

This conversion can change the geometry and lessen the quality of the plot.

By default, the grid has about `sqrt(size(t,2))`

elements in each direction.

**Example: **`"XYGrid","on"`

**Data Types: **`char`

| `string`

`GridParam`

— Customized *x*-*y* grid

`[tn;a2;a3]`

from an earlier call to
`tri2grid`

Customized *x*-*y* grid, specified
as a matrix `[tn;a2;a3]`

. For example:

[~,tn,a2,a3] = tri2grid(p,t,u,x,y); pdeplot(p,e,t,"XYGrid","on","GridParam",[tn;a2;a3],"XYData",u)

For details on the grid data and its `x`

and
`y`

arguments, see `tri2grid`

. The
`tri2grid`

function does not work with
`PDEModel`

objects.

**Example: **`"GridParam",[tn;a2;a3]`

**Data Types: **`double`

**Mesh Plots**

`NodeLabels`

— Node labels

`"off"`

(default) | `"on"`

Node labels, specified as `"off"`

or
`"on"`

.

`pdeplot`

ignores `NodeLabels`

when you use it with `ZData`

.

**Example: **`"NodeLabels","on"`

**Data Types: **`char`

| `string`

`ElementLabels`

— Element labels

`"off"`

(default) | `"on"`

Element labels, specified as `"off"`

or
`"on"`

.

`pdeplot`

ignores `ElementLabels`

when you use it with `ZData`

.

**Example: **`"ElementLabels","on"`

**Data Types: **`char`

| `string`

**Structural Analysis Plots**

`Deformation`

— Data for plotting deformed shape

`Displacement`

property of
`StaticStructuralResults`

object

Data for plotting the deformed shape for a structural analysis model,
specified as the `Displacement`

property of the
`StaticStructuralResults`

object.

In an undeformed shape, center nodes in quadratic meshes are always added at half-distance between corners. When you plot a deformed shape, the center nodes might move away from the edge centers.

**Example: **`"Deformation",structuralresults.Displacement`

`DeformationScaleFactor`

— Scaling factor for plotting deformed shape

real number

Scaling factor for plotting the deformed shape, specified as a real
number. Use this argument with the `Deformation`

name-value pair. The default value is defined internally, based on the
dimensions of the geometry and the magnitude of the deformation.

**Example: **`"DeformationScaleFactor",100`

**Data Types: **`double`

**Annotations and Appearance**

`ColorBar`

— Indicator to include color bar

`"on"`

(default) | `"off"`

Indicator to include a color bar, specified as `"on"`

or `"off"`

. Specify `"on"`

to display
a bar giving the numeric values of colors in the plot. For details, see
`colorbar`

. The
`pdeplot`

function uses the colormap specified in
the `ColorMap`

name-value pair.

**Example: **`"ColorBar","off"`

**Data Types: **`char`

| `string`

`ColorMap`

— Colormap

`"cool"`

(default) | `ColorMap`

value or matrix of such values

Colormap, specified as a value representing a built-in colormap, or a
colormap matrix. For details, see `colormap`

.

`ColorMap`

must be used with the
`XYData`

name-value pair.

**Example: **`"ColorMap","jet"`

**Data Types: **`double`

| `char`

| `string`

`Mesh`

— Indicator to show mesh

`"off"`

(default) | `"on"`

Indicator to show the mesh, specified as `"on"`

or
`"off"`

. Specify `"on"`

to show
the mesh in the plot.

**Example: **`"Mesh","on"`

**Data Types: **`char`

| `string`

`Title`

— Title of plot

character vector

Title of plot, specified as a character vector or a string.

**Example: **`"Title","Solution Plot"`

**Data Types: **`char`

| `string`

`FaceAlpha`

— Surface transparency for 3-D geometry

`1`

(default) | real number from `0`

through `1`

Surface transparency for 3-D geometry, specified as a real number from `0`

through `1`

. The default value `1`

indicates no
transparency. The value `0`

indicates complete transparency.

**Example: **`"FaceAlpha",0.5`

**Data Types: **`double`

`Contour`

— Indicator to plot level curves

`"off"`

(default) | `"on"`

Indicator to plot level curves, specified as `"off"`

or `"on"`

. Specify `"on"`

to plot
level curves for the `XYData`

data. Specify the levels
with the `Levels`

name-value pair.

**Example: **`"Contour","on"`

**Data Types: **`char`

| `string`

`Levels`

— Levels for contour plot

`10`

(default) | positive integer | vector of level values

Levels for contour plot, specified as a positive integer or a vector of level values.

Positive integer — Plot

`Levels`

as equally spaced contours.Vector — Plot contours at the values in

`Levels`

.

To obtain a contour plot, set the `Contour`

name-value pair to `"on"`

.

**Example: **`"Levels",16`

**Data Types: **`double`

## Output Arguments

`h`

— Handles to graphics objects

vector

Handles to graphics objects, returned as a vector.

## More About

### Quiver Plot

A *quiver plot* is a plot of a vector field. It is also
called a *flow plot*.

Arrows show the direction of the field, with the lengths of
the arrows showing the relative sizes of the field strength. For details
on quiver plots, see `quiver`

.

## Version History

**Introduced before R2006a**

### R2021a: Electromagnetic Analysis

You can now plot electromagnetic results, such as electric and magnetic potentials, fields, and fluxes.

### R2020a: Improved performance for plots with many text labels

`pdeplot`

shows faster rendering and better responsiveness for
plots that display many text labels. Code containing
`findobj(fig,'Type','Text')`

no longer returns labels on
figures produced by `pdeplot`

.

### R2018a: Highlighting particular nodes and elements on mesh plots

`pdeplot`

accepts node and element IDs as input arguments,
letting you highlight particular nodes and elements on mesh plots.

### R2017b: Structural Analysis

You can now plot structural results, such as displacements, stresses, and strains.

### R2017a: Thermal Analysis

You can now plot thermal results, such as temperatures and temperature gradients.

### R2016b: Transparency, node and element labels

You can now set plot transparency by using `FaceAlpha`

, and
display node and element labels by using `NodeLabels`

and
`ElementLabels`

, respectively.

## Open Example

You have a modified version of this example. Do you want to open this example with your edits?

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
