This example shows how to find a point that satisfies all the constraints in a problem, with no objective function to minimize.

For example, suppose that you have the following constraints:

$$\begin{array}{l}(y+{x}^{2}{)}^{2}+0.1{y}^{2}\le 1\\ y\le \mathrm{exp}(-x)-3\\ y\le x-4.\end{array}$$

Do any points $$(x,y)$$ satisfy all of the constraints?

Create an optimization problem that has only constraints, no objective function.

x = optimvar('x'); y = optimvar('y'); prob = optimproblem; cons1 = (y + x^2)^2 + 0.1*y^2 <= 1; cons2 = y <= exp(-x) - 3; cons3 = y <= x - 4; prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; show(prob)

OptimizationProblem : Solve for: x, y minimize : subject to cons1: ((y + x.^2).^2 + (0.1 .* y.^2)) <= 1 subject to cons2: y <= (exp(-x) - 3) subject to cons3: y - x <= -4

Create a pseudorandom start point structure `x0`

with fields `x`

and `y`

for the optimization variables.

```
rng default
x0.x = randn;
x0.y = randn;
```

Solve the problem starting from `x0`

.

[sol,~,exitflag,output] = solve(prob,x0)

Solving problem using fmincon. Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance.

`sol = `*struct with fields:*
x: 1.7903
y: -3.0102

exitflag = OptimalSolution

`output = `*struct with fields:*
iterations: 6
funcCount: 9
constrviolation: 0
stepsize: 0.2906
algorithm: 'interior-point'
firstorderopt: 0
cgiterations: 0
message: '...'
bestfeasible: [1x1 struct]
objectivederivative: "closed-form"
constraintderivative: "forward-AD"
solver: 'fmincon'

The solver finds a feasible point.

The solver can fail to find a solution when starting from some initial points. Set the initial point `x0.x = -1`

, `x0.y = -4`

and solve the problem starting from `x0`

.

x0.x = -1; x0.y = -4; [sol2,~,exitflag2,output2] = solve(prob,x0)

Solving problem using fmincon. Converged to an infeasible point. fmincon stopped because it is unable to find a point locally that satisfies the constraints within the value of the constraint tolerance.

`sol2 = `*struct with fields:*
x: -2.1266
y: -4.6657

exitflag2 = NoFeasiblePointFound

`output2 = `*struct with fields:*
iterations: 121
funcCount: 279
constrviolation: 1.4609
stepsize: 1.9997e-10
algorithm: 'interior-point'
firstorderopt: 0
cgiterations: 261
message: '...'
bestfeasible: []
objectivederivative: "closed-form"
constraintderivative: "forward-AD"
solver: 'fmincon'

Check the infeasibilities at the returned point.

inf1 = infeasibility(cons1,sol2)

inf1 = 1.1974

inf2 = infeasibility(cons2,sol2)

inf2 = 0

inf3 = infeasibility(cons3,sol2)

inf3 = 1.4609

Both `cons1`

and `cons3`

are infeasible at the solution `sol2`

. The results highlight the importance of using multiple start points to investigate and solve a feasibility problem.

To visualize the constraints, plot the points where each constraint function is zero by using `fimplicit`

. The `fimplicit`

function passes numeric values to its functions, whereas the `evaluate`

function requires a structure. To tie these functions together, use the `evaluateExpr`

helper function, which appears at the end of this example. This function simply puts passed values into a structure with the appropriate names.

**Note**: If you use the live script file for this example, the `evaluateExpr`

function is already included at the end of the file. Otherwise, you need to create this function at the end of your .m file or add it as a file on the MATLAB® path.

Avoid a warning that occurs because the `evaluateExpr`

function does not work on vectorized inputs.

s = warning('off','MATLAB:fplot:NotVectorized'); cc1 = (y + x^2)^2 + 0.1*y^2 - 1; fimplicit(@(a,b)evaluateExpr(cc1,a,b),[-2 2 -4 2],'r') hold on cc2 = y - exp(-x) + 3; fimplicit(@(a,b)evaluateExpr(cc2,a,b),[-2 2 -4 2],'k') cc3 = y - x + 4; fimplicit(@(x,y)evaluateExpr(cc3,x,y),[-2 2 -4 2],'b') hold off

warning(s);

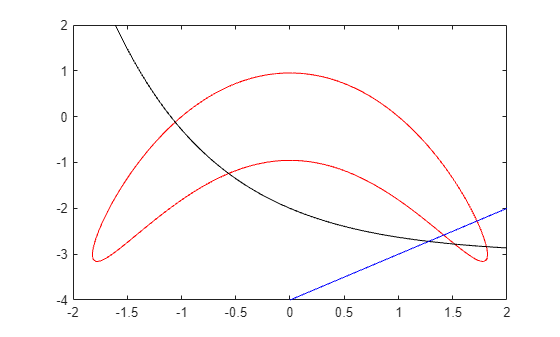

The feasible region is inside the red outline and below the black and blue lines. The feasible region is at the lower right of the red outline.

This code creates the `evaluateExpr`

helper function.

function p = evaluateExpr(expr,x,y) pt.x = x; pt.y = y; p = evaluate(expr,pt); end
