rmstate

Remove one or more states from graph

Since R2024a

Syntax

rmstate(graph,stateIDs)

rmstate(graph,names)

Description

rmstate(graph,stateIDs) removes states specified by state identifiers and the associated links from the input graph.

rmstate(graph,names) removes states specified by state names and the associated links from the input graph.

Examples

Remove States from Graph

Load navGraph object into MATLAB® workspace and inspect its properties.

load("navGraphData.mat")
disp(navGraphObj)

  navGraph with properties:

           States: [8×3 table]
            Links: [7×3 table]
    LinkWeightFcn: @nav.algs.distanceEuclidean

Inspect the states table of the input graph.

disp(navGraphObj.States)

          StateVector          Name     Lanes
    _______________________    _____    _____

    8          2    0.72176    {'A'}      2
    1          1    0.29188    {'B'}      2
    7          7    0.91777    {'C'}      2
    8         10    0.71458    {'D'}      2
    5          1    0.54254    {'E'}      2
    3          6    0.14217    {'F'}      2
    2          9    0.37334    {'G'}      3
    8          7    0.67413    {'H'}      2

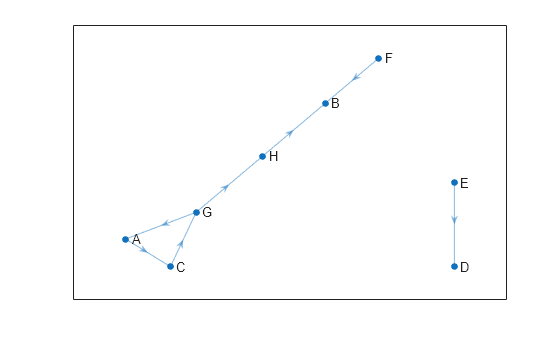

Display the input graph.

show(navGraphObj)

Specify State Identifiers to Remove States

Specify the indices of the states in the states table that you want to remove from the graph.

rmstate(navGraphObj,[4;5])

Inspect the updated states table for the states that are removed from the graph.

disp(navGraphObj.States)

          StateVector          Name     Lanes
    _______________________    _____    _____

    8          2    0.72176    {'A'}      2
    1          1    0.29188    {'B'}      2
    7          7    0.91777    {'C'}      2
    3          6    0.14217    {'F'}      2
    2          9    0.37334    {'G'}      3
    8          7    0.67413    {'H'}      2

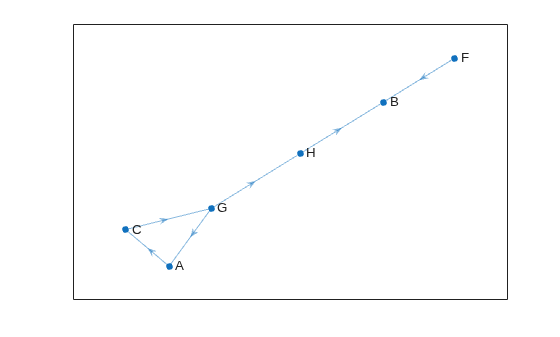

Display the updated graph.

show(navGraphObj)

Specify State Names to Remove States

Specify the names of the states you want to remove from the graph.

rmstate(navGraphObj,{"B";"D";"F"})

Inspect the updated states table for the states that are removed from the graph.

disp(navGraphObj.States)

          StateVector          Name     Lanes
    _______________________    _____    _____

    8          2    0.72176    {'A'}      2
    7          7    0.91777    {'C'}      2
    2          9    0.37334    {'G'}      3
    8          7    0.67413    {'H'}      2

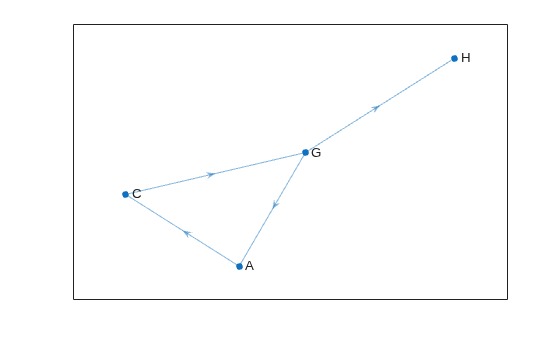

Display the updated graph.

show(navGraphObj)

Input Arguments

graph — Graph object

navGraph object

Graph object, specified as a navGraph object.

stateIDs — State identifiers

column vector of positive integers

State identifiers, specified as a column vector of positive integers. State identifiers represent the indices of the states in the states table of the input graph.

names — State names

column vector of strings | column vector of characters | cell array of strings | cell array of characters

State names, specified as a column vector of strings, column vector of characters, cell array of strings, or cell array of characters. The number of rows must be equal to the number of states, and the value of each row must be unique.

Data Types: char | string | cell

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

For code generation,

• Declare states variable in the States table of the navGraph object as a variable-size data, prior to constructing the table.

  coder.varsize("states")

• State names are not supported.

Version History

Introduced in R2024a
