Read update rate, GPS lock information and number of satellites in view for the GPS receiver
Read Information from GPS Receiver
Read information from the GPS receiver connected to the host computer on a specific serial port.
To run this example, you need:
UBlox Neo-6M GPS module
USB to UART module

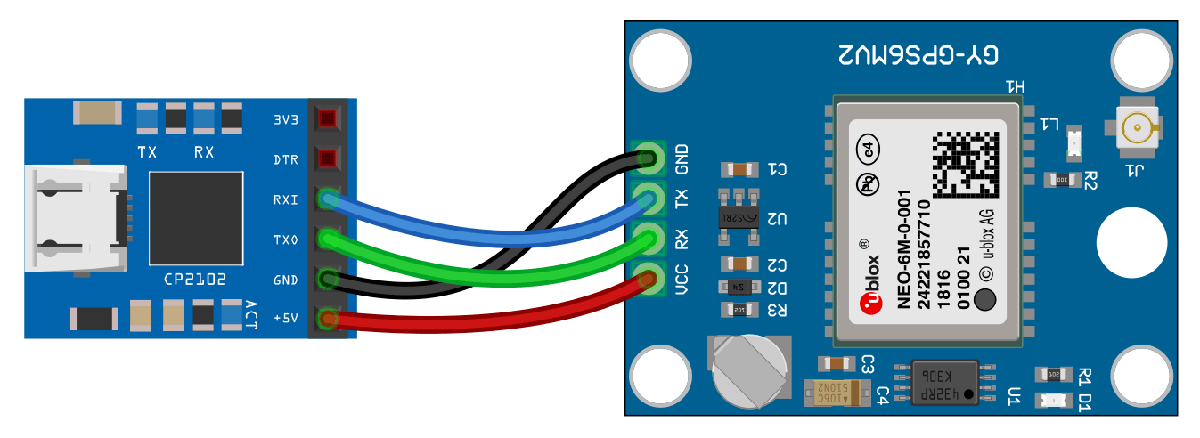

Connect the pins on the UBlox Neo-6M GPS module to the pins on your USB to UART module. The connections are:
VCC - +5V
RX - TXO
TX - RXI
GND - GND
Connect the GPS antenna to the GPS module. Connect the USB to UART module to the host computer with a USB cable. GPS Fix can be easily acquired in locations that have a clear view of the sky. Wait for the GPS module to acquire satelite signals (Fix).This can be verified by checking the Fix LED (D1) of your GPS module.
Create GPS Object
gpsdev object for the GPS receiver connected to a specific port.
gps = gpsdev('COM4')
gps = gpsdev with properties: SerialPort: COM4 BaudRate: 9600 (bits/s) SamplesPerRead: 1 ReadMode: "latest" SamplesRead: 0 Show all properties all functions
Read the GPS Module Information
Read the GPS module information and return them as a structure.
gpsInfo = info(gps)
gpsInfo = struct with fields: UpdateRate:  GPSLocked: 0 SatellitesInView: 0
When the connection is no longer needed, clear the associated object.
delete(gps); clear gps;
gpsInfo — GPS module information
GPS module information such as update rate, and number of satellites. The output has three fields:
UpdateRate— Update Rate of the GPS Module in Hz. Update Rate of GPS receiver is estimated from the difference in time at which two RMC sentences are obtained. This value might be slightly varying from actual Update Rate of the module.
GPSLocked— This property specifies if GPS has enough information to get valid data. GPS signals are acquired easily in locations that have a clear view of the sky. It can be either a
0, the GPS does not have the lock to compute location or time information. If
1, GPS module has enough data to compute location or time information.
NumberOfSatellitesInView— Number of satellites from which the GPS module can read the signals.
Introduced in R2020b
