CursorMeasurementsConfiguration

R2026b

Measure signal values using vertical waveform cursors that track along the signal

Since R2022a

Description

Use the CursorMeasurementsConfiguration object to enable waveform cursors. You can control the cursor settings from the toolstrip of the scope or from the command line.

To display vertical cursors on each signal and to modify the cursor settings in the scope UI, click the Measurements tab and enable Data Cursors. Each cursor tracks a vertical line along the signal. The scope displays the difference between x- and y-values of the signal at the two cursors in the box between the cursors. The cursors appear only when the scope has at least one signal in its display. You can use the mouse to move the vertical cursors left and right.

Time Scope Toolstrip

Creation

Syntax

cursormeas = CursorMeasurementsConfiguration()

Description

cursormeas = CursorMeasurementsConfiguration() creates a cursor measurements configuration object.

Properties

All properties are tunable.

Common Properties

XLocation — x-coordinates of the cursors

[2 8] (default) | vector

x-coordinates of the cursors, specified as a vector of real numbers. For the spectrumAnalyzer object, the vector must have only two elements.

Scope Window Use

On the Measurements tab, select Data Cursors and then click the Data Cursors drop-down arrow to specify the x-coordinates of the cursors.

Data Types: double

SnapToData — Position cursors on signal data points

false (default) | true

Position cursors on the signal data points, specified as true or false.

Scope Window Use

On the Measurements tab of the scope toolstrip, select Data Cursors, click the Data Cursors drop-down arrow, and then select Snap to data.

For timescope objects, on the Measurements tab of the scope toolstrip, select Data Cursors, click Data Cursors > Cursor Settings, and then select Snap to data.

Data Types: logical

LockSpacing — Lock spacing between cursors

false (default) | true

Lock spacing between cursors, specified as true or false. Set this property to true to lock the frequency difference between the cursors.

Scope Window Use

On the Measurements tab of the scope toolstrip, select Data Cursors, click the Data Cursors drop-down arrow, and then select Lock cursor spacing.

For timescope objects, on the Measurements tab of the scope toolstrip, select Data Cursors, click Data Cursors > Cursor Settings, and then select Lock cursor spacing.

Data Types: logical

Enabled — Enable cursor measurements

false (default) | true

Enable cursor measurements, specified as true or false. Set this property to true to enable cursor measurements.

Scope Window Use

On the Measurements tab, select Data Cursors.

Data Types: logical

timescope, dsp.ArrayPlot, and dsp.DynamicFilterVisualizer Objects Only

LinkToWaveform — Option to link cursors to waveform

true (default) | false

Since R2026a

Option to link cursors to waveform, specified as one of these:

• true — The cursors are associated with the waveform. You specify the XLocation values only and the scope populates the YLocation property with the corresponding values of the waveform.

• false — The cursors are associated with the screen. You can customize the XLocation and YLocation property values.

Data Types: logical

YLocation — y-coordinates of cursors

Read-only: y-values associated with x-coordinates in waveform mode (default) | vector

Since R2026a

This property is read-only.

y-coordinates of the data cursors, specified as a vector of length equal to the number of cursors. To enable this property, set LinkToWaveform to false.

Scope Window Use

On the Measurements tab, select Data Cursors and then click the Data Cursors drop-down arrow to specify the vector in the Value property.

Data Types: double

Horizontal — Option to show horizontal cursors

true (default) | false

Since R2026a

Option to show horizontal cursors, specified as true or false.

To enable this property, set LinkToWaveform to false.

Scope Window Use

On the Measurements tab, select Data Cursors and then click Data Cursors > Cursor Settings to select the Horizontal property.

Data Types: logical

Vertical — Option to show vertical cursors

true (default) | false

Since R2026a

Option to show vertical cursors, specified as true or false.

To enable this property, set LinkToWaveform to false.

Scope Window Use

On the Measurements tab, select Data Cursors and then click Data Cursors > Cursor Settings to select the Vertical property.

Data Types: logical

InheritMeasurementChannel — Option to inherit cursor channels

true (default) | false

Since R2026a

Option to inherit cursor channels from data, specified as one of these:

• true — The scope inherits cursor channels from the MeasurementChannel property of the timescope object.

• false — Specify the cursor channels using the CursorChannel property.

Scope Window Use

On the Measurements tab, select Data Cursors and then click the Data Cursors drop-down arrow to select the Inherit Measurement Channel property.

Data Types: logical

CursorChannel — Cursor channels

[1 1] (default) | vector

Since R2026a

Cursor channels, specified as a vector of length equal to the XLocation vector.

To enable this property, set InheritMeasurementChannel to false.

Scope Window Use

On the Measurements tab, select Data Cursors and then click the Data Cursors drop-down arrow to specify the Cursor Channels property.

Data Types: double

ShowPanel — Option to show cursor measurements panel

true (default) | false

Since R2026a

Option to show cursor measurements panel, specified as true or false. Set this property to true to show the cursor measurements panel.

Scope Window Use

On the Measurements tab, select Data Cursors and then click Data Cursors > Cursor Settings to select Show Panel.

Data Types: logical

ShowMeasurement — Option to show cursor measurement readout

true (default) | false

Since R2026a

Option to show cursor measurement readout, specified as true or false. Set this property to true to show the cursor measurement readout.

Scope Window Use

On the Measurements tab, select Data Cursors and then click Data Cursors > Cursor Settings to select Show Measurement.

Data Types: logical

Examples

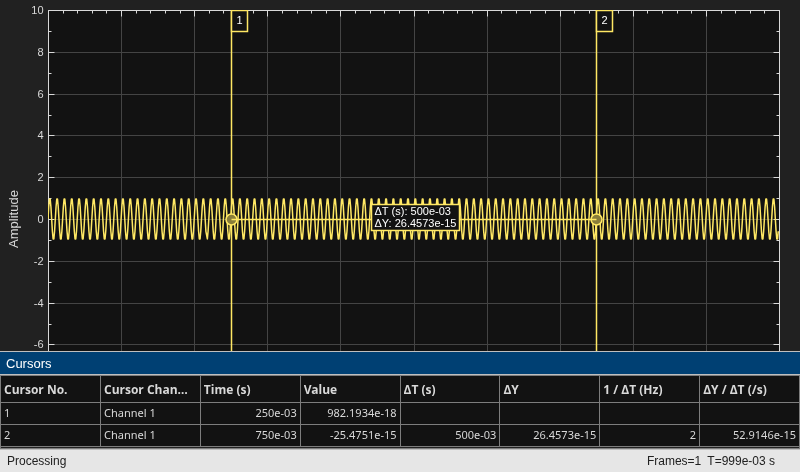

Configure Cursor Measurements Programmatically in Time Scope MATLAB Object

Create a sine wave and view it in the Time Scope. Enable data cursors programmatically.

The timescope object requires one of these products:

• DSP System Toolbox™

• Navigation Toolbox™

• Sensor Fusion and Tracking Toolbox™

Initialization

Create the input sine wave using the sin function. Create a timescope MATLAB® object to display the signal. Set the TimeSpan property to 1 second.

f = 100;
fs = 1000;
swv = sin(2.*pi.*f.*(0:1/fs:1-1/fs)).';
scope = timescope(SampleRate=fs,...
    TimeSpanSource="property",...
    TimeSpan=1);

Enable Data Cursors

Enable data cursors in the scope programmatically by setting the Enabled property of the CursorMeasurementsConfiguration object to true.

scope.CursorMeasurements.Enabled = true;
scope(swv);

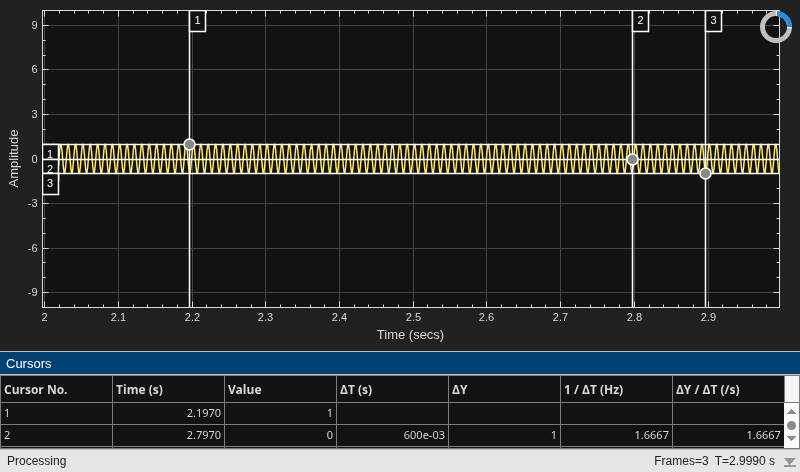

Specify Multiple Data Cursors

Specify XLocation to [0.2 0.8 0.9]. The scope shows waveform cursors at these locations.

scope.CursorMeasurements.XLocation = [0.2 0.8 0.9]

scope =
  timescope handle with properties:

               SampleRate: 1000
           TimeSpanSource: 'property'
                 TimeSpan: 1
    TimeSpanOverrunAction: 'scroll'
              YLimitsMode: 'auto-expand'

  Show all properties

scope(swv)

If you specify LinkToWaveform as false, the scope shows screen cursors based on the XLocation and YLocation values you specify.

scope.CursorMeasurements.LinkToWaveform = false;
scope.CursorMeasurements.YLocation = [1 0 -1];
scope(swv)

Version History

Introduced in R2022a

R2026b: Display cursor measurements data using power of 3 in engineering notation

The timescope object now displays the cursor measurements using the power of 3 in engineering notation.

R2026a: Support for multiple data cursors

You can now specify multiple data cursors in the timescope object using the XLocation property of the CursorMeasurementsConfiguration object. Data cursors include both screen cursors and waveform cursors.

R2022b: Enhancements to Data Cursor Measurements

Starting in R2022b, the CursorMeasurementsConfiguration object has a new LockSpacing property. Use this property to lock the spacing between waveform cursors in the scope window.

In the Measurements tab of the scope UI window, these data cursor settings are new:

• Lock cursor spacing –– This setting corresponds to the LockSpacing property in the CursorMeasurementsConfiguration object.

• X location –– These fields are enabled and correspond to the XLocation property in the CursorMeasurementsConfiguration object.
