checkMapCollision
Syntax
Description
Check for collision between a 3-D occupancy map and a convex collision geometry.
The checkMapCollision
function can search for collisions in two phases:
first, a broad-phase search using a broad-phase search using simple bounding volumes, and then
by a narrow-phase collision check if the simple volumes collide. For the broad-phase search,
the function checks between simple primitives consisting of axially-aligned bounding boxes
(AABB). For the narrow-phase, the function checks between occupied cells, represented by a
collisionBox
(Robotics System Toolbox)
objects, and the input collision geometry object.
checks if a 3-D occupancy map, collisionStatus
= checkMapCollision(map
,geometry
)map
, and a collision geometry,
geometry
, are in collision.
Examples
Check Collision Between 3-D Map and Collision Geometries
Create a 3-D occupancy map.
map = occupancyMap3D;
Specify 25 random coordinates in the occupancy map as occupied.
rng(0) pt = (rand(25,3)-.5)*20; setOccupancy(map,pt,1);
Create a collision sphere and a collision cylinder object.
sphere = collisionSphere(1); cylinder = collisionCylinder(3,6); sphere.Pose = trvec2tform([6.1 -4 -7.5]);
Visualize the occupancy map and collision geometry in the same figure.
exampleHelperPlotCylinderAndSphere(map,cylinder,sphere)
Perform only the broad-phase collision check for both the sphere and cylinder by setting the CheckNarrowPhase
property of an occupancyMap3DCollisionOptions
object to false
. Return voxel information and the distance to the nearest occupied voxels.
bpOpts = occupancyMap3DCollisionOptions(CheckNarrowPhase=false,ReturnDistance=true,ReturnVoxels=true); [bpIsCollidingCylinder,bpResultsCylinder] = checkMapCollision(map,cylinder,bpOpts);
Check the voxel distances for the collision geometries. Note that, because the cylinder is in collision with voxels, the distance values are NaN
. Because the sphere is not in collision with any voxels, its distance results are non-NaN
values.
bpDistCylinder = bpResultsCylinder.DistanceInfo.Distance
bpDistCylinder = NaN
bpWitnessptsCylinder = bpResultsCylinder.DistanceInfo.WitnessPoints
bpWitnessptsCylinder = 3×2
NaN NaN
NaN NaN
NaN NaN
Because the cylinder is in collision with the voxels, the distance results contain NaN
values. Since the sphere is not in collision with the voxels, the distance results consist of non-NaN
values.
[bpIsCollidingSphere,bpResultsSphere] = checkMapCollision(map,sphere,bpOpts); bpDistSphere = bpResultsSphere.DistanceInfo.Distance
bpDistSphere = 2.3259
bpWitnessptsSphere = bpResultsSphere.DistanceInfo.WitnessPoints
bpWitnessptsSphere = 3×2
3.0000 5.1000
-6.0000 -5.0000
-7.5000 -7.5000
Plot a line between the sphere and the closest voxel to it using its witness points.
figure exampleHelperPlotCylinderAndSphere(map,cylinder,sphere) hold on plot3(bpWitnessptsSphere(1,:),bpWitnessptsSphere(2,:),bpWitnessptsSphere(3,:),LineWidth=2,Color='r') hold off
Now perform a narrow-phase check, by using an occupancyMap3DCollisionOptions
object with the CheckNarrowPhase
property set to true
.
npOpts = occupancyMap3DCollisionOptions(CheckNarrowPhase=true,ReturnDistance=true,ReturnVoxels=true); [npIsCollidingSphere,bpResultsSphere] = checkMapCollision(map,sphere,npOpts);
Return the voxel distance and witness point coordinates for the sphere. The distance and witness points are slightly more accurate this time, because the narrow phase uses the distance between the primitive and the voxel, whereas the broad phase before uses the distance between the axis-aligned bounding box (AABB) of the collision object and the voxel.
npDist = bpResultsSphere.DistanceInfo.Distance
npDist = 2.6892
npWitnesspts = bpResultsSphere.DistanceInfo.WitnessPoints
npWitnesspts = 3×2
3.0000 5.2596
-6.0000 -4.5419
-7.5000 -7.5000

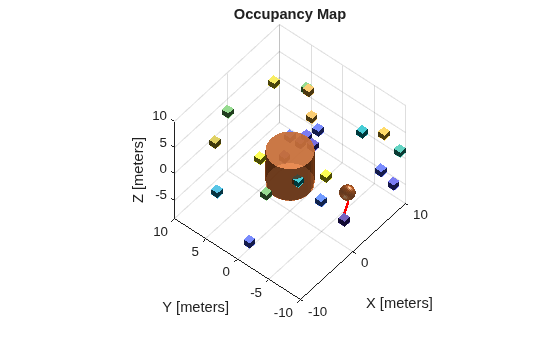

Visualize the occupancy map again and plot line showing the shortest distance between the voxel and sphere. The line between the witness points visually appears accurate after performing the narrow-phase check.
exampleHelperPlotCylinderAndSphere(map,cylinder,sphere) hold on plot3(npWitnesspts(1,:),npWitnesspts(2,:),npWitnesspts(3,:),LineWidth=2,Color='r') hold off
Input Arguments
map
— 3-D occupancy map
occupancyMap3D
object
3-D occupancy map, specified as an occupancyMap3D
object.
Example: occupancyMap3D(10)
geometry
— Collision geometry
collision geometry object
Collision geometry, specified as one of these objects:
collisionBox
collisionCapsule
collisionCylinder
collisionMesh
collisionSphere
Example: collisionBox(1,1,3)
options
— Collision-checking options
occupancyMap3DCollisionOptions
object
Collision-checking options, specified as an occupancyMap3DCollisionOptions
object.
Example: occupancyMap3DCollisionOptions(CheckNarrowPhase=false,ReturnDistance=true);
Output Arguments
collisionStatus
— Collision status
0
| 1
Collision status, returned as 0
or 1
. If the
geometry intersects with any occupied voxel, collisionStatus
is
1
. Otherwise, the value is 0
.
Data Types: double
details
— Collision details
structure
Collision details, returned as a structure that can contain up to two fields,
DistanceInfo
and VoxelInfo
:
DistanceInfo
— This field is present when theReturnDistance
property ofoptions
istrue
. The field is a structure that contains these fields.Distance
— If theNarrowPhase
property ofoptions
is set to true, this field contains the minimum distance between the collision geometry and the nearest voxel or occupied cell, represented as acollisionBox
object. IfNarrowPhase
isfalse
, thenDistance
is the minimum distance between the AABBs of the collision geometry and the nearest voxel.For collision geometries that are not in collision,
Distance
is returned as a numeric scalar. For collision geometries that are in collision,Distance
is returned asNaN
.WitnessPoints
— Witness points between the collision geometry and the nearest voxel. If the collision geometry is not in collision,WitnessPoints
is returned as returned as a 3-by-2 matrix, where each column represents the witness points in the form . If the collision geometry is in collision,WitnessPoints
is returned asnan(3,2)
.
VoxelInfo
— This field is present when theReturnVoxels
property ofoptions
istrue
. The field is a structure that contains these fields.Location
— Center(s) of the colliding voxels. The format of this field depends on the value of theExhaustive
property ofoptions
:true
— N-by-3 matrix, where N is the total number of colliding voxels. Each row is a coordinate in the form .false
— Three-element row vector that contains the first collision voxel as a coordinate in the form , or as an empty vector if there is no collision.
Size
— Edge lengths of the colliding voxels. The format of this field depends on the value of theExhaustive
property ofoptions
:true
— N-element column vector, where N is the total number of colliding voxels. The edge length of each element defines the size of the voxel centered at the corresponding location inLocation
.false
— Edge length of the first colliding voxel, returned as a numeric scalar if there is a collision, or as an empty vector if there is no collision.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
checkMapCollision
does not support code generation using the packNGo
(MATLAB Coder) function if you set the packType
argument to
"flat"
.
Version History
Introduced in R2022bR2023a: Code Generation Support
checkMapCollision
now supports code generation.
Note that checkMapCollision
does not support code generation using the
packNGo
(MATLAB Coder) function if you set the
packType
argument to "flat"
.
