uieditfield
Create text or numeric edit field component
Syntax
Description
creates a text edit
field in a new figure and returns the ef
= uieditfieldEditField
object. MATLAB® calls the uifigure
function to create the
figure.
creates an edit field of the specified style. The edit field style can be
ef
= uieditfield(style
)"text"
or "numeric"
.
creates an edit field with properties specified by one or more name-value arguments.
For example, specify the edit field value using the ef
= uieditfield(___,Name,Value
)Value
property. Use this option with any of the input argument combinations in the
previous syntaxes.
Examples
Create Text Edit Field
Create Numeric Edit Field
Create a numeric edit field by specifying the style as "numeric"
.
fig = uifigure;
ef = uieditfield(fig,"numeric");
Set and Access Edit Field Property Values
Create a numeric edit field and set its limits to be 0 to 100.
fig = uifigure; ef = uieditfield(fig,"numeric", ... "Limits",[0 100]);
Determine the default value.
val = ef.Value
val = 0
Set the edit field value to 50.
ef.Value = 50;
Specify Numeric Edit Field Display Format

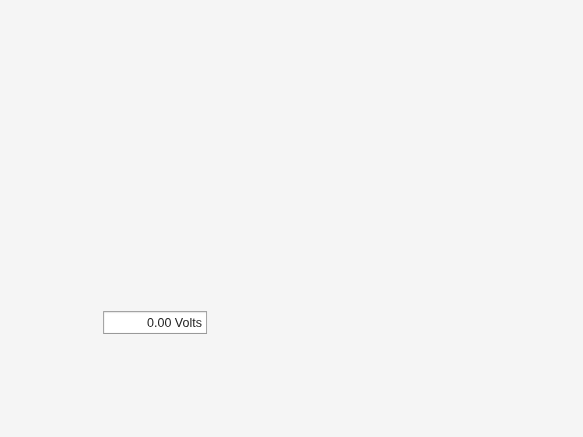

Create a numeric edit field that allows the app user to enter any value, but always displays the value using exactly two decimal places and the specified units. The edit field stores the exact value that the app user enters.
fig = uifigure; ef = uieditfield(fig,"numeric", ... "ValueDisplayFormat","%.2f Volts");
Type 5.5556
in the numeric edit field, then click outside it. The edit field displays 5.56 Volts
.
The edit field stores the value in the Value
property as the user-entered value (5.5556
). If you click in the edit field again, it displays 5.5556
.
For a complete list of supported format display operators, see sprintf
.
Specify Numeric Edit Field Limit Inclusiveness
Create a numeric edit field that allows the app user to enter a value greater than -5 and less than or equal to 10.
fig = uifigure; ef = uieditfield(fig,"numeric", ... "Limits",[-5 10], ... "LowerLimitInclusive","off", ... "UpperLimitInclusive","on", ... "Value",5);
If you type a value in the numeric edit field that is outside the limits, MATLAB displays a message that indicates the problem. If you enter the invalid value, MATLAB restores the value to the previous valid value.
Specify Length and Type of Edit Field Text
Create a text edit field that allows the app user to enter text that is between 3 and 12 characters long and that consists only of letters and digits.
fig = uifigure; ef = uieditfield(fig, ... "CharacterLimits",[3 12], ... "InputType","alphanumerics");
If you type a value in the text edit field that is invalid, MATLAB displays a message that indicates the problem. If you then enter the invalid value by pressing Enter or navigating away from the component, MATLAB restores the value to the previous valid value.
Code Response to Changed Edit Field Value
Create an app that moves a gauge needle when an app user enters a value in a numeric edit field.
In a file named editFieldApp.m
, write a function that implements the app:
Create a UI figure and a grid layout manager to lay out the app.
Create a numeric edit field and a gauge in the grid layout manager.
Write a callback function named
editFieldValueChanged
that updates the gauge needle to match the edit field value, and assign the function to theValueChangedFcn
callback property of the edit field. For more information about callbacks, see Create Callbacks for Apps Created Programmatically.
function editFieldApp fig = uifigure; gl = uigridlayout(fig); gl.RowHeight = {'1x',150,'fit','1x'}; gl.ColumnWidth = {'1x',150,'1x'}; g = uigauge(gl,"Limits",[0 10]); g.Layout.Row = 2; g.Layout.Column = 2; ef = uieditfield(gl,"numeric", ... "Limits",[0 10], ... "ValueChangedFcn",@(src,event) editFieldValueChanged(src,event,g)); ef.Layout.Row = 3; ef.Layout.Column = 2; end function editFieldValueChanged(src,event,g) g.Value = src.Value; end
Run the editFieldApp
function. Enter a value in the edit field to update the gauge needle.
editFieldApp
Use Event Data to Maintain a Log
Create an app that maintains a log of the values that an app user enters into a text edit field and displays that log in a text area.
In a file named logEntriesApp.m
, write a function that implements the app:
Create a UI figure and a grid layout manager to lay out the app.
Create a text edit field and a text area in the grid layout manager.
Write a callback function named
editFieldValueChanged
that adds the previously entered text to the text area whenever a user enters new text in the edit field, and assign the function to theValueChangedFcn
callback property of the edit field. Access the previously entered text using the callback event data. For more information about callbacks, see Create Callbacks for Apps Created Programmatically.
function logEntriesApp fig = uifigure; g = uigridlayout(fig); g.RowHeight = {'fit','1x'}; g.ColumnWidth = {'1x',150,'1x'}; loglist = uitextarea(g, ... "Editable","off"); loglist.Layout.Row = 2; loglist.Layout.Column = 2; ef = uieditfield(g, ... "Value","Daniela Hendrix",... "ValueChangedFcn",@(src,event) editFieldValueChanged(src,event,loglist)); ef.Layout.Row = 1; ef.Layout.Column = 2; end % Create ValueChangedFcn callback function editFieldValueChanged(src,event,loglist) prev = event.PreviousValue; loglist.Value = [prev; loglist.Value]; end
Run the logEntriesApp
function. Enter some names in the edit field. Whenever you enter a new name, the app adds the previous name to the log displayed in the text area.
Input Arguments
style
— Type of edit field
"text"
(default) | "numeric"
Type of edit field, specified as one of the following:
"text"
— An app user can enter any text in the edit field. By default, text edit fields are empty."numeric"
— An app user can enter only numeric values in the edit field. If a user tries to enter a nonnumeric value, MATLAB displays an error tooltip and reverts the value to the previous valid value. By default, numeric edit fields display the value 0.
parent
— Parent container
Figure
object (default) | Tab
object | Panel
object | ButtonGroup
object | GridLayout
object
Parent container, specified as a Figure
object created using the uifigure
function or one of its child
containers: Tab
, Panel
, ButtonGroup
, or GridLayout
. If you do not specify a parent container, MATLAB calls the uifigure
function to create a new Figure
object that serves as the parent container.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
EditField
and NumericEditField
objects support different sets of properties. For a
full list of properties and descriptions for each object, see the associated
property page.
EditField
— Ifstyle
is"text"
(default)NumericEditField
— Ifstyle
is"numeric"
Version History
Introduced in R2016aR2022b: Specify valid length and input type for edit field text
Specify input constraints for text edit fields.
Use the
CharacterLimits
property to specify a maximum and minimum number of allowed characters.Use the
InputType
property to restrict the allowed character types.
For more information, see EditField
.
R2021a: Specify placeholder text
Provide a short hint that describes the expected edit field input by using the
Placeholder
property.
For more information, see EditField
.
