spfun

Apply function to nonzero sparse matrix elements

Syntax

F = spfun(func,S)

Description

F = spfun(func,S) applies the function func to the nonzero elements of a sparse matrix S. The input argument func is a function handle to a function that takes one input argument.

This operation preserves the sparsity of the original matrix S unless the function func returns zero for some nonzero elements of S.

Examples

Apply Exponential Function to Sparse Matrix

Create a 4-by-4 sparse diagonal matrix.

S = diag(sparse(1:4))

S = 4x4 sparse double matrix (4 nonzeros)
   (1,1)        1
   (2,2)        2
   (3,3)        3
   (4,4)        4

Apply the exponential function to the nonzero elements of S. The resulting matrix has the same sparsity pattern as S.

F = spfun(@exp,S)

F = 4x4 sparse double matrix (4 nonzeros)
   (1,1)       2.7183
   (2,2)       7.3891
   (3,3)      20.0855
   (4,4)      54.5982

Because spfun only applies to nonzero elements of S, the value of F(i) is zero whenever S(i) is zero. This is different from applying the function to all elements of S. For example, compare the result to applying the exponential function to all elements of S. The exp(S) function returns 1 for the elements of S that are 0s.

full(exp(S))

ans = 4×4

    2.7183    1.0000    1.0000    1.0000
    1.0000    7.3891    1.0000    1.0000
    1.0000    1.0000   20.0855    1.0000
    1.0000    1.0000    1.0000   54.5982

Apply Quadratic Function and Plot Sparsity Pattern

Create a random 50-by-50 sparse matrix with density 0.02, where the matrix has 50 nonzero elements. Plot the sparsity pattern of the matrix S.

rng default;
S = sprand(50,50,0.02);

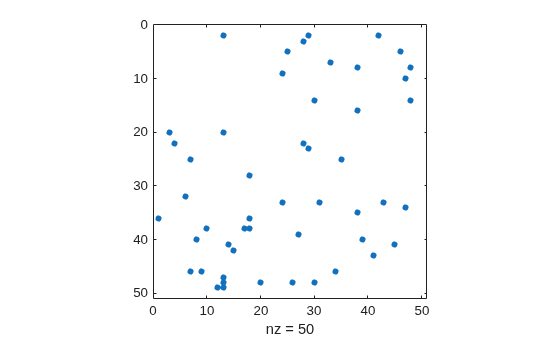

spy(S)

Evaluate the quadratic function $$x^2+x+1$$ to the nonzero elements of S. The evaluated function using spfun has the same sparsity pattern as the matrix S.

fun = @(x) x.^2 + x + 1;
F = spfun(fun,S);
spy(F)

Input Arguments

S — Input matrix

sparse matrix | full matrix

Input matrix. This matrix is typically (but not necessarily) sparse.

If S is a full matrix, then F = spfun(func,S) applies the function func to the nonzero elements of S and returns F as a sparse matrix.

Data Types: double | logical
Complex Number Support: Yes

func — Function to apply

function handle

Function to apply to the elements of the input array, specified as a function handle. The function should operate on S element-wise. For more information about function handles, see Create Function Handle.

Example: @(n) n+1

Tips

• If func returns zero for inputs that are zero, you can use func(S) to return the same results as calling spfun on a sparse matrix S.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The spfun function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• On each worker, fun receives as input only the nonzero elements of S that are local to the worker. Therefore, functions that operate element-wise are the most appropriate for use with spfun.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a
