ncread

Read data from variable in NetCDF data source

Syntax

vardata = ncread(source,varname)

vardata = ncread(source,varname,start,count)

vardata = ncread(source,varname,start,count,stride)

Description

vardata = ncread(source,varname) reads all the data from the variable varname contained in source.

vardata = ncread(source,varname,start,count) reads data beginning at the location specified in start. The count argument specifies the number of elements to read along each dimension.

vardata = ncread(source,varname,start,count,stride) returns data with the interval between the indices of each dimension of the variable specified by stride.

Examples

Read NetCDF Data

Read and plot variable named peaks from the file example.nc.

peaksData  = ncread('example.nc','peaks');
whos peaksData

  Name            Size            Bytes  Class    Attributes

  peaksData      50x50             5000  int16

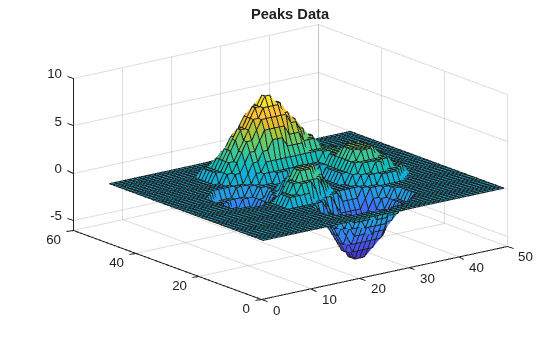

Plot peaksData and add a title.

surf(double(peaksData));
title('Peaks Data');

Read Portion of Data from Variable

Read and plot only a subset of the variable data starting from the location [25 17] until the end of each dimension.

startLoc = [25 17]; % Start location along each coordinate
count  = [Inf Inf]; % Read until the end of each dimension
peaksData  = ncread('example.nc','peaks',startLoc,count);
whos peaksData

  Name            Size            Bytes  Class    Attributes

  peaksData      26x34             1768  int16

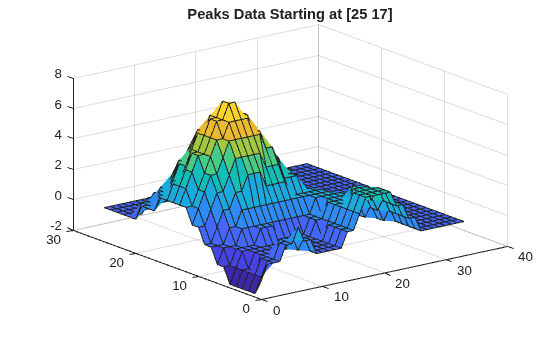

Plot the data.

surf(double(peaksData));
title('Peaks Data Starting at [25 17]');

Read Data with Specified Spacing Between Variable Indices

Read and plot data, where the data is sampled at a specified spacing between variable indices along each dimension. Start reading from the location in startLoc and read variable data at intervals specified in stride. A value of 1 in stride accesses consecutive values in the corresponding dimension; a value of 2 accesses every other value in the corresponding dimension, and so forth.

startLoc = [1 1];
count  = [10 15];
stride = [2 3];
sampledPeaksData  = ncread('example.nc','peaks',startLoc,count,stride);
whos sampledPeaksData

  Name                   Size            Bytes  Class    Attributes

  sampledPeaksData      10x15              300  int16

Plot the data.

surf(double(sampledPeaksData));
title('Peaks Data Subsampled by [2 3]');

Input Arguments

source — Name of NetCDF data source

string scalar | character vector

Name of the NetCDF data source, specified as a string scalar or character vector. The source argument can be one of these values:

• The path of a local NetCDF source

• The OPeNDAP URL of a remote OPeNDAP NetCDF data source

• The HTTP URL of a remote NetCDF source, with #mode=bytes appended to the end of the URL to enable byte-range reading

  Note

  Byte-range reading is slower than reading from other sources. For more details about byte-range reading, see the NetCDF documentation.

Example: "myNetCDFfile.nc"

varname — Variable name

string scalar | character vector

Variable name, specified as a string scalar or character vector containing the name of a variable in the NetCDF data source.

Data Types: string | char

start — Starting location

vector of ones (default) | numeric vector

Starting location, specified as a numeric vector of positive integers. For an N-dimensional variable, start is a vector of length N containing 1-based indices.

If you do not specify start, then the ncread function starts reading the variable from the first index along each dimension.

Data Types: double

count — Number of elements

vector of Inf's (default) | numeric vector

Number of elements to read, specified as a numeric vector of positive integers. For an N-dimensional variable, count is a vector of length N, specifying the number of elements to read along each dimension. If any element of count is Inf, then ncread reads until the end of the corresponding dimension.

If you do not specify count, then the ncread function reads the variable data until end of each dimension.

Data Types: double

stride — Space between variable indices

vector of ones (default) | numeric vector

Space between the variable indices along each dimension, specified as a numeric vector of integers. For an N-dimensional variable, stride is vector of length N. The elements of the stride vector correspond, in order, to the variable's dimensions. A value of 1 accesses adjacent values of the NetCDF variable in the corresponding dimension. Whereas, a value of 2 accesses every other value of the NetCDF variable in the corresponding dimension, and so on.

If you do not specify stride, then the ncread function reads the data with a default spacing of 1 along each dimension.

Data Types: double

Output Arguments

vardata — Variable data

numeric | text | cell

Variable data, returned as the data type that best matches the NetCDF data type of varname. For more information about how MATLAB^® determines the best match, see More About.

For numeric data types, when at least one of the variable attributes _FillValue, scale_factor, or add_offset is present, then ncread returns vardata of type double. In addition, ncread applies these conventions:

• If the _FillValue attribute exists, then ncread replaces vardata values equal to _FillValue values with NaNs. If the_FillValue attribute does not exist, then ncread queries the NetCDF library for the fill value of the variable.

• If the scale_factor attribute exists, then ncread multiplies variable data by the value of the scale_factor attribute.

• If the add_offset attribute exists, then ncread adds the value of the add_offset attribute to the variable data.

Note

For variables of type NC_CHAR, the ncread function supports reading vardata that contains only ASCII-encoded characters. Reading UTF-8 encoded characters is supported from variables of type NC_STRING in NetCDF-4 files.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | cell | char | string

More About

NetCDF to MATLAB Data Type Conversion

The NetCDF-related MATLAB functions automatically choose the MATLAB data type that best matches the NetCDF data type according to this table.

NetCDF Data Type	MATLAB Data Type
NC_DOUBLE	double
NC_FLOAT	single
NC_INT64 (NetCDF-4 files only)	int64
NC_UINT64 (NetCDF-4 files only)	uint64
NC_INT	int32
NC_UINT (NetCDF-4 files only)	uint32
NC_SHORT	int16
NC_USHORT (NetCDF-4 files only)	uint16
NC_BYTE	int8
NC_UBYTE (NetCDF-4 files only)	uint8
NC_CHAR	char
NC_STRING (NetCDF-4 files only)	string
User-defined NC_VLEN types (NetCDF-4 files only)	cell

Version History

Introduced in R2011a

R2022a: Byte-Range Reading of Remote Datasets

You can use ncread for read-only access to remote datasets using the HTTP byte-range capability, provided that the remote server supports byte-range access.

R2022a: Read Variable Length Array Data Types (NC_VLEN)

You can read variable length array data types (NC_VLEN) from netCDF-4 files.

R2021b: Read NC_STRING Data

You can read NC_STRING data from netCDF-4 files.
