Curl and angular velocity of vector field

`[`

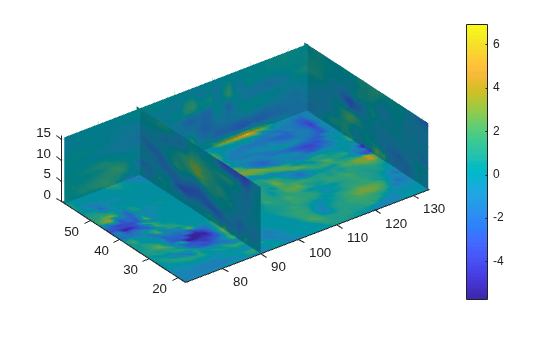

computes the numerical curl and
angular velocity of a 3-D vector field with vector components
`curlx`

,`curly`

,`curlz`

,`cav`

] = curl(`X`

,`Y`

,`Z`

,`Fx`

,`Fy`

,`Fz`

)`Fx`

, `Fy`

, and `Fz`

. The output
`curlx`

, `curly`

, and `curlz`

represent the vector components of the curl, and `cav`

represents the
angular velocity of the curl.

The arrays `X`

, `Y`

, and `Z`

, which
define the coordinates for the vector components `Fx`

,
`Fy`

, and `Fz`

, must be monotonic, but do not need to
be uniformly spaced. `X`

, `Y`

, and `Z`

must be 3-D arrays of the same size, which can be produced by `meshgrid`

.

`[`

assumes a default grid of sample points. The default grid points `curlx`

,`curly`

,`curlz`

,`cav`

] = curl(`Fx`

,`Fy`

,`Fz`

)`X`

,
`Y`

, and `Z`

are determined by the expression
`[X,Y,Z] = meshgrid(1:n,1:m,1:p)`

, where ```
[m,n,p] =
size(Fx)

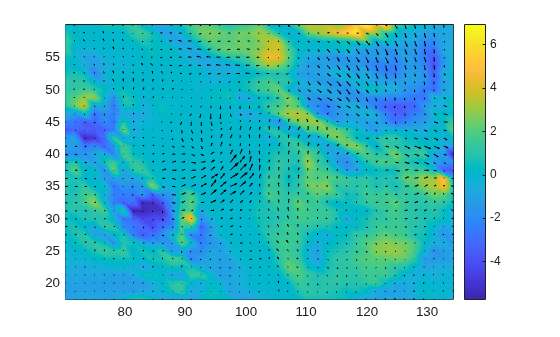

```

. Use this syntax when you want to conserve memory and are not
concerned about the absolute distances between points.

`[`

computes the numerical curl and
angular velocity of a 2-D vector field with vector components
`curlz`

,`cav`

] = curl(`X`

,`Y`

,`Fx`

,`Fy`

)`Fx`

and `Fy`

. The output `curlz`

represents the *z*-component of the curl, and `cav`

represents the angular velocity of the curl.

The matrices `X`

and `Y`

, which define the
coordinates for `Fx`

and `Fy`

, must be monotonic, but do
not need to be uniformly spaced. `X`

and `Y`

must be 2-D
matrices of the same size, which can be produced by `meshgrid`

.

`curl`

computes the partial derivatives in its definition by using finite
differences. For interior data points, the partial derivatives are calculated using
*central difference*. For data points along the edges, the partial
derivatives are calculated using *single-sided (forward)
difference*.

For example, consider a 2-D vector field **F** that is represented by the matrices `Fx`

and
`Fy`

at locations `X`

and `Y`

with size
`m`

-by-`n`

. The locations are 2-D grids created by
`[X,Y] = meshgrid(x,y)`

, where `x`

is a vector of length
`n`

and `y`

is a vector of length `m`

.
`curl`

then computes the partial derivatives ∂*F _{y}* /
∂

`dFy_dx(:,i) = (Fy(:,i+1) - Fy(:,i-1))/(x(i+1) - x(i-1))`

and`dFx_dy(j,:) = (Fx(j+1,:) - Fx(j-1,:))/(y(j+1) - y(j-1))`

for interior data points.

`dFy_dx(:,1) = (Fy(:,2) - Fy(:,1))/(x(2) - x(1))`

and`dFy_dx(:,n) = (Fy(:,n) - Fy(:,n-1))/(x(n) - x(n-1))`

for data points at the left and right edges.

`dFx_dy(1,:) = (Fx(2,:) - Fx(1,:))/(y(2) - y(1))`

and`dFx_dy(m,:) = (Fx(m,:) - Fx(m-1,:))/(y(m) - y(m-1))`

for data points at the top and bottom edges.

The numerical curl of the vector field is equal to ```
curlz = dFy_dx -
dFx_dy
```

and the angular velocity is `cav = 0.5*curlz`

.
