imopen

Morphologically open image

Syntax

J = imopen(I,SE)
J = imopen(I,nhood)

Description

example

J = imopen(I,SE) performs morphological opening on the grayscale or binary image I, returning the opened image, J. SE is a single structuring element object returned by the strel or offsetstrel functions. The morphological open operation is an erosion followed by a dilation, using the same structuring element for both operations.

You optionally can perform the opening using a GPU (requires Parallel Computing Toolbox™). For more information, see Image Processing on a GPU.

J = imopen(I,nhood) opens the image I, where nhood is a matrix of 0s and 1s that specifies the structuring element neighborhood. This is equivalent to the syntax imopen(I,strel(nhood)). The imopen function determines the center element of the neighborhood by floor((size(nhood)+1)/2).

Examples

collapse all

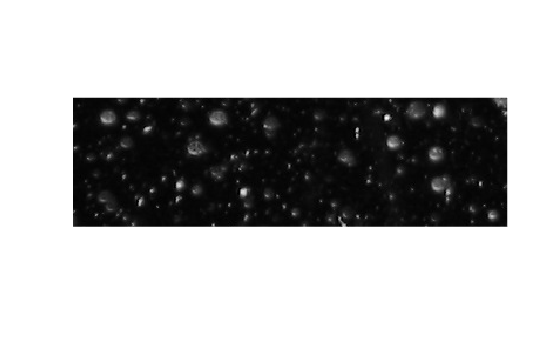

Read the image into the workspace and display it.

original = imread('snowflakes.png');
imshow(original);

Create a disk-shaped structuring element with a radius of 5 pixels.

se = strel('disk',5);

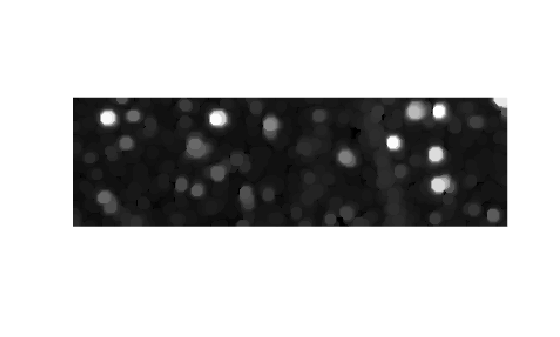

Remove snowflakes having a radius less than 5 pixels by opening it with the disk-shaped structuring element.

afterOpening = imopen(original,se);
figure
imshow(afterOpening,[]);

Read an image.

 original = imread('snowflakes.png');

Create a disk-shaped structuring element.

se = strel('disk',5);

Morphologically open the image on a GPU, using a gpuArray object, and display the images.

afterOpening = imopen(gpuArray(original),se);
figure, imshow(original), figure, imshow(afterOpening,[])

Input Arguments

collapse all

Input image, specified as a grayscale image or binary image. I can have any dimension, and must be real and nonsparse.

To perform the opening using a GPU, specify I as a gpuArray that contains an image of type uint8 or logical.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Structuring element, specified as a single strel object or offsetstrel object. If the image I is data type logical, the structuring element must be flat.

If you perform the opening using a GPU, then SE must be flat and two-dimensional.

Structuring element neighborhood, specified as a matrix of 0s and 1s.

Example: [0 1 0; 1 1 1; 0 1 0]

Output Arguments

collapse all

Opened image, returned as a grayscale image or binary image. J has the same class as input image I.

If the opening is performed using a GPU, then J is returned as a gpuArray that contains a grayscale or binary image of the same class as I.

Extended Capabilities

See Also

Functions

Objects

Introduced before R2006a
