affineOutputView

Create output view for warping images

Syntax

Rout = affineOutputView(sizeA,tform)

Rout = affineOutputView(Rin,tform)

Rout = affineOutputView(___,BoundsStyle=style)

Description

Rout = affineOutputView(sizeA,tform) takes the size of an input image, sizeA, and an affine geometric transformation, tform, and returns a spatial referencing object, Rout. You can use this object as input to imwarp to control the output limits and grid spacing of a warped image.

Rout = affineOutputView(Rin,tform) takes a spatial referencing object Rin and an affine geometric transformation, tform, and returns a spatial referencing object, Rout (since R2026a). Use this syntax when your input image is not in the intrinsic coordinate system.

Rout = affineOutputView(___,BoundsStyle=style) also specifies constraints on the spatial limits of the output view, such as whether the output view should completely contain the output image or whether the output view should match the input limits.

Examples

Create Output View for Different Input Sizes

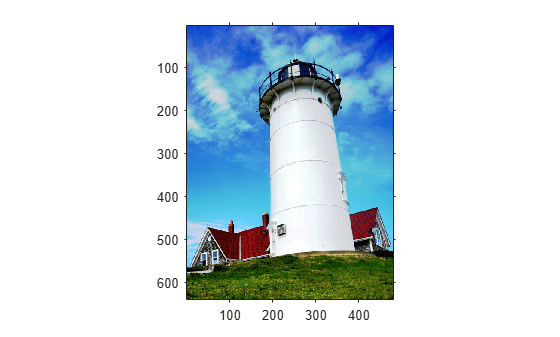

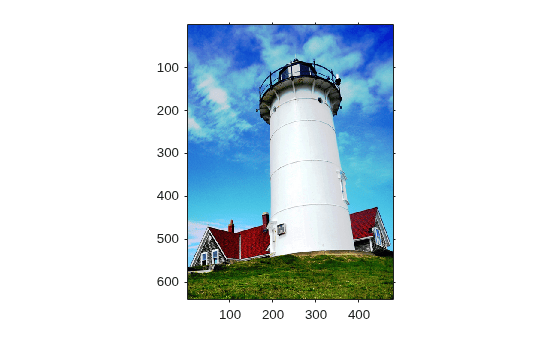

Read and display an image. To see the spatial extents of the image, make the axes visible.

I = imread("lighthouse.png");
iptsetpref(ImshowAxesVisible="on")
imshow(I)

Create a 2-D similarity transformation that resizes the image by a scale factor of 1.5 and rotates the image by 10 degrees.

tform = simtform2d(1.5,10,[0 0]);

Create an output view and specify that the input size is equal to the size of the input image. Also specify the "FollowOutput" bounds style.

szEqual = size(I);
viewEqual = affineOutputView(szEqual,tform,BoundsStyle="FollowOutput");

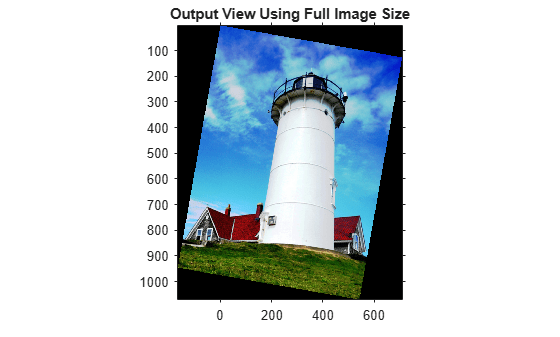

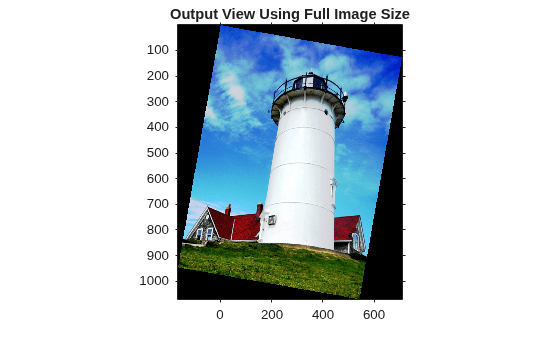

Apply the transformation to the input image using the first output view, then display the resulting image using spatial referencing information. Because the output view uses the "FollowOutput" bounds style, the transformation returns the complete transformed image. The extent of the output image is greater than the extent of the input image.

JEqual = imwarp(I,tform,OutputView=viewEqual);
imshow(JEqual,viewEqual)
title("Output View Using Full Image Size")

Create a second output view and specify a fixed input size that is smaller than the size of the input image.

szFixed = [200 300];
viewFixed = affineOutputView(szFixed,tform,BoundsStyle="FollowOutput");

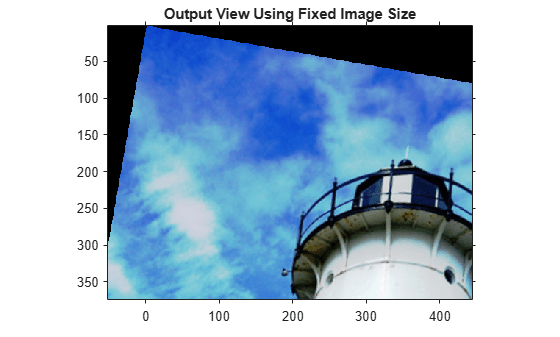

Apply the transformation to the input image using the second output view, then display the resulting image using spatial referencing information. Although the output view uses the "FollowOutput" bounds style, the transformation does not return the complete transformed image. Instead, the transformation calculates what the image extent should be for a 200-by-300 pixel input, and crops the transformed image to fit the calculated image extent.

JFixed = imwarp(I,tform,OutputView=viewFixed);
imshow(JFixed,viewFixed)
title("Output View Using Fixed Image Size")

iptsetpref(ImshowAxesVisible="off")

Warp Image Using Different Output View Styles

Read and display an image. To see the spatial extents of the image, make the axes visible.

I = imread("kobi.png");
I = imresize(I,0.25);
iptsetpref(ImshowAxesVisible="on")
imshow(I)

Create a 2-D affine transformation that shears the image in the horizontal direction. The amount of horizontal shear is equal to half of the height of the image.

A = [1 -0.5 0; 0 1 0; 0 0 1];
tform = affinetform2d(A);

Create three different output views for the image and transformation, using the three different bounds styles.

szI = size(I);
followOutput = affineOutputView(szI,tform,BoundsStyle="FollowOutput");
centerOutput = affineOutputView(szI,tform,BoundsStyle="CenterOutput");
sameAsInput  = affineOutputView(szI,tform,BoundsStyle="SameAsInput");

Apply the transformation to the input image using each of the different output view styles. Then, display the resulting images using the spatial referencing information returned by the affineOutputView function.

The "FollowOutput" bounds style returns the complete transformed image. The transformed image is wider than the original image.

JFollowOutput = imwarp(I,tform,OutputView=followOutput);
imshow(JFollowOutput,followOutput)
title("FollowOutput Bounds Style")

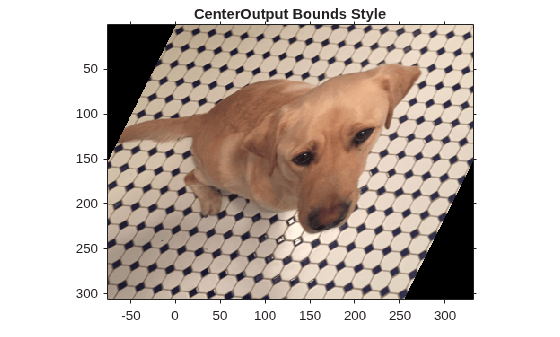

The "CenterOutput" bounds style crops the transformed image to the size of the input image. The crop window is centered on the transformed image, so the top-left corner of the crop window is not at the origin.

BCenterOutput = imwarp(I,tform,OutputView=centerOutput);
imshow(BCenterOutput,centerOutput)
title("CenterOutput Bounds Style")

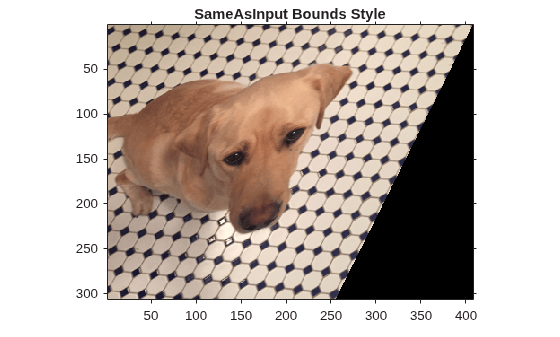

The "SameAsInput" bounds style also crops the transformed image to the size of the input image. The top-left corner of the crop window is at the origin.

BSameAsInput  = imwarp(I,tform,OutputView=sameAsInput);
imshow(BSameAsInput,sameAsInput)
title("SameAsInput Bounds Style")

iptsetpref(ImshowAxesVisible="off")

See Impact of Translation on Output View

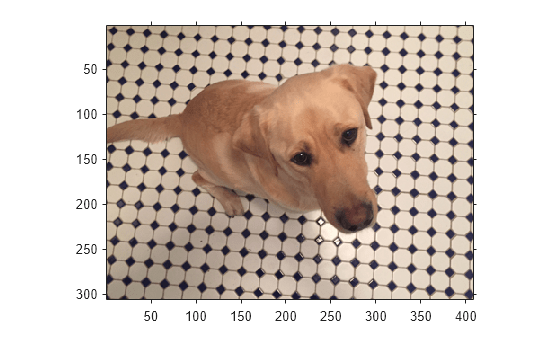

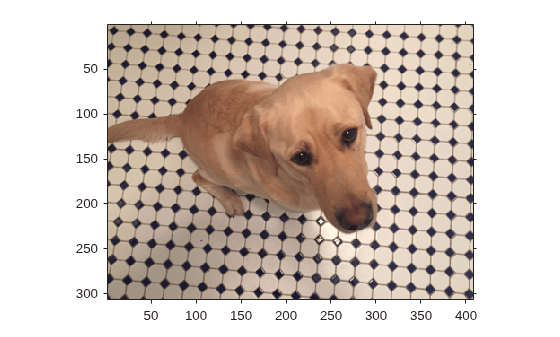

Read and display an image. To see the spatial extents of the image, make the axes visible.

I = imread("kobi.png");
I = imresize(I,0.25);
iptsetpref(ImshowAxesVisible="on")
imshow(I)

Get the size of the image.

szI = size(I);

View for Transformation Without Translation

Create a 2-D affine transformation that consists only of horizontal shear.

S = [1 -0.5 0; 0 1 0; 0 0 1];
tformShear = affinetform2d(S);

Create an output view for the shear transformation.

refShear = affineOutputView(szI,tformShear);

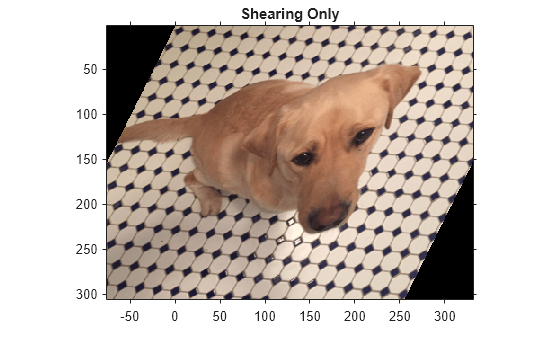

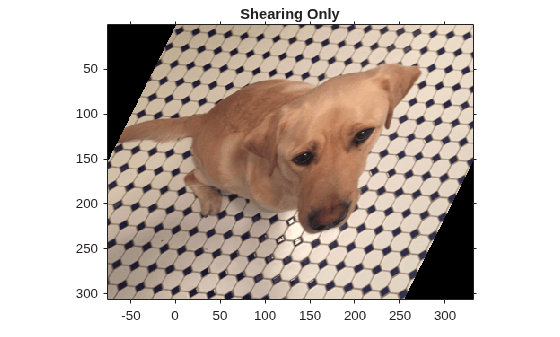

Apply the shear-only transformation to the input image. Then, display the resulting image using the spatial referencing information. By default, the output view crops the transformed image to the size of the input image. Because the transformation does not include translation, the crop window is centered on the transformed image.

JShear = imwarp(I,tformShear,OutputView=refShear);
imshow(JShear,refShear)
title("Shearing Only")

Views for Transformation With Translation

Create a 2-D affine transformation that includes the same amount of horizontal shear as tformShear. Add horizontal translation by amount tx, and vertical translation by amount ty.

tx = 100;
ty = 50;
T = S + [0 0 tx; 0 0 ty; 0 0 0];
tformTrans = affinetform2d(T);

Create an output view for the shear-and-translation transformation. Use the default bounds style, which is centered on the output image (ignoring the effect of translation).

refTrans = affineOutputView(szI,tformTrans);

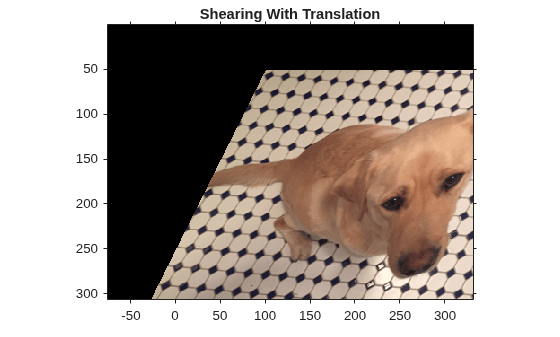

Apply the shear-and-translation transformation to the input image. Then, display the resulting image using the spatial referencing information. Again, the output view crops the transformed image to the size of the input image. However, because the transformation includes translation, the crop window is not centered on the transformed image.

JTrans = imwarp(I,tformTrans,OutputView=refTrans);
imshow(JTrans,refTrans)
title("Shearing With Translation")

For comparison, create an output view for the shear-and-translation transformation that uses the "FollowOutput" bounds style.

refFollowOutput = affineOutputView(szI,tformTrans,BoundsStyle="FollowOutput");

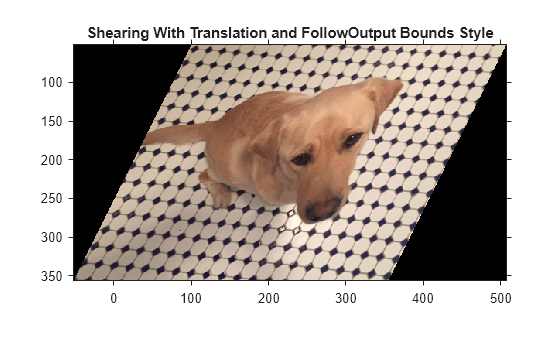

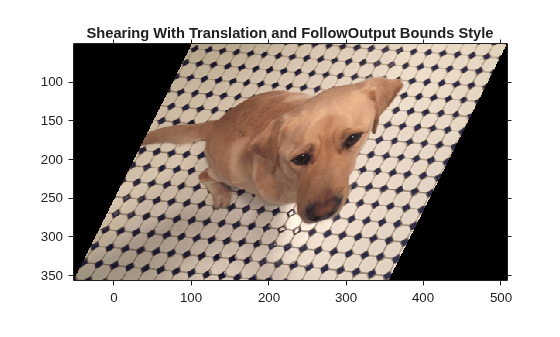

Apply the shear-and-translation transformation to the input image. Then, display the resulting image using the spatial referencing information. Because the bounds style is "FollowOutput", the output view considers the effect of translation, and the crop window is centered on the transformed image.

JTrans = imwarp(I,tformTrans,OutputView=refFollowOutput);
imshow(JTrans,refFollowOutput)
title("Shearing With Translation and FollowOutput Bounds Style")

View for Transformation with Offset in Spatial Referencing

Define a spatial referencing object for an image of size szI. Shift the position of the image in world coordinates by adding an offset to the world limits.

xshift = 100;
yshift = 50;
xWorldLim = [xshift szI(2)+xshift];
yWorldLim = [yshift szI(1)+yshift];
refIn = imref2d(szI,xWorldLim,yWorldLim);

Create another output view for the shear-only transformation, specifying the input spatial referencing object.

refOut = affineOutputView(refIn,tformShear);

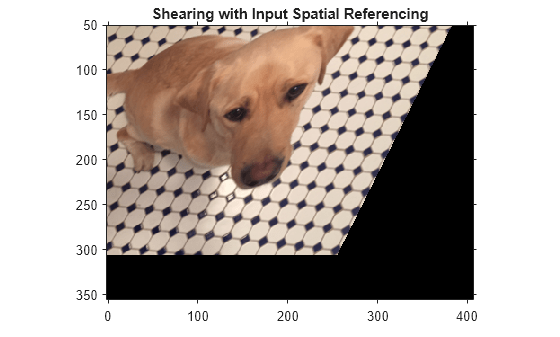

Apply the shear-only transformation to the input image. Then, display the resulting image using the output spatial referencing information. By default, the output view crops the transformed image to the size of the input image. Because the input spatial referencing includes translation of the image in world coordinates, the crop window is not centered on the transformed image.

JRef = imwarp(I,tformShear,OutputView=refOut);
imshow(JRef,refOut)
title("Shearing with Input Spatial Referencing")

iptsetpref(ImshowAxesVisible="off")

Input Arguments

sizeA — Input size

2-element numeric vector | 3-element numeric vector

Input size, specified as a 2-element numeric vector for 2-D image input or a 3-element numeric vector for 3-D volumetric image input.

tform — Geometric transformation

geometric transformation object

Geometric transformation, specified as a geometric transformation object listed in the table.

Geometric Transformation Object	Description
2-D Geometric Transformations
transltform2d	Translation transformation
rigidtform2d	Rigid transformation: translation and rotation
simtform2d	Similarity transformation: translation, rotation, and isotropic scaling
affinetform2d	Affine transformation: translation, rotation, anisotropic scaling, reflection, and shearing
3-D Geometric Transformations
transltform3d	Translation transformation
rigidtform3d	Rigid transformation: translation and rotation
simtform3d	Similarity transformation: translation, rotation, and isotropic scaling
affinetform3d	Affine transformation: translation, rotation, anisotropic scaling, reflection, and shearing

Rin — Spatial referencing of input image

imref2d object | imref3d object

Since R2026a

Spatial referencing of an input image, specified as an imref2d or imref3d object.

style — Bounds style

"CenterOutput" (default) | "FollowOutput" | "SameAsInput"

Bounds style, specified as one of the following values.

Style	Description
"CenterOutput"	Center the view based on the position of the center of the image in output space. When calculating the position of the center of the image in output space, the affineOutputView function considers only the effect of rotation, anisotropic scaling, reflection, and shearing operations. The function ignores the effect of translation on the calculated image center. Therefore, for a transformation that include translation, the actual center of the output image will be offset from the center of the output view. If you specify an input spatial referencing object Rin, the mapping ignores offsets of the image in an input spatial referencing system. Therefore, for input spatial referencing that includes an offset, the actual center of the output image will be offset from the center of the output view. The size of the output image (Rout.ImageSize) is equal to sizeA or Rin.ImageSize.
"FollowOutput"	Set the limits of the output view to completely contain the output image.
"SameAsInput"	Set the output limits to be the same as the input limits. The size of the output image (Rout.ImageSize) is equal to sizeA or Rin.ImageSize.

Output Arguments

Rout — Spatial referencing

imref2d object | imref3d object

Spatial referencing, returned as an imref2d or imref3d object. Use Rout as the OutputView argument of the imwarp function to specify the spatial referencing of the warped output.

Algorithms

affineOutputView determines the spatial extent of the output spatial referencing object by mapping locations in the output image to the corresponding locations in the input image, using the intrinsic coordinate system (an inverse mapping). The mapping ignores translation in the transformation and offsets of the image in an input spatial referencing system. For more information, see Image Coordinate Systems.

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

The affineOutputView function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced in R2019b

R2026a: Specify input spatial referencing

You can now specify the first argument as a spatial referencing object. Use this argument when your input image is not in the intrinsic coordinate system.
