This example shows you how to calculate the length of a pendulum in motion. You can capture images in a time series with the Image Acquisition Toolbox™ and analyze them with the Image Processing Toolbox™.

Load the image frames of a pendulum in motion. The frames in the MAT-file `pendulum.mat`

were acquired using the following functions in the Image Acquisition Toolbox.

% Access an image acquisition device (video object). % vidimage=videoinput('winvideo',1,'RGB24_352x288'); % Configure object to capture every fifth frame. % vidimage.FrameGrabInterval = 5; % Configure the number of frames to be logged. % nFrames=50; % vidimage.FramesPerTrigger = nFrames; % Access the device's video source. % src=getselectedsource(vidimage); % Configure device to provide thirty frames per second. % src.FrameRate = 30; % Open a live preview window. Focus camera onto a moving pendulum. % preview(vidimage); % Initiate the acquisition. % start(vidimage); % Wait for data logging to finish before retrieving the data. % wait(vidimage, 10); % Extract frames from memory. % frames = getdata(vidimage); % Clean up. Delete and clear associated variables. % delete(vidimage) % clear vidimage % load MAT-file load pendulum;

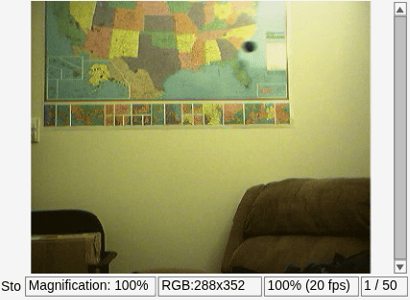

Run the following command to explore the image sequence in `implay`

.

implay(frames);

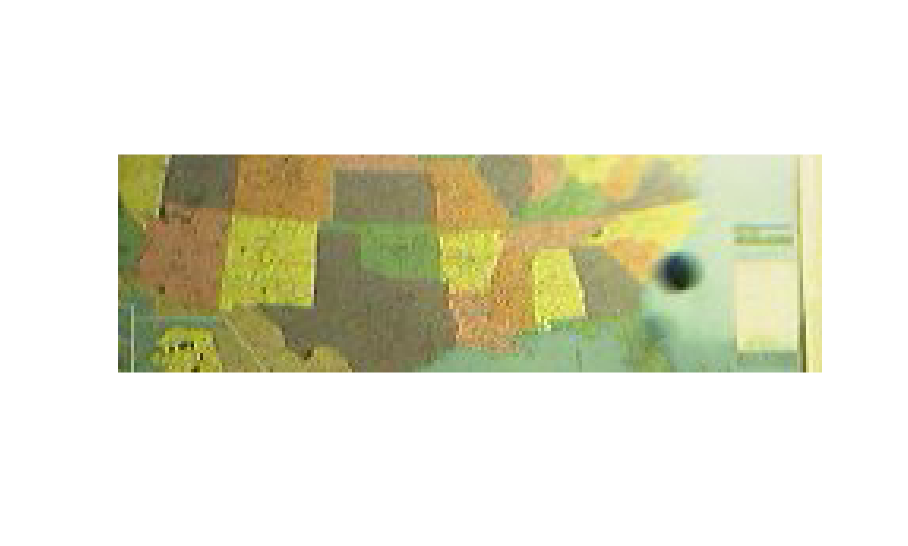

You can see that the pendulum is swinging in the upper half of each frame in the image series. Create a new series of frames that contains only the region where the pendulum is swinging.

To crop a series of frames using `imcrop`

, first perform `imcrop`

on one frame and store its output image. Then use the previous output's size to create a series of frame regions. For convenience, use the `rect`

that was loaded by `pendulum.mat`

in `imcrop`

.

nFrames = size(frames,4); first_frame = frames(:,:,:,1); first_region = imcrop(first_frame,rect); frame_regions = repmat(uint8(0), [size(first_region) nFrames]); for count = 1:nFrames frame_regions(:,:,:,count) = imcrop(frames(:,:,:,count),rect); end imshow(frames(:,:,:,1))

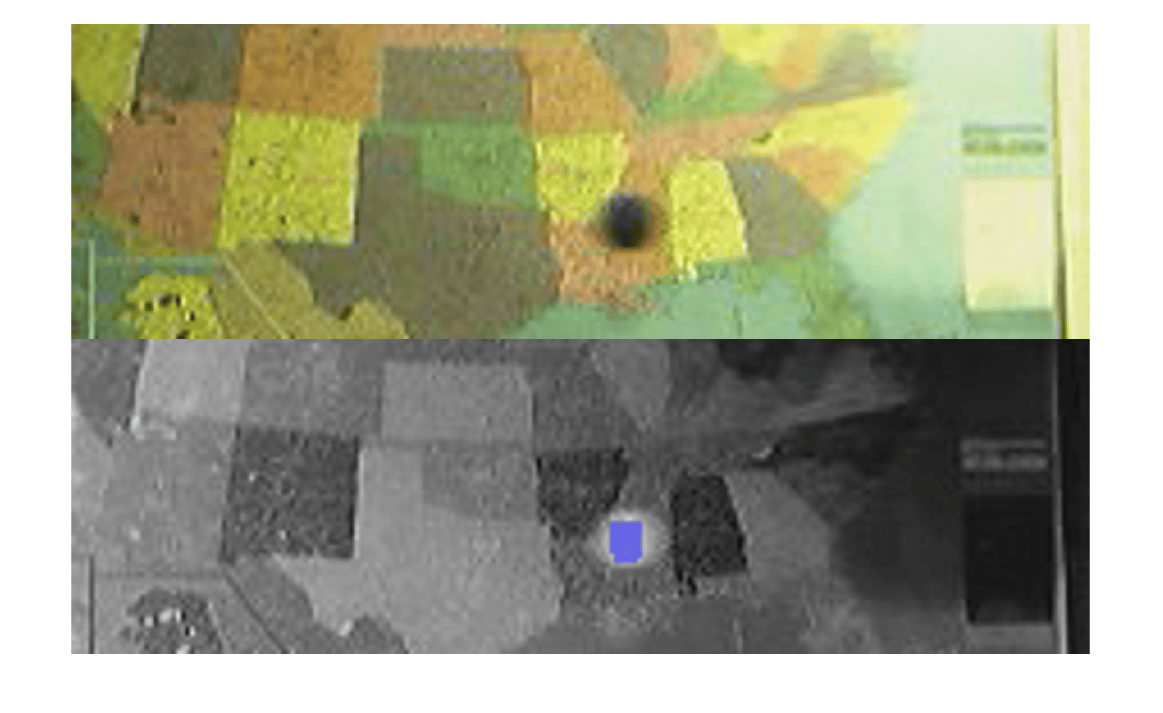

Notice that the pendulum is much darker than the background. You can segment the pendulum in each frame by converting the frame to grayscale, thresholding it using `imbinarize`

, and removing background structures using `imopen`

and `imclearborder`

.

initialize array to contain the segmented pendulum frames.

seg_pend = false([size(first_region,1) size(first_region,2) nFrames]); centroids = zeros(nFrames,2); se_disk = strel('disk',3); for count = 1:nFrames fr = frame_regions(:,:,:,count); gfr = rgb2gray(fr); gfr = imcomplement(gfr); bw = imbinarize(gfr,.7); % threshold is determined experimentally bw = imopen(bw,se_disk); bw = imclearborder(bw); seg_pend(:,:,count) = bw; montage({fr,labeloverlay(gfr,bw)}); pause(0.2) end

You can see that the shape of the pendulum varied in different frames. This is not a serious issue because you just need its center. You will use the pendulum centers to find the length of the pendulum.

Use `regionprops`

to calculate the center of the pendulum.

pend_centers = zeros(nFrames,2); for count = 1:nFrames property = regionprops(seg_pend(:,:,count), 'Centroid'); pend_centers(count,:) = property.Centroid; end

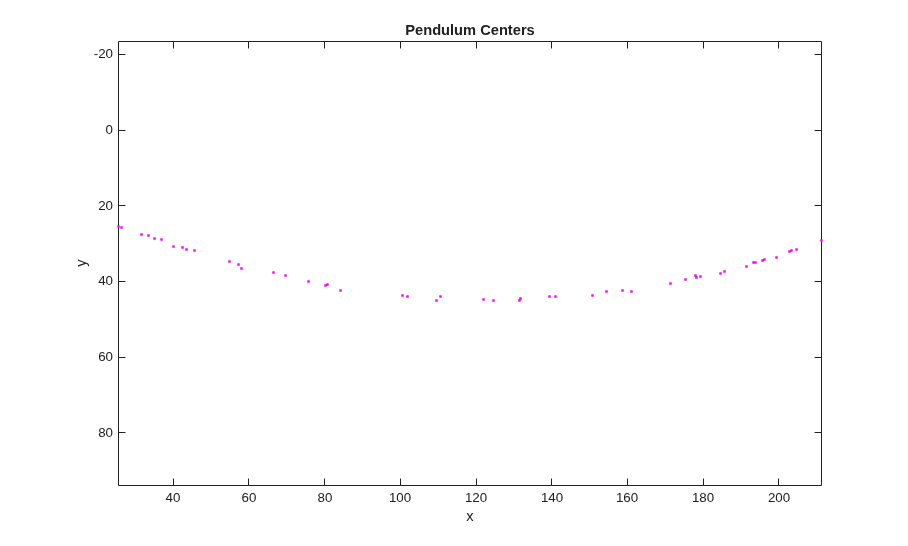

Display pendulum centers using `plot`

.

x = pend_centers(:,1); y = pend_centers(:,2); figure plot(x,y,'m.') axis ij axis equal hold on; xlabel('x'); ylabel('y'); title('Pendulum Centers');

Rewrite the basic equation of a circle:

`(x-xc)^2 + (y-yc)^2 = radius^2`

where `(xc,yc)`

is the center, in terms of parameters `a`

, `b`

, `c`

as

`x^2 + y^2 + a*x + b*y + c = 0`

where `a = -2*xc`

, `b = -2*yc`

, and `c = xc^2 + yc^2 - radius^2`

.

You can solve for parameters `a`

, `b`

, and `c`

using the least squares method. Rewrite the above equation as

`a*x + b*y + c = -(x^2 + y^2)`

which can also be rewritten as

`[x y 1] * [a;b;c] = -x^2 - y^2`

.

Solve this equation using the backslash(`\`

) operator.

The circle radius is the length of the pendulum in pixels.

abc = [x y ones(length(x),1)] \ -(x.^2 + y.^2); a = abc(1); b = abc(2); c = abc(3); xc = -a/2; yc = -b/2; circle_radius = sqrt((xc^2 + yc^2) - c); pendulum_length = round(circle_radius)

pendulum_length = 253

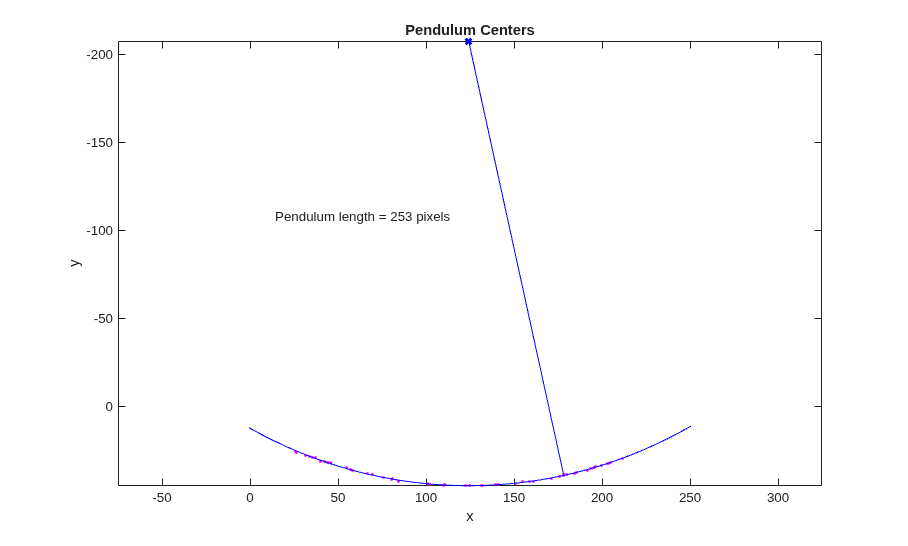

Superimpose circle and circle center on the plot of pendulum centers.

circle_theta = pi/3:0.01:pi*2/3; x_fit = circle_radius*cos(circle_theta)+xc; y_fit = circle_radius*sin(circle_theta)+yc; plot(x_fit,y_fit,'b-'); plot(xc,yc,'bx','LineWidth',2); plot([xc x(1)],[yc y(1)],'b-'); text(xc-110,yc+100,sprintf('Pendulum length = %d pixels', pendulum_length));
