MultiStart

Find multiple local minima

Description

A MultiStart object contains properties (options) that affect how run repeatedly runs a local solver to generate a GlobalOptimSolution object. When run, the solver attempts to find multiple local solutions to a problem by starting from various points.

Creation

Syntax

ms = MultiStart
ms = MultiStart(Name,Value)
ms = MultiStart(oldMS,Name,Value)
ms = MultiStart(gs)

Description

example

ms = MultiStart creates ms, a MultiStart solver with its properties set to the defaults.

example

ms = MultiStart(Name,Value) sets properties using name-value pairs.

example

ms = MultiStart(oldMS,Name,Value) creates a copy of the oldMS MultiStart solver, and sets properties using name-value pairs.

example

ms = MultiStart(gs) creates ms, a MultiStart solver, with common parameter values from the gs GlobalSearch solver.

Properties

expand all

Level of display to the Command Window, specified as one of the following character arrays or strings:

  • 'final' – Report summary results after run finishes.

  • 'iter' – Report results after each local solver run, in addition to the final summary.

  • 'off' – No display.

Example: 'iter'

Data Types: char | string

Tolerance on function values for considering solutions equal, specified as a nonnegative scalar. Solvers consider two solutions identical if they are within XTolerance relative distance of each other and have objective function values within FunctionTolerance relative difference of each other. If both conditions are not met, solvers report the solutions as distinct. Set FunctionTolerance to 0 to obtain the results of every local solver run. Set FunctionTolerance to a larger value to have fewer results. For GlobalSearch details, see Update Solution Set in When fmincon Runs. For MultiStart details, see Create GlobalOptimSolution Object.

Example: 1e-4

Data Types: double

Maximum time in seconds that MultiStart runs, specified as a positive scalar. MultiStart and its local solvers halt when MaxTime seconds have passed since the beginning of the run, as measured by tic and toc.

MaxTime does not interrupt local solvers during a run, so the total time can exceed MaxTime.

Example: 180 stops the solver the first time a local solver call finishes after 180 seconds.

Data Types: double

Report on solver progress or halt solver, specified as a function handle or cell array of function handles. Output functions run after each local solver call. They also run when the global solver starts and ends. Write output functions using the syntax described in OutputFcn. See GlobalSearch Output Function.

Data Types: cell | function_handle

Plot solver progress, specified as a function handle or cell array of function handles. Plot functions run after each local solver call. They also run when the global solver starts and ends. Write plot functions using the syntax described in OutputFcn.

There are two built-in plot functions:

  • @gsplotbestf plots the best objective function value.

  • @gsplotfunccount plots the number of function evaluations.

See MultiStart Plot Function.

Example: @gsplotbestf

Data Types: cell | function_handle

Start points to run, specified as:

  • 'all' — Run all start points.

  • 'bounds' — Run only start points that satisfy bounds.

  • 'bounds-ineqs' — Run only start points that satisfy bounds and inequality constraints.

Example: 'bounds' runs only points that satisfy all bounds.

Data Types: char | string

Distribute local solver calls to multiple processors, specified as false or true.

  • false — Do not run in parallel.

  • true — Distribute the local solver calls to multiple processors.

Example: true

Data Types: logical

Tolerance on distance for considering solutions equal, specified as a nonnegative scalar. Solvers consider two solutions identical if they are within XTolerance relative distance of each other and have objective function values within FunctionTolerance relative difference of each other. If both conditions are not met, solvers report the solutions as distinct. Set XTolerance to 0 to obtain the results of every local solver run. Set XTolerance to a larger value to have fewer results. For GlobalSearch details, see Update Solution Set in When fmincon Runs. For MultiStart details, see Create GlobalOptimSolution Object.

Example: 2e-4

Data Types: double

Object Functions

runRun multiple-start solver

Examples

collapse all

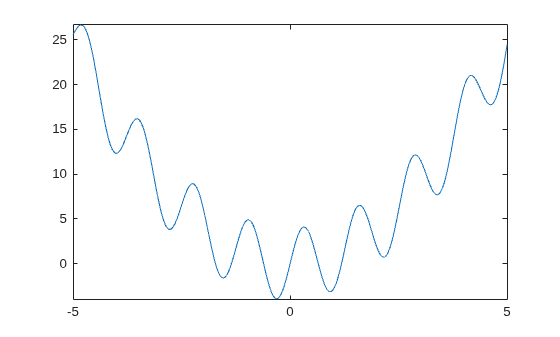

Consider a function with several local minima.

fun = @(x) x.^2 + 4*sin(5*x);
fplot(fun,[-5,5])

To search for the global minimum, run MultiStart on 20 instances of the problem using the fmincon 'sqp' algorithm.

rng default % For reproducibility
opts = optimoptions(@fmincon,'Algorithm','sqp');
problem = createOptimProblem('fmincon','objective',...
    fun,'x0',3,'lb',-5,'ub',5,'options',opts);
ms = MultiStart;
[x,f] = run(ms,problem,20)
MultiStart completed the runs from all start points.

All 20 local solver runs converged with a positive local solver exit flag.
x = -0.3080
f = -3.9032

Create a MultiStart object with default properties.

ms = MultiStart
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 1.0000e-06
              MaxTime: Inf
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'all'
           XTolerance: 1.0000e-06

Create a MultiStart object with looser tolerances than default, so the solver returns fewer solutions that are close to each other. Also, have MultiStart run only initial points that are feasible with respect to bounds and inequality constraints.

ms = MultiStart('FunctionTolerance',2e-4,'XTolerance',5e-3,...
    'StartPointsToRun','bounds-ineqs')
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 2.0000e-04
              MaxTime: Inf
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'bounds-ineqs'
           XTolerance: 0.0050

Create a nondefault GlobalSearch object.

gs = GlobalSearch('FunctionTolerance',2e-4,'NumTrialPoints',2000)
gs =
  GlobalSearch with properties:

             NumTrialPoints: 2000
          BasinRadiusFactor: 0.2000
    DistanceThresholdFactor: 0.7500
               MaxWaitCycle: 20
          NumStageOnePoints: 200
     PenaltyThresholdFactor: 0.2000
                    Display: 'final'
          FunctionTolerance: 2.0000e-04
                    MaxTime: Inf
                  OutputFcn: []
                    PlotFcn: []
           StartPointsToRun: 'all'
                 XTolerance: 1.0000e-06

Create a MultiStart object that uses the available properties from gs.

ms = MultiStart(gs)
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 2.0000e-04
              MaxTime: Inf
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'all'
           XTolerance: 1.0000e-06

ms has the same nondefault value of FunctionTolerance as gs. But ms does not use the NumTrialPoints property.

Create a MultiStart object with a FunctionTolerance of 1e-4.

ms = MultiStart('FunctionTolerance',1e-4)
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 1.0000e-04
              MaxTime: Inf
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'all'
           XTolerance: 1.0000e-06

Update the XTolerance property to 1e-3, and the StartPointsToRun property to 'bounds'.

ms = MultiStart(ms,'XTolerance',1e-3,'StartPointsToRun','bounds')
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 1.0000e-04
              MaxTime: Inf
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'bounds'
           XTolerance: 1.0000e-03

You can also update properties one at a time by using dot notation.

ms.MaxTime = 1800
ms =
  MultiStart with properties:

          UseParallel: 0
              Display: 'final'
    FunctionTolerance: 1.0000e-04
              MaxTime: 1800
            OutputFcn: []
              PlotFcn: []
     StartPointsToRun: 'bounds'
           XTolerance: 1.0000e-03

Algorithms

For a detailed description of the algorithm, see MultiStart Algorithm.

Extended Capabilities

Introduced in R2010a
