## Using Maximum and Expected Maximum Drawdown

### Introduction

Maximum drawdown is the maximum decline of a series, measured as return, from a peak to a nadir over a period of time. Although additional metrics exist that are used in the hedge fund and commodity trading communities (see Pederson and Rudholm-Alfvin [20] in Bibliography), the original definition and subsequent implementation of these metrics is not yet standardized.

It is possible to compute analytically the expected maximum drawdown for a Brownian motion with drift (see Magdon-Ismail, Atiya, Pratap, and Abu-Mostafa [16] Bibliography). These results are used to estimate the expected maximum drawdown for a series that approximately follows a geometric Brownian motion.

Use `maxdrawdown`

and `emaxdrawdown`

to calculate the
maximum and expected maximum drawdowns.

### Maximum Drawdown

This example demonstrates how to compute the maximum drawdown
(`MaxDD`

) using example data with a fund, a market, and a cash
series:

```
load FundMarketCash
MaxDD = maxdrawdown(TestData)
```

which gives the following results:

MaxDD = 0.1658 0.3381 0

The maximum drop in the given time period is 16.58% for the fund series and 33.81% for the market. There is no decline in the cash series, as expected, because the cash account never loses value.

`maxdrawdown`

can also return the
indices (`MaxDDIndex`

) of the maximum drawdown intervals for each
series in an optional output
argument:

[MaxDD, MaxDDIndex] = maxdrawdown(TestData)

which gives the following results:

MaxDD = 0.1658 0.3381 0 MaxDDIndex = 2 2 NaN 18 18 NaN

The first two series experience their maximum drawdowns from the second to the
18th month in the data. The indices for the third series are `NaN`

s
because it never has a drawdown.

The 16.58% value loss from month 2 to month 18 for the fund series is verified using the reported indices:

Start = MaxDDIndex(1,:); End = MaxDDIndex(2,:); (TestData(Start(1),1) - TestData(End(1),1))/TestData(Start(1),1)

ans = 0.1658

Although the maximum drawdown is measured in terms of returns, `maxdrawdown`

can measure the
drawdown in terms of absolute drop in value, or in terms of log-returns. To contrast
these alternatives more clearly, you can work with the fund series assuming, an
initial investment of 50 dollars:

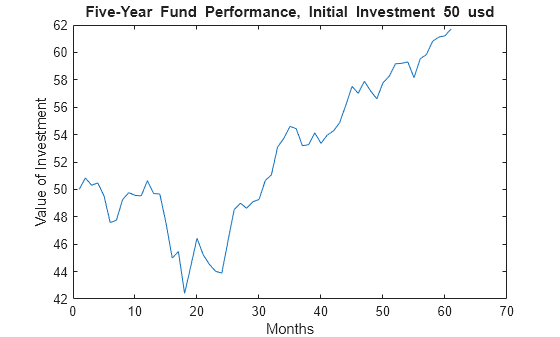

Fund50 = 50*TestData(:,1); plot(Fund50); title('\bfFive-Year Fund Performance, Initial Investment 50 usd'); xlabel('Months'); ylabel('Value of Investment');

First, compute the standard maximum drawdown, which coincides with the results above because returns are independent of the initial amounts invested:

MaxDD50Ret = maxdrawdown(Fund50)

MaxDD50Ret = 0.1658

Next, compute the maximum drop in value, using the `arithmetic`

argument:

`[MaxDD50Arith, Ind50Arith] = maxdrawdown(Fund50,'arithmetic')`

MaxDD50Arith = 8.4285 Ind50Arith = 2 18

The value of this investment is $50.84 in month 2, but by month 18 the value is down to $42.41, a drop of $8.43. This is the largest loss in dollar value from a previous high in the given time period. In this case, the maximum drawdown period, 2nd to 18th month, is the same independently of whether drawdown is measured as return or as dollar value loss.

Finally, you can compute the maximum decline based on log-returns using the
`geometric`

argument. In this example, the log-returns result
in a maximum drop of 18.13%, again from the second to the 18th month, not far from
the 16.58% obtained using standard
returns.

`[MaxDD50LogRet, Ind50LogRet] = maxdrawdown(Fund50,'geometric')`

MaxDD50LogRet = 0.1813 Ind50LogRet = 2 18

Note, the last measure is equivalent to finding the arithmetic maximum drawdown for the log of the series:

`MaxDD50LogRet2 = maxdrawdown(log(Fund50),'arithmetic')`

MaxDD50LogRet2 = 0.1813

### Expected Maximum Drawdown

This example demonstrates using the log-return moments of the fund to compute the
expected maximum drawdown (`EMaxDD`

) and then compare it with the
realized maximum drawdown (`MaxDD`

).

load FundMarketCash logReturns = log(TestData(2:end,:) ./ TestData(1:end - 1,:)); Mu = mean(logReturns(:,1)); Sigma = std(logReturns(:,1),1); T = size(logReturns,1); MaxDD = maxdrawdown(TestData(:,1),'geometric') EMaxDD = emaxdrawdown(Mu, Sigma, T)

which gives the following results:

MaxDD = 0.1813 EMaxDD = 0.1545

The drawdown observed in this time period is above the expected maximum drawdown. There is no contradiction here. The expected maximum drawdown is not an upper bound on the maximum losses from a peak, but an estimate of their average, based on a geometric Brownian motion assumption.
