# irf

Generate vector autoregression (VAR) model impulse responses

## Description

The irf function returns the dynamic response, or the impulse response function (IRF), to a one-standard-deviation shock to each variable in a VAR(p) model. A fully specified varm model object characterizes the VAR model.

To estimate or plot the IRF of a dynamic linear model characterized by structural, autoregression, or moving average coefficient matrices, see armairf.

IRFs trace the effects of an innovation shock to one variable on the response of all variables in the system. In contrast, the forecast error variance decomposition (FEVD) provides information about the relative importance of each innovation in affecting all variables in the system. To estimate the FEVD of a VAR model characterized by a varm model object, see fevd.

You can supply optional data, such as a presample, as a numeric array, table, or timetable. However, all specified input data must be the same data type. When the input model is estimated (returned by estimate), supply the same data type as the data used to estimate the model. The data type of the outputs matches the data type of the specified input data.

example

Response = irf(Mdl) returns a numeric array containing the orthogonalized IRF of the response variables that compose the VAR(p) model Mdl, characterized by a fully specified varm model object. irf shocks variables at time 0, and returns the IRF for times 0 through 19.

If Mdl is an estimated model (returned by estimate) fit to a numeric matrix of input response data, this syntax applies.

example

Response = irf(Mdl,Name,Value) irf returns numeric arrays when all optional input data are numeric arrays. For example, irf(Mdl,NumObs=10,Method="generalized") specifies estimating a generalized IRF for 10 time points starting at time 0, during which irf applies the shock.

If Mdl is an estimated model fit to a numeric matrix of input response data, this syntax applies.

example

[Response,Lower,Upper] = irf(___) returns numeric arrays of lower Lower and upper Upper 95% confidence bounds for confidence intervals on the true IRF, for each period and variable in the IRF, using any input argument combination in the previous syntaxes. By default, irf estimates confidence bounds by conducting Monte Carlo simulation.

If Mdl is an estimated model fit to a numeric matrix of input response data, this syntax applies.

If Mdl is a custom varm model object (an object not returned by estimate or modified after estimation), irf can require a sample size for the simulation SampleSize or presample responses Y0.

example

Tbl = irf(___) returns the table or timetable Tbl containing the IRFs and, optionally, corresponding 95% confidence bounds, of the response variables that compose the VAR(p) model Mdl. The IRF of the corresponding response is a variable in Tbl containing a matrix with columns corresponding to the variables in the system shocked at time 0.

If you set at least one name-value argument that controls the 95% confidence bounds on the IRF, Tbl also contains a variable for each of the lower and upper bounds. For example, Tbl contains confidence bounds when you set the NumPaths name-value argument.

If Mdl is an estimated model fit to a table or timetable of input response data, this syntax applies.

## Examples

collapse all

Fit a 4-D VAR(2) model to Danish money and income rate series data in a numeric matrix. Then, estimate and plot the orthogonalized IRF from the estimated model.

Load the Danish money and income data set.

For more details on the data set, enter Description at the command line.

Assuming that the series are stationary, create a varm model object that represents a 4-D VAR(2) model. Specify the variable names.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;

Mdl is a varm model object specifying the structure of a 4-D VAR(2) model; it is a template for estimation.

Fit the VAR(2) model to the numeric matrix of time series data Data.

Mdl = estimate(Mdl,Data);

Mdl is a fully specified varm model object representing an estimated 4-D VAR(2) model.

Estimate the orthogonalized IRF from the estimated VAR(2) model.

Response = irf(Mdl);

Response is a 20-by-4-by-4 array representing the IRF of Mdl. Rows correspond to consecutive time points from time 0 to 19, columns correspond to variables receiving a one-standard-deviation innovation shock at time 0, and pages correspond to responses of variables to the variable being shocked. Mdl.SeriesNames specifies the variable order.

Display the IRF of the bond rate (variable 3, IB) when the log of real income (variable 2, Y) is shocked at time 0.

Response(:,2,3)
ans = 20×1

0.0018
0.0048
0.0054
0.0051
0.0040
0.0029
0.0019
0.0011
0.0006
0.0003
⋮

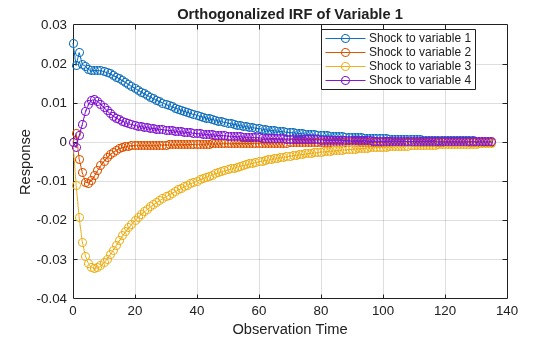

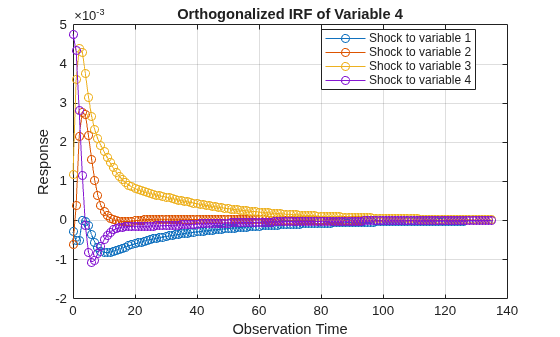

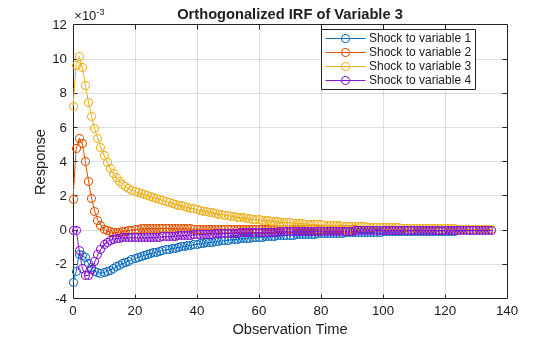

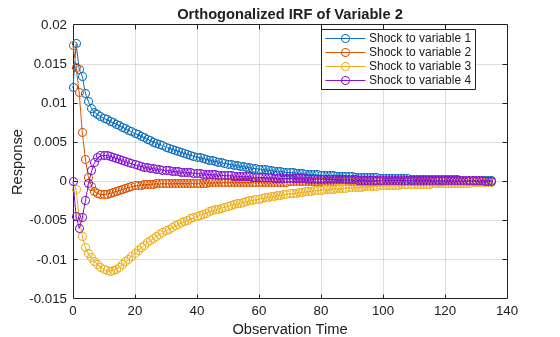

Plot the IRFs of all series on separate plots by passing the estimated AR coefficient matrices and innovations covariance matrix of Mdl to armairf.

armairf(Mdl.AR,[],InnovCov=Mdl.Covariance);

Each plot shows the four IRFs of a variable when all other variables are shocked at time 0. Mdl.SeriesNames specifies the variable order.

Consider the 4-D VAR(2) model in Specify Data in Numeric Matrix When Plotting IRF. Estimate the generalized IRF of the system for 50 periods.

Load the Danish money and income data set, then estimate the VAR(2) model.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
Mdl = estimate(Mdl,DataTable.Series);

Estimate the generalized IRF from the estimated VAR(2) model.

Response = irf(Mdl,Method="generalized",NumObs=50);

Response is a 50-by-4-by-4 array representing the generalized IRF of Mdl.

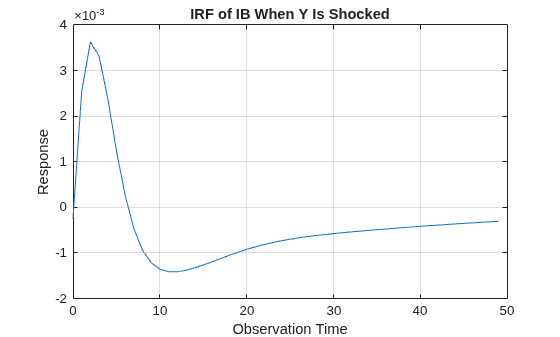

Plot the generalized IRF of the bond rate when real income is shocked at time 0.

figure;
plot(0:49,Response(:,2,3))
title("IRF of IB When Y Is Shocked")
xlabel("Observation Time")
ylabel("Response")
grid on

The bond rate fades slowly when real income is shocked at time 0.

Fit a 4-D VAR(2) model to Danish money and income rate series data in a numeric matrix. Then, estimate and plot the orthogonalized IRF from the estimated model.

Load the Danish money and income data set.

The data set includes four time series in the timetable DataTimeTable. For more details on the data set, enter Description at the command line.

Assuming that the series are stationary, create a varm model object that represents a 4-D VAR(2) model. Specify the variable names.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTimeTable.Properties.VariableNames;

Mdl is a varm model object specifying the structure of a 4-D VAR(2) model; it is a template for estimation.

Fit the VAR(2) model to the data set.

EstMdl = estimate(Mdl,DataTimeTable);

Mdl is a fully specified varm model object representing an estimated 4-D VAR(2) model.

Estimate the orthogonalized IRF and corresponding 95% confidence intervals from the estimated VAR(2) model. To return confidence intervals, you must set a name-value argument that controls confidence intervals, for example, Confidence. Set Confidence to 0.95.

rng(1); % For reproducibility
Tbl = irf(EstMdl,Confidence=0.95);
size(Tbl)
ans = 1×2

20    12

Tbl
Tbl=20×12 timetable
Time                               M2_IRF                                                     Y_IRF                                                   IB_IRF                                                   ID_IRF                                                M2_IRF_LowerBound                                          Y_IRF_LowerBound                                          IB_IRF_LowerBound                                          ID_IRF_LowerBound                                         M2_IRF_UpperBound                                       Y_IRF_UpperBound                                       IB_IRF_UpperBound                                       ID_IRF_UpperBound
___________    _____________________________________________________    _______________________________________________________    ___________________________________________________    _______________________________________________________    _______________________________________________________    _______________________________________________________    ______________________________________________________    _______________________________________________________    _____________________________________________________    ___________________________________________________    ____________________________________________________    ___________________________________________________

01-Jul-1974    0.025385       0.011979     -0.0030299    -0.00029592             0       0.017334      0.0017985    -0.00060941            0             0     0.0072384     0.0011766             0              0              0      0.0047648      0.017729      0.0062931     -0.0046236     -0.0012223             0       0.012192    -0.00017736     -0.0016259            0              0      0.0046542    -0.00050518             0              0              0        0.00322     0.02713       0.016442    -0.00074788      0.0010392            0      0.019303     0.0037597    0.00088073             0             0     0.0080468      0.002298            0             0             0     0.0049936
01-Oct-1974    0.019597       0.017604     -0.0024059    -0.00052605     0.0022668       0.014588      0.0047558     0.00037877    -0.011013    -0.0010791     0.0096387     0.0036033    -0.0014511     -0.0044686    -1.6666e-05      0.0043446     0.0088617      0.0075327     -0.0054155     -0.0024484    -0.0045762      0.0055602     0.00085487     -0.0014949    -0.015821     -0.0059937      0.0044639     0.00097209    -0.0072913     -0.0092174     -0.0021639       0.001595    0.024652       0.020779     0.00056005      0.0014407    0.0069932      0.017056     0.0070093     0.0021859    -0.0048396     0.0046483      0.010957     0.0051531    0.0043279    0.00045888     0.0017342     0.0050611
01-Jan-1975    0.023011        0.01432     -0.0014045    -0.00051972    -0.0043703       0.011341       0.005376      0.0021556    -0.019326    -0.0046725      0.010182      0.004395     0.0017534     -0.0060605     -0.0011601       0.002806      0.011414      0.0045521      -0.004882     -0.0024604      -0.01291    -0.00094466    -0.00017957    -0.00068506    -0.021662         -0.011      0.0035604      0.0011887    -0.0069887       -0.01257     -0.0045524    -0.00041328    0.029914       0.016987      0.0018906      0.0011012    0.0051311      0.013943     0.0080383     0.0041762    -0.0068581      0.003094      0.012053     0.0057324    0.0082731     0.0013124     0.0025533     0.0042406
01-Apr-1975    0.019864        0.01344     -0.0014933    -4.4254e-06    -0.0078183      0.0062247      0.0050662      0.0027626    -0.025548    -0.0070059      0.009493     0.0043074     0.0045597      -0.004589      -0.002223      0.0011591     0.0063539      0.0025976     -0.0054684     -0.0021938     -0.017355     -0.0064979       -0.00123     0.00010743    -0.029292      -0.013974      0.0015562     0.00077995    -0.0081444      -0.011287     -0.0062556     -0.0022002    0.028924       0.015926      0.0014925      0.0012851    0.0059606      0.011209     0.0080886     0.0047651    -0.0063978     0.0028959      0.012097     0.0057966     0.014418     0.0038715     0.0033635     0.0023838
01-Jul-1975    0.019419       0.011244     -0.0015969    -3.4305e-05     -0.010187      0.0028147      0.0039998      0.0026985    -0.029124    -0.0084906     0.0084798     0.0037481     0.0077423     -0.0025063     -0.0026634    -0.00013404      0.005327    -0.00049621     -0.0054593     -0.0021455     -0.022716     -0.0081187     -0.0028733    -0.00042378    -0.034992      -0.015799     0.00056474     0.00020164    -0.0078458      -0.010846     -0.0068023     -0.0035519    0.029407       0.014405       0.001692      0.0015767    0.0087664      0.010134     0.0075162     0.0043343    -0.0057691     0.0018746      0.012047     0.0055231     0.020043     0.0064893     0.0029097      0.001343
01-Oct-1975    0.018532        0.01016     -0.0019436    -0.00013964     -0.010448     0.00049217      0.0028587      0.0021692    -0.031107    -0.0092773     0.0074784     0.0031474     0.0097242    -0.00029442     -0.0026358    -0.00082626      0.001818     -0.0004023     -0.0058779     -0.0022755     -0.023734     -0.0077482     -0.0042795    -0.00098779    -0.038594      -0.016547    -0.00011469    -0.00064435    -0.0095859     -0.0070065     -0.0059945     -0.0034737    0.030136       0.013705      0.0016763      0.0017479     0.011566     0.0082498     0.0057995     0.0033017    -0.0044473     0.0013279      0.011642     0.0050999     0.022978     0.0090112     0.0027824     0.0014644
01-Jan-1976    0.018426      0.0092868     -0.0022099    -0.00036763    -0.0097658    -0.00071481      0.0018519      0.0015618    -0.032019    -0.0098054     0.0066319      0.002661      0.010735      0.0013489     -0.0022958      -0.001066    0.00094487     -0.0010919     -0.0057706     -0.0026426     -0.023367     -0.0091729     -0.0049467     -0.0014946    -0.042002      -0.016681    -0.00084973     -0.0010919     -0.010268     -0.0059067     -0.0046107     -0.0030697    0.030831       0.014467      0.0020979      0.0014645     0.013995     0.0070356     0.0042604     0.0028084    -0.0042527     0.0021613      0.010919     0.0047273     0.024747      0.010363     0.0021819    0.00073538
01-Apr-1976    0.018347      0.0088274      -0.002408    -0.00055954    -0.0085284     -0.0013241      0.0011035       0.001029    -0.032301     -0.010245     0.0059331     0.0023208      0.010834      0.0024299     -0.0018575     -0.0010181    0.00088792    -0.00087384     -0.0057043     -0.0027239     -0.022321     -0.0095626     -0.0046415     -0.0016955    -0.044772      -0.015403     -0.0014757    -0.00074988     -0.010505     -0.0057904     -0.0042961     -0.0025666    0.030874       0.015059      0.0021942      0.0012385      0.01511     0.0075202     0.0041588     0.0022807    -0.0018926     0.0020667     0.0099711     0.0041106     0.027227      0.010447     0.0026554     0.0011517
01-Jul-1976    0.018349      0.0085007     -0.0025003    -0.00070381    -0.0072023     -0.0015783     0.00059083     0.00064004    -0.032139     -0.010662     0.0053454     0.0020863      0.010389      0.0030152     -0.0014396    -0.00084984    0.00081535    -0.00056917     -0.0054989     -0.0027904     -0.020095     -0.0090132      -0.003905     -0.0019258    -0.046259      -0.016859     -0.0018945     -0.0010315    -0.0088981     -0.0047543     -0.0042238     -0.0017878    0.030856       0.014085      0.0023174      0.0013691     0.017564     0.0079639     0.0040872     0.0017655     -0.001588     0.0020803     0.0088559     0.0036667      0.02646      0.010048     0.0026267     0.0012534
01-Oct-1976    0.018261      0.0082681     -0.0025175    -0.00078515    -0.0059528     -0.0016715       0.000265     0.00038128    -0.031642      -0.01103     0.0048331     0.0019104     0.0096565      0.0032746     -0.0011032    -0.00066034    -0.0011251    -0.00075733     -0.0050727     -0.0026529     -0.019957     -0.0091831     -0.0037003     -0.0015265    -0.046571      -0.018406     -0.0023099     -0.0010146    -0.0087836     -0.0043276     -0.0035229     -0.0015206    0.031925       0.013921      0.0023499      0.0013534     0.017285     0.0080779     0.0037871     0.0016071    0.00034958     0.0018116     0.0082019     0.0031525     0.025188     0.0098717     0.0023763      0.001372
01-Jan-1977    0.018088      0.0080578     -0.0024803    -0.00082067     -0.004866     -0.0016783     6.7351e-05     0.00021975    -0.030874     -0.011308     0.0043776     0.0017587     0.0088385      0.0033353    -0.00085828    -0.00049952    -0.0023654    -0.00054861     -0.0046959     -0.0023017     -0.018881     -0.0083688     -0.0036323     -0.0013151    -0.045822      -0.019143     -0.0022457    -0.00076165    -0.0096651     -0.0046474     -0.0033535      -0.001605    0.031832       0.013992      0.0023109      0.0011487      0.01618     0.0079136     0.0033058     0.0015065     0.0014169     0.0019553     0.0074233     0.0026903     0.023693     0.0092439     0.0022507     0.0010427
01-Apr-1977     0.01782      0.0078585     -0.0024126    -0.00082488    -0.0039472     -0.0016348    -4.6051e-05     0.00012029    -0.029898     -0.011467     0.0039728     0.0016154     0.0080434      0.0032901    -0.00069265    -0.00038034    -0.0041445     -0.0009108     -0.0046233     -0.0021475     -0.017842     -0.0074943     -0.0036166     -0.0012714    -0.044148      -0.019166     -0.0023327    -0.00078836     -0.010263     -0.0046773     -0.0028019      -0.001797    0.030983       0.013903      0.0022172       0.001152     0.014886      0.007478     0.0027978     0.0013601     0.0017628     0.0019984     0.0059992     0.0024748     0.023083     0.0093155     0.0021594    0.00090656
01-Jul-1977     0.01748      0.0076612     -0.0023288    -0.00081178    -0.0031853     -0.0015527    -0.00010551     5.8177e-05    -0.028778     -0.011497     0.0036184      0.001477      0.007324      0.0031905    -0.00058632    -0.00029882    -0.0055294       -0.00154     -0.0045625     -0.0019225     -0.017729       -0.00744     -0.0034336     -0.0012351    -0.041703      -0.018635     -0.0029266    -0.00097794     -0.010567      -0.004571     -0.0030526       -0.00144    0.029897       0.013651       0.002083      0.0011265     0.015725     0.0067952     0.0028631     0.0012628     0.0032766     0.0021382     0.0054534       0.00231        0.021     0.0091161       0.00197      0.000865
01-Oct-1977    0.017084      0.0074669     -0.0022386    -0.00078982    -0.0025611     -0.0014412    -0.00012965      1.837e-05    -0.027577      -0.01141      0.003315     0.0013467     0.0066953      0.0030638    -0.00052096    -0.00024515    -0.0059883     -0.0019006     -0.0045009     -0.0017518     -0.016735     -0.0070905     -0.0030476     -0.0012138     -0.03866      -0.017655     -0.0023904     -0.0010579     -0.010714     -0.0044868     -0.0030057     -0.0010935    0.028693        0.01332      0.0015194      0.0010569     0.016655     0.0061735     0.0029008     0.0010539     0.0049304     0.0023071     0.0052074     0.0022951     0.019005      0.008691     0.0018979    0.00088102
01-Jan-1978    0.016649       0.007275     -0.0021468    -0.00076393    -0.0020585     -0.0013098    -0.00013023    -6.9227e-06     -0.02635     -0.011223     0.0030608     0.0012284      0.006156      0.0029232    -0.00048251    -0.00021015    -0.0067654     -0.0016931     -0.0044291     -0.0016366     -0.016779     -0.0072429     -0.0028373     -0.0011991    -0.035195      -0.016242     -0.0025182     -0.0010499     -0.010659     -0.0043064      -0.002775     -0.0010409    0.028206        0.01294      0.0015156     0.00095142     0.016305     0.0058332     0.0026818    0.00094436     0.0054449     0.0022641     0.0053236     0.0021337     0.018369     0.0079906     0.0017187    0.00082592
01-Apr-1978    0.016187      0.0070851     -0.0020565    -0.00073641    -0.0016627     -0.0011692    -0.00011514    -2.1687e-05    -0.025141     -0.010963     0.0028515      0.001125     0.0056974      0.0027764    -0.00046133    -0.00018714    -0.0053812     -0.0015885     -0.0043428     -0.0016435     -0.016571      -0.007324     -0.0025033     -0.0011496    -0.033556      -0.015142     -0.0025535     -0.0010552     -0.010407     -0.0040787     -0.0025947     -0.0011176    0.027675       0.012605      0.0015485     0.00082164     0.015764     0.0056146     0.0024931     0.0010281     0.0054922     0.0019958     0.0054463     0.0021499     0.019244     0.0078422       0.00157    0.00071951
⋮

Tbl is a timetable with 20 rows, representing the periods in the IRF, and 12 variables. Each variable is a 20-by-4 matrix of the IRF or confidence bound associated with a variable in the model EstMdl. For example, Tbl.M2_IRF(:,2) is the IRF of M2 resulting from a 1-standard-deviation shock on 01-Jul-1974 (period 0) to Mdl.SeriesNames(2), which is the variable Y. [Tbl.M2_IRF_LowerBound(:,2),Tbl.M2_IRF_UpperBound(:,2)] are the corresponding 95% confidence intervals.

Plot the IRF of M2 and its 95% confidence interval resulting from a 1-standard-deviation shock on 01-Jul-1974 (period 0) to Mdl.SeriesNames(2), which is the variable Y.

idxM2 = startsWith(Tbl.Properties.VariableNames,"M2");
M2IRF = Tbl(:,idxM2);
shockIdx = 2;
figure
hold on
plot(M2IRF.Time,M2IRF.M2_IRF(:,shockIdx),"-o")
plot(M2IRF.Time,[M2IRF.M2_IRF_LowerBound(:,shockIdx) ...
M2IRF.M2_IRF_UpperBound(:,shockIdx)],"-o",Color="r")
legend("IRF","95% confidence interval")
title('M2 IRF, Shock to Y')
hold off

Consider the 4-D VAR(2) model in Specify Data in Numeric Matrix When Plotting IRF. Estimate and plot its orthogonalized IRF and 95% Monte Carlo confidence intervals on the true IRF.

Load the Danish money and income data set, then estimate the VAR(2) model.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
Mdl = estimate(Mdl,DataTable.Series);

Estimate the IRF and corresponding 95% Monte Carlo confidence intervals from the estimated VAR(2) model.

rng(1); % For reproducibility
[Response,Lower,Upper] = irf(Mdl);

Response, Lower, and Upper are 20-by-4-by-4 arrays representing the orthogonalized IRF of Mdl and corresponding lower and upper bounds of the confidence intervals. For all arrays, rows correspond to consecutive time points from time 0 to 19, columns correspond to variables receiving a one-standard-deviation innovation shock at time 0, and pages correspond to responses of variables to the variable being shocked. Mdl.SeriesNames specifies the variable order.

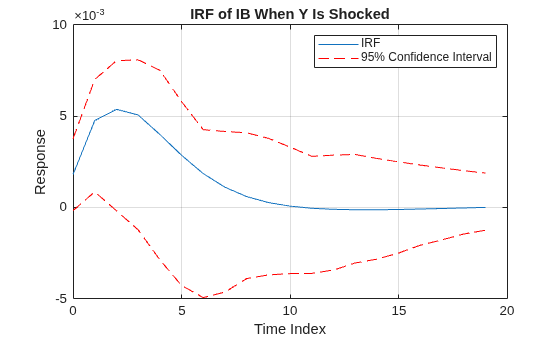

Plot the orthogonalized IRF with its confidence bounds of the bond rate when real income is shocked at time 0.

irfshock2resp3 = Response(:,2,3);
IRFCIShock2Resp3 = [Lower(:,2,3) Upper(:,2,3)];

figure;
h1 = plot(0:19,irfshock2resp3);
hold on
h2 = plot(0:19,IRFCIShock2Resp3,"r--");
legend([h1 h2(1)],["IRF" "95% Confidence Interval"])
xlabel("Time Index");
ylabel("Response");
title("IRF of IB When Y Is Shocked");
grid on
hold off

The effect of the impulse to real income on the bond rate fades after 10 periods.

Consider the 4-D VAR(2) model in Specify Data in Numeric Matrix When Plotting IRF. Estimate and plot its orthogonalized IRF and 90% bootstrap confidence intervals on the true IRF.

Load the Danish money and income data set, then estimate the VAR(2) model. Return the residuals from model estimation.

Mdl = varm(4,2);
Mdl.SeriesNames = DataTable.Properties.VariableNames;
[Mdl,~,~,Res] = estimate(Mdl,DataTable.Series);
T = size(DataTable,1) % Total sample size
T = 55
n = size(Res,1)         % Effective sample size
n = 53

Res is a 53-by-4 array of residuals. Columns correspond to the variables in Mdl.SeriesNames. The estimate function requires Mdl.P = 2 observations to initialize a VAR(2) model for estimation. Because presample data (Y0) is unspecified, estimate takes the first two observations in the specified response data to initialize the model. Therefore, the resulting effective sample size is TMdl.P = 53, and rows of Res correspond to the observation indices 3 through T.

Estimate the orthogonalized IRF and corresponding 90% bootstrap confidence intervals from the estimated VAR(2) model. Draw 500 paths of length n from the series of residuals.

rng(1); % For reproducibility
[Response,Lower,Upper] = irf(Mdl,E=Res,NumPaths=500,Confidence=0.9);

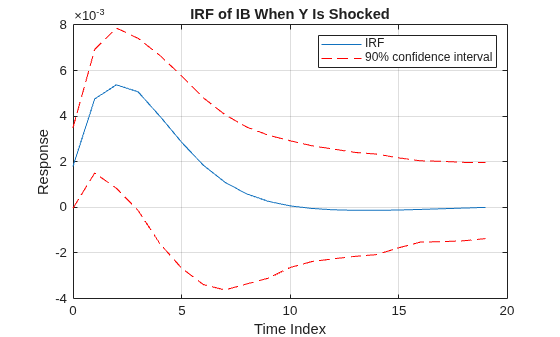

Plot the orthogonalized IRF with its confidence bounds of the bond rate when real income is shocked at time 0.

irfshock2resp3 = Response(:,2,3);
IRFCIShock2Resp3 = [Lower(:,2,3) Upper(:,2,3)];

figure;
h1 = plot(0:19,irfshock2resp3);
hold on
h2 = plot(0:19,IRFCIShock2Resp3,"r--");
legend([h1 h2(1)],["IRF" "90% Confidence Interval"])
xlabel("Time Index");
ylabel("Response");
title("IRF of IB When Y Is Shocked");
grid on
hold off

The effect of the impulse to real income on the bond rate fades after 10 periods.

## Input Arguments

collapse all

VAR model, specified as a varm model object created by varm or estimate. Mdl must be fully specified.

If Mdl is an estimated model (returned by estimate) , you must supply any optional data using the same data type as the input response data, to which the model is fit.

If Mdl is a custom varm model object (an object not returned by estimate or modified after estimation), irf can require a sample size for the simulation SampleSize or presample responses Y0.

### Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: irf(Mdl,NumObs=10,Method="generalized") specifies estimating a generalized IRF for 10 time points starting at time 0, during which irf applies the shock.

Options for All IRFs

collapse all

Number of periods for which irf computes the IRF, specified as a positive integer. NumObs specifies the number of observations to include in the IRF (the number of rows in Response or Tbl).

Example: NumObs=10 specifies the inclusion of 10 time points in the IRF starting at time 0, during which irf applies the shock, and ending at period 9.

Data Types: double

IRF computation method, specified as a value in this table.

ValueDescription
"orthogonalized"Compute impulse responses using orthogonalized, one-standard-deviation innovation shocks. irf uses the Cholesky factorization of Mdl.Covariance for orthogonalization.
"generalized"Compute impulse responses using one-standard-deviation innovation shocks.

Example: Method="generalized"

Data Types: string | char

Options for Confidence Bound Estimation

collapse all

Number of sample paths (trials) to generate, specified as a positive integer.

Example: NumPaths=1000 generates 1000 sample paths from which the software derives the confidence bounds.

Data Types: double

Number of observations for the Monte Carlo simulation or bootstrap per sample path, specified as a positive integer.

• If Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter), the default is the sample size of the data to which the model is fit (see summarize).

• Otherwise:

• If irf estimates confidence bounds by conducting a Monte Carlo simulation, you must specify SampleSize.

• If irf estimates confidence bounds by bootstrapping residuals, the default is the length of the specified series of residuals (size(Res,1), where Res is the number of residuals in E or InSample).

Example: If you specify SampleSize=100 and do not specify the E name-value argument, the software estimates confidence bounds from NumPaths random paths of length 100 from Mdl.

Example: If you specify SampleSize=100,E=Res, the software resamples, with replacement, 100 observations (rows) from Res to form a sample path of innovations to filter through Mdl. The software forms NumPaths random sample paths from which it derives confidence bounds.

Data Types: double

Presample response data that provides initial values for model estimation during the simulation, specified as a numpreobs-by-numseries numeric matrix. Use Y0 only in the following situations:

• You supply other optional data inputs as numeric matrices.

• Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter) fit to a numeric matrix of response data.

numpreobs is the number of presample observations. numseries is Mdl.NumSeries, the dimensionality of the input model.

Each row is a presample observation, and measurements in each row occur simultaneously. The last row contains the latest presample observation. numpreobs is the number of specified presample responses and it must be at least Mdl.P. If you supply more rows than necessary, irf uses the latest Mdl.P observations only.

numseries is the dimensionality of the input VAR model Mdl.NumSeries. Columns must correspond to the response variables in Mdl.SeriesNames.

The following situations determine the default or whether presample response data is required.

• If Mdl is an unmodified estimated model, irf sets Y0 to the presample response data used for estimation by default (see the Y0 name-value argument of estimate).

• If Mdl is a custom model and you return confidence bounds Lower or Upper, you must specify Y0.

Data Types: double

Presample data that provide initial values for the model Mdl, specified as a table or timetable with numprevars variables and numpreobs rows. Use Presample only in the following situations:

• You supply other optional data inputs as tables or timetables.

• Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter) fit to response data in a table or timetable.

Each row is a presample observation, and measurements in each row occur simultaneously. numpreobs must be at least Mdl.P. If you supply more rows than necessary, irf uses the latest Mdl.P observations only.

Each variable is a numpreobs numeric vector representing one path. To control presample variable selection, see the optional PresampleResponseVariables name-value argument.

If Presample is a timetable, all the following conditions must be true:

• Presample must represent a sample with a regular datetime time step (see isregular).

• The datetime vector of sample timestamps Presample.Time must be ascending or descending.

If Presample is a table, the following conditions hold:

• The last row contains the latest presample observation.

• Presample.Properties.RowsNames must be empty.

The following situations determine the default or whether presample response data is required.

• If Mdl is an unmodified estimated model, irf sets Presample to the presample response data used for estimation by default (see the Presample name-value argument of estimate).

• If Mdl is a custom model (for example, you modify a model after estimation by using dot notation) and you return confidence bounds in the table or timetable Tbl, you must specify Presample.

Variables to select from Presample to use for presample data, specified as one of the following data types:

• String vector or cell vector of character vectors containing numseries variable names in Presample.Properties.VariableNames

• A length numseries vector of unique indices (integers) of variables to select from Presample.Properties.VariableNames

• A length numprevars logical vector, where PresampleResponseVariables(j) = true selects variable j from Presample.Properties.VariableNames, and sum(PresampleResponseVariables) is numseries

PresampleResponseVariables applies only when you specify Presample.

The selected variables must be numeric vectors and cannot contain missing values (NaN).

PresampleResponseNames does not need to contain the same names as in Mdl.SeriesNames; irf uses the data in selected variable PresampleResponseVariables(j) as a presample for Mdl.SeriesNames(j).

If the number of variables in Presample matches Mdl.NumSeries, the default specifies all variables in Presample. If the number of variables in Presample exceeds Mdl.NumSeries, the default matches variables in Presample to names in Mdl.SeriesNames.

Example: PresampleResponseVariables=["GDP" "CPI"]

Example: PresampleResponseVariables=[true false true false] or PresampleResponseVariable=[1 3] selects the first and third table variables for presample data.

Data Types: double | logical | char | cell | string

Predictor data xt for estimating the model regression component during the simulation, specified as a numeric matrix containing numpreds columns. Use X only in the following situations:

• You supply other optional data inputs as numeric matrices.

• Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter) fit to a numeric matrix of response data.

numpreds is the number of predictor variables (size(Mdl.Beta,2)).

Each row corresponds to an observation, and measurements in each row occur simultaneously. The last row contains the latest observation. X must have at least SampleSize rows. If you supply more rows than necessary, irf uses only the latest observations. irf does not use the regression component in the presample period.

Columns correspond to individual predictor variables. All predictor variables are present in the regression component of each response equation.

To maintain model consistency when irf estimates the confidence bounds, a good practice is to specify predictor data when Mdl has a regression component. If Mdl is an estimated model, specify the predictor data used during model estimation (see the X name-value argument of estimate).

By default, irf excludes the regression component from confidence bound estimation, regardless of its presence in Mdl.

Data Types: double

Series of residuals from which to draw bootstrap samples, specified as a numperiods-by-numseries numeric matrix. irf assumes that E is free of serial correlation. Use E only in the following situations:

• You supply other optional data inputs as numeric matrices.

• Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter) fit to a numeric matrix of response data.

Each column is the residual series corresponding to the response series names in Mdl.SeriesNames.

Each row corresponds to a period in the FEVD and the corresponding confidence bounds.

If Mdl is an estimated varm model object (an object returned by estimate), you can specify E as the inferred residuals from estimation (see the E output argument of estimate or infer).

By default, irf derives confidence bounds by conducting a Monte Carlo simulation.

Data Types: double

Time series data containing numvars variables, including numseries variables of residuals et to bootstrap or numpreds predictor variables xt for the model regression component, specified as a table or timetable. Use InSample only in the following situations:

• You supply other optional data inputs as tables or timetables.

• Mdl is an estimated varm model object (an object returned by estimate and unmodified thereafter) fit to response data in a table or timetable.

Each variable is a single path of observations, which irf applies to all NumPaths sample paths. If you specify Presample you must specify which variables are residuals and predictors, see the ResidualVariables and PredictorVariables name-value arguments.

Each row is an observation, and measurements in each row occur simultaneously. InSample must have at least SampleSize rows. If you supply more rows than necessary, irf uses only the latest observations.

If InSample is a timetable, the following conditions apply:

• InSample must represent a sample with a regular datetime time step (see isregular).

• The datetime vector InSample.Time must be strictly ascending or descending.

• Presample must immediately precede InSample, with respect to the sampling frequency.

If InSample is a table, the following conditions hold:

• The last row contains the latest observation.

• InSample.Properties.RowsNames must be empty.

By default, irf derives confidence bounds by conducting a Monte Carlo simulation and does not use model the regression component, regardless of its presence in Mdl.

Variables to select from InSample to treat as residuals for bootstrapping, specified as one of the following data types:

• String vector or cell vector of character vectors containing numseries variable names in InSample.Properties.VariableNames

• A length numseries vector of unique indices (integers) of variables to select from InSample.Properties.VariableNames

• A length numvars logical vector, where ResidualVariables(j) = true selects variable j from InSample.Properties.VariableNames, and sum(ResidualVariables) is numseries

Regardless, selected residual variable j is the residual series for Mdl.SeriesNames(j).

The selected variables must be numeric vectors and cannot contain missing values (NaN).

By default, irf derives confidence bounds by conducting a Monte Carlo simulation.

Example: ResidualVariables=["GDP_Residuals" "CPI_Residuals"]

Example: ResidualVariables=[true false true false] or ResidualVariable=[1 3] selects the first and third table variables as the disturbance variables.

Data Types: double | logical | char | cell | string

Variables to select from InSample to treat as exogenous predictor variables xt, specified as one of the following data types:

• String vector or cell vector of character vectors containing numpreds variable names in InSample.Properties.VariableNames

• A length numpreds vector of unique indices (integers) of variables to select from InSample.Properties.VariableNames

• A length numvars logical vector, where PredictorVariables(j) = true selects variable j from InSample.Properties.VariableNames, and sum(PredictorVariables) is numpreds

Regardless, selected predictor variable j corresponds to the coefficients Mdl.Beta(:,j).

PredictorVariables applies only when you specify InSample.

The selected variables must be numeric vectors and cannot contain missing values (NaN).

By default, irf excludes the regression component, regardless of its presence in Mdl.

Example: PredictorVariables=["M1SL" "TB3MS" "UNRATE"]

Example: PredictorVariables=[true false true false] or PredictorVariable=[1 3] selects the first and third table variables as the response variables.

Data Types: double | logical | char | cell | string

Confidence level for the confidence bounds, specified as a numeric scalar in the interval [0,1].

For each period, randomly drawn confidence intervals cover the true response 100*Confidence% of the time.

The default value is 0.95, which implies that the confidence bounds represent 95% confidence intervals.

Example: Confidence=0.9 specifies 90% confidence intervals.

Data Types: double

Note

• NaN values in Y0, X, and E indicate missing data. irf removes missing data from these arguments by list-wise deletion. Each argument, if a row contains at least one NaN, then irf removes the entire row.

List-wise deletion reduces the sample size, can create irregular time series, and can cause E and X to be unsynchronized.

• irf issues an error when any table or timetable input contains missing values.

## Output Arguments

collapse all

IRF of each variable, returned as a numobs-by-numseries-by-numseries numeric array. numobs is the value of NumObs. Columns and pages correspond to the response variables in Mdl.SeriesNames.

irf returns Response only in the following situations:

• You supply optional data inputs as numeric matrices.

• Mdl is an estimated model fit to a numeric matrix of response data.

Response(t + 1,j,k) is the impulse response of variable k to a one-standard-deviation innovation shock to variable j at time 0, for t = 0, 1, ..., numObs – 1, j = 1,2,...,numseries, and k = 1,2,...,numseries.

Lower confidence bounds, returned as a numobs-by-numseries-by-numseries numeric array. Elements of Lower correspond to elements of Response.

irf returns Lower only in the following situations:

• You supply optional data inputs as numeric matrices.

• Mdl is an estimated model fit to a numeric matrix of response data.

Lower(t + 1,j,k) is the lower bound of the 100*Confidence-th percentile interval on the true impulse response of variable k to a one-standard-deviation innovation shock to variable j at time 0.

Upper confidence bounds, returned as a numobs-by-numseries-by-numseries numeric array. Elements of Upper correspond to elements of Response.

irf returns Upper only in the following situations:

• You supply optional data inputs as numeric matrices.

• Mdl is an estimated model fit to a numeric matrix of response data.

Upper(t + 1,j,k) is the upper bound of the 100*Confidence-th percentile interval on the true impulse response of variable k to a one-standard-deviation innovation shock to variable j at time 0.

IRF and confidence bounds, returned as a table or timetable with numobs rows. irf returns Tbl only in the following situations:

• You supply optional data inputs as tables or timetables.

• Mdl is an estimated model fit to response data in a table or timetable.

Regardless, the data type of Tbl is the same as the data type of specified data.

Tbl contains the following variables:

• The IRF of each series in yt. Each IRF variable in Tbl is a numobs-by-numseries numeric matrix, where numobs is the value of NumObs and numseries is the value of Mdl.NumSeries. irf names the IRF of response variable ResponseJ in Mdl.SeriesNames ResponseJ_IRF. For example, if Mdl.Series(j) is GDP, Tbl contains a variable for the corresponding IRF with the name GDP_IRF.

ResponseJ_IRF(t + 1,k) is the impulse response of variable ResponseJ to a one-standard-deviation innovation shock to variable k at time 0, for t = 0, 1, ..., numObs – 1, J = 1,2,...,numseries, and k = 1,2,...,numseries.

• The lower and upper confidence bounds on the true IRF of the response series, when you set at least one name-value argument that controls the confidence bounds. Each confidence bound variable in Tbl is a numobs-by-numseries numeric matrix. ResponseJ_IRF_LowerBound and ResponseJ_IRF_UpperBound are the names of the lower and upper bound variables, respectively, of the confidence interval on the IRF of response variable Mdl.SeriesNames(J) = ResponseJ . For example, if Mdl.SeriesNames(j) is GDP, Tbl contains variables for the corresponding lower and upper bounds of the confidence interval with the name GDP_IRF_LowerBound and GDP_IRF_UpperBound.

(ResponseJ_IRF_LowerBound(t,k), ResponseJ_IRF_UpperBound(t,k)) is the 95% confidence interval on the IRF of response variable ResponseJ attributable to a one-standard-deviation innovation shock to variable k at time t, for t = 0,1,…,numobs – 1, J = 1,2,...,numseries, and k = 1,2,...,numseries.

If Tbl is a timetable, the row order of Tbl, either ascending or descending, matches the row order of InSample, when you specify it. If you do not specify InSample and you specify Presample, the row order of Tbl is the same as the row order Presample.

collapse all

### Impulse Response Function

An impulse response function (IRF) of a time series model (or dynamic response of the system) measures the changes in the future responses of all variables in the system when a variable is shocked by an impulse. In other words, the IRF at time t is the derivative of the responses at time t with respect to an innovation at time t0 (the time that innovation was shocked), tt0.

Consider a numseries-D VAR(p) model for the multivariate response variable yt. In lag operator notation, the infinite lag MA representation of yt is:

$\begin{array}{c}{y}_{t}={\Phi }^{-1}\left(L\right)\left(c+\beta {x}_{t}+\delta t\right)+{\Phi }^{-1}\left(L\right){\epsilon }_{t}\\ =\Omega \left(L\right)\left(c+\beta {x}_{t}+\delta t\right)+\Omega \left(L\right){\epsilon }_{t}.\end{array}$

The general form of the IRF of yt shocked by an impulse to variable j by one standard deviation of its innovation m periods into the future is:

${\psi }_{j}\left(m\right)={C}_{m}{e}_{j}.$

• ej is a selection vector of length numseries containing a 1 in element j and zeros elsewhere.

• For the orthogonalized IRF, ${C}_{m}={\Omega }_{m}P,$ where P is the lower triangular factor in the Cholesky factorization of Σ, and Ωm is the lag m coefficient of Ω(L).

• For the generalized IRF, ${C}_{m}={\sigma }_{j}^{-1}{\Omega }_{m}\Sigma ,$ where σj is the standard deviation of innovation j.

• The IRF is free of the model constant, regression component, and time trend.

### Vector Autoregression Model

A vector autoregression (VAR) model is a stationary multivariate time series model consisting of a system of m equations of m distinct response variables as linear functions of lagged responses and other terms.

A VAR(p) model in difference-equation notation and in reduced form is

${y}_{t}=c+{\Phi }_{1}{y}_{t-1}+{\Phi }_{2}{y}_{t-2}+...+{\Phi }_{p}{y}_{t-p}+\beta {x}_{t}+\delta t+{\epsilon }_{t}.$

• yt is a numseries-by-1 vector of values corresponding to numseries response variables at time t, where t = 1,...,T. The structural coefficient is the identity matrix.

• c is a numseries-by-1 vector of constants.

• Φj is a numseries-by-numseries matrix of autoregressive coefficients, where j = 1,...,p and Φp is not a matrix containing only zeros.

• xt is a numpreds-by-1 vector of values corresponding to numpreds exogenous predictor variables.

• β is a numseries-by-numpreds matrix of regression coefficients.

• δ is a numseries-by-1 vector of linear time-trend values.

• εt is a numseries-by-1 vector of random Gaussian innovations, each with a mean of 0 and collectively a numseries-by-numseries covariance matrix Σ. For ts, εt and εs are independent.

Condensed and in lag operator notation, the system is

$\Phi \left(L\right){y}_{t}=c+\beta {x}_{t}+\delta t+{\epsilon }_{t},$

where $\Phi \left(L\right)=I-{\Phi }_{1}L-{\Phi }_{2}{L}^{2}-...-{\Phi }_{p}{L}^{p}$, Φ(L)yt is the multivariate autoregressive polynomial, and I is the numseries-by-numseries identity matrix.

## Algorithms

• If Method is "orthogonalized", then the resulting IRF depends on the order of the variables in the time series model. If Method is "generalized", then the resulting IRF is invariant to the order of the variables. Therefore, the two methods generally produce different results.

• If Mdl.Covariance is a diagonal matrix, then the resulting generalized and orthogonalized IRFs are identical. Otherwise, the resulting generalized and orthogonalized IRFs are identical only when the first variable shocks all variables (for example, all else being the same, both methods yield the same value of Response(:,1,:)).

• The predictor data in X or InSample represents a single path of exogenous multivariate time series. If you specify X or InSample and the model Mdl has a regression component (Mdl.Beta is not an empty array), irf applies the same exogenous data to all paths used for confidence interval estimation.

• irf conducts a simulation to estimate the confidence bounds Lower and Upper or associated variables in Tbl.

• If you do not specify residuals by supplying E or using InSample, irf conducts a Monte Carlo simulation by following this procedure:

1. Simulate NumPaths response paths of length SampleSize from Mdl.

2. Fit NumPaths models that have the same structure as Mdl to the simulated response paths. If Mdl contains a regression component and you specify predictor data by supplying X or using InSample, then irf fits the NumPaths models to the simulated response paths and the same predictor data (the same predictor data applies to all paths).

3. Estimate NumPaths IRFs from the NumPaths estimated models.

4. For each time point t = 0,…,NumObs, estimate the confidence intervals by computing 1 – Confidence and Confidence quantiles (upper and lower bounds, respectively).

• Otherwise, irf conducts a nonparametric bootstrap by following this procedure:

1. Resample, with replacement, SampleSize residuals from E or InSample. Perform this step NumPaths times to obtain NumPaths paths.

2. Center each path of bootstrapped residuals.

3. Filter each path of centered, bootstrapped residuals through Mdl to obtain NumPaths bootstrapped response paths of length SampleSize.

4. Complete steps 2 through 4 of the Monte Carlo simulation, but replace the simulated response paths with the bootstrapped response paths.

## References

[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Lütkepohl, Helmut. New Introduction to Multiple Time Series Analysis. New York, NY: Springer-Verlag, 2007.

[3] Pesaran, H. H., and Y. Shin. "Generalized Impulse Response Analysis in Linear Multivariate Models." Economic Letters. Vol. 58, 1998, pp. 17–29.

## Version History

Introduced in R2019a
