smooth
Backward recursion of state-space models
Description
returns smoothed states (X
= smooth(Mdl
,Y
)X
)
by performing backward recursion of the fully-specified state-space model Mdl
.
That is, smooth
applies the standard Kalman filter using Mdl
and
the observed responses Y
.
uses
additional options specified by one or more X
= smooth(Mdl
,Y
,Name,Value
)Name,Value
pair
arguments.
If Mdl
is not fully specified, then you must
set the unknown parameters to known scalars using the Params
Name,Value
pair
argument.
[
uses any of the input arguments
in the previous syntaxes to additionally return the loglikelihood
value (X
,logL
,Output
]
= smooth(___)logL
) and an output structure array (Output
)
containing:
Smoothed states and their estimated covariance matrix
Smoothed state disturbances and their estimated covariance matrix
Smoothed observation innovations and their estimated covariance matrix
The loglikelihood value
The adjusted Kalman gain
And a vector indicating which data the software used to filter
Examples
Smooth States of Time-Invariant State-Space Model
Suppose that a latent process is an AR(1). The state equation is
where is Gaussian with mean 0 and standard deviation 0.5.
Generate a random series of 100 observations from , assuming that the series starts at 1.5.
T = 100; ARMdl = arima('AR',0.5,'Constant',0,'Variance',0.5^2); x0 = 1.5; rng(1); % For reproducibility x = simulate(ARMdl,T,'Y0',x0);
Suppose further that the latent process is subject to additive measurement error. The observation equation is
where is Gaussian with mean 0 and standard deviation 0.05. Together, the latent process and observation equations compose a state-space model.
Use the random latent state process (x
) and the observation equation to generate observations.
y = x + 0.05*randn(T,1);
Specify the four coefficient matrices.
A = 0.5; B = 0.5; C = 1; D = 0.05;
Specify the state-space model using the coefficient matrices.
Mdl = ssm(A,B,C,D)
Mdl = State-space model type: ssm State vector length: 1 Observation vector length: 1 State disturbance vector length: 1 Observation innovation vector length: 1 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equation: x1(t) = (0.50)x1(t-1) + (0.50)u1(t) Observation equation: y1(t) = x1(t) + (0.05)e1(t) Initial state distribution: Initial state means x1 0 Initial state covariance matrix x1 x1 0.33 State types x1 Stationary
Mdl
is an ssm
model. Verify that the model is correctly specified using the display in the Command Window. The software infers that the state process is stationary. Subsequently, the software sets the initial state mean and covariance to the mean and variance of the stationary distribution of an AR(1) model.

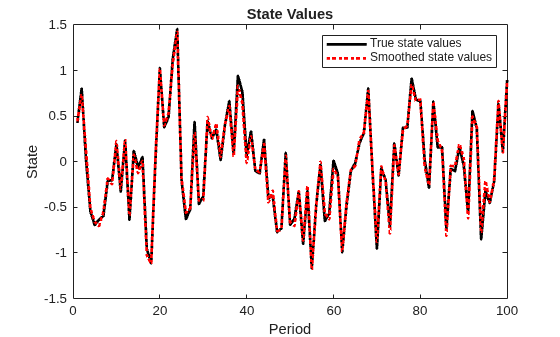

Smooth the states for periods 1 through 100. Plot the true state values and the smoothed states.
SmoothedX = smooth(Mdl,y); figure plot(1:T,x,'-k',1:T,SmoothedX,':r','LineWidth',2) title({'State Values'}) xlabel('Period') ylabel('State') legend({'True state values','Smoothed state values'})
Smooth States of State-Space Model Containing Regression Component
Suppose that the linear relationship between the change in the unemployment rate and the nominal gross national product (nGNP) growth rate is of interest. Suppose further that the first difference of the unemployment rate is an ARMA(1,1) series. Symbolically, and in state-space form, the model is
where:
is the change in the unemployment rate at time t.
is a dummy state for the MA(1) effect.
is the observed unemployment rate being deflated by the growth rate of nGNP ().
is the Gaussian series of state disturbances having mean 0 and standard deviation 1.
is the Gaussian series of observation innovations having mean 0 and standard deviation .
Load the Nelson-Plosser data set, which contains the unemployment rate and nGNP series, among other things.
load Data_NelsonPlosser
Preprocess the data by taking the natural logarithm of the nGNP series, and the first difference of each series. Also, remove the starting NaN
values from each series.
isNaN = any(ismissing(DataTable),2); % Flag periods containing NaNs gnpn = DataTable.GNPN(~isNaN); u = DataTable.UR(~isNaN); T = size(gnpn,1); % Sample size Z = [ones(T-1,1) diff(log(gnpn))]; y = diff(u);
Though this example removes missing values, the software can accommodate series containing missing values in the Kalman filter framework.
Specify the coefficient matrices.
A = [NaN NaN; 0 0]; B = [1; 1]; C = [1 0]; D = NaN;
Specify the state-space model using ssm
.
Mdl = ssm(A,B,C,D);
Estimate the model parameters. Specify the regression component and its initial value for optimization using the 'Predictors'
and 'Beta0'
name-value pair arguments, respectively. Restrict the estimate of to all positive, real numbers.
params0 = [0.3 0.2 0.2]; % Chosen arbitrarily [EstMdl,estParams] = estimate(Mdl,y,params0,'Predictors',Z,... 'Beta0',[0.1 0.2],'lb',[-Inf,-Inf,0,-Inf,-Inf]);
Method: Maximum likelihood (fmincon) Sample size: 61 Logarithmic likelihood: -99.7245 Akaike info criterion: 209.449 Bayesian info criterion: 220.003 | Coeff Std Err t Stat Prob ---------------------------------------------------------- c(1) | -0.34098 0.29608 -1.15164 0.24948 c(2) | 1.05003 0.41377 2.53771 0.01116 c(3) | 0.48592 0.36790 1.32079 0.18657 y <- z(1) | 1.36121 0.22338 6.09358 0 y <- z(2) | -24.46711 1.60018 -15.29024 0 | | Final State Std Dev t Stat Prob x(1) | 1.01264 0.44690 2.26592 0.02346 x(2) | 0.77718 0.58917 1.31912 0.18713
EstMdl
is an ssm
model, and you can access its properties using dot notation.

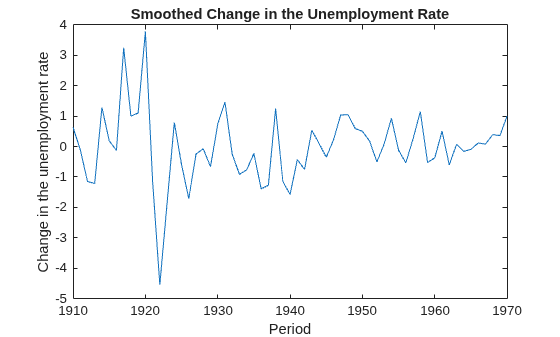

Smooth the states. EstMdl
does not store the data or the regression coefficients, so you must pass in them in using the name-value pair arguments 'Predictors'
and 'Beta'
, respectively. Plot the smoothed states. Recall that the first state is the change in the unemployment rate, and the second state helps build the first.
SmoothedX = smooth(EstMdl,y,'Predictors',Z,'Beta',estParams(end-1:end)); figure plot(dates(end-(T-1)+1:end),SmoothedX(:,1)); xlabel('Period') ylabel('Change in the unemployment rate') title('Smoothed Change in the Unemployment Rate')
Input Arguments
Mdl
— Standard state-space model
ssm
model object
Standard state-space model, specified as an ssm
model
object returned by ssm
or estimate
.
If Mdl
is not fully specified (that is, Mdl
contains
unknown parameters), then specify values for the unknown parameters using the
'
Params
'
name-value
argument. Otherwise, the software issues an error. estimate
returns
fully-specified state-space models.
Mdl
does not store observed responses or predictor data. Supply the data
wherever necessary using the appropriate input or name-value arguments.
Y
— Observed response data
numeric matrix | cell vector of numeric vectors
Observed response data, specified as a numeric matrix or a cell vector of numeric vectors.
If
Mdl
is time invariant with respect to the observation equation, thenY
is a T-by-n matrix, where each row corresponds to a period and each column corresponds to a particular observation in the model. T is the sample size and m is the number of observations per period. The last row ofY
contains the latest observations.If
Mdl
is time varying with respect to the observation equation, thenY
is a T-by-1 cell vector. Each element of the cell vector corresponds to a period and contains an nt-dimensional vector of observations for that period. The corresponding dimensions of the coefficient matrices inMdl.C{t}
andMdl.D{t}
must be consistent with the matrix inY{t}
for all periods. The last cell ofY
contains the latest observations.
NaN
elements indicate missing observations. For details on how the
Kalman filter accommodates missing observations, see Algorithms.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'Beta',beta,'Predictors',Z
specifies
to deflate the observations by the regression component composed of
the predictor data Z
and the coefficient matrix beta
.
Beta
— Regression coefficients
[]
(default) | numeric matrix
Regression coefficients corresponding to predictor variables,
specified as the comma-separated pair consisting of 'Beta'
and
a d-by-n numeric matrix. d is
the number of predictor variables (see Predictors
)
and n is the number of observed response series
(see Y
).
If Mdl
is an estimated state-space model,
then specify the estimated regression coefficients stored in estParams
.
Params
— Values for unknown parameters
numeric vector
Values for unknown parameters in the state-space model, specified as the comma-separated pair consisting of 'Params'
and a numeric vector.
The elements of Params
correspond to the unknown parameters in the state-space model matrices A
, B
, C
, and D
, and, optionally, the initial state mean Mean0
and covariance matrix Cov0
.
If you created
Mdl
explicitly (that is, by specifying the matrices without a parameter-to-matrix mapping function), then the software maps the elements ofParams
toNaN
s in the state-space model matrices and initial state values. The software searches forNaN
s column-wise following the orderA
,B
,C
,D
,Mean0
, andCov0
.If you created
Mdl
implicitly (that is, by specifying the matrices with a parameter-to-matrix mapping function), then you must set initial parameter values for the state-space model matrices, initial state values, and state types within the parameter-to-matrix mapping function.
If Mdl
contains unknown parameters, then you must specify their values. Otherwise, the software ignores the value of Params
.
Data Types: double
Predictors
— Predictor variables in state-space model observation equation
[]
(default) | numeric matrix
Predictor variables in the state-space model observation equation,
specified as the comma-separated pair consisting of 'Predictors'
and
a T-by-d numeric matrix. T is
the number of periods and d is the number of predictor
variables. Row t corresponds to the observed predictors
at period t (Zt).
The expanded observation equation is
That is, the software deflates the observations using the regression component. β is the time-invariant vector of regression coefficients that the software estimates with all other parameters.
If there are n observations per period, then the software regresses all predictor series onto each observation.
If you specify Predictors
, then Mdl
must
be time invariant. Otherwise, the software returns an error.
By default, the software excludes a regression component from the state-space model.
Data Types: double
SquareRoot
— Square root filter method flag
false
(default) | true
Square root filter method flag, specified as the comma-separated pair consisting of
'SquareRoot'
and true
or
false
. If true
, then
smooth
applies the square root filter method when
implementing the Kalman filter.
If you suspect that the eigenvalues of the filtered state or
forecasted observation covariance matrices are close to zero, then
specify 'SquareRoot',true
. The square root filter
is robust to numerical issues arising from finite the precision of
calculations, but requires more computational resources.
Example: 'SquareRoot',true
Data Types: logical
Tolerance
— Forecast uncertainty threshold
0
(default) | nonnegative scalar
Forecast uncertainty threshold, specified as the comma-separated
pair consisting of 'Tolerance'
and a nonnegative
scalar.
If the forecast uncertainty for a particular observation is
less than Tolerance
during numerical estimation,
then the software removes the uncertainty corresponding to the observation
from the forecast covariance matrix before its inversion.
It is best practice to set Tolerance
to a
small number, for example, le-15
, to overcome numerical
obstacles during estimation.
Example: 'Tolerance',le-15
Data Types: double
Univariate
— Univariate treatment of multivariate series flag
false
(default) | true
Univariate treatment of a multivariate series flag, specified
as the comma-separated pair consisting of 'Univariate'
and true
or false
.
Univariate treatment of a multivariate series is also known as sequential
filtering.
The univariate treatment can accelerate and improve numerical stability of the Kalman filter. However, all observation innovations must be uncorrelated. That is, DtDt' must be diagonal, where Dt, t = 1,...,T, is one of the following:
The matrix
D{t}
in a time-varying state-space modelThe matrix
D
in a time-invariant state-space model
Example: 'Univariate',true
Data Types: logical
Output Arguments
X
— Smoothed states
matrix | cell vector of vectors
Smoothed states, returned as a matrix or a cell vector of matrices.
If Mdl
is time invariant, then the number
of rows of X
is the sample size, and the number
of columns of X
is the number of states. The last
row of X
contains the latest smoothed states.
If Mdl
is time varying, then X
is
a cell vector with length equal to the sample size. Cell t of X
contains
a vector of smoothed states with length equal to the number of states
in period t. The last cell of X
contains
the latest smoothed states.
Data Types: cell
| double
logL
— Loglikelihood function value
scalar
Loglikelihood function value, returned as a scalar.
Missing observations do not contribute to the loglikelihood.
Output
— Smoothing results by period
structure array
Smoothing results by period, returned as a structure array.
Output
is a T-by-1 structure,
where element t corresponds to the smoothing recursion
at time t.
If
Univariate
isfalse
(it is by default), then the following table describes the fields ofOutput
.Field Description Estimate LogLikelihood
Scalar loglikelihood objective function value N/A SmoothedStates
mt-by-1 vector of smoothed states SmoothedStatesCov
mt-by-mt variance-covariance matrix of the smoothed states SmoothedStateDisturb
kt-by-1 vector of smoothed state disturbances SmoothedStateDisturbCov
kt-by-kt variance-covariance matrix of the smoothed, state disturbances SmoothedObsInnov
ht-by-1 vector of smoothed observation innovations SmoothedObsInnovCov
ht-by-ht variance-covariance matrix of the smoothed, observation innovations KalmanGain
mt-by-nt adjusted Kalman gain matrix N/A DataUsed
ht-by-1 logical vector indicating whether the software filters using a particular observation. For example, if observation i at time t is a NaN
, then element i inDataUsed
at time t is0
.N/A If
Univarite
istrue
, then the fields ofOutput
are the same as in the previous table, but the values inKalmanGain
might vary.
Tips
Mdl
does not store the response data, predictor data, and the regression coefficients. Supply the data wherever necessary using the appropriate input or name-value arguments.To accelerate estimation for low-dimensional, time-invariant models, set
'Univariate',true
. Using this specification, the software sequentially updates rather then updating all at once during the filtering process.
Algorithms
The Kalman filter accommodates missing data by not updating filtered state estimates corresponding to missing observations. In other words, suppose there is a missing observation at period t. Then, the state forecast for period t based on the previous t – 1 observations and filtered state for period t are equivalent.
For explicitly defined state-space models,
smooth
applies all predictors to each response series. However, each response series has its own set of regression coefficients.
References
[1] Durbin J., and S. J. Koopman. Time Series Analysis by State Space Methods. 2nd ed. Oxford: Oxford University Press, 2012.
Version History
Introduced in R2014a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
