getDisplayChannelTags

Return all Logic Analyzer display channel tags

Syntax

displayChannelTags = getDisplayChannelTags(scope)

Description

displayChannelTags = getDisplayChannelTags(scope) returns all the tags for waves or dividers in a Logic Analyzer. You use these tags to

• Get information about a wave or divider using getDisplayChannelInfo

• Modify a wave or divider using modifyDisplayChannel

• Delete a wave or divider using deleteDisplayChannel

Examples

Manipulate Logic Analyzer Programatically

Use functions to construct and manipulate a dsp.LogicAnalyzer System object.

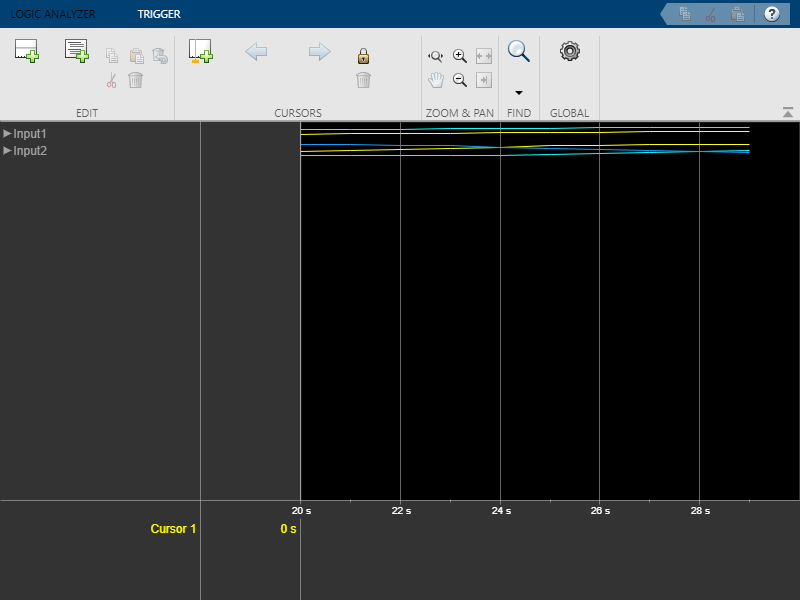

Display Waves on Logic Analyzer scope.

scope = dsp.LogicAnalyzer('NumInputPorts',2);

stop = 30;
for count = 1:stop
    sinValVec = sin(count/stop*2*pi);
    cosValVec = cos(count/stop*2*pi);
    cosValVecOffset = cos((count+10)/stop*2*pi);

    scope([count (count-(stop/2))],[sinValVec cosValVec cosValVecOffset])
end

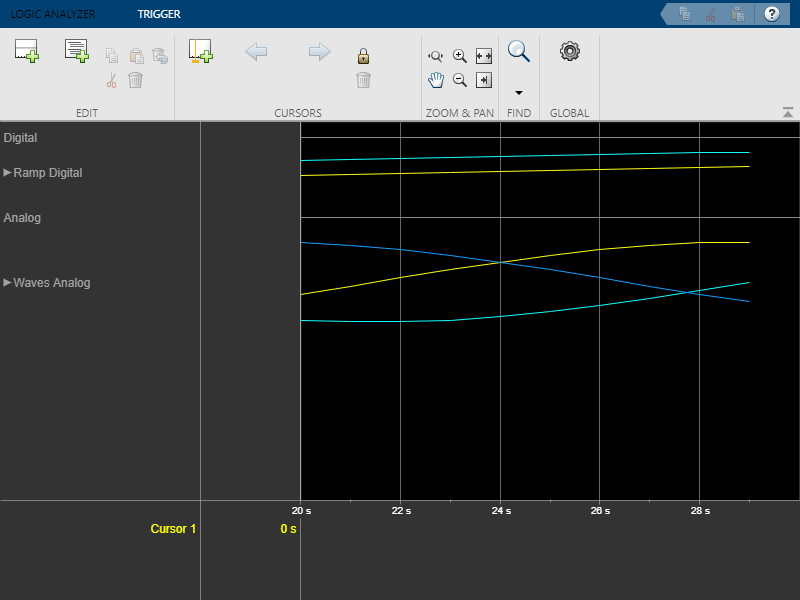

Reorganize Display

hide(scope)
digitalDividerTag = addDivider(scope,'Name','Digital','Height',20);
analogDividerTag = addDivider(scope,'Name','Analog','Height',40);

tags = getDisplayChannelTags(scope);

modifyDisplayChannel(scope,tags{1},'InputChannel',1,...
    'Name','Ramp Digital','Height',40);
modifyDisplayChannel(scope,tags{2},'InputChannel',2,...
    'Name','Waves Analog','Format','Analog','Height',80);

moveDisplayChannel(scope,digitalDividerTag,'DisplayChannel',1)
moveDisplayChannel(scope,tags{2},'DisplayChannel',length(tags))

show(scope)

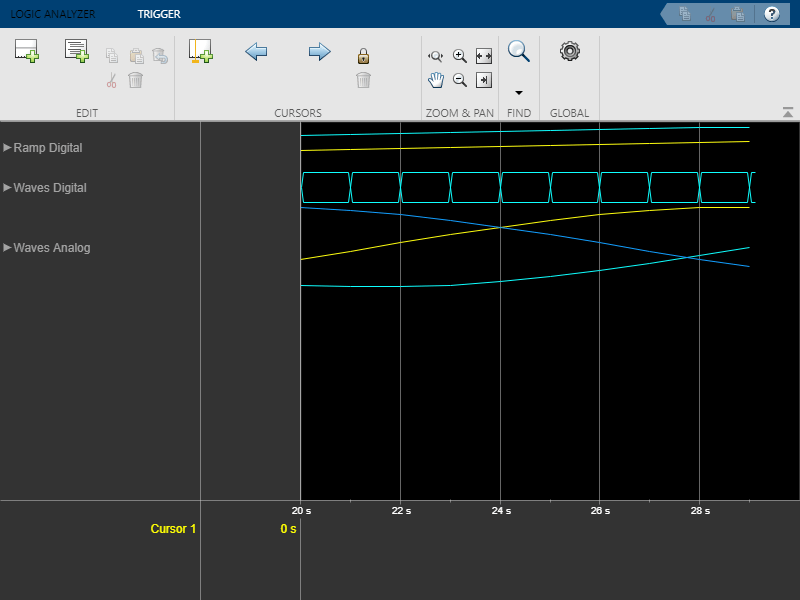

Duplicate Wave and Check Information

hide(scope)
addWave(scope,'InputChannel',2,'Name','Waves Digital','Format','Digital',...
    'Height',30,'DisplayChannel',3);
show(scope)

Remove Dividers

hide(scope)
deleteDisplayChannel(scope,digitalDividerTag)
deleteDisplayChannel(scope,analogDividerTag)
show(scope)

Clear variables

clear analogDividerTag cosValVec cosValVecOffset count digitalDividerTag duplicateWave scope sinValVec stop tags

Input Arguments

scope — The Logic Analyzer object from which you want to return all display channel tags

dsp.LogicAnalyzer object

The Logic Analyzer object from which you want to return all display channel tags, specified as a handle to the dsp.LogicAnalyzer object.

Output Arguments

displayChannelTags — The display channel tags

cell array of character vectors

The display channel tags, returned as a cell array of character vectors.

Example: {'W1'}

Example: {'W1','W2','W3'}

Data Types: cell
